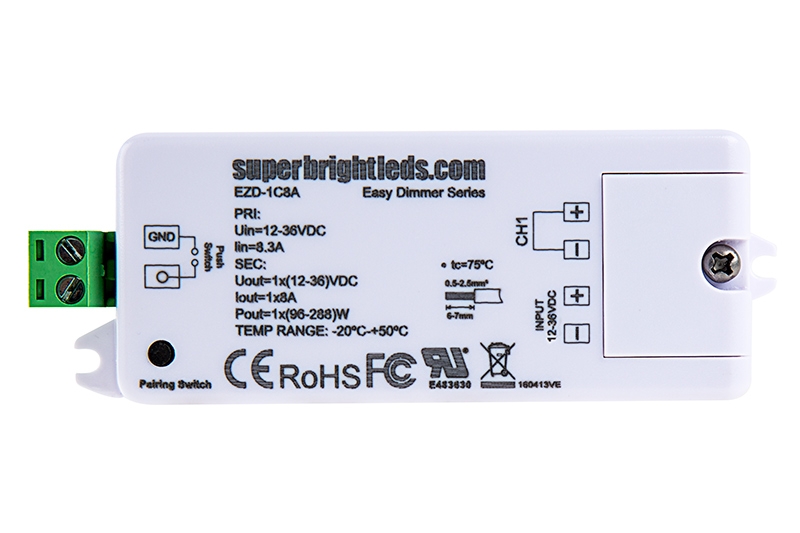

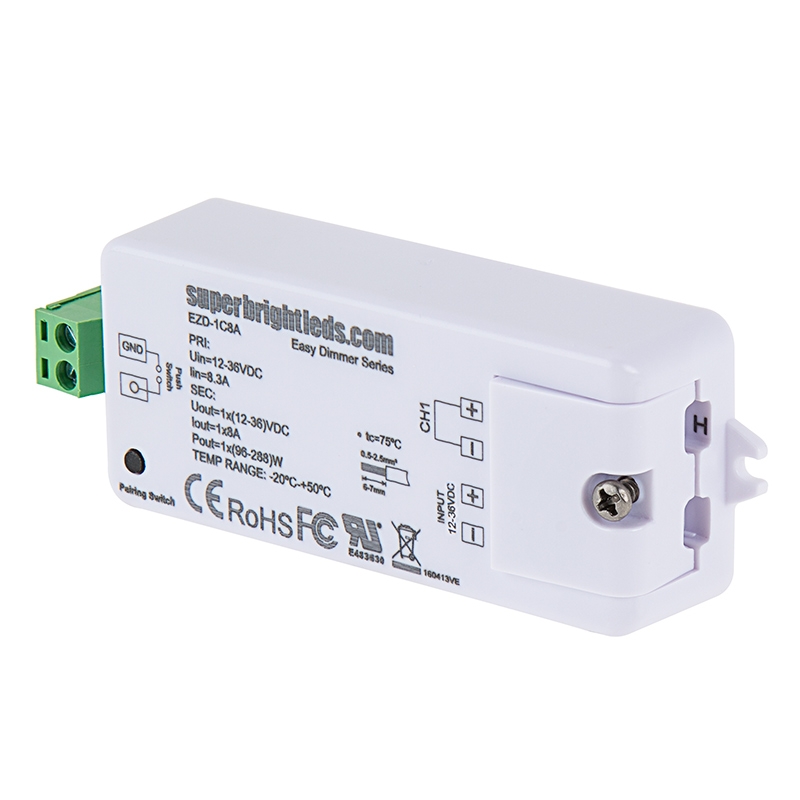

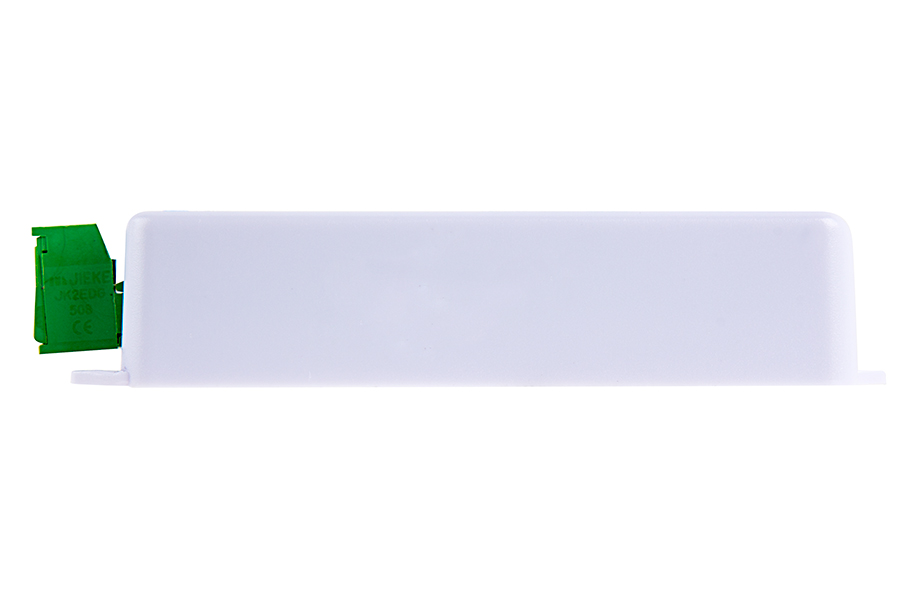

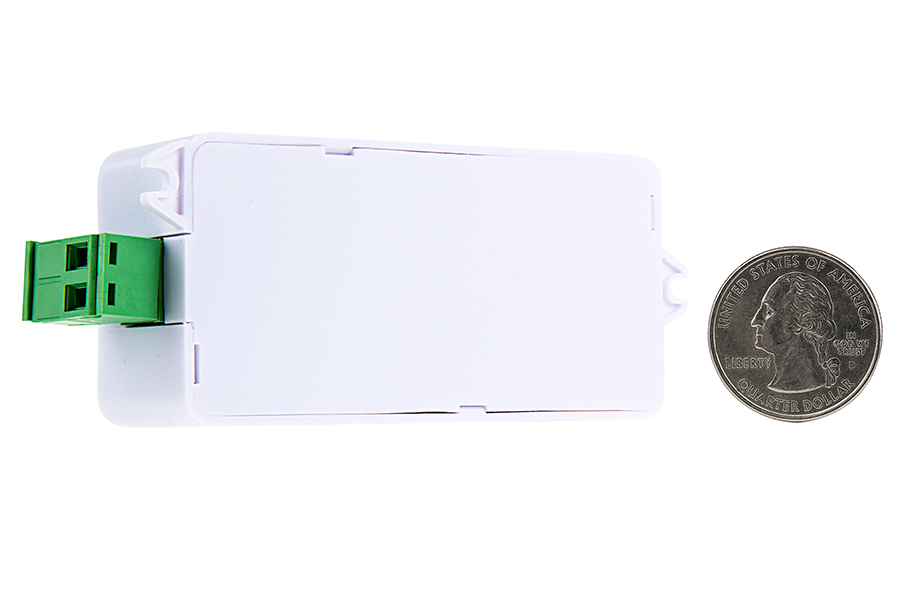

    Wireless LED 1 Channel EZ Dimmer Controller

      (6 Reviews) | Write a review
    SKU: EZD-1C8A
    Discontinued
    Starting at: $29.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

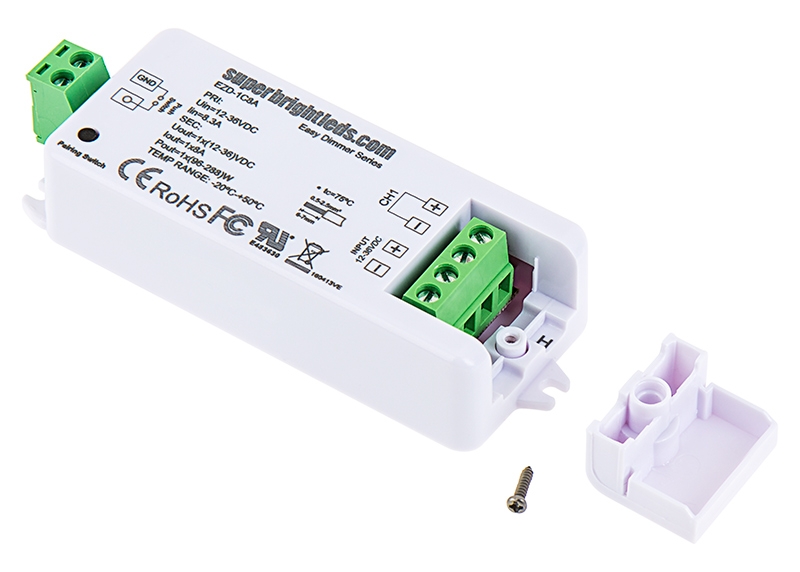

    Designed for use within the EZ Dimmer series, this wireless 1 channel LED dimmer controller operates within a 12-36 VDC while receiving RF signals from a compatible wireless LED dimmer wall switch. The LED receiver has a maximum load capacity of 8 amps and has spring terminal connectors for in and out power connections.

    Specifications
    Amps Per Channel:    8 Amps/CH
    Channels:    1 Channel
    Control Type:    Handheld (RF) Remote
    Finish:    White
    Input Connection Type:    Screw Terminals
    Input Voltage DC:    12 ~ 36 VDC
    Input Voltage Range:    12-36 VDC
    Radio Frequency:    868 MHz
    Standards And Certifications:    CE, FCC, RoHS Compliant, UL Recognized
    Type:    Controllers
    Volts:    12~36 VDC
    Package Weight: 2.4oz (0.07kg)
    Package Dimensions: 6" (15cm) x 2" (5cm) x 1" (3cm)
    All specifications are subject to change without notice.
