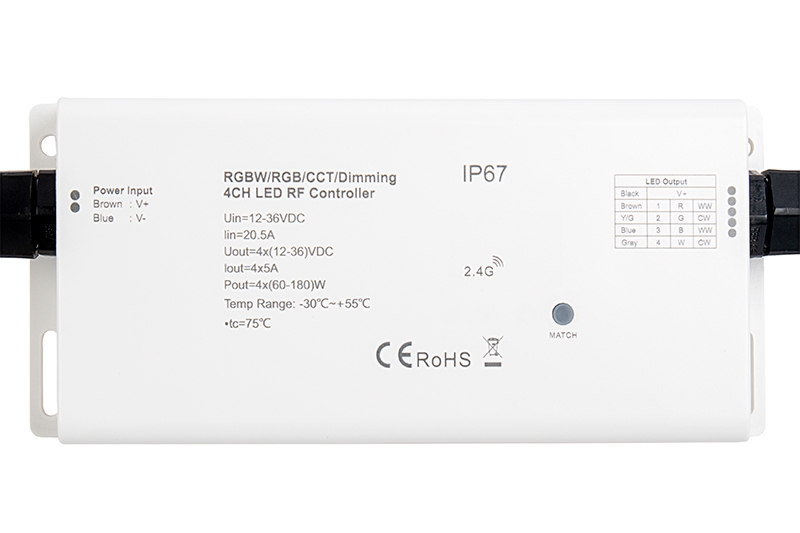

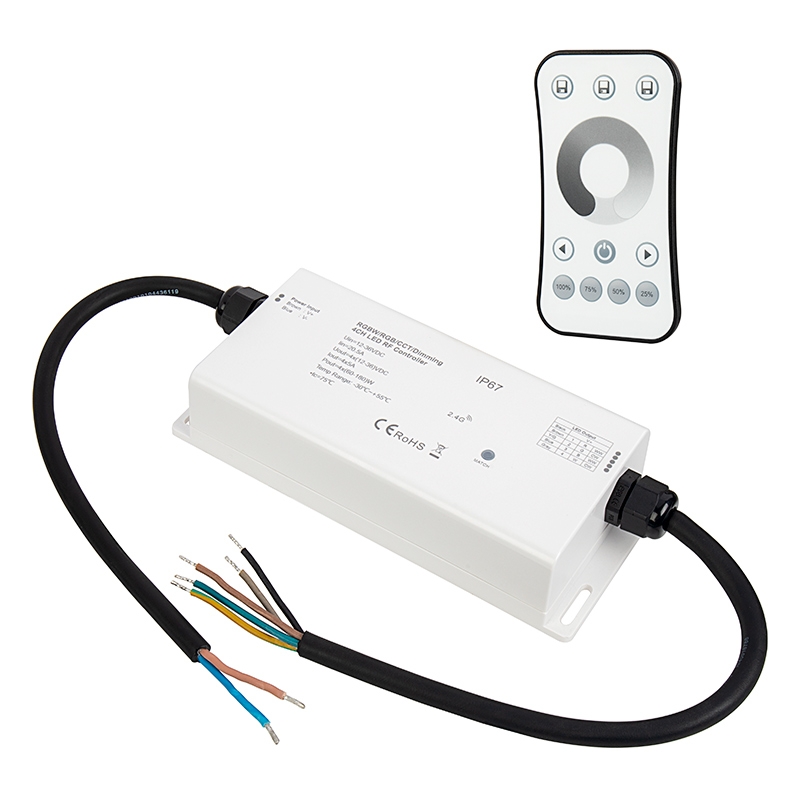

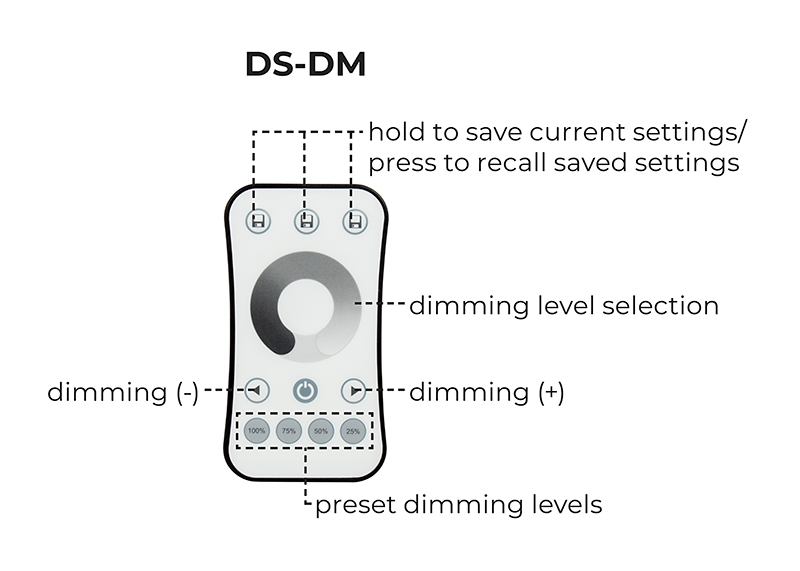

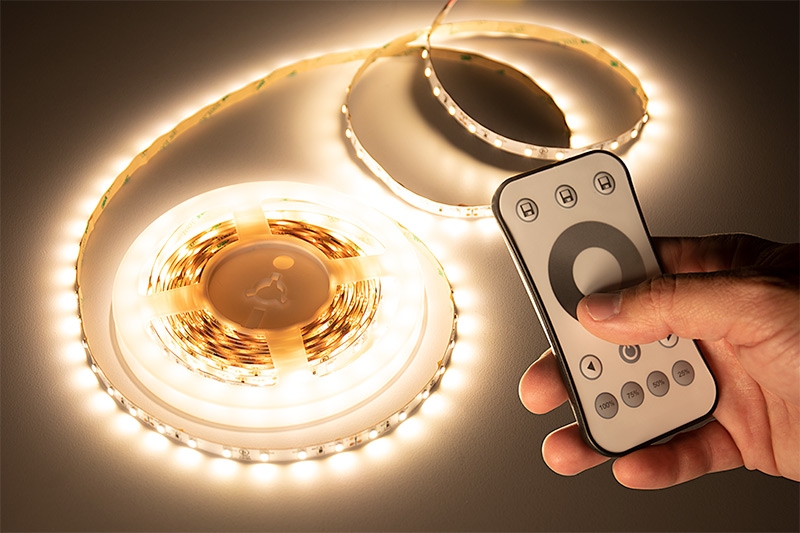

DS series Receiver is a constant voltage controller that allows up to 4 channels. Fully enclosed plastic housing is rated IP67 for wet conditions and outdoor application. Easily pairs with remote to dim single color LED lights between 0-100%.

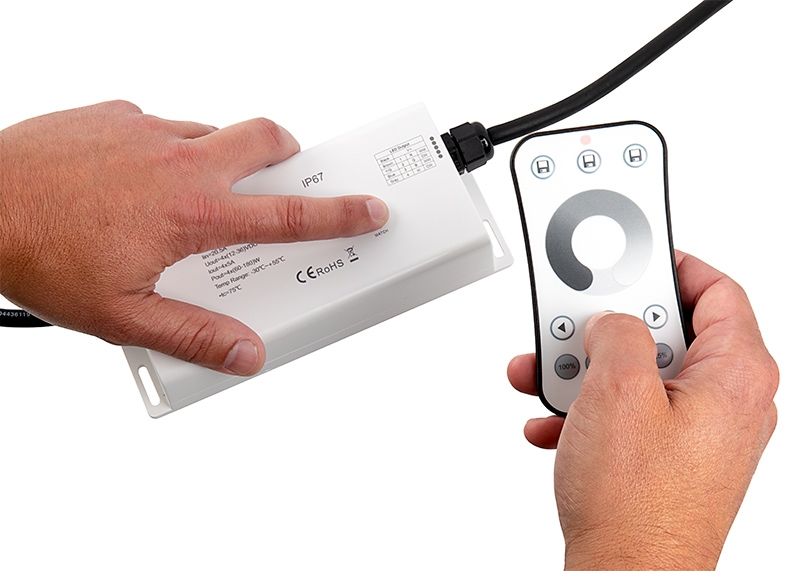

 Remotes must be paired as part of the installation process and do not come pre-paired. Please see manual for details.

Product Details:

• Input Voltage Range: 12–36 VDC
• Max Input Current: 20.5 A
• Max. Output Current: 5 A per channel (20 A total)
• Output power 4 x 180-watts
• PWM Frequency 500Hz
• Transmission Range: 98ft
• Repeats signal to another receiver within 98ft
• 4096 levels for smooth 0-100% dimming
• Protects against overheat, overload, and short circuit

Specifications
Amps Per Channel:    5 Amps/CH

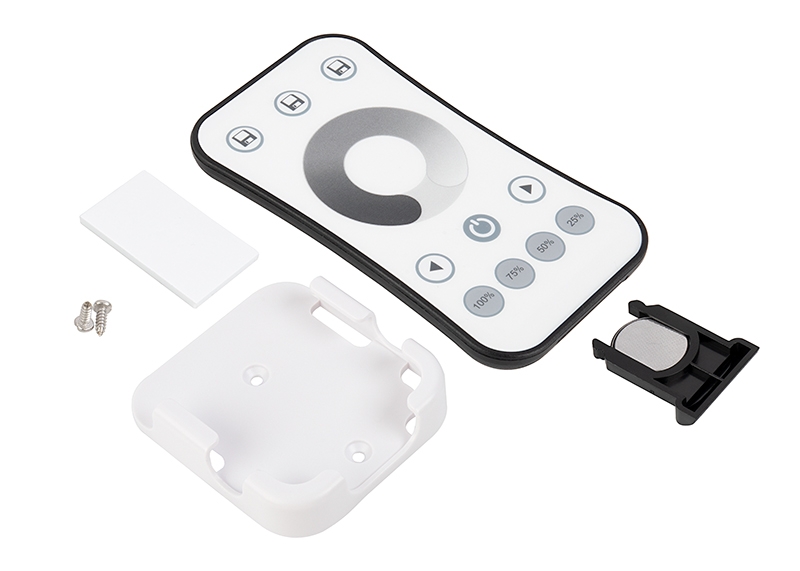

Batteries:    CR2032 x1 (included)
Certifications/Compliance:    CE
Channels:    4 Channels
Control Type:    Handheld (RF) Remote
Electrical Connection:    Pigtail
IP Rating:     IP67
Input Voltage Range:    12-36 VDC
Max Input Current:    20.5 A
Max Output Current:    20 A (5 A x 4 channels*)
Max Range:    Up to 30m (98')
Operating Temperature:    -30~+55 °C (-22~+131 °F)
Output Power:    4 x (60-180)W
Output Voltage Range:    12-36 VDC
Power Consumption:    4 Watts
Product Weight:    0lb 12oz (0.34kg)
Signal Type:    2.4 GHz RF
Package Weight: 11.9oz (0.34kg)
Package Dimensions: 10" (25cm) x 4.75" (12cm) x 2.5" (6cm)
All specifications are subject to change without notice.
