Single Color LED Controller with Dynamic Modes - RF Remote

Single Color LED Controller with Dynamic Modes - RF Remote

(8 Reviews) | Write a review

SKU: MCBRF-4A

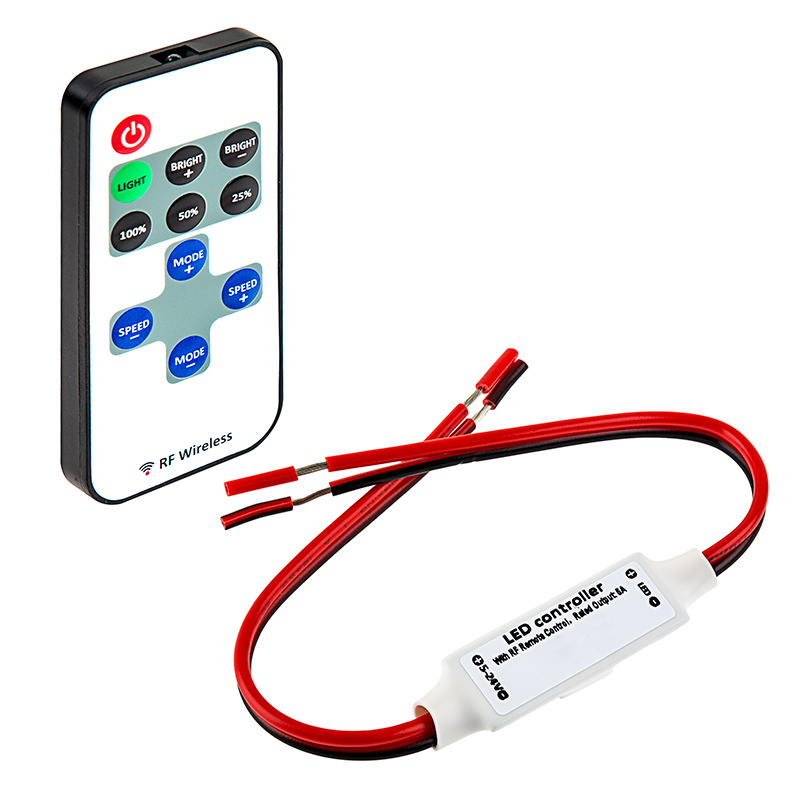

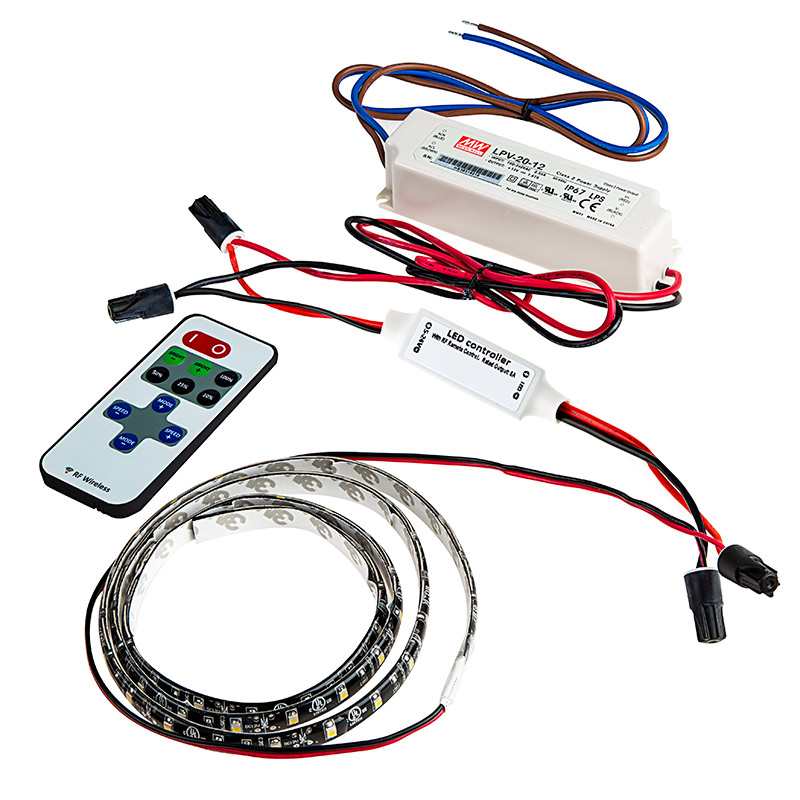

Universal single color mini LED dimmer with RF remote can dim most 5~24VDC LED products from 15%-100% using Pulse Width Modulation (PWM). 8 dynamic modes with adjustable speed control. Features power cycle mode retention. Maximum load is 4 amps. Attached 4" power input and controller output wire leads. 1 Remote to 1 controller pairing. Range greater than 30ft in open air. Battery for RF remote included.

Specifications
Amps:   4.00 Amps
Amps Per Channel:   4 Amps/CH
Certifications/Compliance:   FCC, RoHS Compliant
Channels:   1
Channels:   1 Channel

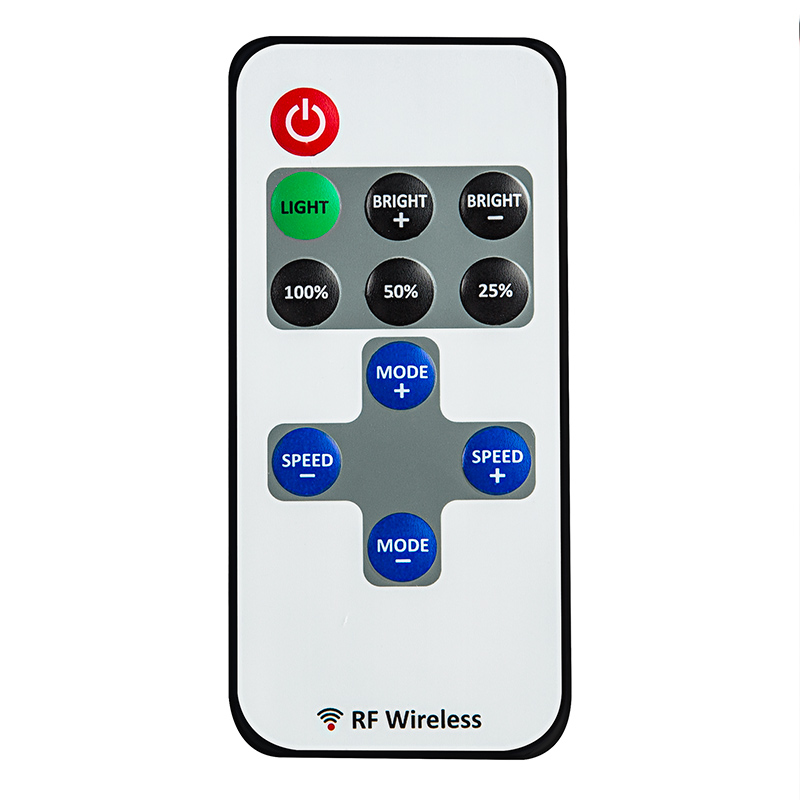

Control Type:   Handheld (RF) Remote
Dim Control:   Remote Control
Electrical Connection:   Pigtail
Input Voltage DC:   5~24 VDC
Operating Voltage:   12 VDC, 24 VDC
Remote Range:   Up to 9m (30')
Type:   Dimmers, Remote Control, Single Color Dimmer
Package Weight: 1.6oz (0.05kg)
Package Dimensions: 4.25" (11cm) x 0.99" (3cm) x 0.99" (3cm)
All specifications are subject to change without notice.
