    Single Color LED Controller with Dynamic Modes - CPS

      (7 Reviews) | Write a review
    SKU: MLD-5A-CPS
    Discontinued
    Starting at: $6.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

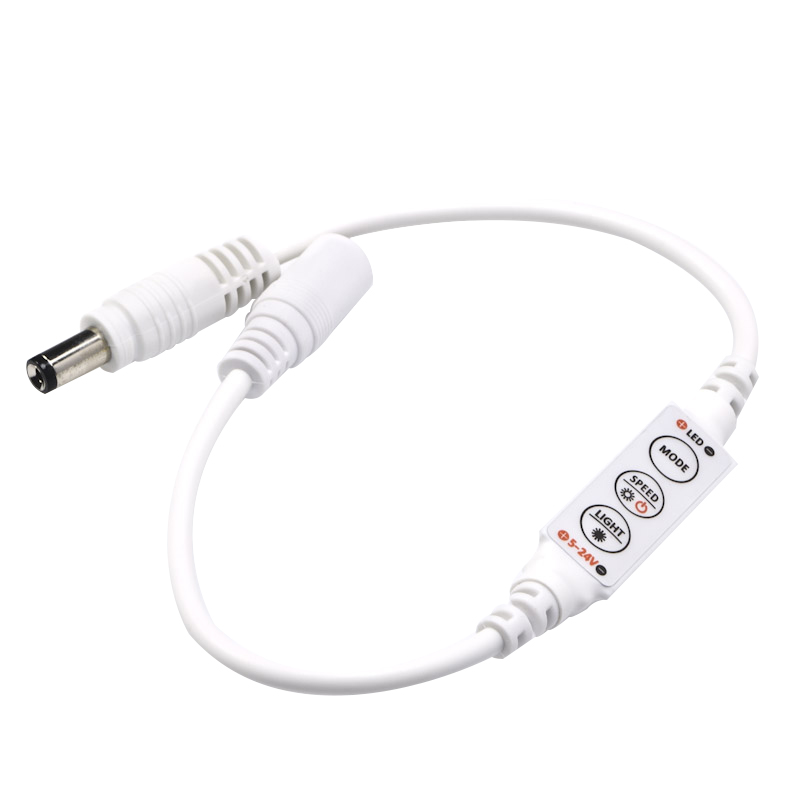

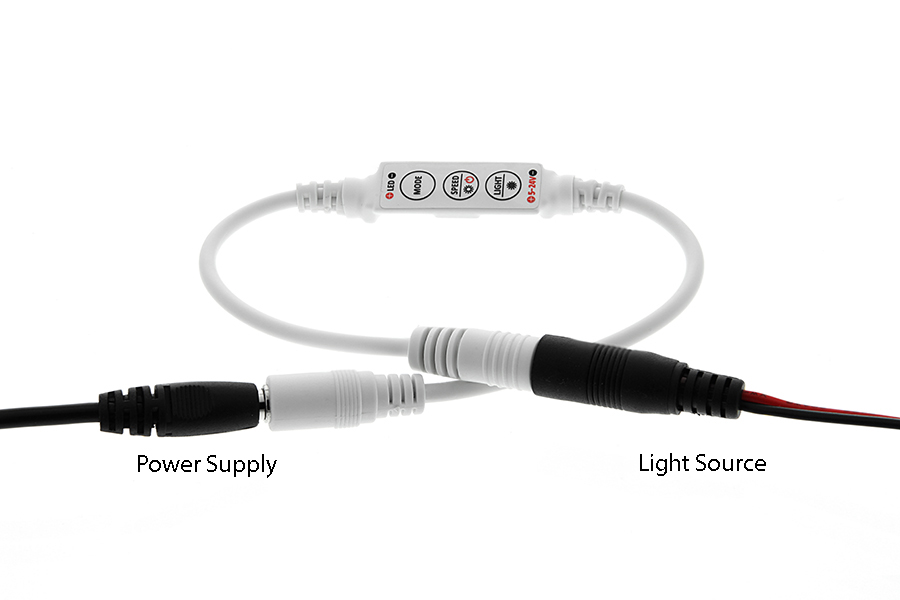

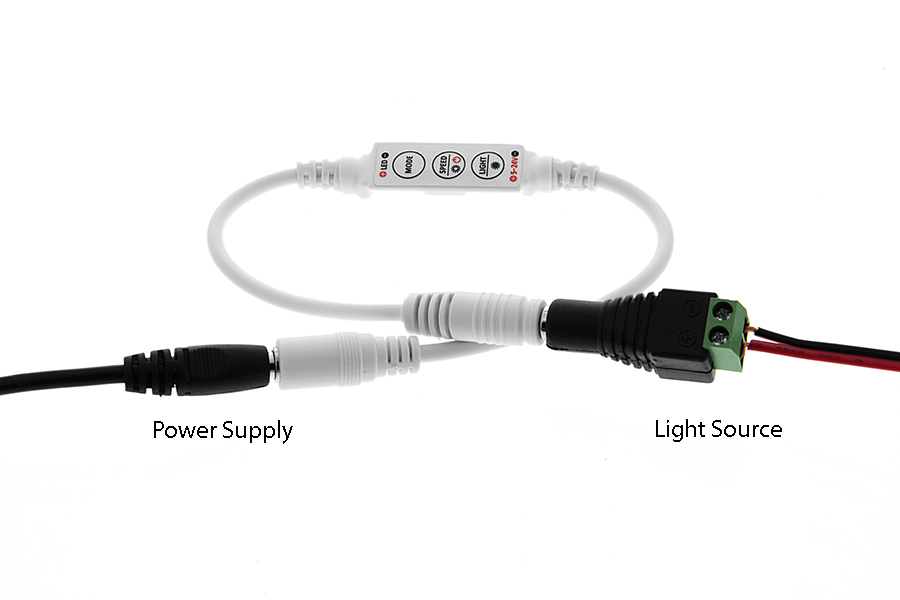

    Universal single color mini LED dimmer and dynamic mode controller can dim any 5~24VDC LED products from 15%-100% using Pulse Width Modulation (PWM). Includes controller mounted push buttons for mode, speed and brightness adjustment. Features 8 dynamic flashing modes with adjustable speeds and power cycle mode retention. Maximum load is 5 Amps. Features 3.5" CPS power plug for easy plug and play installation. Price for each.

    Specifications
    Amps:    5 Amps
    Amps Per Channel:    5 Amps/CH
    Channels:    1 Channel
    Control Type:    In-line Wired
    Dim Control:    Push Button Control
    Input Connection Type:    CPS Female, CPS Male
    Input Voltage DC:    5~24 VDC
    Standards And Certifications:    RoHS Compliant
    Type:    CPS Barrel Connector, Dimmers, In-line Dimmer, Single Color Dimmer
    Package Weight: 0.8oz (0.02kg)
    Package Dimensions: 5" (13cm) x 1.32" (3cm) x 1.32" (3cm)


    Product Review

    Show more reviews
    store image

    Single Color LED Controller with Dynamic Modes - CPS

    Part Number: MLD-5A-CPS
