LDP-2A 12 Volt DC Single Color LED Dimmer

LDP-2A 12 Volt DC Single Color LED Dimmer

(3 Reviews) | Write a review

SKU: LDP-2A

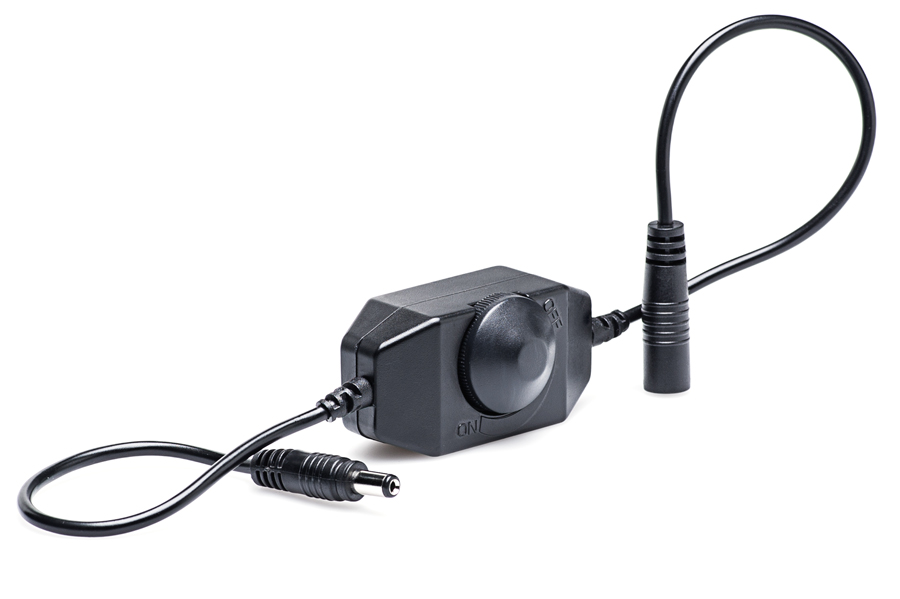

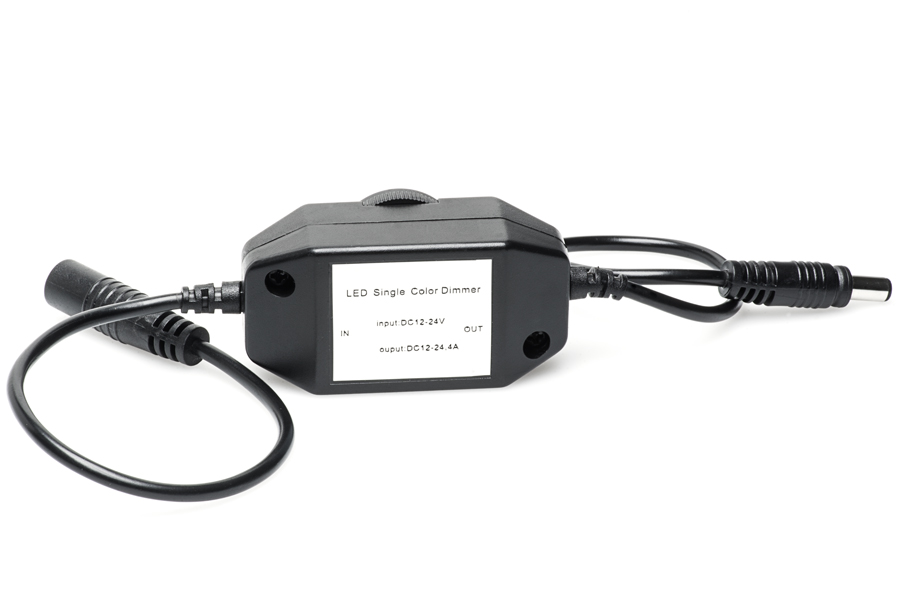

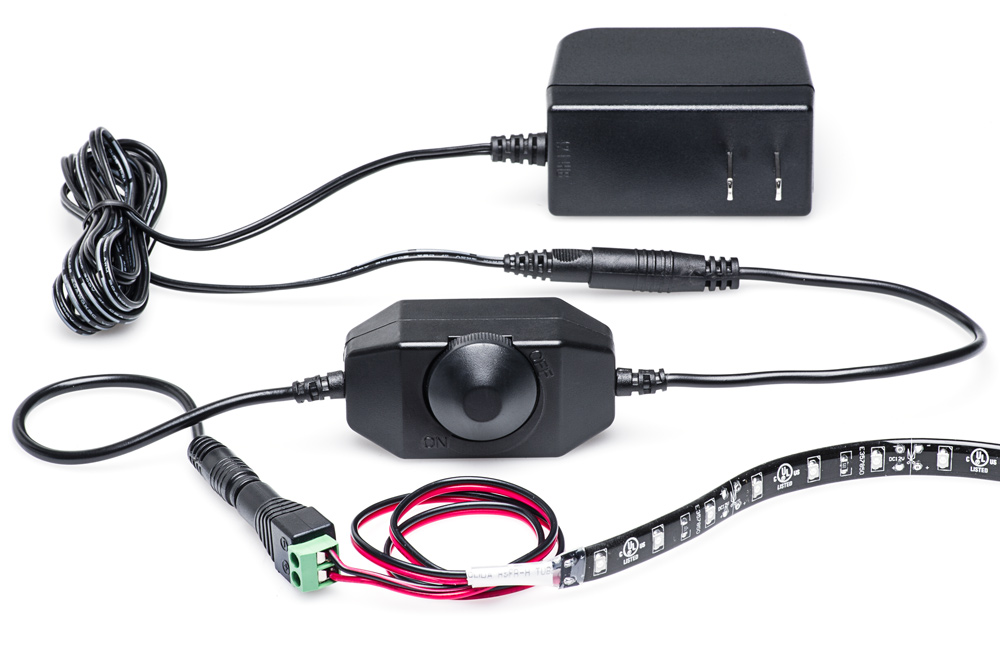

Universal single color LED dimmer can dim any 12VDC LED products from 0 to 100% using Pulse Width Modulation (PWM) circuit knob control. Has male and female 5.5mm barrel power connector for connecting in-line with our CPS series power supplies. Maximum load is 2 amps. Available with black or white finish.

Specifications
Amps:   2 Amps
Amps Per Channel:   2 Amps/CH
Channels:   1 Channel
Control Type:   In-line Wired
Dim Control:   Knob Control
Input Connection Type:   CPS Female, CPS Male
Input Voltage Range:   12 VDC
Standards And Certifications:   RoHS Compliant
Type:   CPS Barrel Connector, Dimmers, Single Color Dimmer
Package Weight: 2.1oz (0.06kg)
Package Dimensions: 4.05" (10cm) x 2.08" (5cm) x 2.08" (5cm)
