LDK-8A 12~24 Volt DC Single Color LED Dimmer

LDK-8A 12~24 Volt DC Single Color LED Dimmer

(4 Reviews) | Write a review

SKU: LDK-8A

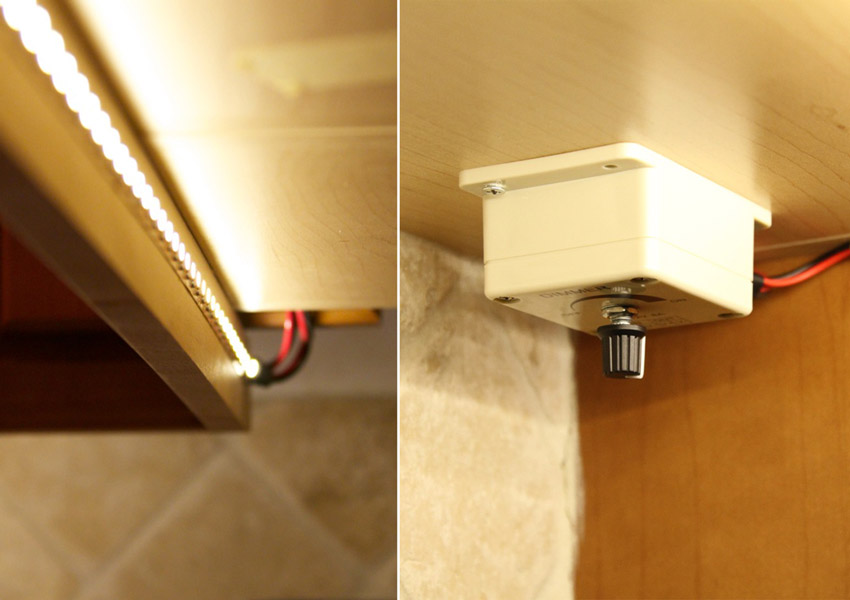

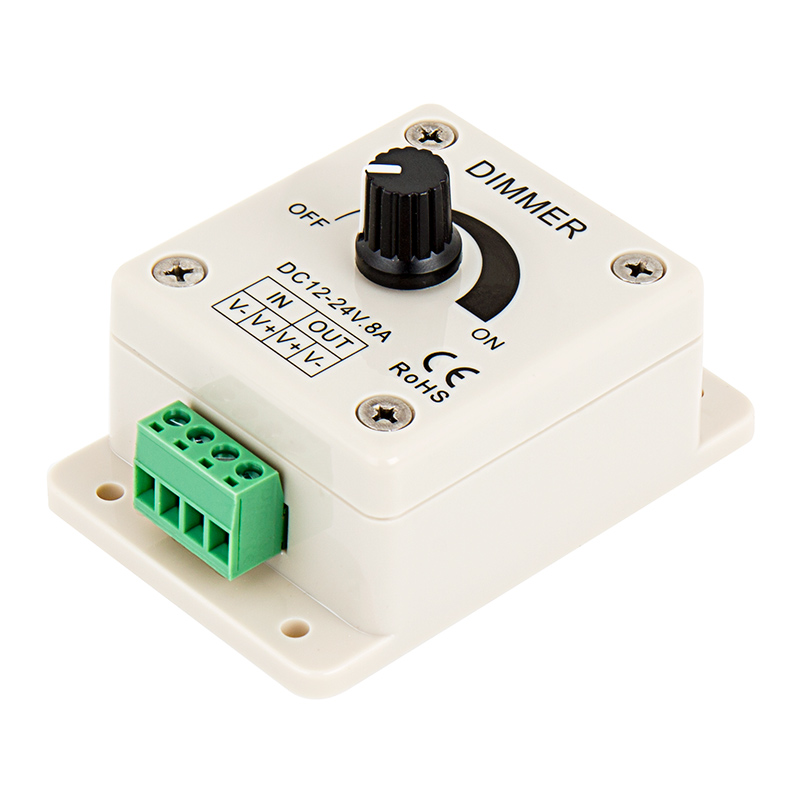

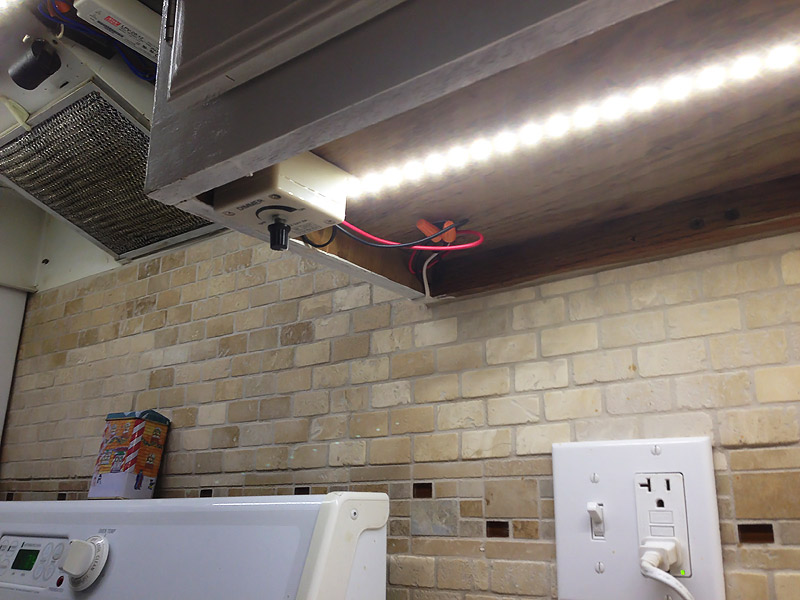

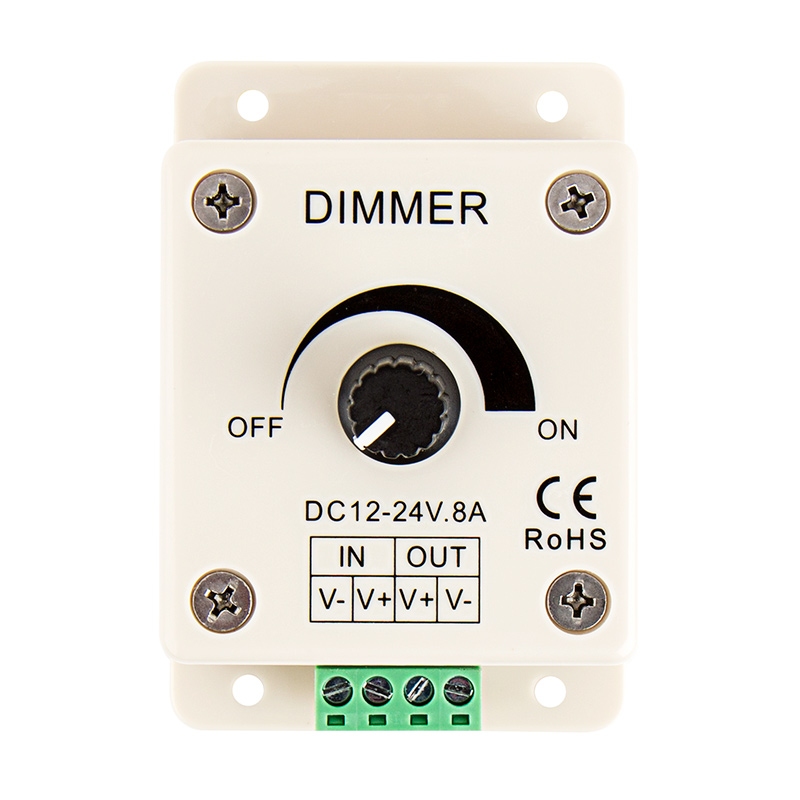

LDK-8A universal single color LED dimmer. Can dim most 12VDC or 24VDC LED products from 0%-100% using a Pulse Width Modulation(PWM) circuit knob control. Has screw terminal connect for power in and out connections and has a maximum load of 8 Amps.

Specifications
Amps:   8 Amps
Amps Per Channel:   8 Amps/CH
Channels:   1 Channel
Control Type:   In-line Wired
Dim Control:   Knob Control
Input Connection Type:   Screw Terminals
Input Voltage Range:   12 VDC
Standards And Certifications:   RoHS Compliant
Type:   Dimmers, Single Color Dimmer
Package Weight: 2.93oz (0.08kg)
Package Dimensions: 4.05" (10cm) x 2.48" (6cm) x 2.48" (6cm)
All specifications are subject to change without notice.
