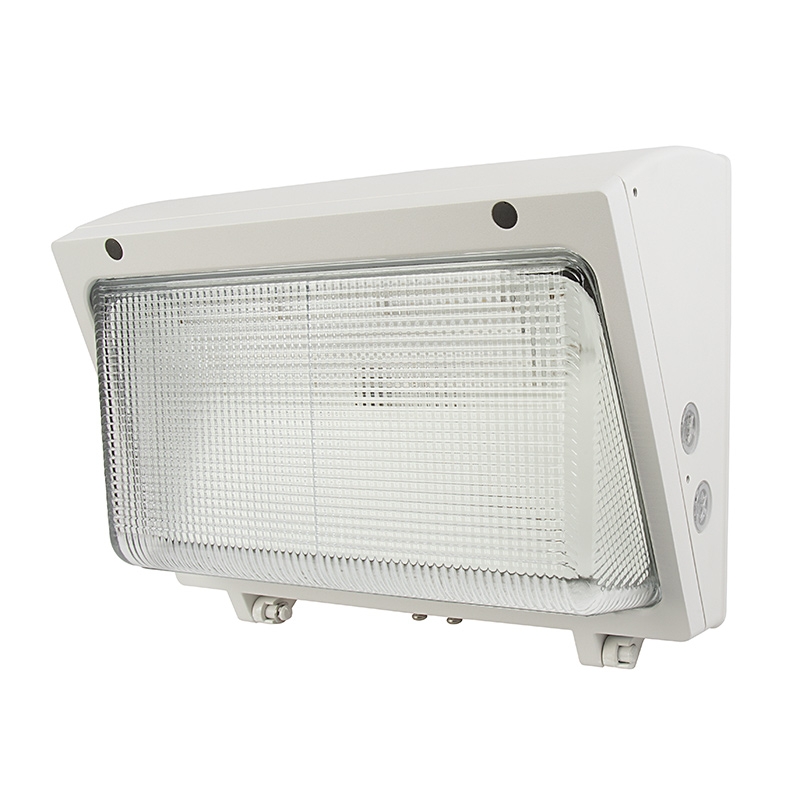

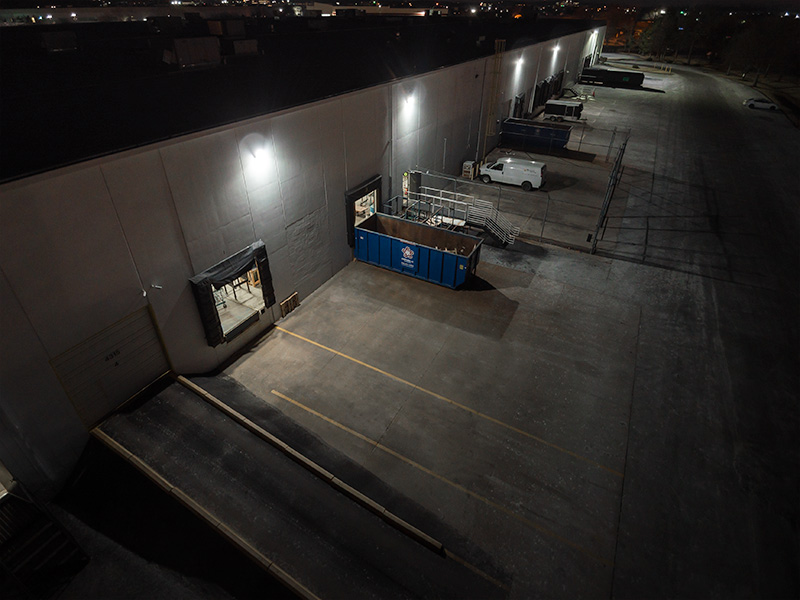

WPGL series LED Wall Pack has a traditional, open face design ideal for outdoor environments such as parking lots, warehouses, building exteriors, and more. The architectural fixture maintains a classic form factor to cover existing luminaire footprints, but is less bulky and lighter weight. Durable construction includes non-yellowing borosilicate glass lens and powder coated aluminum housing.

5 wattage options also available in brown: 40W, 60W, 80W, 100W, 120W

Product Details:

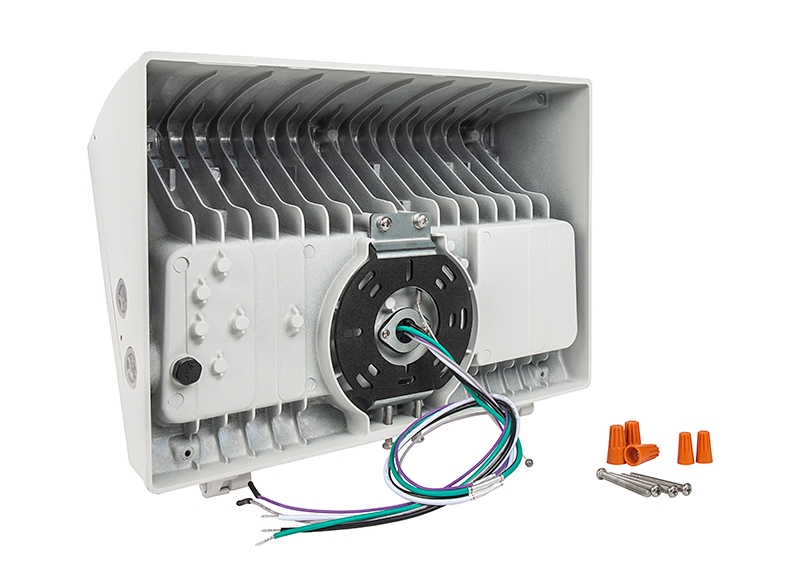

• Mounting bracket allows easy electrical connections, then quick hanging and securing fixture
• Borosilicate glass refractor lens

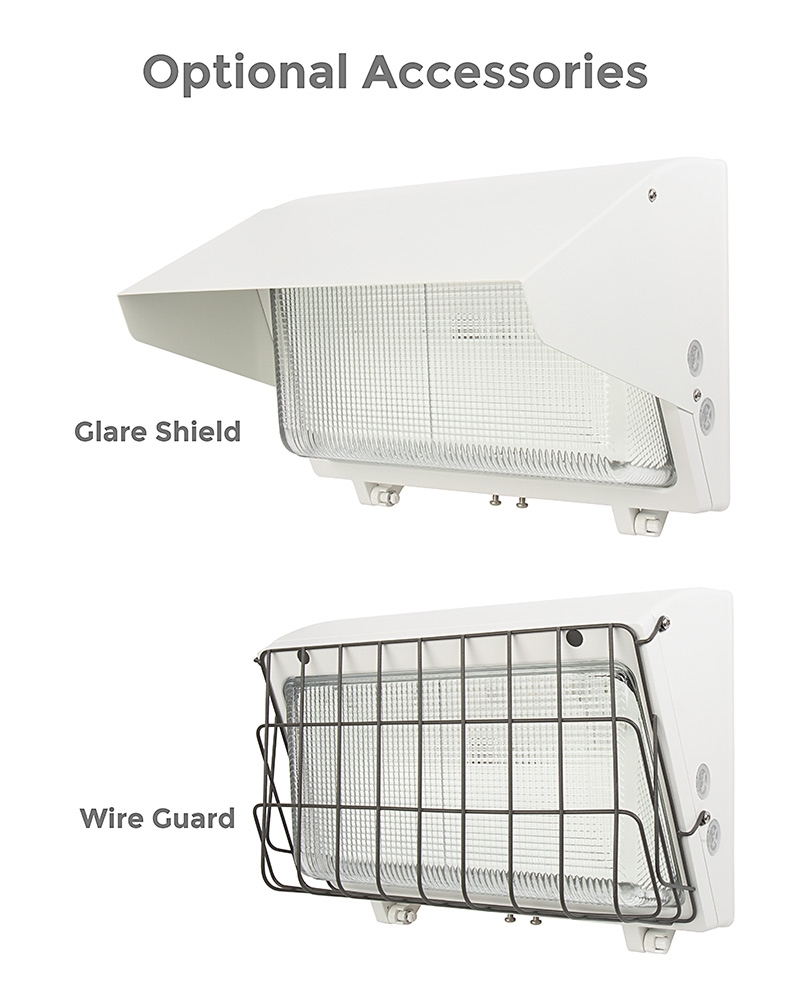

• Optional glare shield for reduced glare
• 0-10V dimmable
• CRI 80+
• 5000K
• Operational Temperature: -40°–113° F(-40°–45° C)
• Integrated surge protection: 4kV
• DLC 5.1 Premium, Certified by UL

Specifications
BUG Rating:     B1-U4-G5
Beam Angle:    90° x 100°
CCT Value:    5000K
CRI:     80+
Certifications/Compliance:    Certified by UL, DLC Premium
Current Draw:     0.43 A @ 277 VAC, 1 A @ 120 VAC
Dimmable:    Yes
Dimming Type:    1-10V
Efficacy:    130 lm/w
Environmental Rating:     Suitable for Wet Locations, Waterproof
Equivalency:    1000 Watt Metal-Halide
Finish:    White
IP Rating:     IP65
Integrated Surge Protection:    4 kV
Intensity:    15600 Lumen
LED Color:    Cool White
Lens Type:    Glass
Material:    Aluminum Housing
Operating Temperature:    -40~+45 °C (-40~+113 °F)
Operating Voltage:    120~277 VAC
Photocell:    No Photocell
Power Factor:    ≥0.9
Product Weight:    7lb 15oz (3.6kg)
Rated Life (L70):    50000 Hours
Type:    Standard, Wall Pack
UL File Number:    E366643
Wattage:    120 Watts
Package Weight: 9lb 2.1oz (4.14kg)
Package Dimensions: 15" (38cm) x 12.38" (31cm) x 8" (20cm)
All specifications are subject to change without notice.
