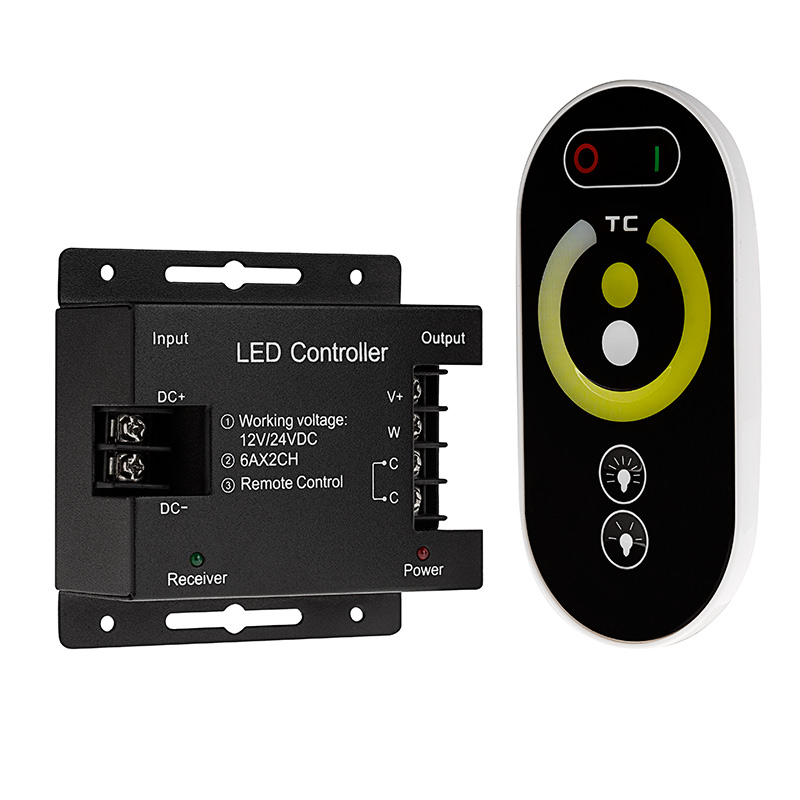

    Tunable White LED Controller - Wireless RF Touch Color Remote - 6 Amps/Channel

      (6 Reviews) | Write a review
    SKU: LDRF-VCT6
    Discontinued
    Starting at: $29.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

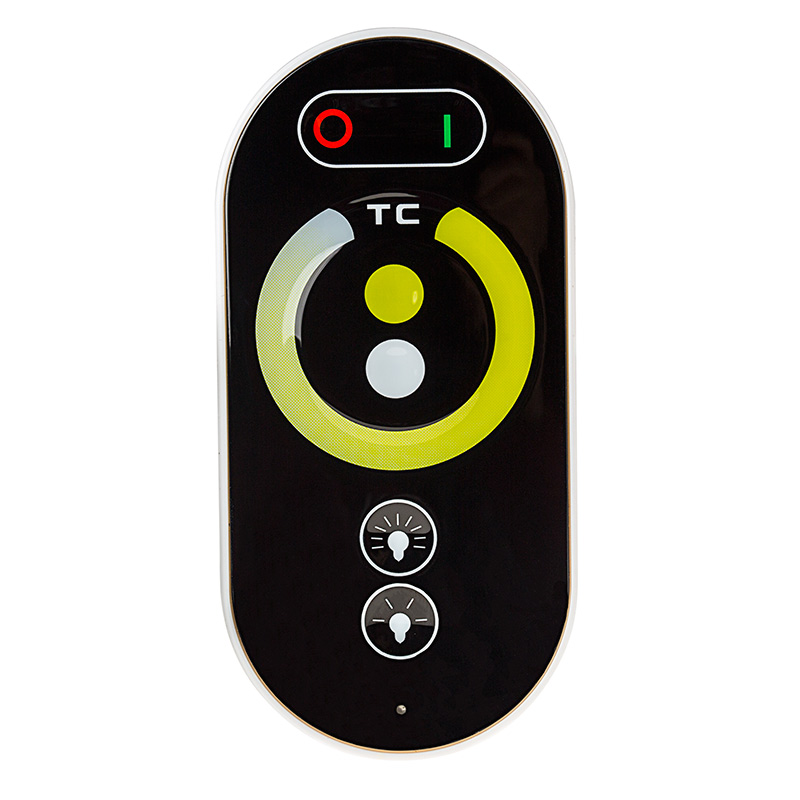

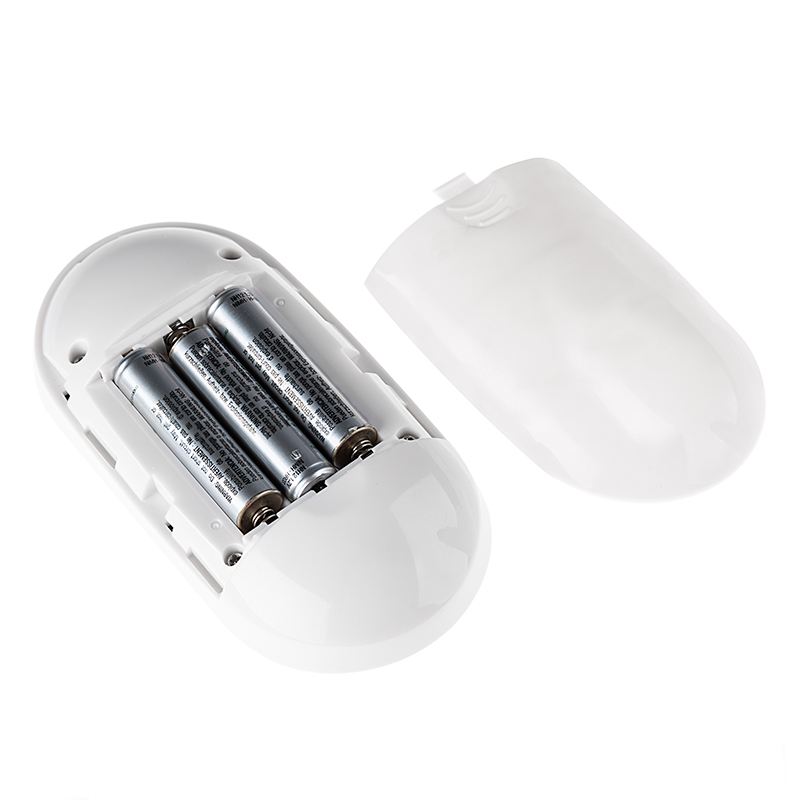

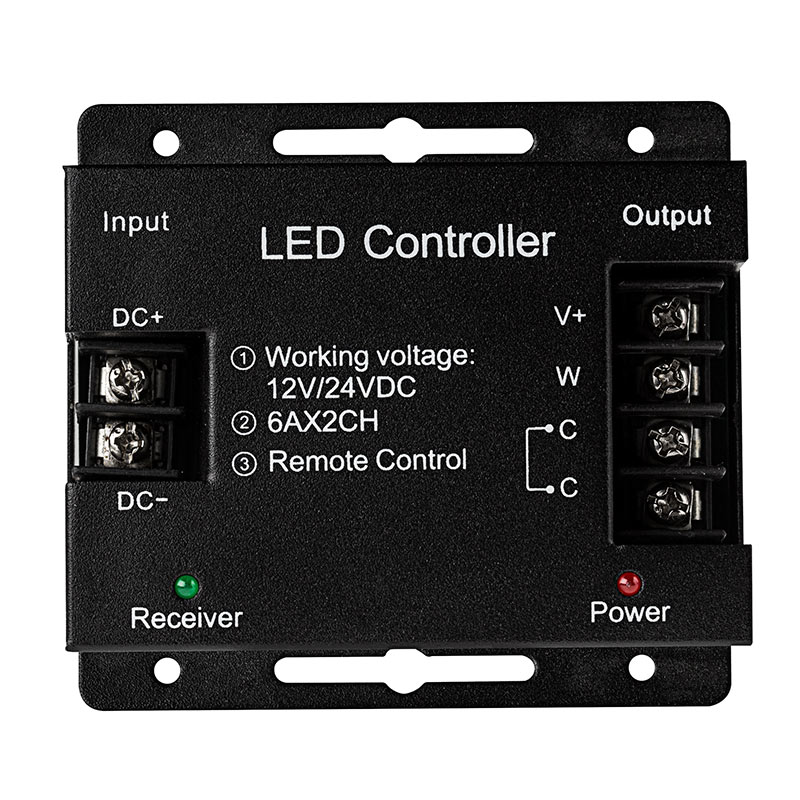

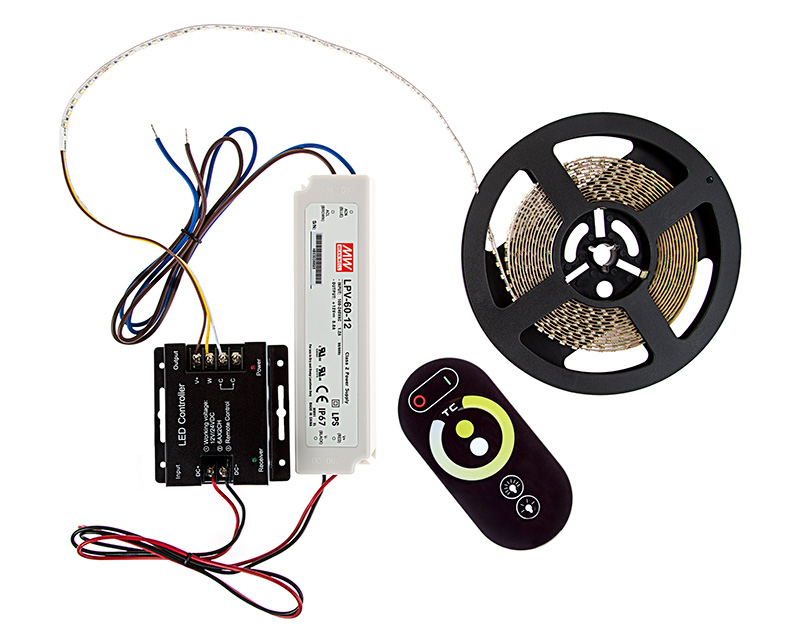

    Use this tunable color temperature LED controller with wireless touch-color RF remote to control your tunable white LED light strips. The remote is completely touch activated with a temperature control wheel for direct, fine-tuned white color temperature selection. The touch-color remote also has power, brightness control, and cool/warm white selection touch buttons and can control your LED light strips from up to 65' away. Power-cycle mode retention allows your light strips to return to the mode that was selected before it was powered off. The polarity-sensitive controller has 2 channels with a maximum load capacity of 6 amps per channel and is compatible with LED light strips that operate within a 12-24V DC range. Red and green lights on the controller let you see when it is receiving power and signal from the RF remote. Screw slots allow for permanent controller mounting. Remote requires 3 AAA batteries (not included).

    Specifications
    Amps:    12.00 Amps
    Amps Per Channel:    6 Amps/CH
    Battery Type:    3 x AAA
    Channels:    2 Channels
    Control Type:    Handheld (RF) Remote
    Dim Control:    Conventional Dimming, Remote Control
    Finish:    Black

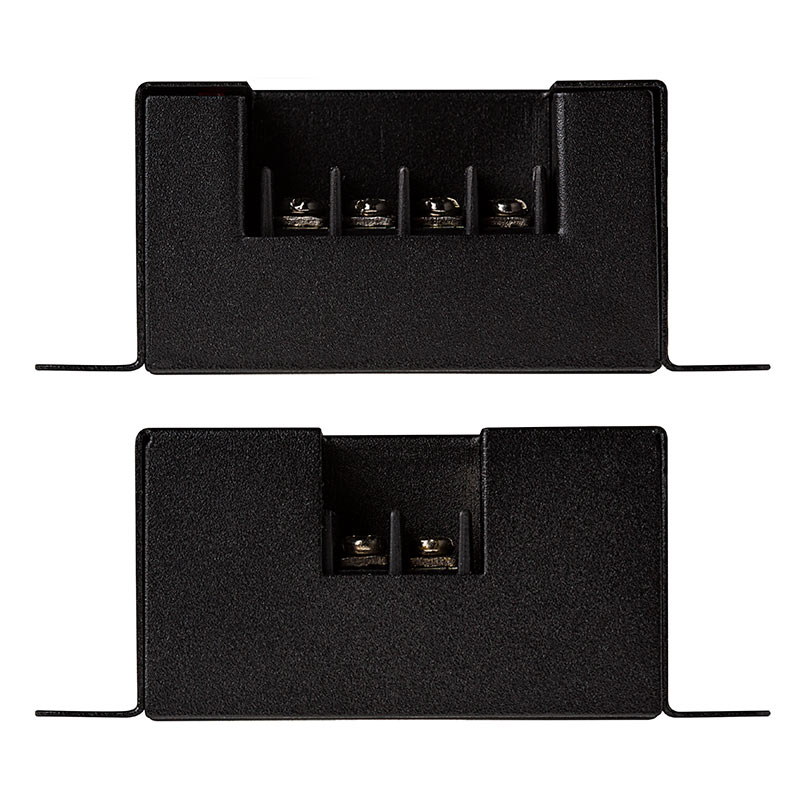

    Input Connection Type:    Screw Terminals
    Input Voltage DC:    12-24 VDC
    Operating Temperature:    -30~+60 °C (-22~+140 °F)
    Polarity:    Common Anode
    Radio Frequency:    433.92 MHz
    Remote Range:    Up to 20m
    Standards And Certifications:    CE, FCC, RoHS Compliant
    Type:    Variable White Controller, Variable White Dimmer
    Volts:    12~24 VDC
    Package Weight: 13.5oz (0.38kg)
    Package Dimensions: 8.1" (21cm) x 5.27" (13cm) x 1.74" (4cm)
    All specifications are subject to change without notice.
