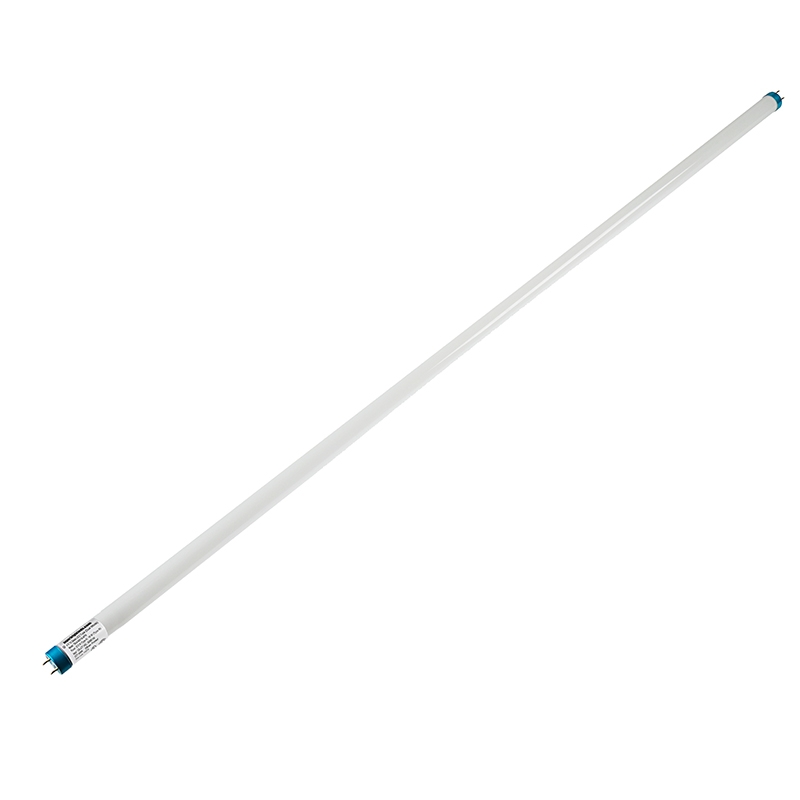

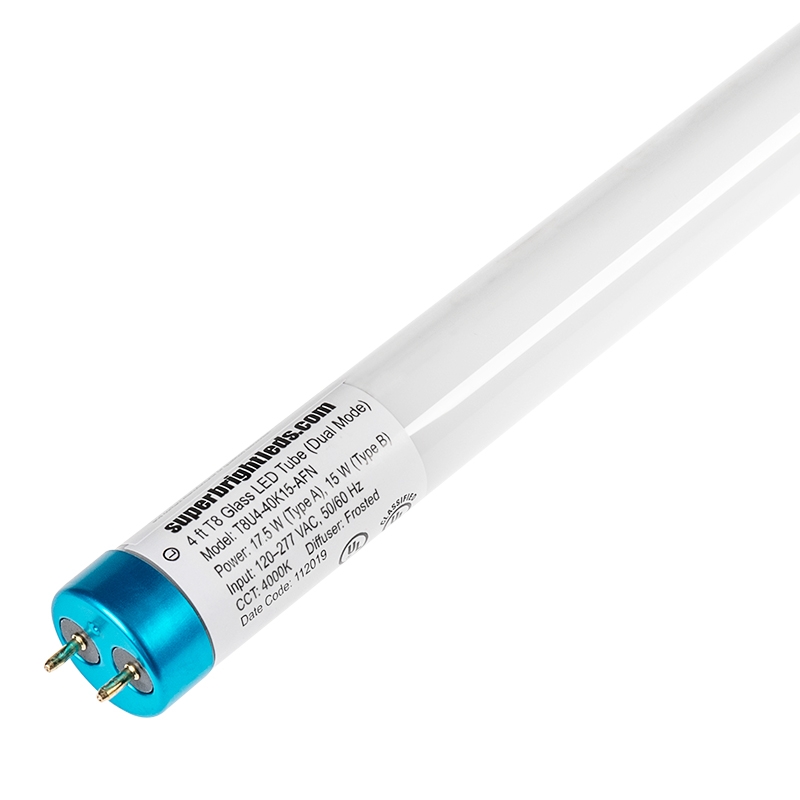

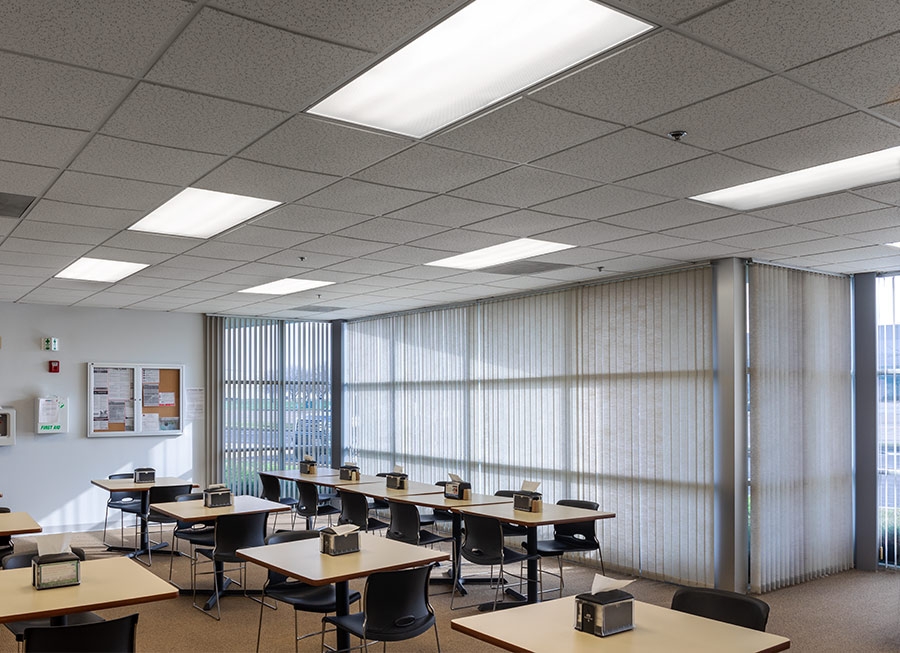

Universal 3-in-1 design of T8U4 series T8 LED Tube can accommodate nearly any 4’ fluorescent fixture. Simply plug-and-play with Type A compatibility, or bypass the ballast for Type B luminaires. With half the wattage, conveniently replace 32-watt fluorescent tubes according to the existing system. Frosted glass lens distributes diffused light, providing efficient task light for hospitals, factories, or any other commercial environment.

Product Details:

• Single or dual ended, G13 bi-pin base
• May not be compatible with all ballasts
• Type A runs 17.5-watts, Type B runs 15-watts

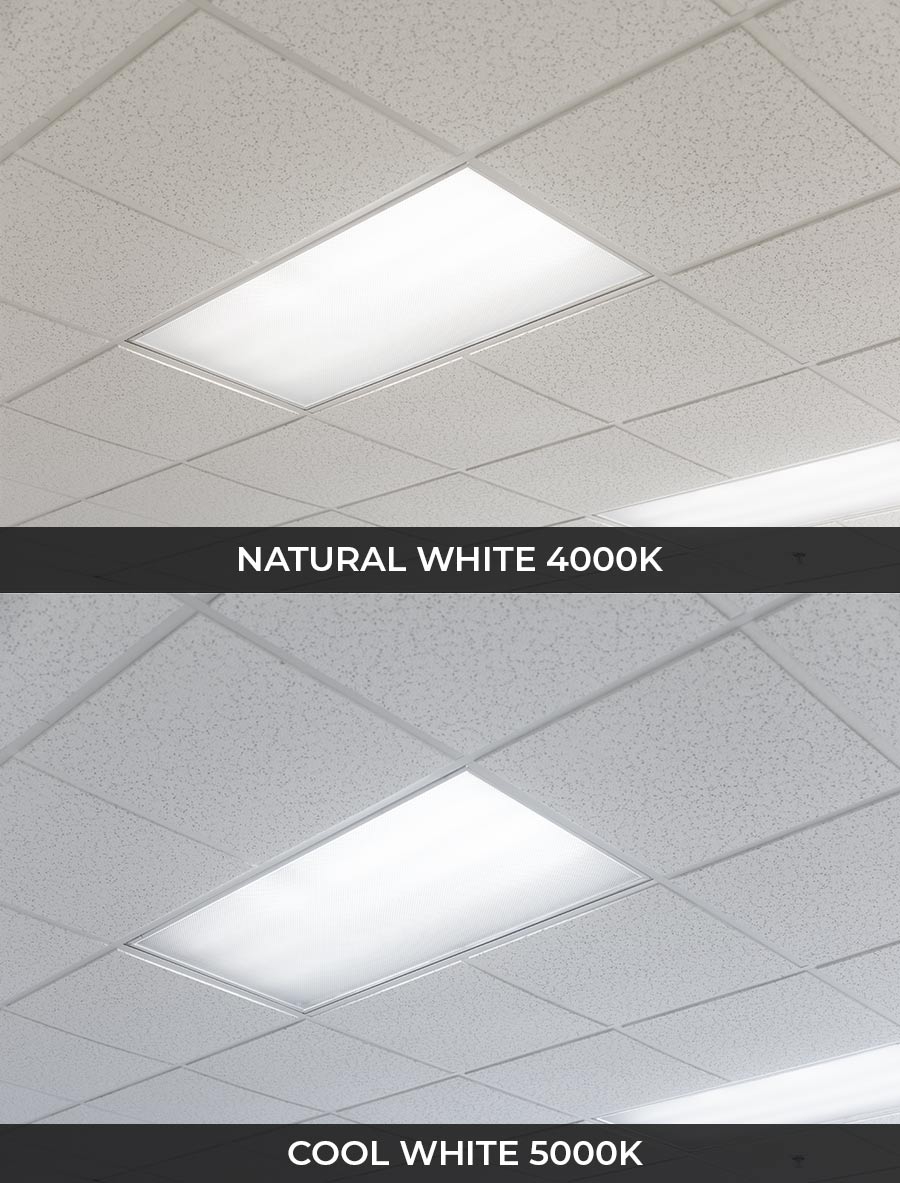

• Available in 5000K, 4000K
• 120-277 VAC input
• 50000 hours L70 lifespan
• DLC Standard, UL Listed, UL Classified
• 5 year warranty

Specifications
Ballast Compatibility:     Type A (Ballast Compatible), Type A/B (Ballast Bypass/Ballast Compatible), Type B (Ballast Bypass)
Beam Angle:    220 degree
Bulb Type:    T8
CRI:     80+
Certifications/Compliance:    DLC, RoHS Compliant, UL Classified, UL Listed
Current Draw:    0.13A (130mA), 0.15A (150mA)
Dimmable:    No
Environmental Rating:     Non-weatherproof, Suitable for Damp Locations
Equivalency:    1-lamp 32W Fluorescent T8 Tube
IP Rating:     IP20
Intensity:    2000 Lumen
LED Lifetime:    50000 Hours
LED Tube Wiring:    Dual Ended, Single Ended
Length:    48in (4ft)
Lens:    Frosted
Lens Type:    Glass
Luminous Efficacy:     133 lm/w
Material:    Aluminum, Glass
Operating Temperature:    -20~+45 °C (-4~+113 °F)
Power Consumption:    15 Watts
Reference Number:    G13 (Bi-Pin)
Type:    Tubes
Typical Use/Input Voltage:    120~277 VAC
UL File Number:    E348221, E477606
Wattage:    15 Watts, 17.5 Watts
All specifications are subject to change without notice.
