    5m White LED Strip Light - Highlight Series Tape Light - Triple Row - 24V - IP20 - 1158 lm/ft

      (5 Reviews) | Write a review
    SKU: HL-IP20-80CRI-5m-TripleRow

    Please Choose:



    Discontinued
    Starting at: $194.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

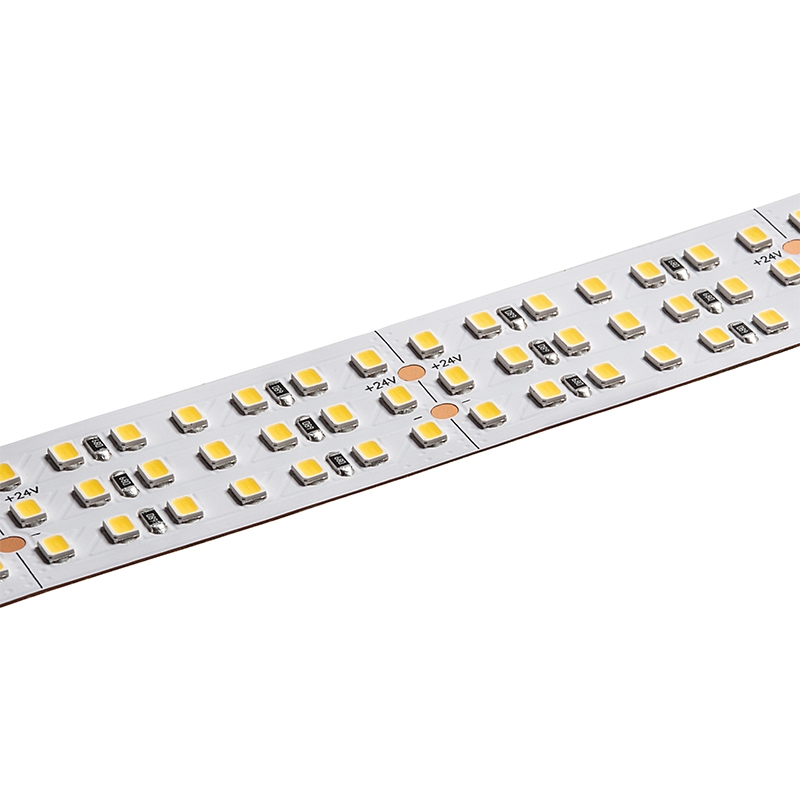

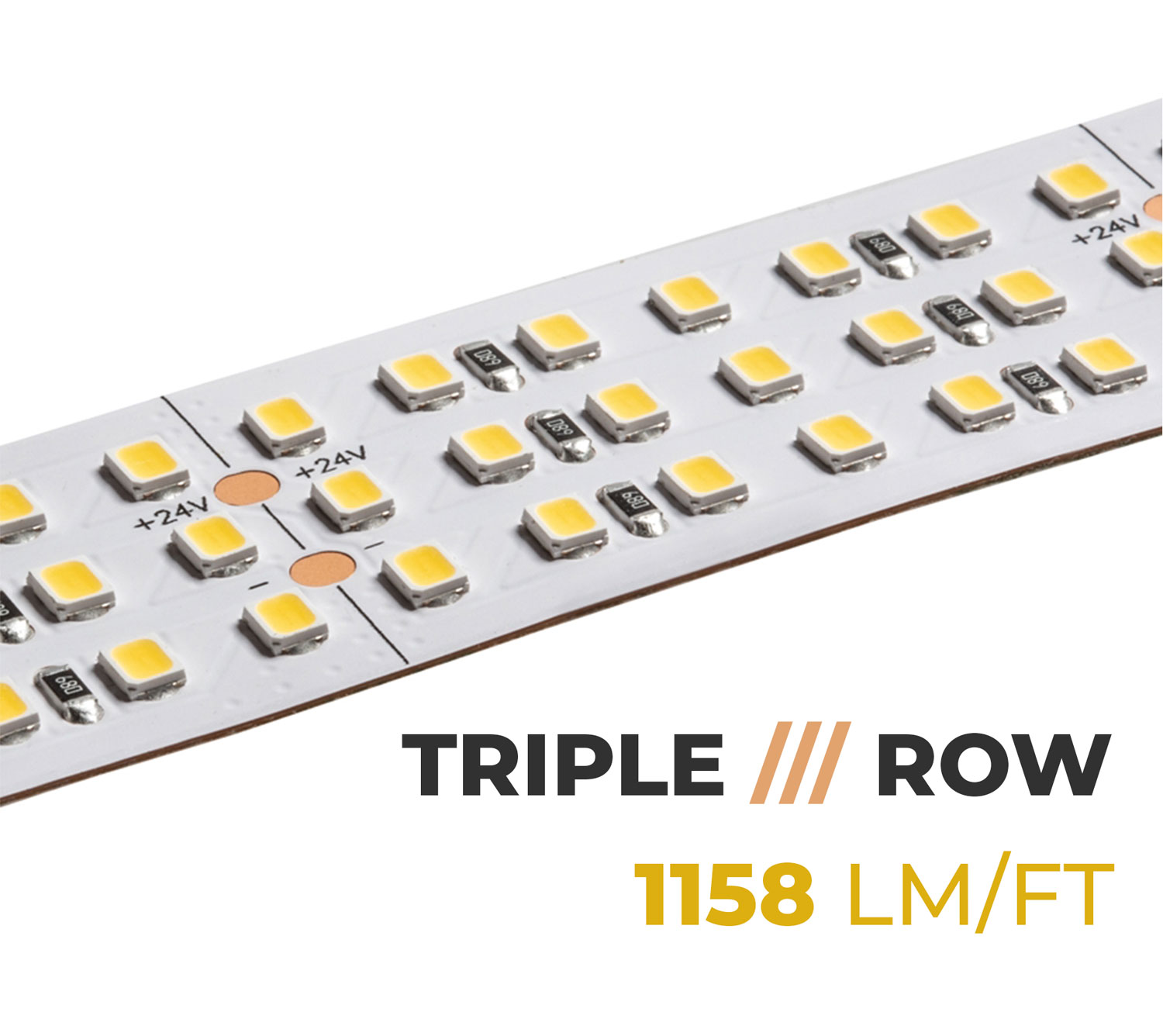

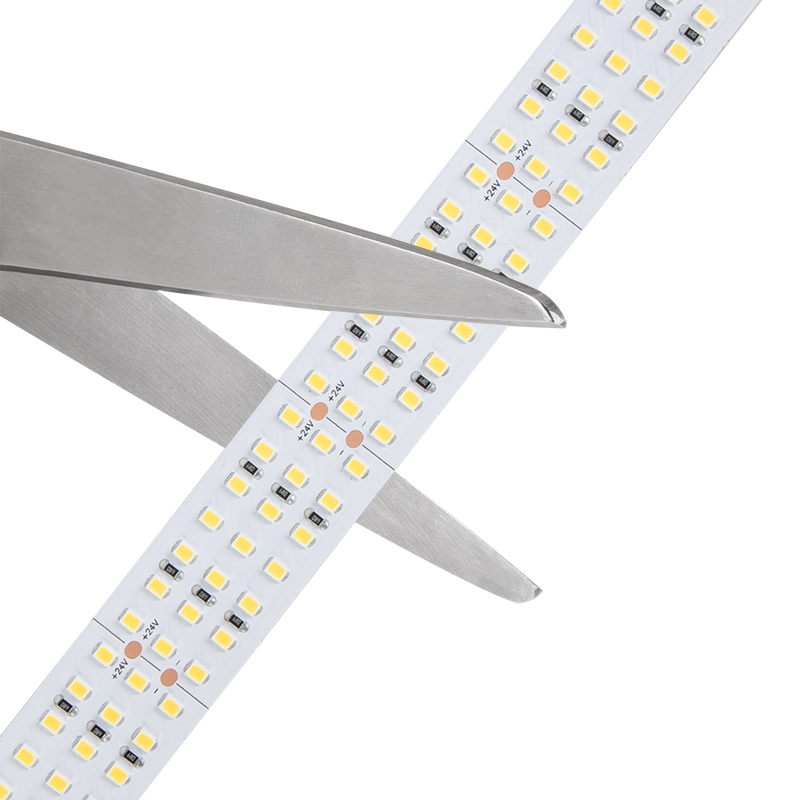

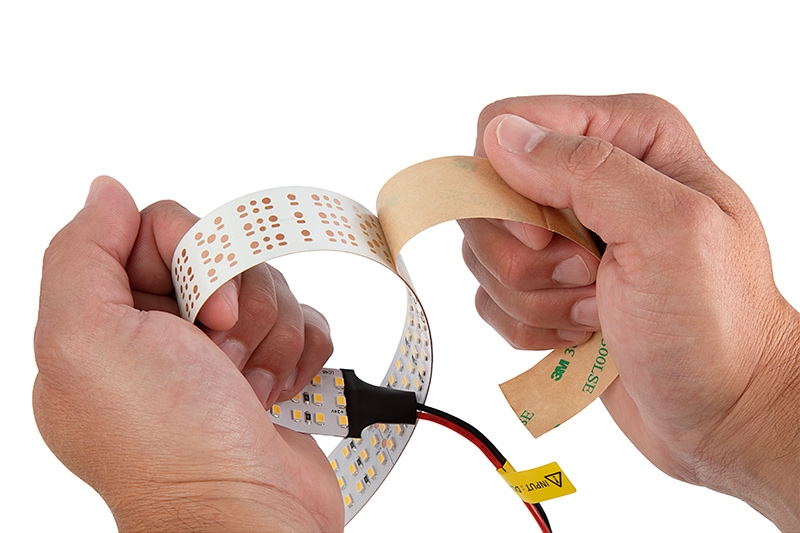

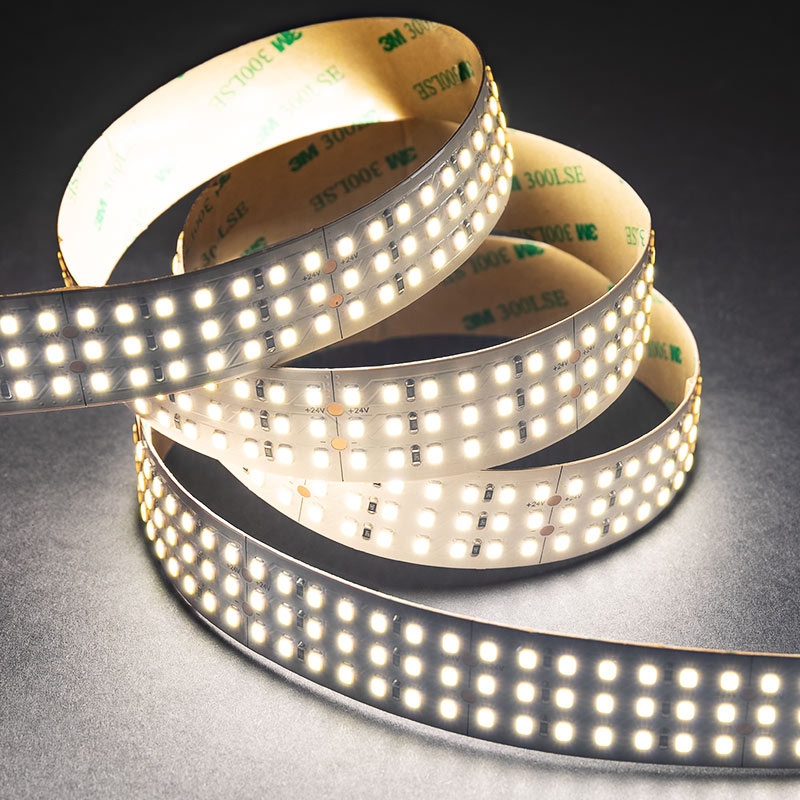

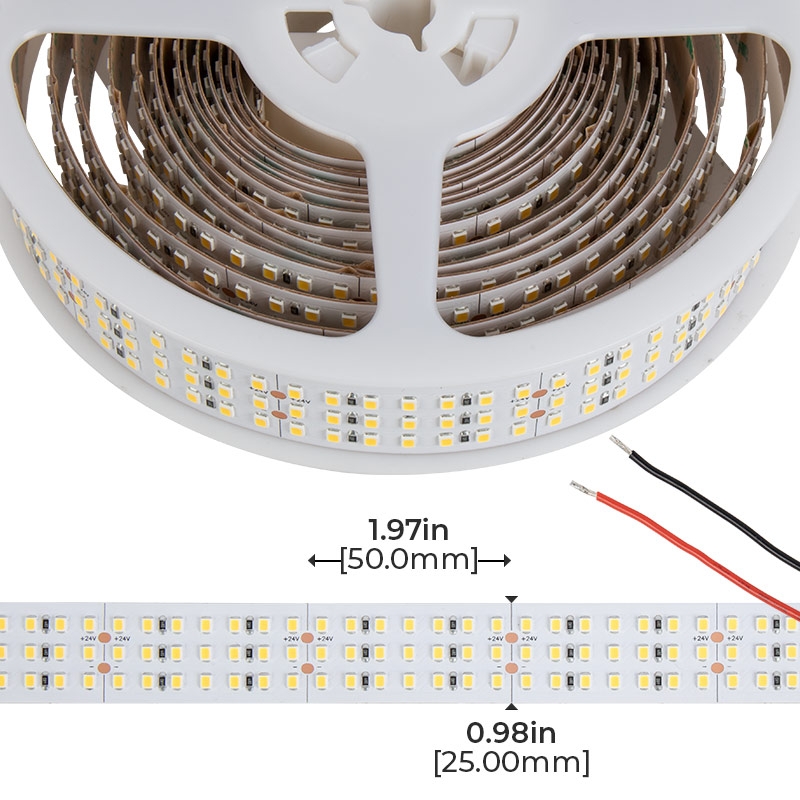

    Highlight Series White LED Strip Light has 3 rows of 2835 LEDs producing 1158 lumens per foot for maximum light output. The high density of 128 LEDs per foot creates a smooth, powerful line of illumination. Easy to dim for desired brightness with a compatible controller (sold separately). Triple-row strip can be cut in segments of 2" or create a continuous run up to 16.4'. Flexible construction and 3M™ adhesive backing makes it simple to apply to a wide range of applications.

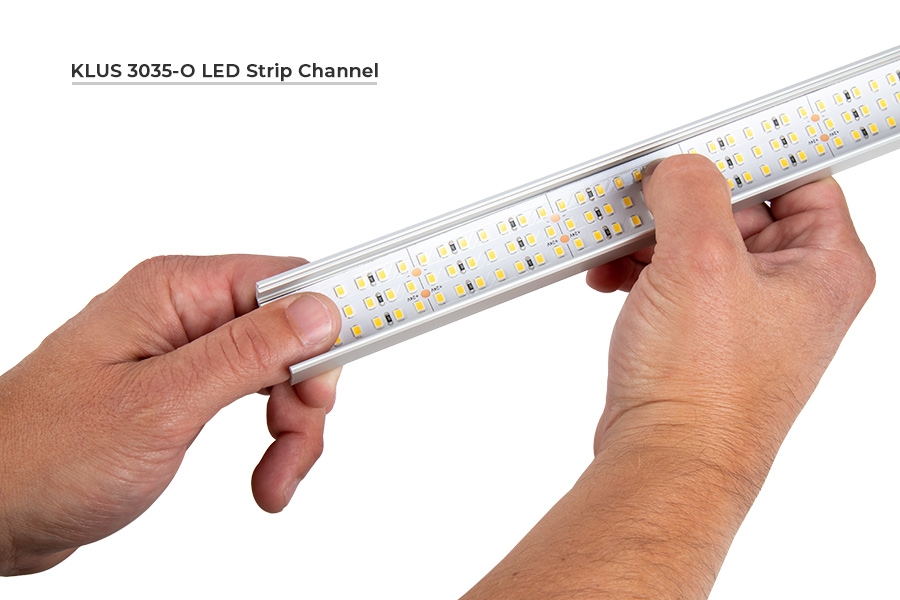

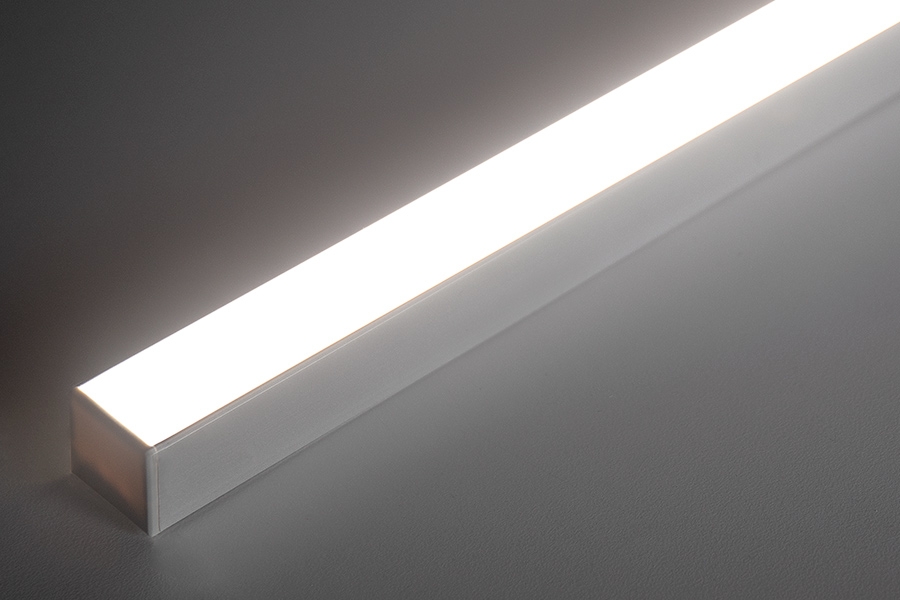

    Please note: Due to the greater brightness of these strips, heat sinking is recommended for proper thermal management and preserved LED lifespan. Pair with compatible KLUS aluminum channel for a complete light design package and optimized strip performance.

    Product Details:

    • 24 VDC input
    • Max Run: 16.4ft (5m)
    • 21 LEDs/segment
    • Segment Length: 1.97in (50mm)
    • Density: 128 LEDs/ft
    • Strip Width: 25mm (0.98in)
    • Dimmable: 0-100%
    • IP20 rated for dry conditions
    • 36000 hours L70 lifespan
    • UL Listed
    • 5 year warranty

    Specifications
    Brightness:     1158 lm/ft
    CRI:     80+
    Certifications/Compliance:    UL Listed
    Current Draw:     7.92 A total (483 mA/ft)
    Dimmable:    Yes
    Efficacy:    105 lm/w
    IP Rating:    IP20
    Input Connection Type:    Pigtail
    Input Voltage DC:    24 VDC
    LED Beam Angle:     120 degree
    LED Density:     128 LEDs/ft
    LED Type:    2835 SMD
    LEDs per Segment:    21
    Length:    16.4ft (5m)
    Max Run:     Up to 16.4ft (5m)
    Operating Temperature:    -20~+45 °C (-4~+113 °F)
    Power Consumption:    190 Watts
    Rated Life (L70):    50000 Hours
    Segment Length:    1.97 in. (50 mm)
    Strip Width:    25mm (0.98in)
    Wattage:    190 Watts
    Wattage per Foot:    11.6 W/ft (38 W/m)
    Package Weight: 11.4oz (0.32kg)
    Package Dimensions: 9.5" (24cm) x 9" (23cm) x 1" (3cm)
    All specifications are subject to change without notice.
