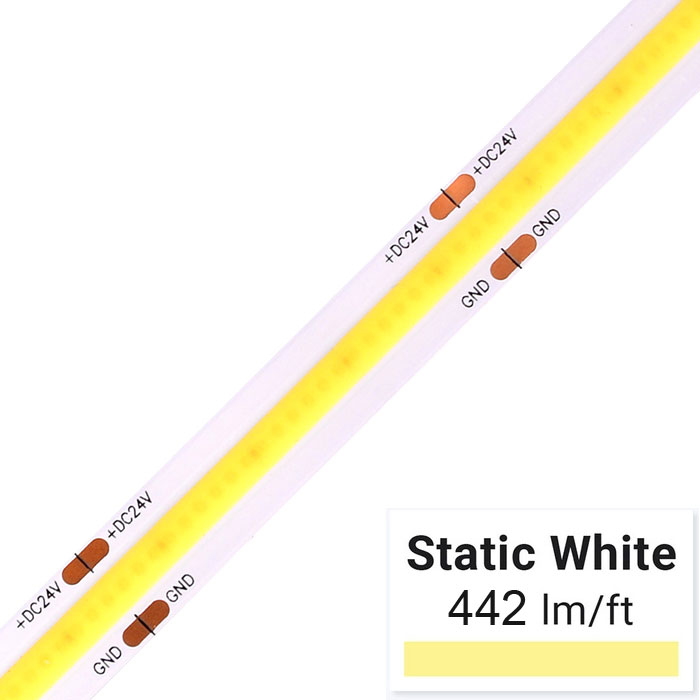

COB Series LED COB Strip Light creates a totally smooth, seamless line of light. The superior design will not show visible dots or hot spots, making it ideal illumination for reflective surfaces such as granite countertops and tile floors. Eliminating the need for lens cover, it’s also suitable for narrow applications like jewelry cases and backlighting. Chip-on-board technology not only maintains quality light, but it reduces heat buildup and gives the strip improved flexibility. And with high, 90+ CRI, this tape light is a solution for places where quality color rendering is needed, such as display cases and kitchen counters. Measuring only 8mm, the strip light is fully dimmable, cuttable in 22.7mm(12V), 45.5mm(24V) segments, and 3M™ adhesive-backed.

Applications and Use:

These strips are installed in a wide variety of applications including:

• High brightness lighting
• High-output custom lighting fixtures
• Manufacturing areas
• Signage and advertising
• Exteriors (protected from elements)
• Horticulture and botany
• OEM applications
• Indirect cove lighting
• Edge lighting

Product Details:

• 180° beam angle
• Max Run: 5m
• New COB Packing technology in the flexible PCB
• Dot free without cover
• Strip Width: 10mm
• 0-100% dimmable
• Connection: pigtail
• IP20 rated for dry conditions
• 30000 hours L70 lifespan
• UL Listed
• 5 year warranty

Available Colors (CCTs):

Specifications
Brightness:  442 lm/ft
LED Density:  2640LEDs
Wattage per Foot:  4.3 W/ft
Power Consumption:  70W
CRI:     90+
Certifications/Compliance:    RoHS Compliant, UL Listed
Dimmable:    Yes
Environmental Rating:     Non-Weatherproof
Input Connection Type:    Pigtail
LED Beam Angle:     180 degree
LED Type:    COB (chip-on-board)
Cutting Unit      22.7mm(12V), 45.5mm(24V)
Length:    16.4ft (5m)
Max Run:     Up to 16.4ft (5m)
Rated Life (L70):    30000 Hours
Strip Width:    10mm (0.39in)
Type:    Flexible Light Strips
Wire Length:    508mm (20in)
All specifications are subject to change without notice.

COB Series Strip: Our COB series uses advanced LED design to produce strip lights with a seamless, dot-free line of light. Chip-on-board technology allows for a higher density of LEDs, for a more intense and uniform illumination that reduces heat buildup. With no need for additional diffusers, and a narrow 8mm width, these strips can fit in applications with low clearance.

What is the difference between 12V and 24V strip lights?
12 volt and 24 volt strips are extremely similar. They look the same, are capable of the same light output, and have identical costs. There are some key differences between the two which matter depending on application. For instance 12 volt strips can be connected directly to your vehicle's 12 volt electrical system. While 24 volt strips on the other hand allow for longer runs, or higher densities of LEDs over their 12 volt counterparts. For the maximum run of a strip see Max Run in the specification table for more information.

How bright is the strip? What are lumens and how many do I need?
Lumens are the measure of how bright an LED strip will be when in use. The higher the lumen rating, the brighter the strip will be. Higher lumen strips are usually better for under cabinet and task lighting. Lower lumen strips are typically used for accent lighting applications.

What is color temperature? Which one is best?
Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.
