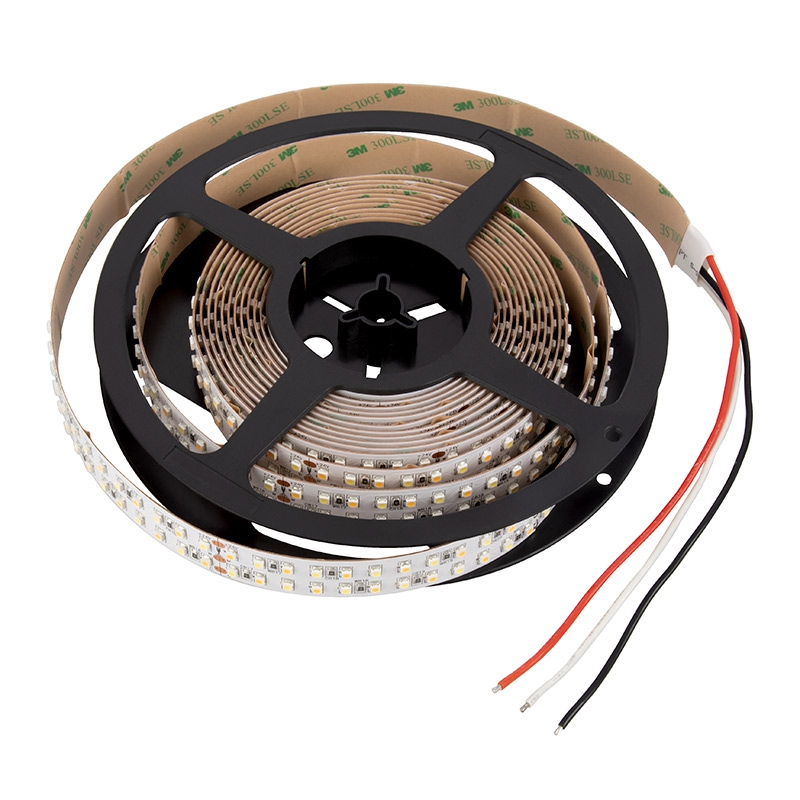

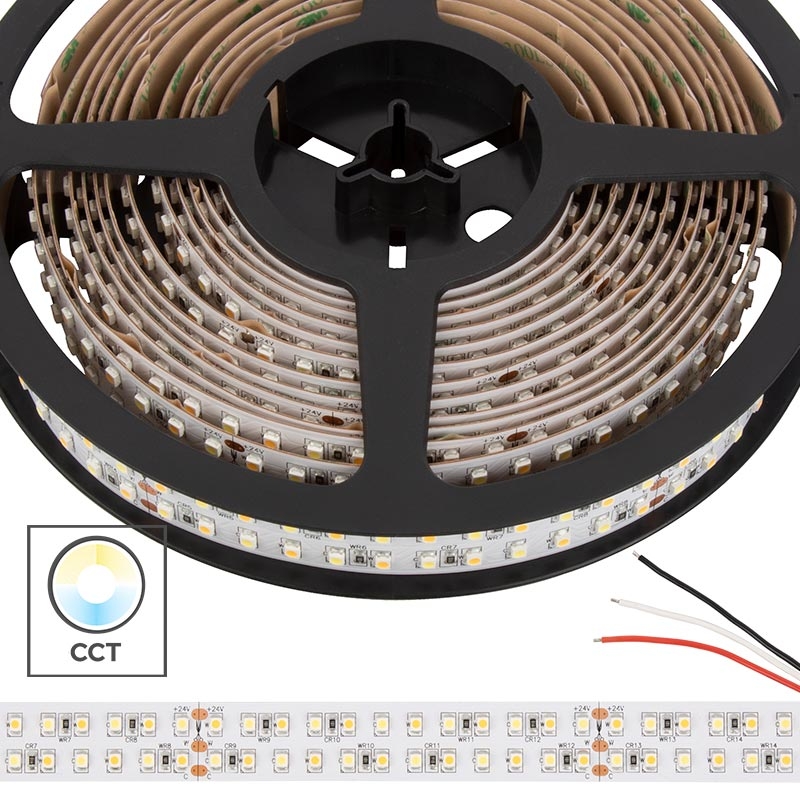

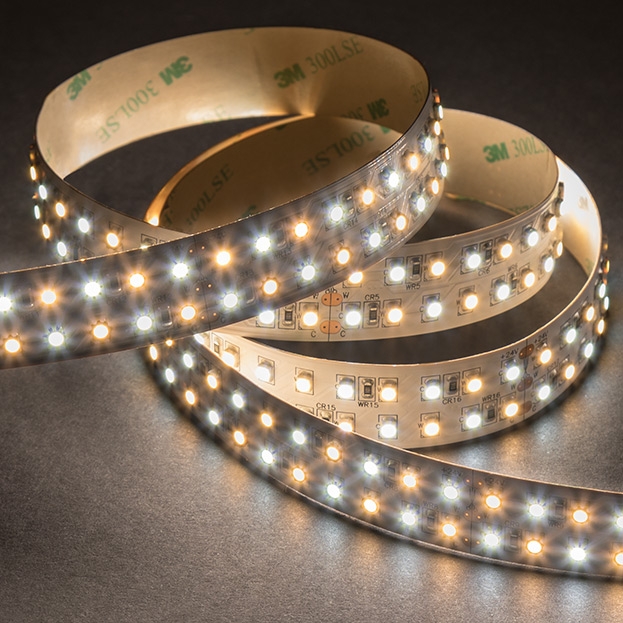

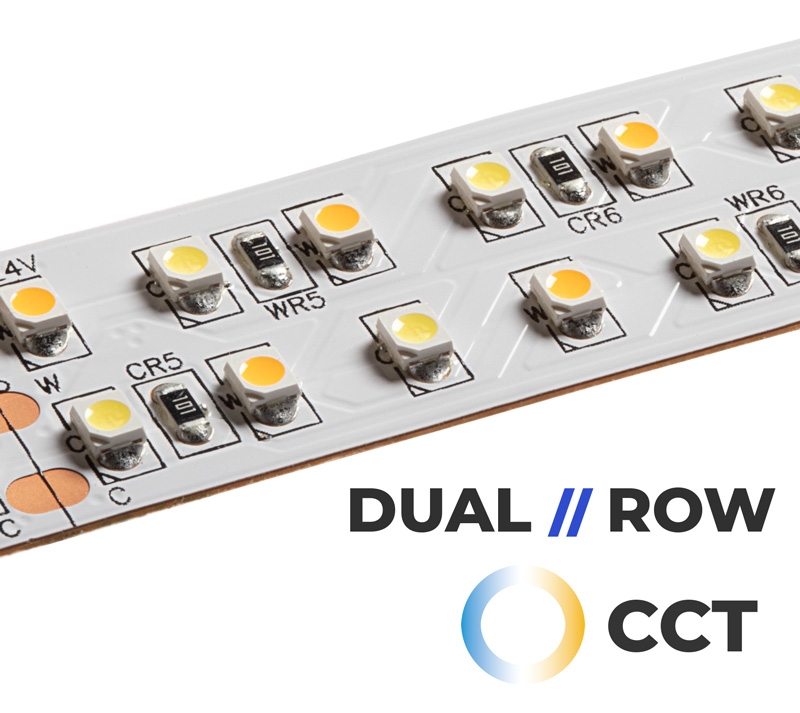

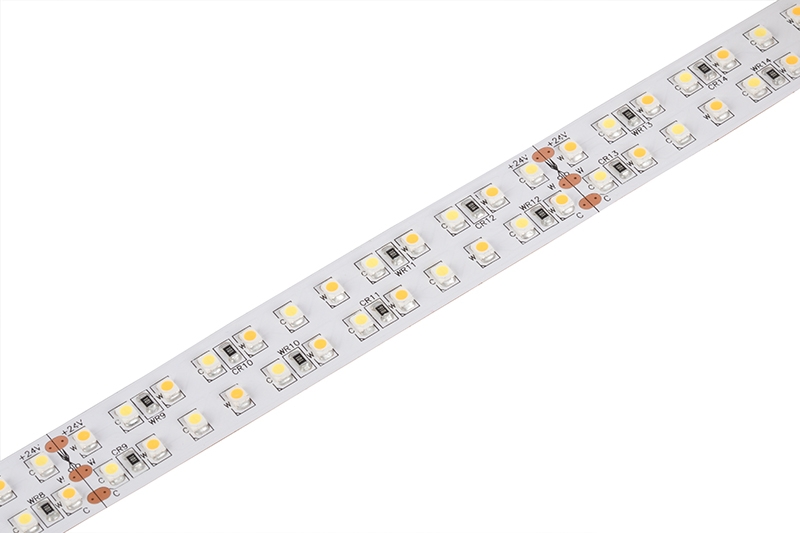

    5m Tunable White LED Strip Light - Color-Changing LED Tape Light - Dual-Row - 24V - IP20

      (9 Reviews) | Write a review
    SKU: STN-H80-B24A-20D5M-24V
    Discontinued
    Starting at: $146.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Mon,Sep,30 and Sun,Oct,06. order with 2days,9hrs and 31 min.

    A top choice for interior ambient lighting, this DynamicColor Series tunable LED strip light emits vibrant white light in temperatures ranging from 3000K warm white to 6500K cool white. Dual-row design produces a broad, ultra-bright beam of smooth light. Peel-and-stick 3M™ adhesive backing enables fast, easy mounting. Backed by a lifetime warranty.

    Product Details:

    • 24 VDC input
    • Maximum run of 10m
    • 73 LEDs/ft
    • Strip width measures 20mm
    • 3M™ adhesive backing for surface mounting
    • Pigtail connection
    • 0-100% dimmable
    • Lifetime exceeds 50000 hours
    • CE certified and UL listed
    • Lifetime warranty

    Specifications
    Brightness:     520 lm/ft (1706 lm/m)
    CRI:     80+
    Certifications/Compliance:    CE, RoHS Compliant, UL Listed
    Color Temperature:     3000-6500K
    Current Draw:     5.96A (5960mA)
    Current Draw Per Foot:    363mA
    Current Rating:    6A (6000mA)
    Dimmable:    Yes
    Efficacy:    60 lm/w
    IP Rating:     IP20
    Input Connection Type:    Pigtail
    LED Beam Angle:     120 degree
    LED Color:    Cool White, Natural White, Tunable White, Warm White
    LED Density:     73 LEDs/ft.
    LED Type:    3528 SMD
    LEDs per Segment:    24
    Length:    16.4ft (5m)
    Lumen:    8530 Lumen
    Max Run:     Up to 32.8ft (10m)

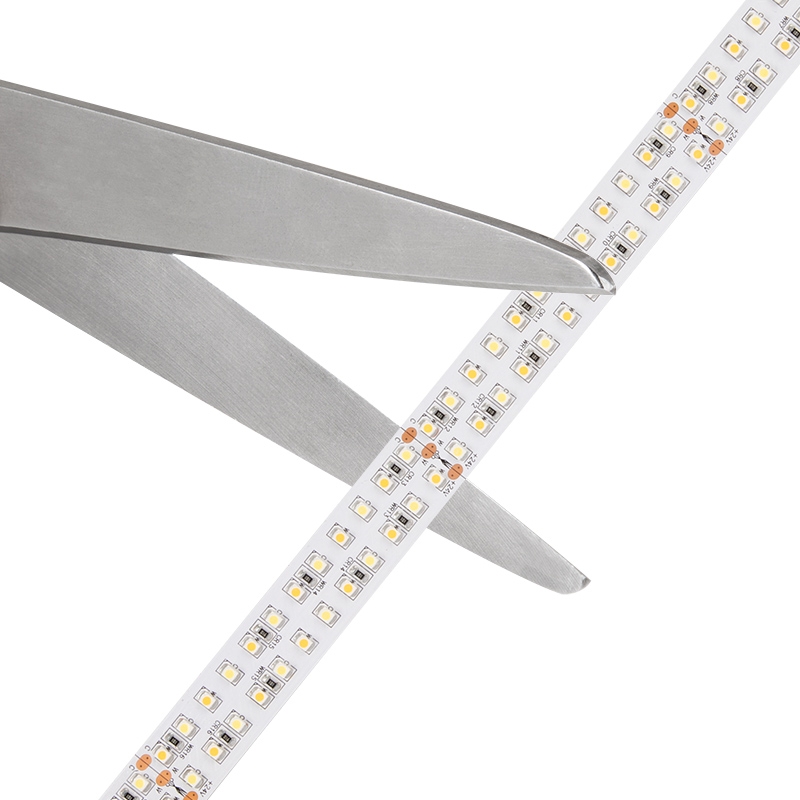

    Minimum Cut Length:    100mm (3.9in)
    Operating Temperature:    -20~+45 °C (-4~+113 °F)
    Operating Voltage:     24 VDC
    Power Consumption:    142 Watts
    Rated Life (L70):    50000 Hours
    Strip Width:    20mm (0.79in)
    Type:    Flexible Light Strips
    Wattage per Foot:    8.7 W/ft (28.5 W/m)
    Wire Length:    483mm (19in)
    Package Weight: 4.2oz (0.12kg)
    Package Dimensions: 7.75" (20cm) x 7.25" (18cm) x 0.5" (1cm)
    All specifications are subject to change without notice.
