    Custom Length Single Color LED Strip Lights - Highlight Series LED Tape Light - Quad Row - 24V - IP20 - 991 Lumens/ft. - 1 Meters

      (6 Reviews) | Write a review
    SKU: HL-IP20-Color-CL-QuadRow

    Please Choose:



    Discontinued
    Starting at: $44.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

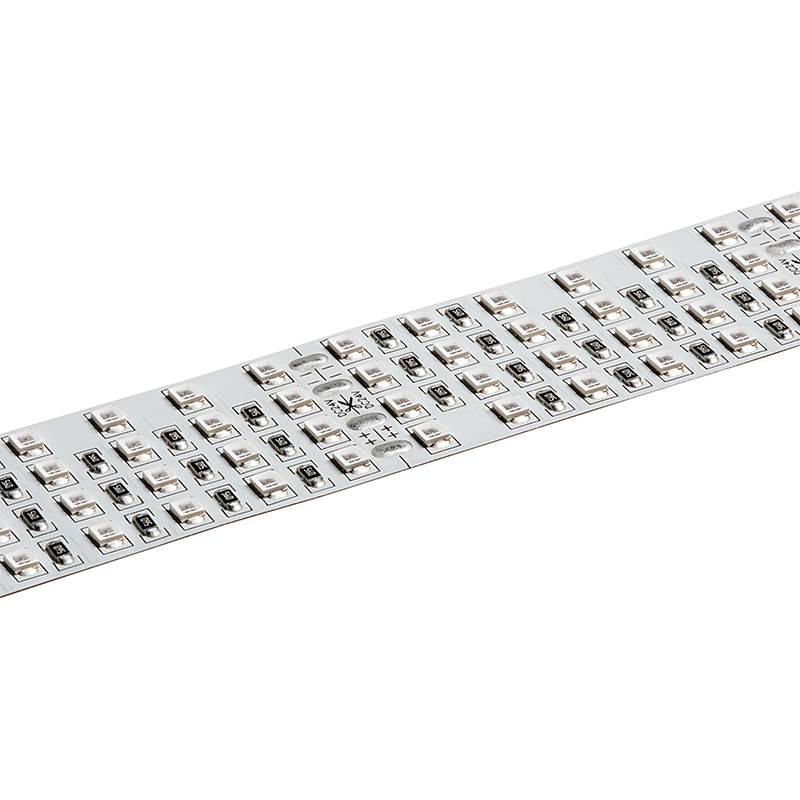

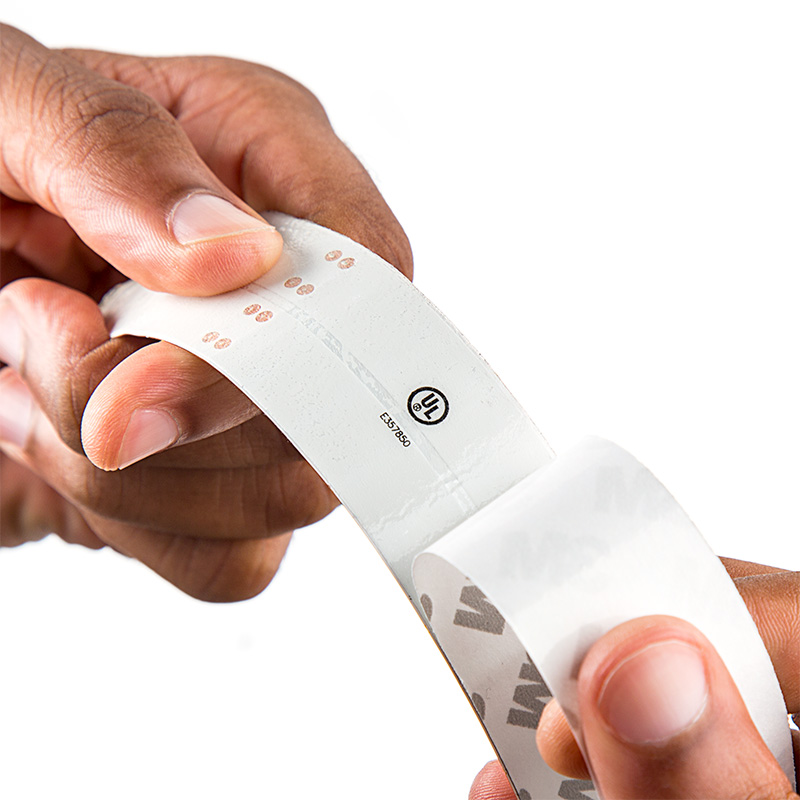

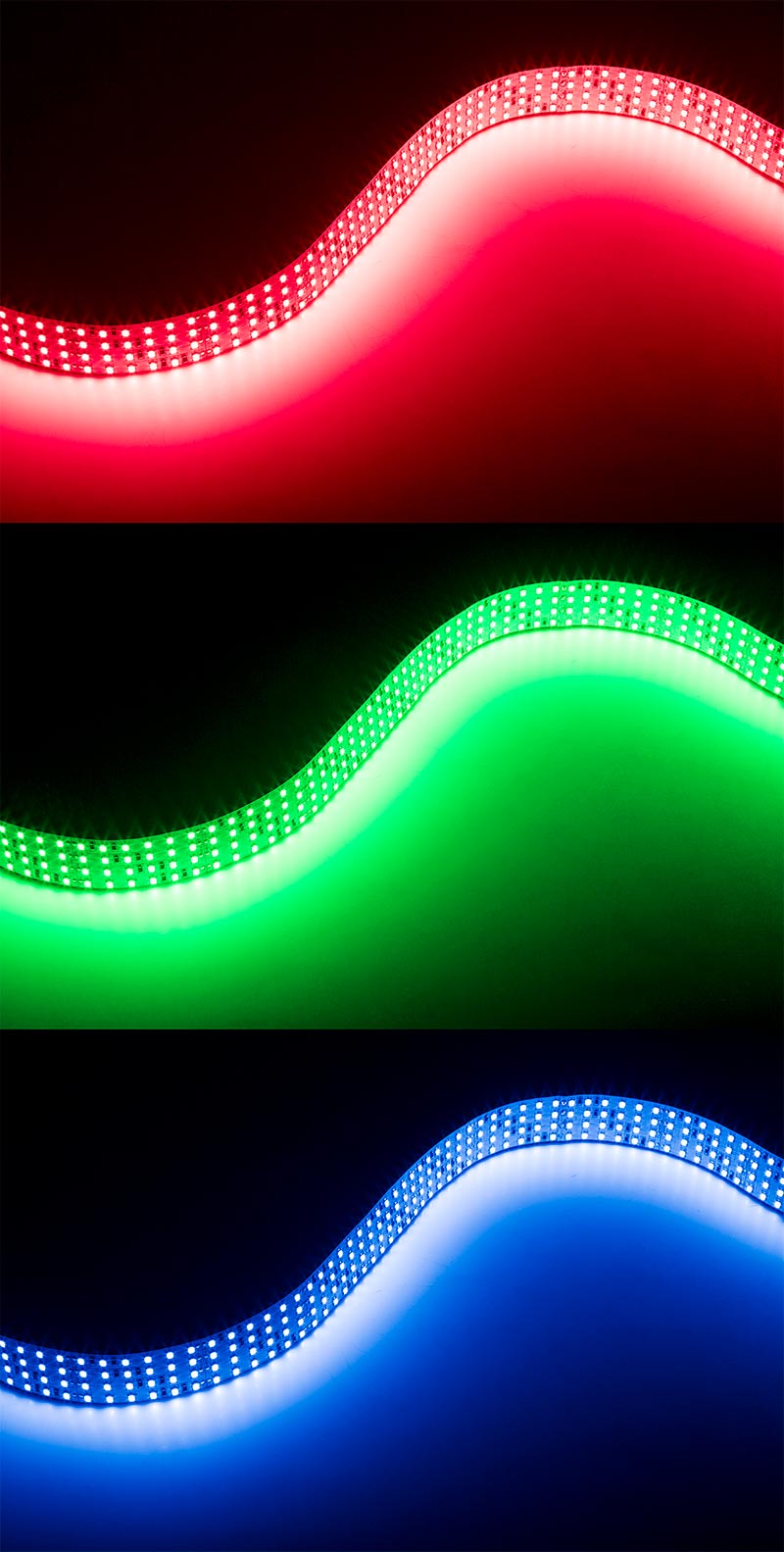

    This Highlight Series LED light strip is capable of outputting up to 1,085 lumens of red, green, or blue illumination per foot. Available in 1 meter segments with a maximum length of 29.87 meters per reel and can be easily cut into 24-LED segments and installed with its peel-and-stick adhesive backing. The strip is non-weatherproof but can be placed into weatherproof housings for outdoor use if you desire. A run back to the power source is required every 16-3/8' (5m) to avoid excessive voltage drop. The single-color light strip has 24 VDC operation and is designed to last 60,000 hours.

    A white, High-CRI version also available in cool, natural, and warm whiteSee compatible LED dimmers.

    Custom-length strip sections are cut from a larger reel and will not have wire leads. Soldering or the use of solderless connectors (sold separately) is required. See accessories for compatible connectors.

    Specifications
    Beam Angle:    120 degree
    Dimmable:    Yes
    Efficacy:    93 lm/w
    Environmental Rating:    Non-weatherproof
    Input Connection Type:    Solder Pads
    LED Density:    132 LEDs/ft.
    LED Lifetime:    60000 Hours
    LED Type:    2835 SMD
    LEDs per Segment:    24
    Max Continuous Length:    500cm (196.85in)
    Max Run:     90
    Max Run in Feet:    16.2ft
    Operating Voltage:    24 VDC
    Price Per Foot:    17.09
    Segment Length:    100cm
    Standards And Certifications:    CE, RoHS Compliant, UL Listed

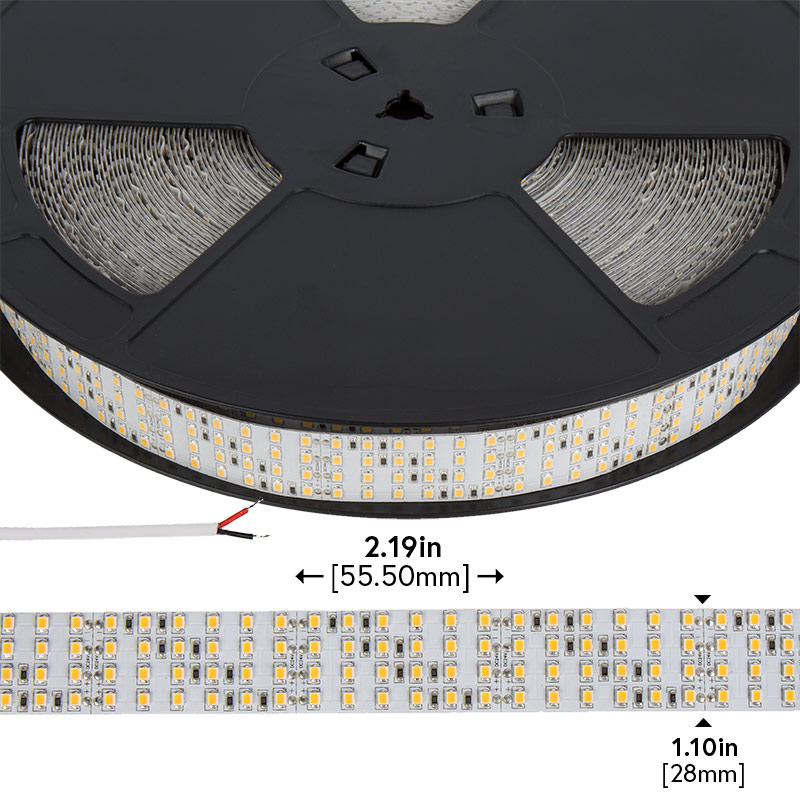

    Strip Width:    28mm (1.10in)
    Total Length:    Custom Length
    Type:    Flexible Light Strips
    Wattage per Foot:    12 Watts
    Package Weight: 0.14oz (0kg)
    Package Dimensions: 2.25" (6cm) x 1" (3cm) x 0.01" (0cm)
    All specifications are subject to change without notice.
