    5m Single Color LED Side Emitting Strip Light - 24V - IP20

      (1 Reviews) | Write a review
    SKU: STN-BSx-E6A-05C5M-24V

    Please Choose:



    Discontinued
    Starting at: $92.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

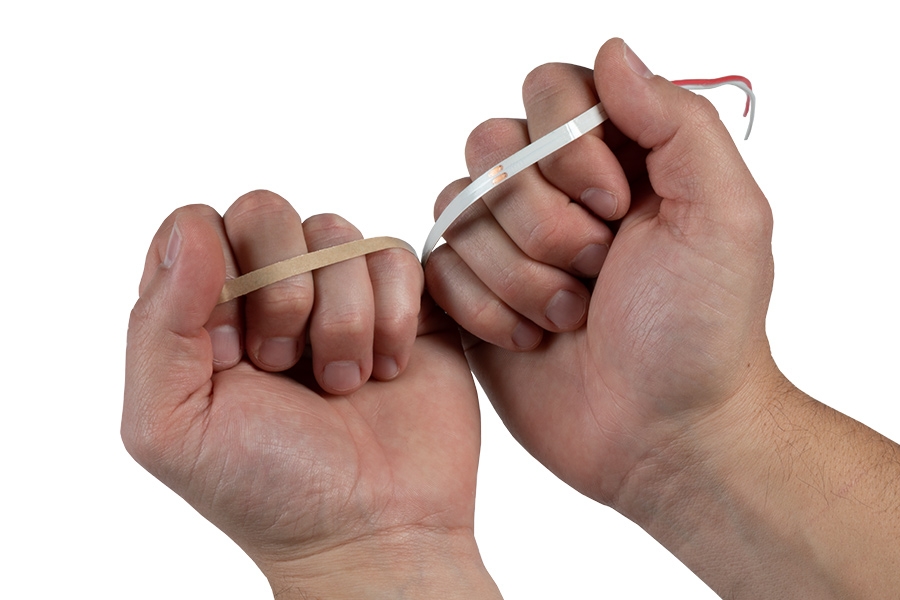

    Available in single color options, STN series Side Emitting Strip Light can provide decorative accents for cabinets, interior pathways, architectural coves, and more. Highting in hard to reach places, beams emit sideways without showing the strip. With flexible construction, 3M™ adhesive backing, this field cuttable LED tape light has the convenient versatility to enhance any indoor space.

    Product Details:

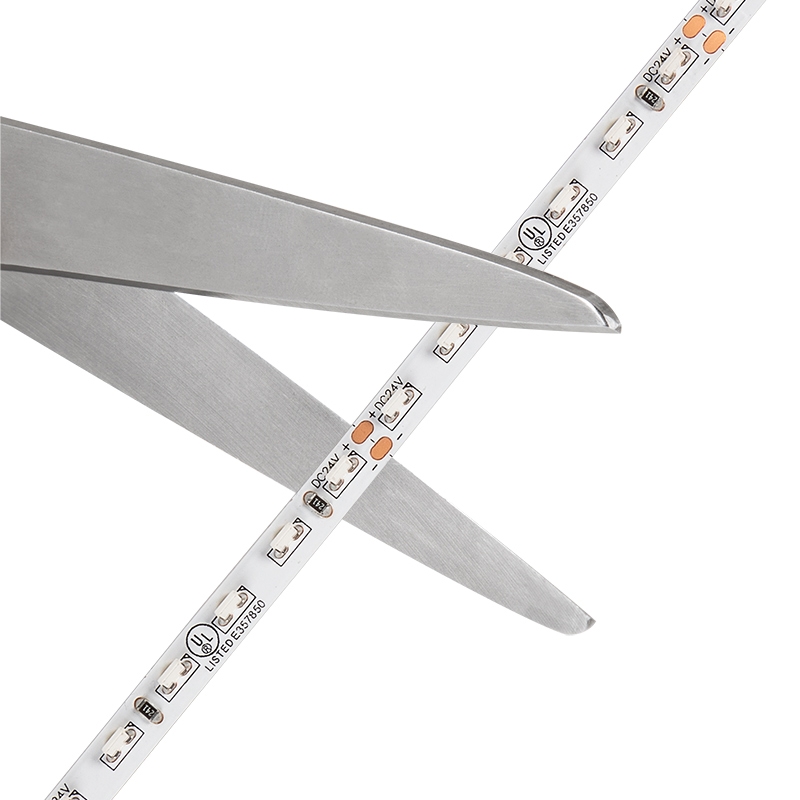

    • Cuttable in 2” segments
    • Available in red, green, blue
    • 24 VDC
    • IP20 rated for indoor conditions
    • 50000 hours L70 lifespan
    • UL Listed
    • Lifetime warranty

    Specifications
    Certifications/Compliance:    RoHS Compliant, UL Listed
    Conductors:    2
    Current Draw:     1.5A (1500mA)
    Current Draw Per Foot:    91mA
    Dimmable:    Yes
    Environmental Rating:    Non-weatherproof
    Finish:    White
    Input Connection Type:    Pigtail
    LED Beam Angle:     120 degree
    LED Density:     36 LEDs/ft.
    LED Quantity:    600 LEDs
    LED Type:    3014 SMD
    LEDs per Segment:    6
    Length:    16.4ft (5m)
    Max Run:     Up to 16.4ft (5m)
    Max Run in Feet:    16.4ft
    Minimum Cut Length:    50mm (1.97in)
    Operating Temperature:    -20~+45 °C (-4~+113 °F)
    Operating Voltage:     24 VDC
    Power Consumption:    36 Watts
    Rated Life (L70):    50000 Hours
    Strip Width:    5mm (0.20in)
    Type:    Flexible Light Strips
    Wattage per Foot:    2.2 Watts
    Package Weight: 3.1oz (0.09kg)
    Package Dimensions: 8" (20cm) x 7.5" (19cm) x 1" (3cm)
    All specifications are subject to change without notice.
