COB Series LED COB Strip Light is built to produce a smooth, seamless line of light and withstand wet locations. Chip-on-board technology has a higher density of LEDs, for a more intense, uniform light that reduces heat buildup. The superior design will not show visible dots or hot spots, making it ideal for reflective surfaces such as granite countertops and tile floors. With no need for additional diffusers, the low profile strip can illuminate more narrow applications. The protective silicone sleeve allows the strip to be installed in areas exposed to splashes or sprays of water. Improved flexibility can wrap light along edges and curved surfaces.

Also available with IP20 rating for indoor application.

Product Details:

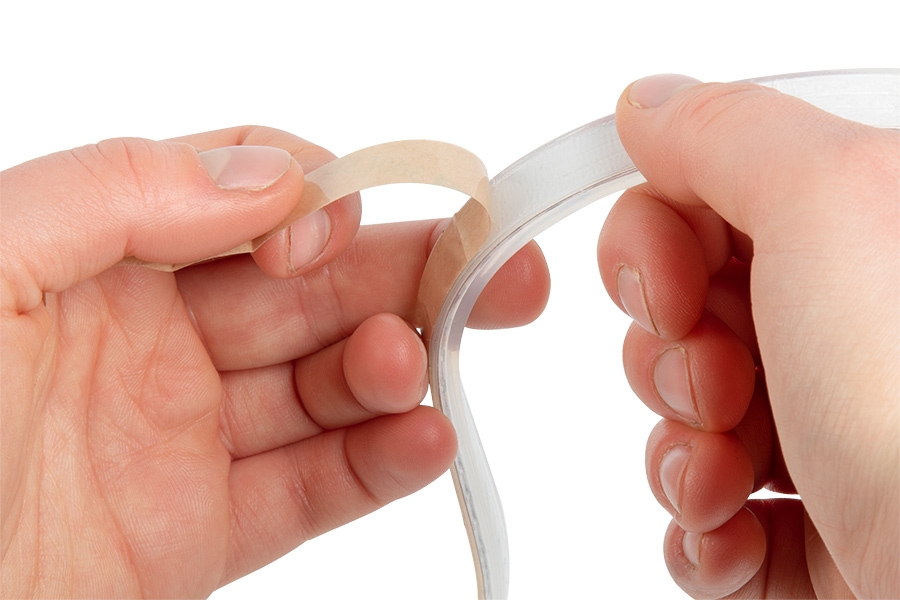

• Peel-and-stick adhesive backing simplifies mounting
• Max Run: 16.4ft (5m)
• Strip Width: 8mm (10mm with silicone sleeve)
• 0-100% dimmable
• 180° beam angle

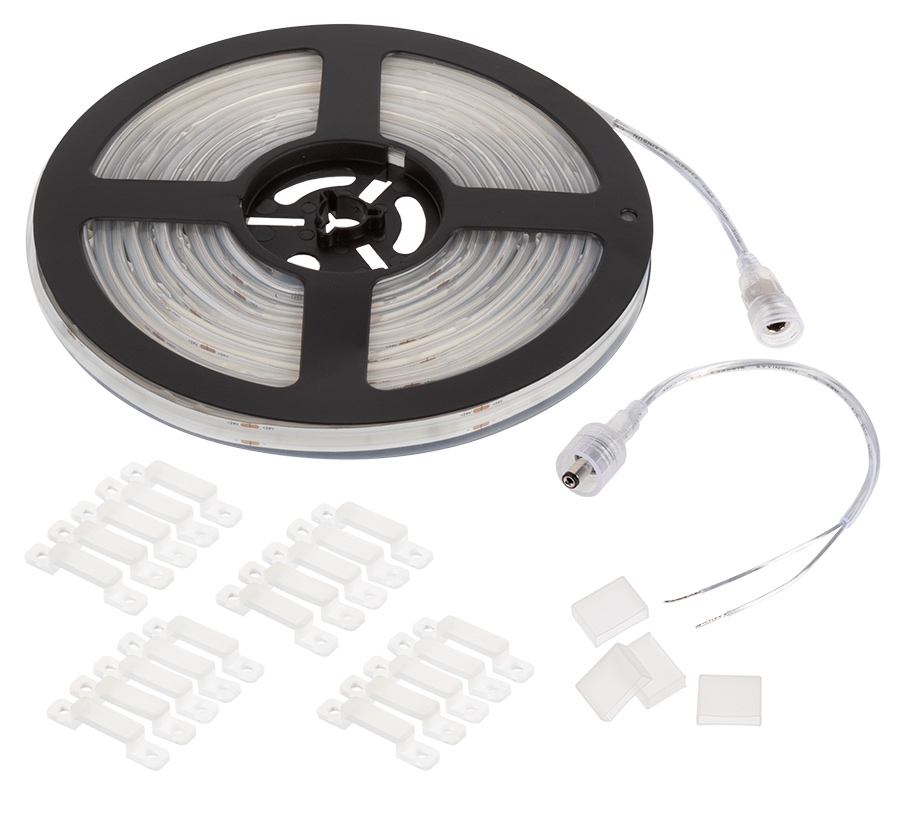

• Connection: 5.5mm x 2.1mm female barrel connector
• Includes male pigtail adaptor with 22 AWG pigtail

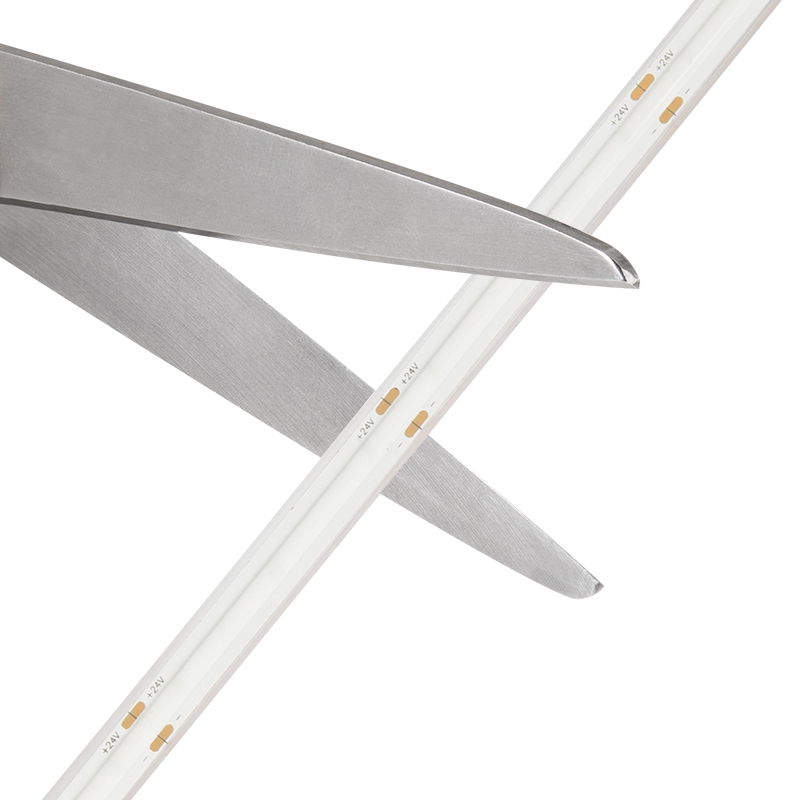

• Cuttable segment length: 2.45in (62.5mm)

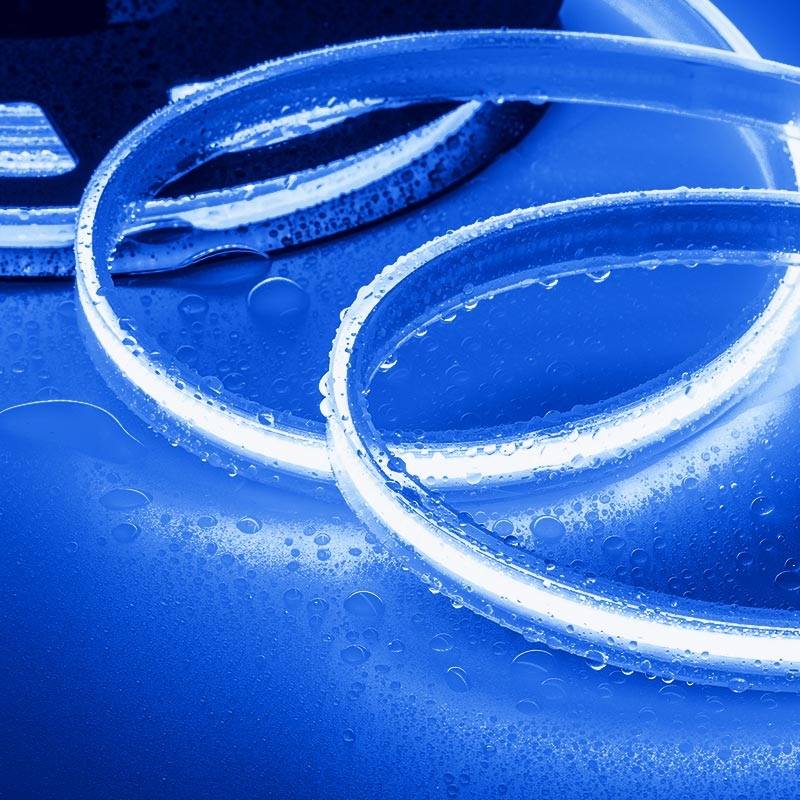

• IP65 rated for wet conditions
• 30000 hours L70 lifespan
• UL Listed
• 5 year warranty

Specifications
Certifications/Compliance：    RoHS Compliant, UL Listed, Waterproof IP65
Current Draw:     2.08 A (total)
Current Draw Per Foot:    127mA
Dimmable：    Yes
IP Rating：     IP65
Input Connection Type：    Water Resistant Connector
LED Beam Angle：     180°
LED Density ：    156 LEDs/ft.
LED Quantity：    2560 LEDs
LED Type：    COB (chip-on-board)
LEDs per Segment：    32
Length：    16.4ft (5m)
Max Run：     Up to 16.4ft (5m)
Minimum Cut Length：    62.5mm (2.46in)
Operating Temperature：    -20~+40 °C (-4~+104 °F)
Operating Voltage：     24 VDC
Power Consumption：    50 Watts
Rated Life (L70)：    30000 Hours
Strip Width：    10mm (0.39in)
Type：    Flexible Light Strips
Wattage per Foot：    3.05 W/ft (10 W/m)
Wire Length：    508mm (20in)
Package Weight: 8.2oz (0.23kg)
Package Dimensions: 9.25" (23cm) x 8.25" (21cm) x 1" (3cm)
All specifications are subject to change without notice.
