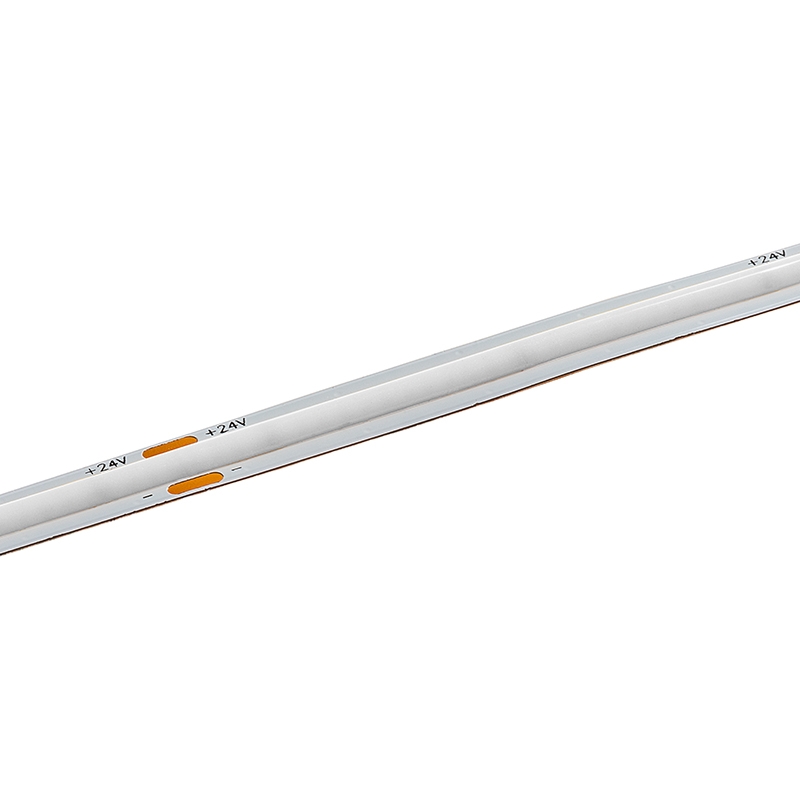

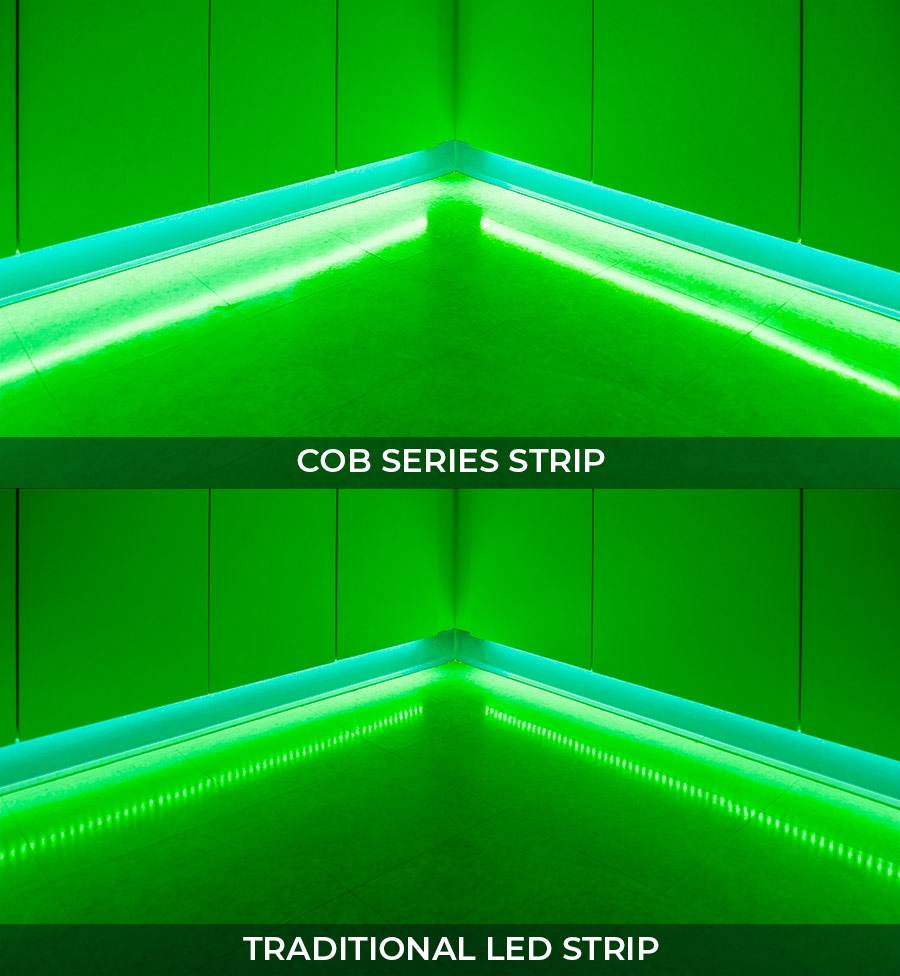

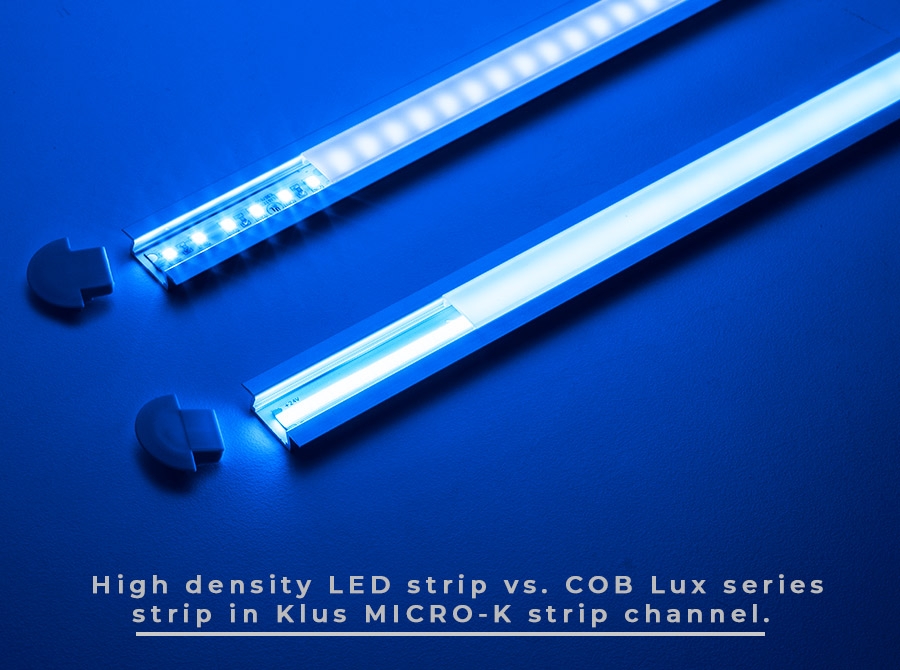

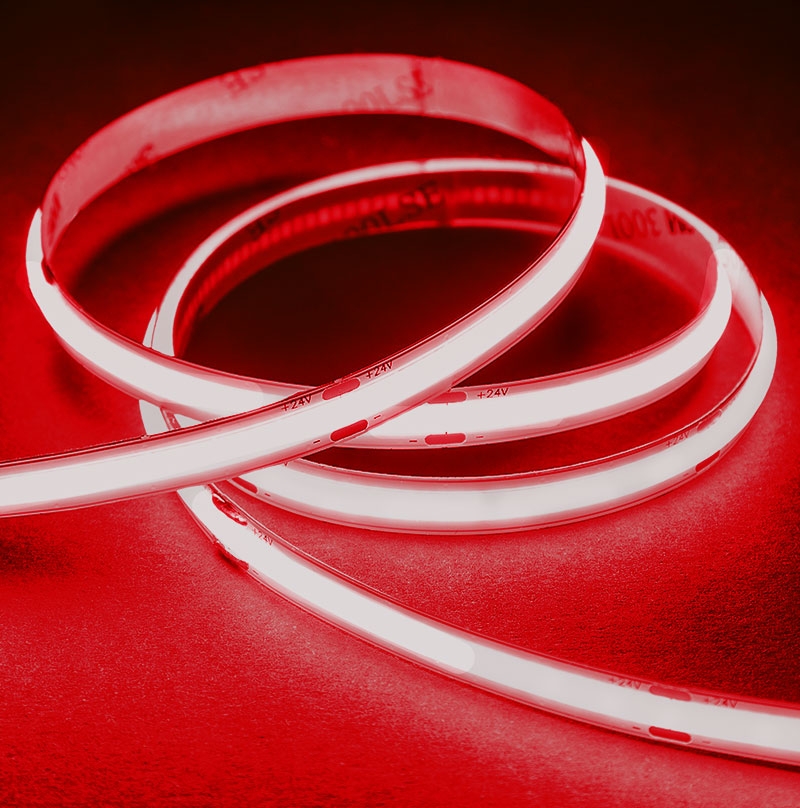

COB Series COB LED Strip Light creates a smooth, seamless single color light. Chip-on-board technology has a higher density of LEDs, for a more intense, uniform light that reduces heat buildup. Superior design will not show visible dots or hot spots, making it ideal for reflective surfaces such as granite countertops and tile floors. With no need for additional diffusers, the low profile strip can illuminate narrow applications such as backlighting or displays. Improved flexibility can wrap light along edges and curved surfaces.

Also available with IP65 rating for outdoor application.

Product Details:

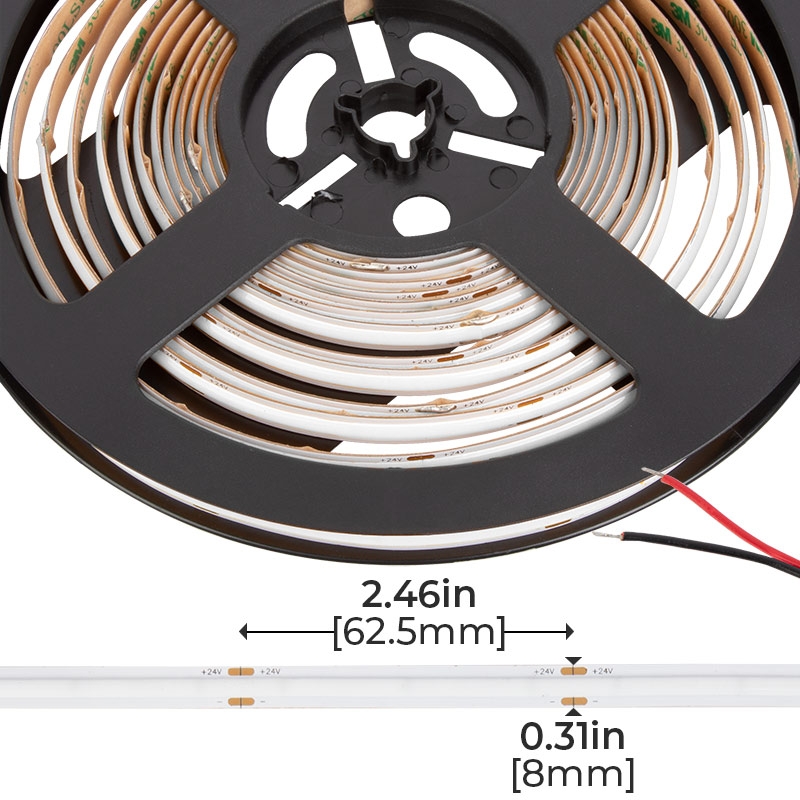

• Strip width: 8mm

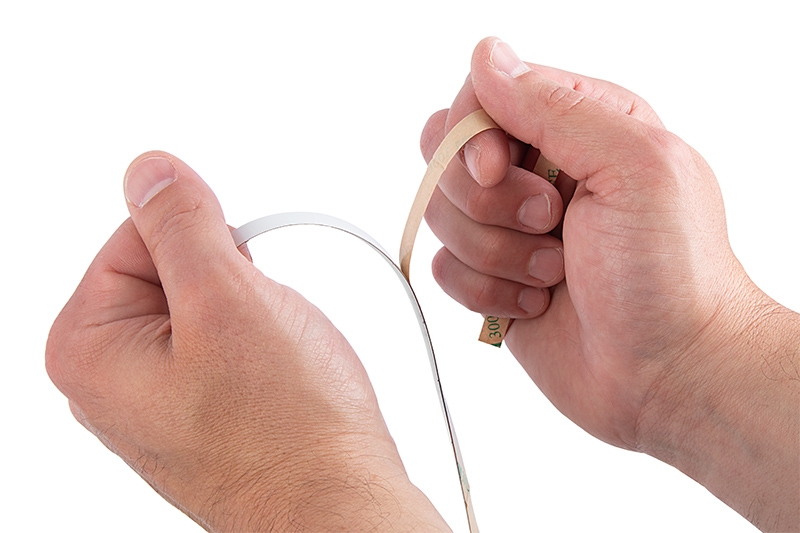

• 3M™ adhesive backing

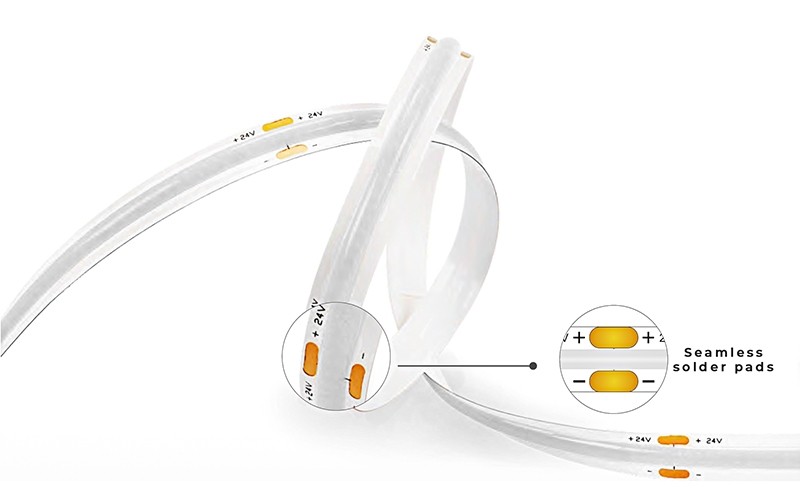

• Flexible COB design for highly adaptable mounting
• 2.46 in. (62.5 mm) segment length
• 24 VDC input voltage
• 50 W total (3.05 W/ft)
• 30,000 hour lifetime (L70)
• 16.4 ft (5 m) max run
• 0-100% dimmable
• Connection: pigtail
• 180° beam angle
• UL Listed
• IP20 Rated for dry conditions
• 5-year warranty

Specifications
Certifications/Compliance：    RoHS Compliant, UL Listed
Current Draw：     2.08 A (total)
Current Draw Per Foot：    127mA
Dimmable：    Yes
Environmental Rating：    Non-weatherproof
Input Connection Type：    Pigtail
LED Beam Angle：     180 degree
LED Density：     156 LEDs/ft.
LED Quantity：    2560 LEDs
LED Type：    COB (flexible)
LEDs per Segment：    32
Length：    16.4ft (5m)
Max Run：     Up to 16.4ft (5m)

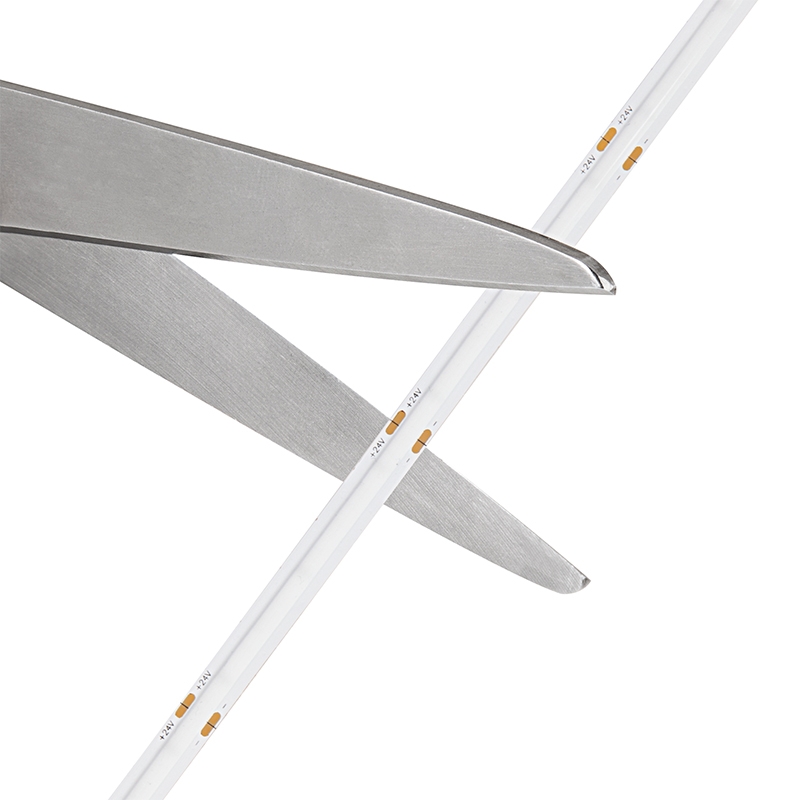

Minimum Cut Length：    62.5mm (2.46in)
Operating Temperature：    -20~+40 °C (-4~+104 °F)
Operating Voltage：     24 VDC
Power Consumption：    50 Watts
Rated Life (L70)：    30000 Hours
Strip Width：    8mm (0.31in)
Type：    Flexible Light Strips
Wattage per Foot：    3.1 W/ft (10.2 W/m)
Wire Length：    508mm (20in)
Package Weight: 5oz (0.14kg)
Package Dimensions: 8" (20cm) x 7" (18cm) x 0.5" (1cm)
All specifications are subject to change without notice.
