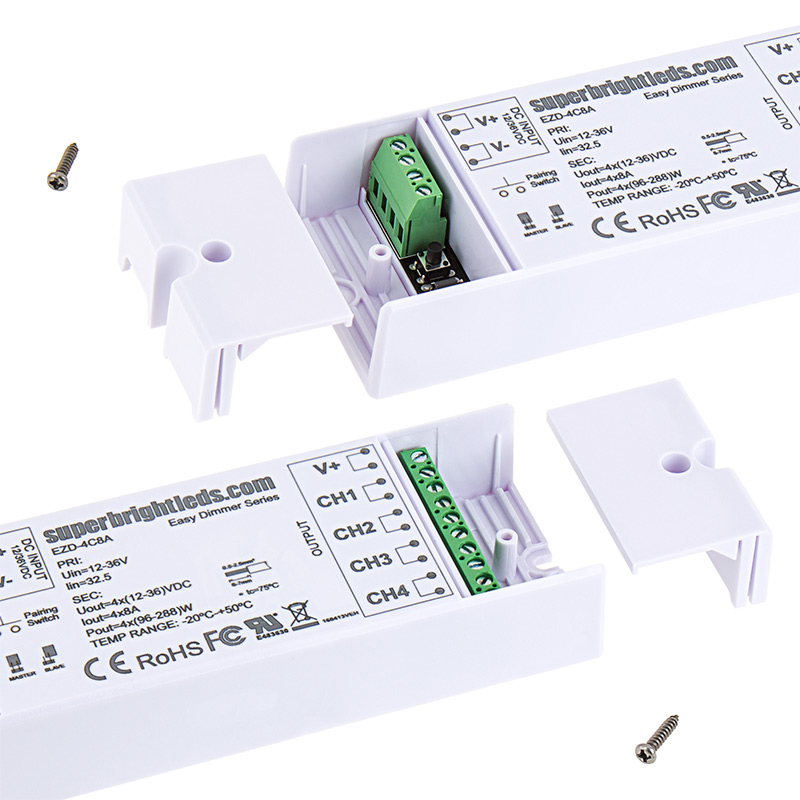

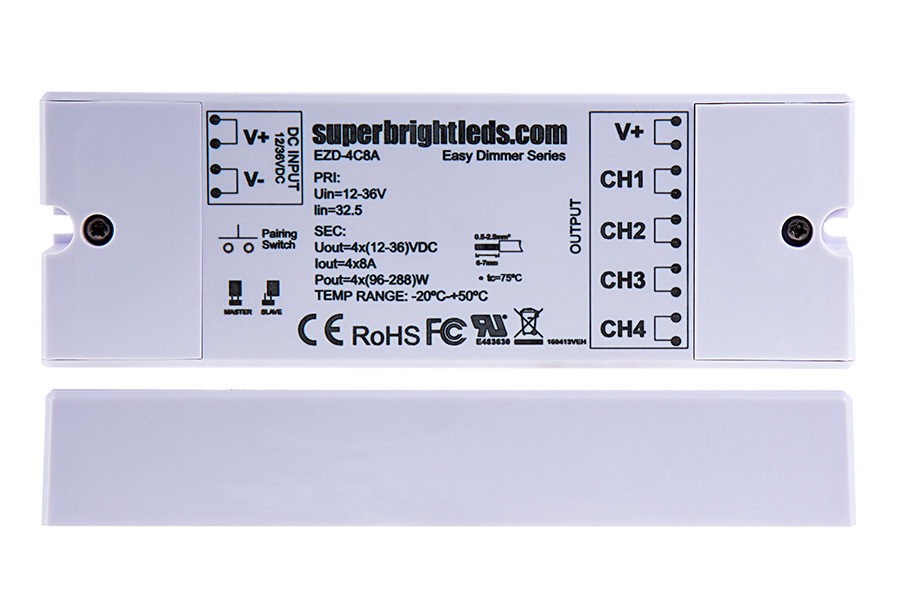

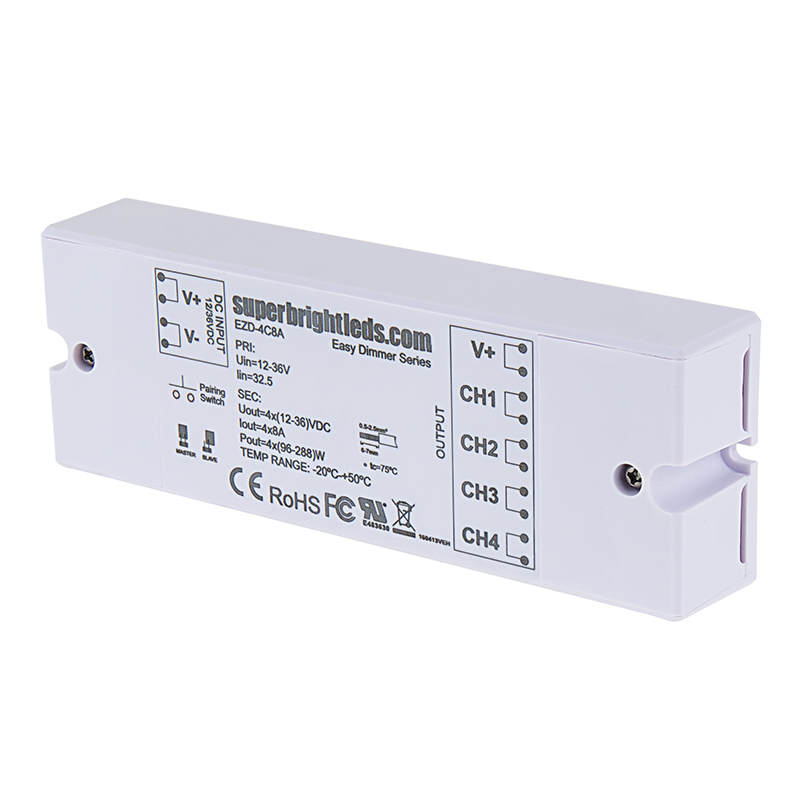

Designed for use within the EZ Dimmer series, this wireless 4 channel LED dimmer controller operates within a 12-36 VDC while receiving RF signals from a compatible wireless LED dimmer wall switch. The LED receiver has a maximum load capacity of 32 amps and has spring terminal connectors for in and out power connections.

Specifications
Amps Per Channel:    8 Amps/CH
Channels:    4 Channels
Control Type:    Handheld (RF) Remote
Finish:    White
Input Connection Type:    Screw Terminals
Input Voltage DC:    12 ~ 36 VDC
Input Voltage Range:    12-36 VDC
Radio Frequency:    868 MHz
Standards And Certifications:    CE, FCC, RoHS Compliant, UL Recognized
Type:    Controllers
Volts:    12~36 VDC
Package Weight: 6.9oz (0.2kg)
Package Dimensions: 7" (18cm) x 4" (10cm) x 2" (5cm)
All specifications are subject to change without notice.
