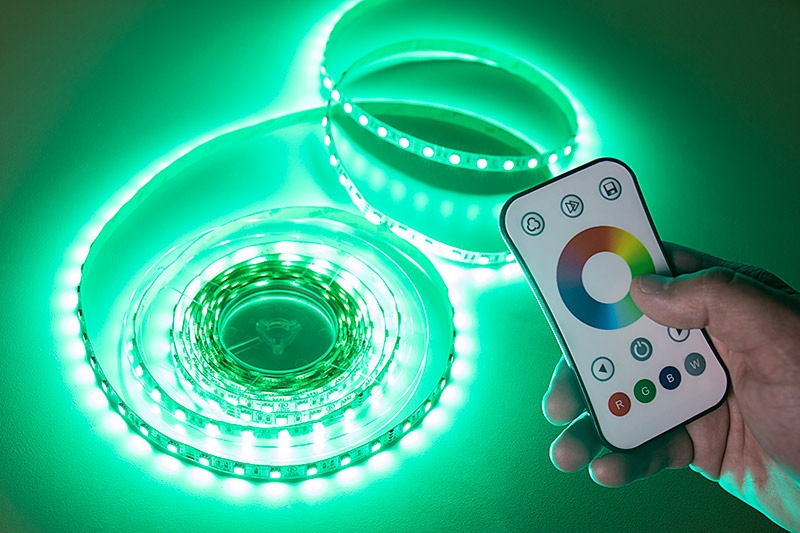

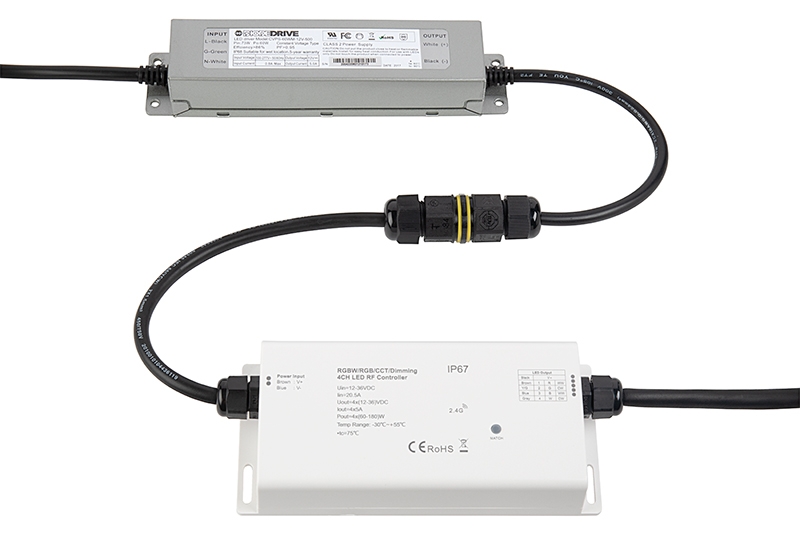

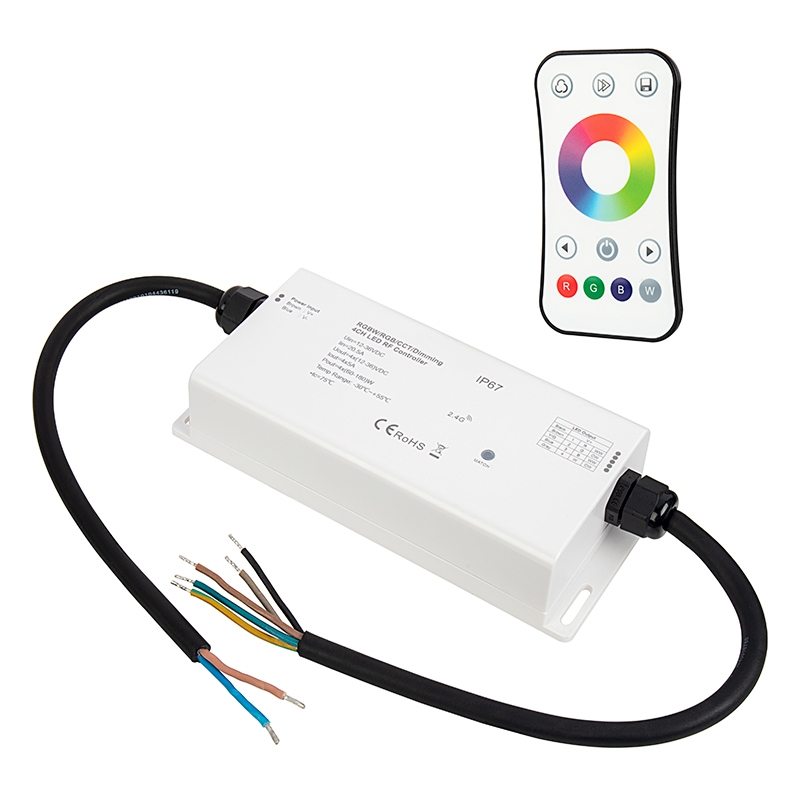

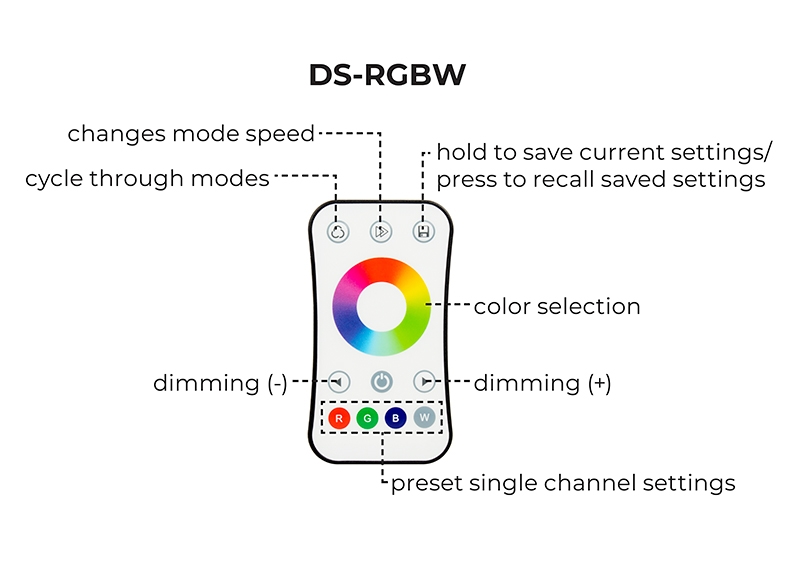

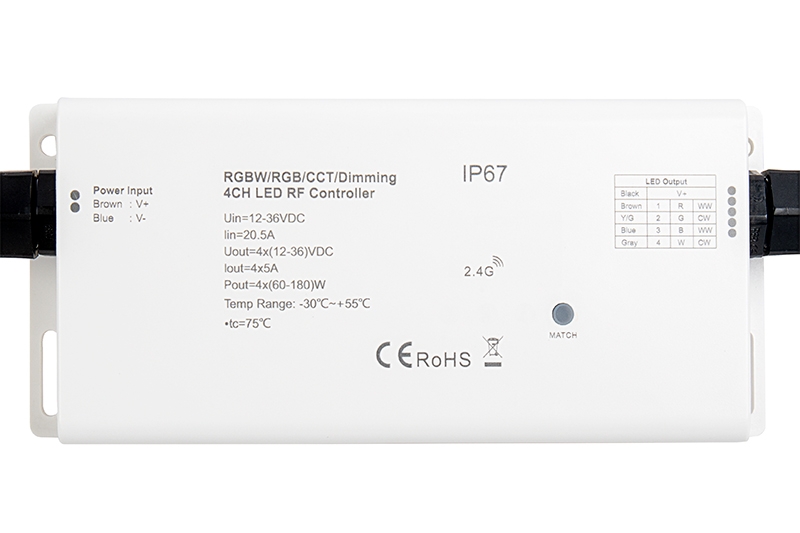

DS series Receiver is a constant voltage controller that allows up to 4 channels. Fully enclosed plastic housing is rated IP67 for wet conditions and outdoor application. Easily pairs with remote to control RGB/RGBW LED strips, bars, and more. Allows 10 dynamic programs to choose from, as well as adjustable jump and fade settings.

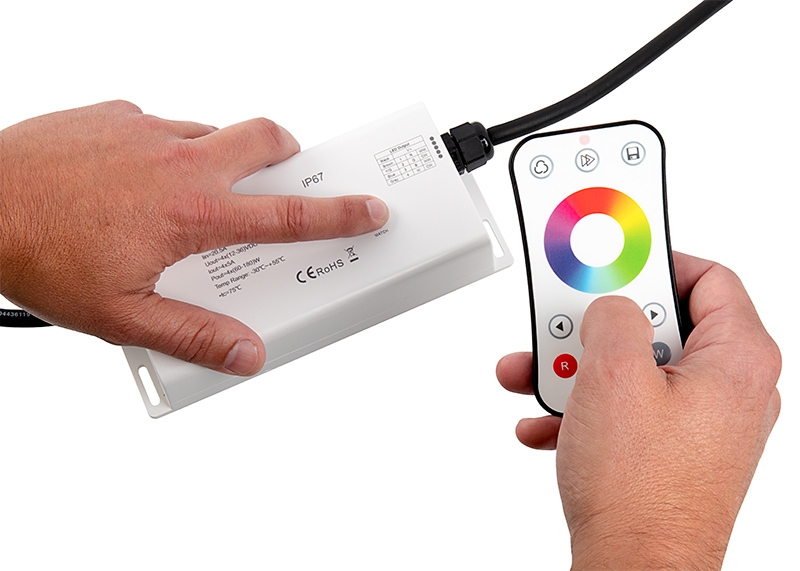

 Remotes must be paired as part of the installation process and do not come pre-paired. Please see manual for details.

Product Details:

• Input Voltage Range: 12–36 VDC
• Max Input Current: 20.5 A
• Max. Output Current: 5 A per channel (20 A total)
• Output power 4 x 180-watts
• PWM Frequency 500Hz
• Transmission Range: 98ft
• Repeats signal to another receiver within 98ft
• 4096 levels for smooth 0-100% dimming
• Protects against overheat, overload, and short circuit

Specifications
Amps Per Channel:    5 Amps/CH

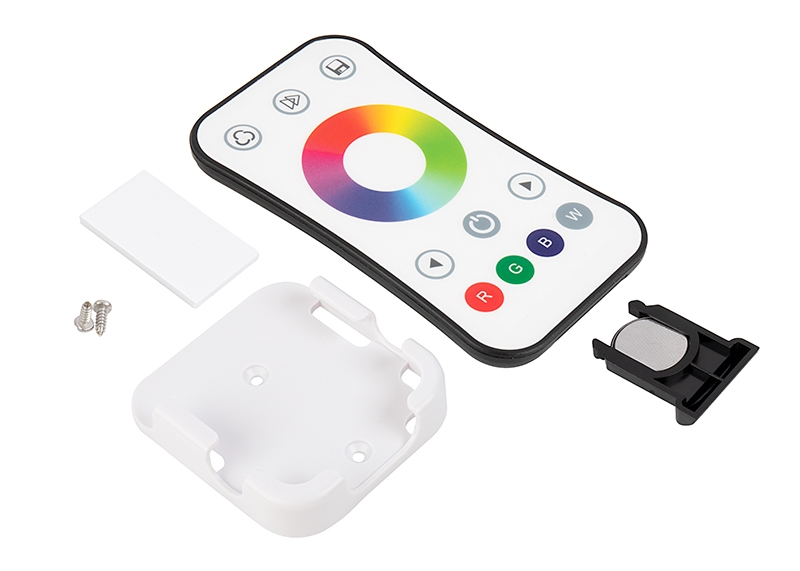

Batteries:    CR2032 x1 (included)
Certifications/Compliance:    CE
Channels:    4 Channels
Control Type:    Handheld (RF) Remote
Electrical Connection:    Pigtail
IP Rating:     IP67
Input Voltage Range:    12-36 VDC
Max Input Current:    20.5 A
Max Output Current:    20 A (5 A x 4 channels*)
Max Range:    Up to 30m (98')
Operating Temperature:    -30~+55 °C (-22~+131 °F)
Output Power:    4 x (60-180)W
Output Voltage Range:    12-36 VDC
Power Consumption:    4 Watts
Product Weight:    0lb 12oz (0.34kg)
Signal Type:    2.4 GHz RF
Package Weight: 11.9oz (0.34kg)
Package Dimensions: 10" (25cm) x 4.75" (12cm) x 2.5" (6cm)
All specifications are subject to change without notice.
