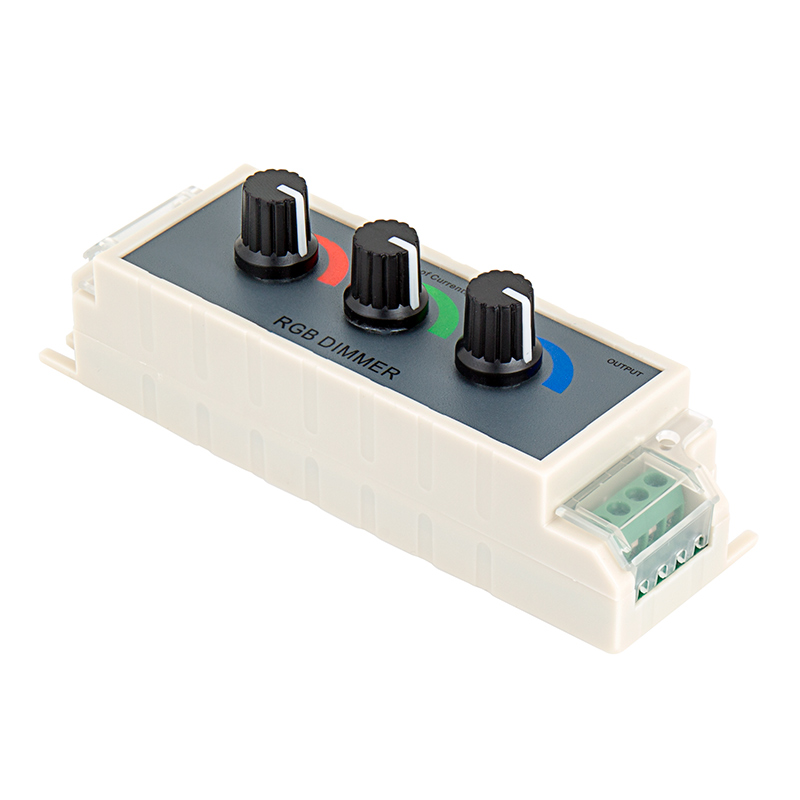

Three Color RGB LED Dimmer

(7 Reviews) | Write a review

SKU: LDK-RGB3

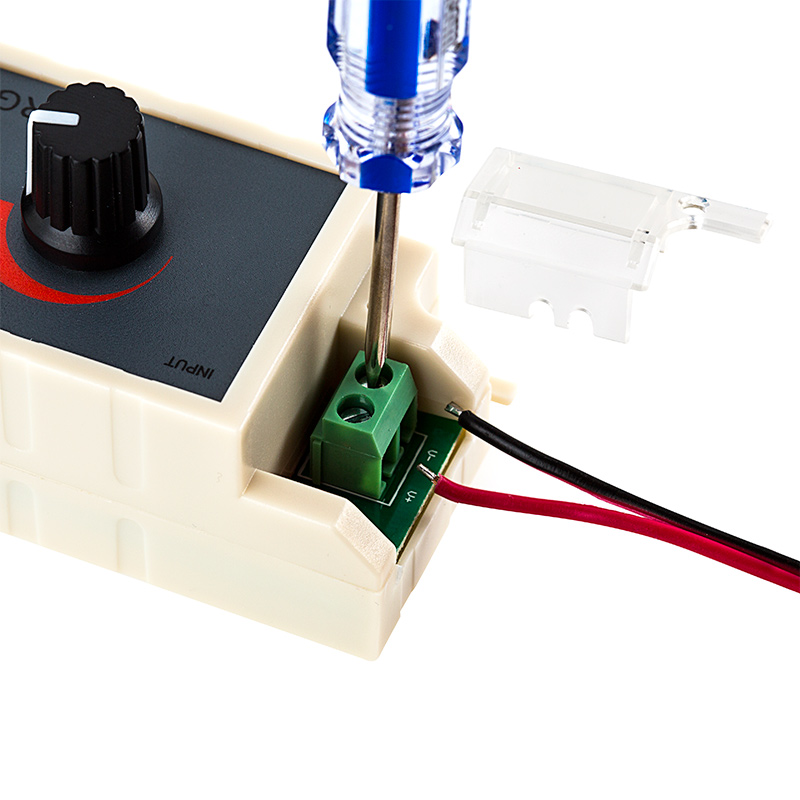

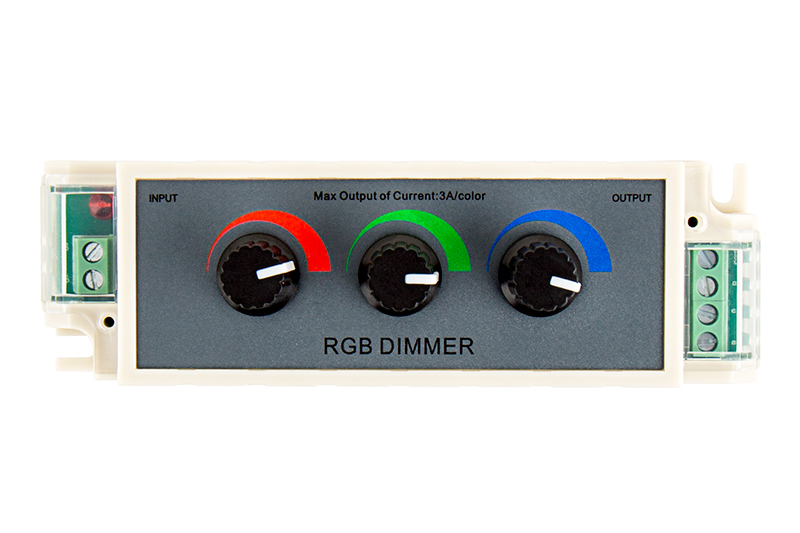

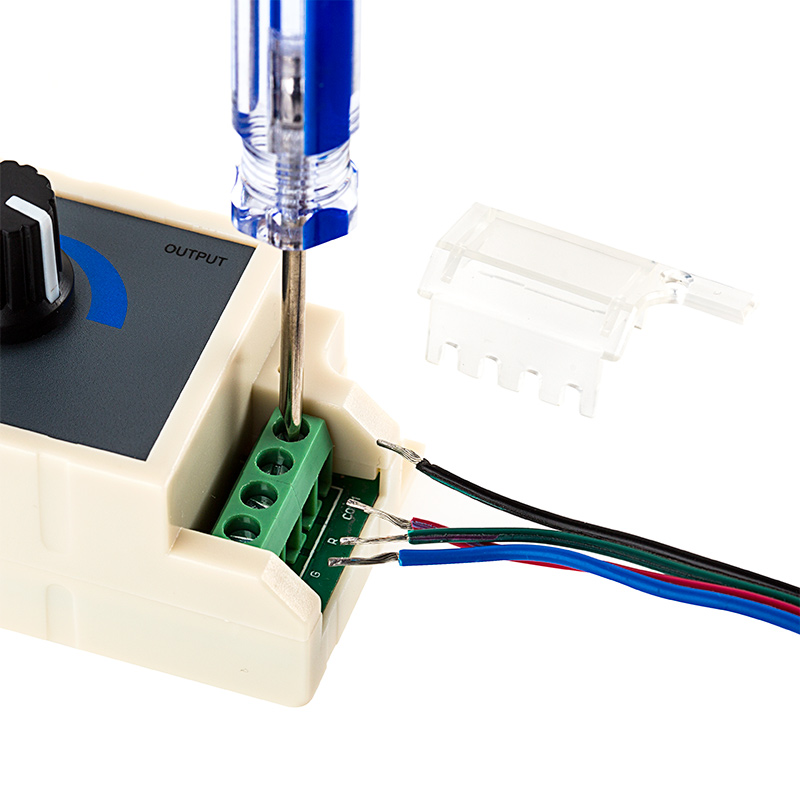

Universal Red/Green/Blue (RGB) LED dimmer can dim any 12VDC RGB LED products from 0 to 100 percent using Pulse Width Modulation (PWM) circuits. Knob controls for full intensity adjustment range and manual custom color creation. Maximum Load is 3 Amps per channel (9 Amps total) , has screw terminals for power in and out connections.

Specifications
Amps:   9.00 Amps
Amps Per Channel:   3 Amps/CH
Channels:   3 Channels
Input Connection Type:   Screw Terminals
Remote:    In-line Wired
Standards And Certifications:   RoHS Compliant
Type:   RGB Dimmer
Volts:   12 VDC
Package Weight: 4.2oz (0.12kg)
Package Dimensions: 5.39" (14cm) x 2.22" (6cm) x 2.22" (6cm)
All specifications are subject to change without notice.
