RGB LED Controller w/ RF Remote - Dynamic Color-Changing Modes - 4 Amps/Channel

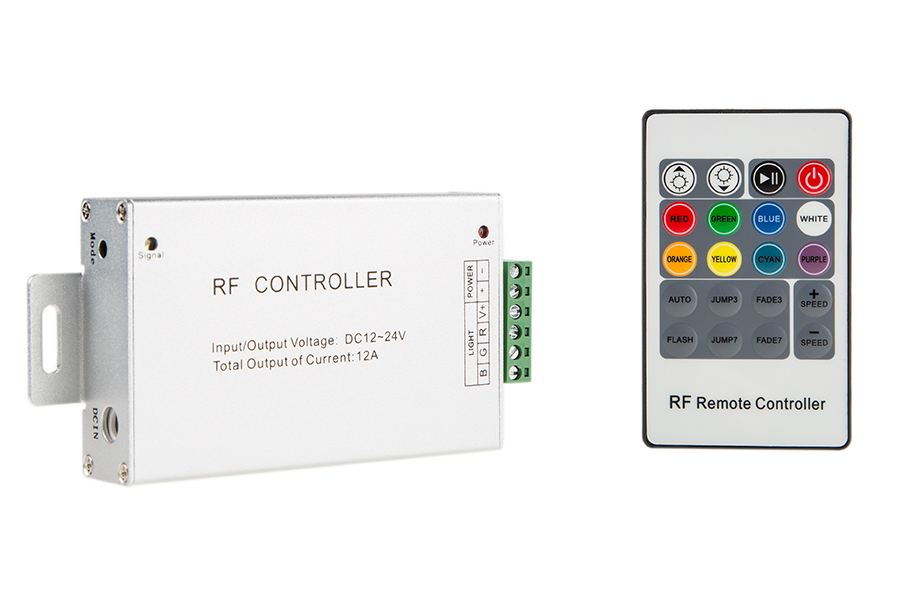

The Model LDRF-RGB4 is used to control 12 Volt RGB LED Light Bars and Light Strips with common anode wiring, such as our xFLS-RGB series Light Strip. Using the included hand held wireless remote controller for direct accessibility to all modes, RGB Light Strips can be set to one of eight different static colors or one of six different dynamic color changing patterns. The remote control can also adjust pattern speed, brightness, play/pause, and turn system ON and OFF. With 12 Amp continous load capability, the LDRF-RGB4 can drive up to 30 meters of our xFLS-RGB Light Strips. For longer runs use our RGB Amplifiers.
Specifications
Amps: 12.00 Amps
Amps Per Channel: 4 Amps/CH
Battery Type: 1 x 27A
Channels: 3 Channels
Environmental Rating: Non-weatherproof
Input Connection Type: Screw Terminals
Remote: Handheld (RF) Remote
Standards And Certifications: FCC, RoHS Compliant
Type: RGB Controller
Volts: 12~24 VDC
Package Weight: 6.43oz (0.18kg)
Package Dimensions: 5.51" (14cm) x 2.55" (6cm) x 2.55" (6cm)
All specifications are subject to change without notice.
