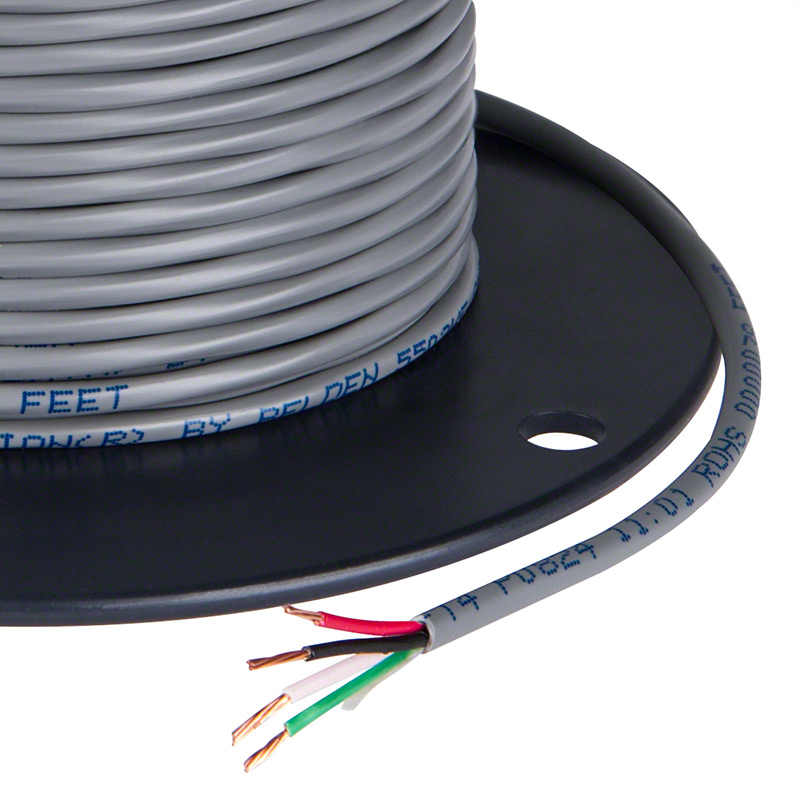

PVC Jacketed 18 Gauge Wire - Four Conductor Power Wire

(1 Reviews) | Write a review

SKU: WP18-4CMR

This 4-conductor, 18-gauge power wire is designed for low-voltage RGB LED light strip installations. The UL-Listed, PP-insulated wire can be used inside walls and is CMR rated to prevent the spread of fire along the cable. Wire markings indicate every 2 feet. Price per foot. Also available in a 22-gauge version.

Specifications
Amps Per Channel:   4 Amps/CH
Conductors:   4
Operating Temperature:   -20~+75 °C (-4~+167 °F)
Standards And Certifications:   RoHS Compliant, UL Listed
Type:   Power Cord
UL File Number:   E108998
Gauge:   18 AWG
Wire Type:   Stranded
Package Weight: 0.4oz (0.01kg)
Package Dimensions: 4" (10cm) x 1.1" (3cm) x 1.1" (3cm)
All specifications are subject to change without notice.
