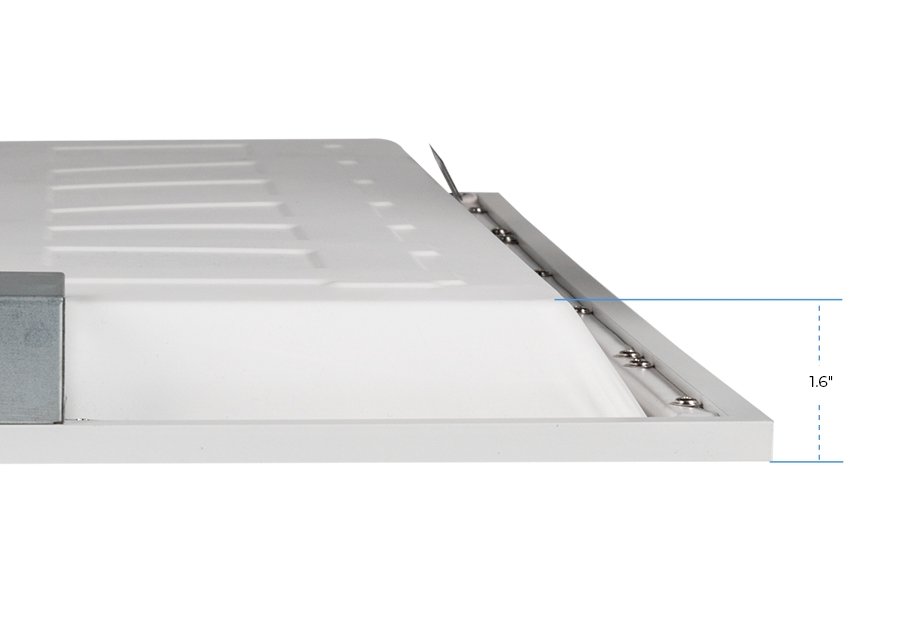

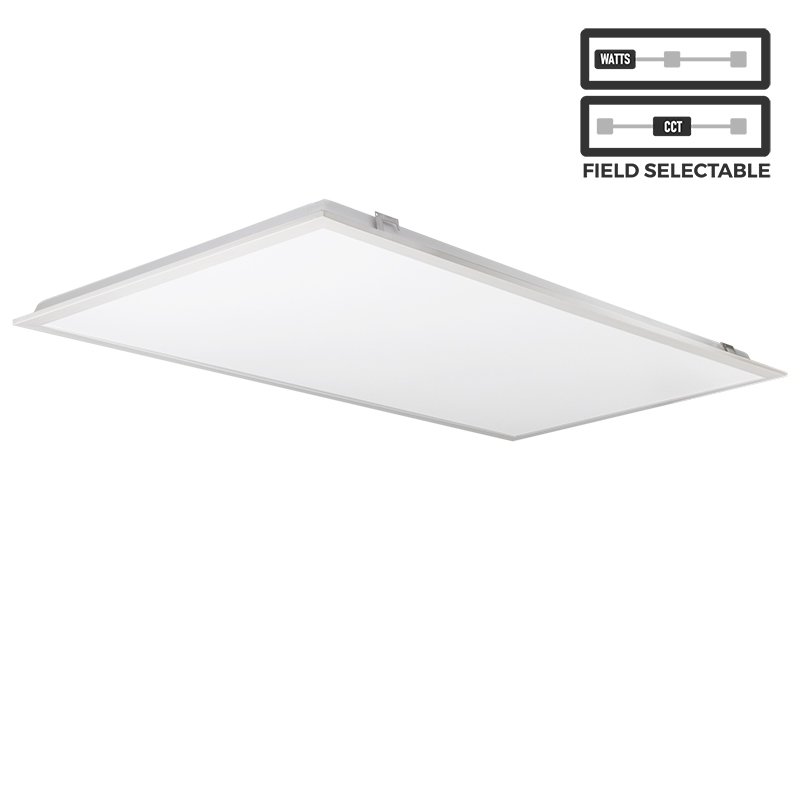

LPDBL-U1 series Panel has 3 wattage and 3 color temperature options in one fixture, offering customization and versatility during install. Contractors can save on shelf space, reduce inventory costs, and offer a wider selection to customers. One fixture style can outfit an entire school, hospital, or business, adjusting to different lighting needs in each unique space. Low profile and lightweight design as compared to traditional fluorescent troffers. Flicker-free, energy-efficient LED light is evenly diffused through a glare-free frosted lens.

Product Details:

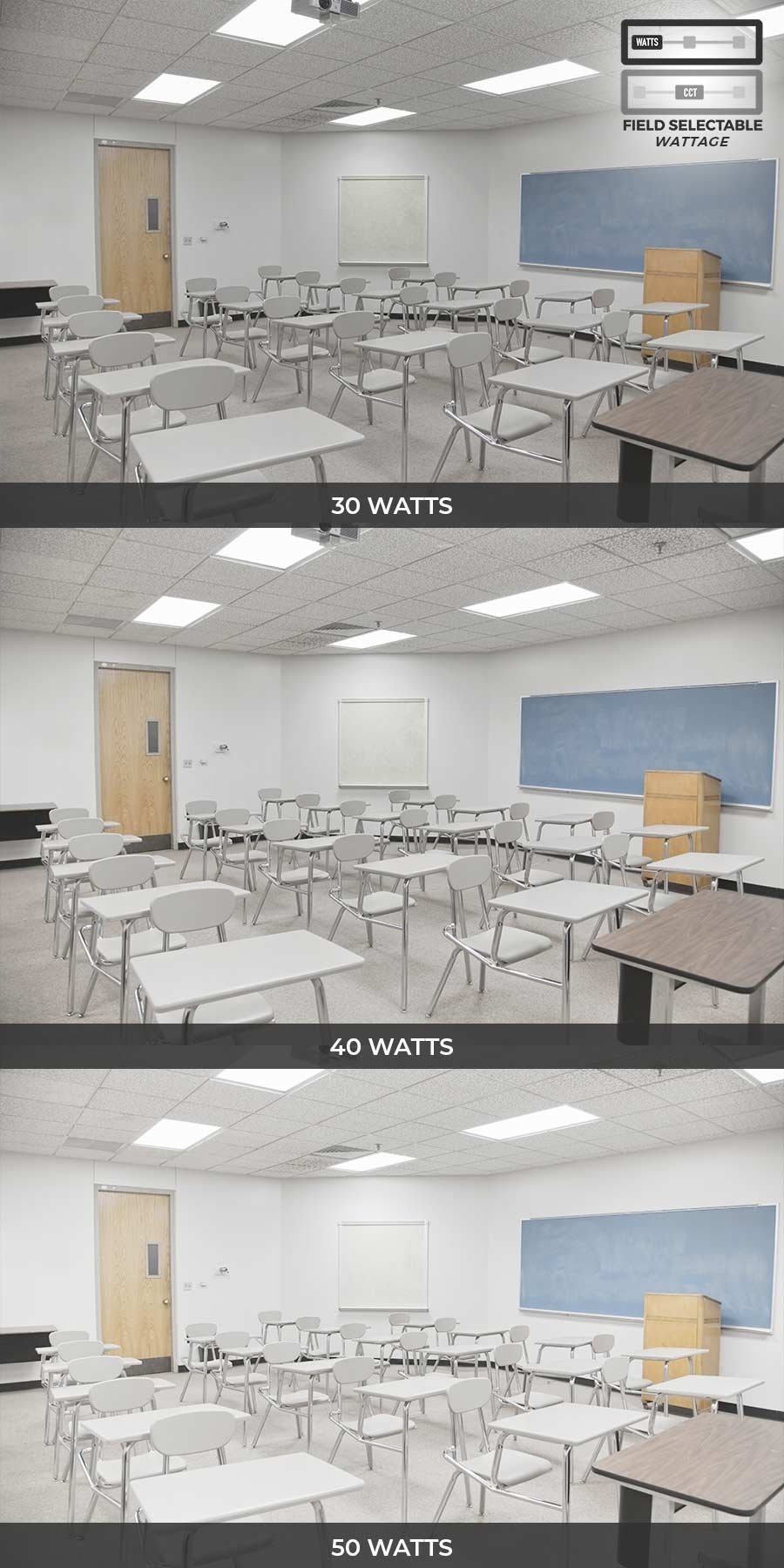

Selectable wattage: 30W, 40W, 50W

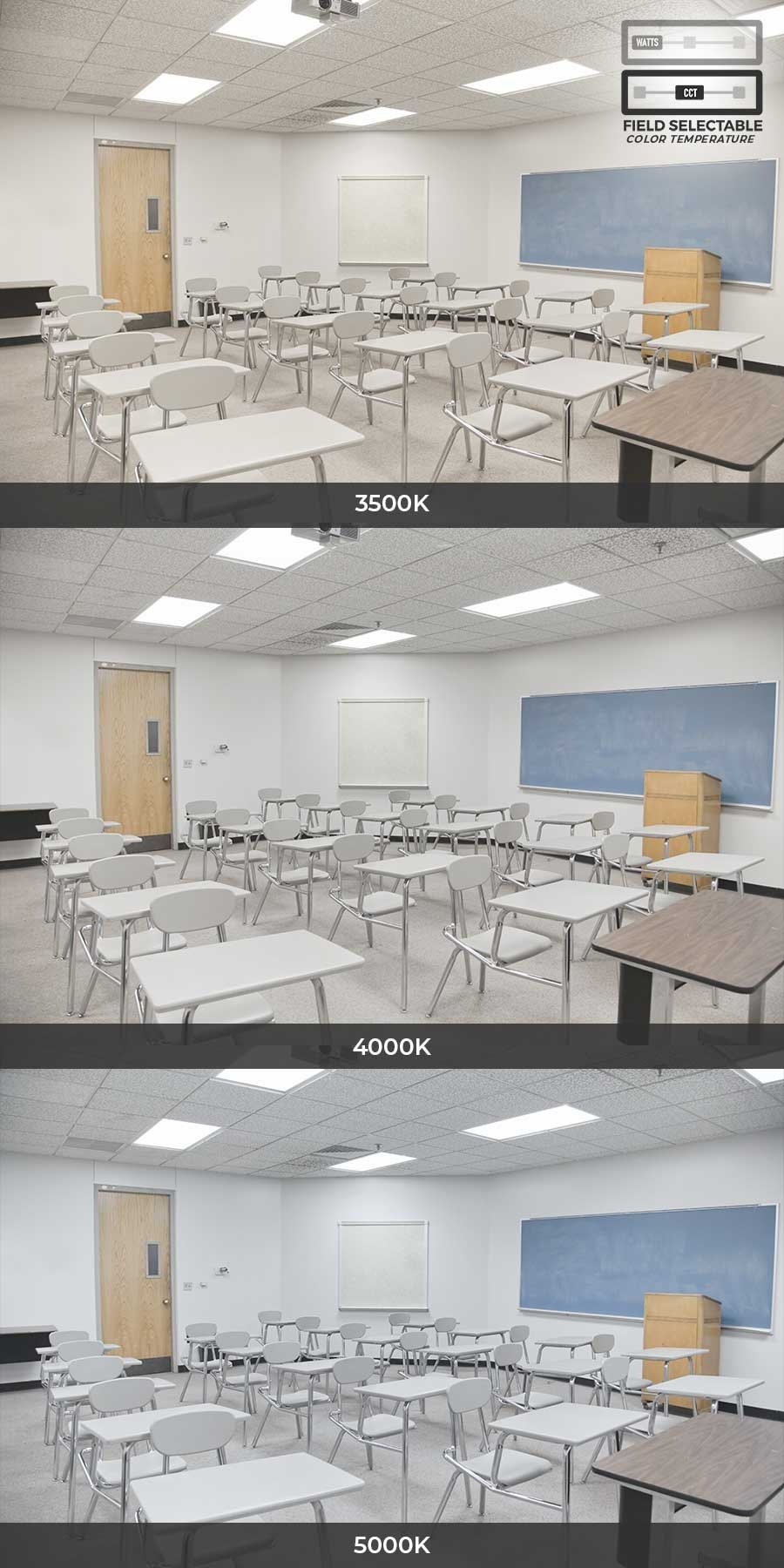

Selectable CCT: 3500K / 4000K / 5000K
Also available in a 2x2 option
Fits in standard T-grid drop ceilings
Optional surface mount kit and hanging mount kit available

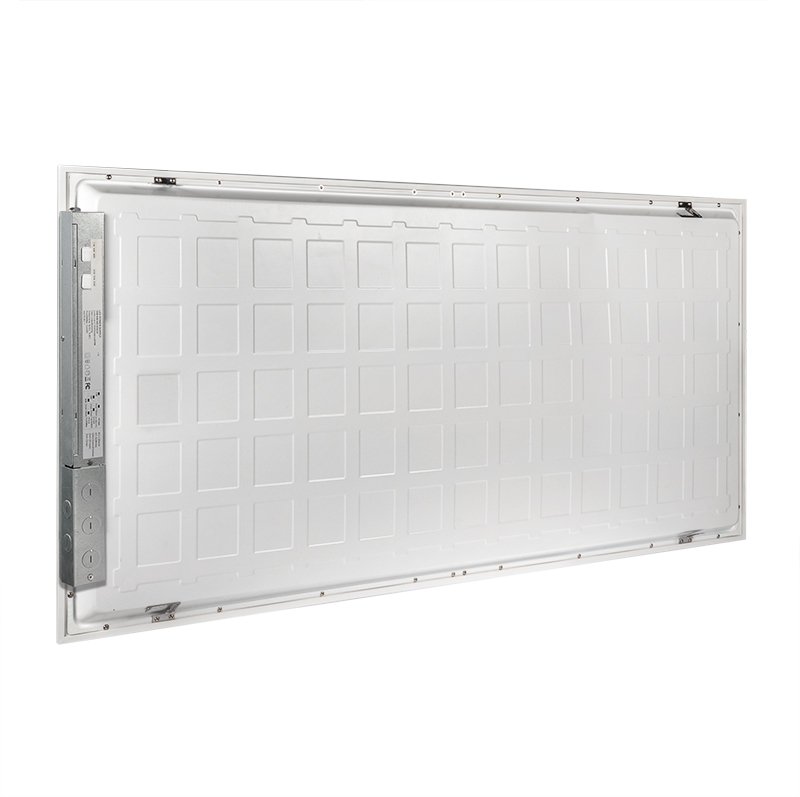

Steel housing and driver enclosure with aluminum outer frame
Frosted polycarbonate lens
100–277 VAC input
0-10V dimmable - dimming control sold separately
50,000 hours
ETL Listed
DLC Premium 5.1

Specifications
Beam Angle：    120 degree
Comparable Wattage：    3-lamp 32W Fluorescent T8 Tubes
CRI:     80+
Current Draw:    108/144/181 mA @ 277 VAC, 250/333/417 mA @ 120 VAC
Dimensions:    2ft x 4ft
Dimmable:    Yes
Dimming Type:     0-10V
Efficacy:    125 lm/w
Environmental Rating:    Non-weatherproof, Suitable for Damp Locations
Finish:    White
Input Connection Type:    Pigtail
IP Rating:     IP40
Color Options:    Selectable CCT
LED Lifetime:    50000 Hours
Lumen:    5000 Lumen, 6250 Lumen, 3750 Lumen
Material:    Aluminum Frame, Polystyrene Lens, Steel Housing
Operating Temperature:    -20~+45 °C (-4~+113 °F)
Power Consumption：    30 Watts, 50 Watts, 40 Watts
Product Weight：    8lb 12oz (3.97kg)
Standards And Certifications：    DLC Premium, ETL Listed
Volts:    120~277 VAC
