Product Description

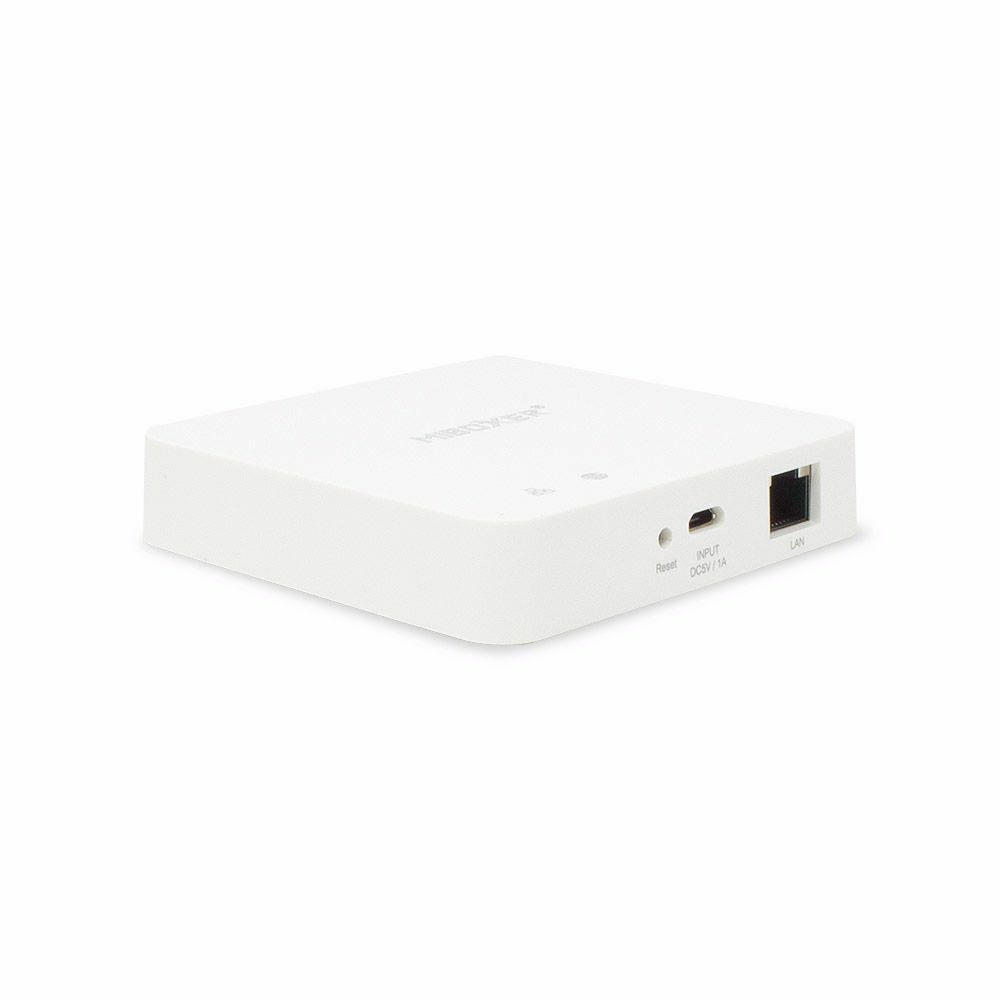

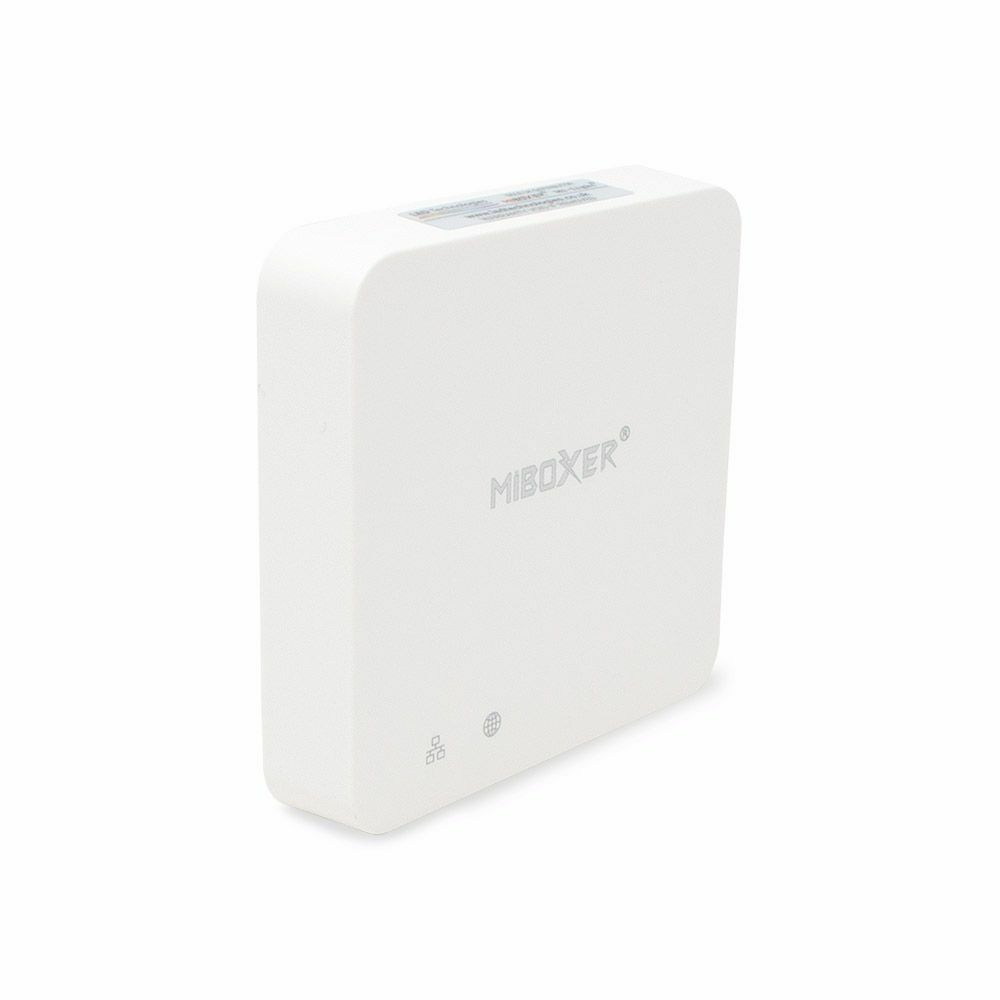

This compact ZIGBEE Gateway (Hub) from Mi-Boxer connects to your Wi-Fi router with a wired connection, acting as a bridge between your smartphone or smart speaker. Control your lighting devices from the free "Mi-Boxer Smart" Application on your smartphone or with voice control through your smart home automation speaker.

To provide power to the ZigBee Smart gateway:

First, place this ZigBee device next to your router
Connect the RJ45 plug into the gateway
Using a spare socket on your router, connect the included USB cable into the gateway power port and to a USB power socket
Power on the gateway and wait for the two status indicators on the gateway to show that it is connected.


Download the "Mi-Boxer Smart" application from the Apple App Store or from Google Play (Note: QR Code provided on the product datasheet). Follow the supplied instructions to connect your gateway to your router.

Once you have registered your account through the application you can start to add your ZIGBEE lighting and control devices into the application. You can give them names and put the products into virtual rooms on your device.

The gateway is compatible with all the Mi-Boxer / Mi-Light ZIGBEE 3.0 protocol smart products. Most third-party ZIGBEE products can be controlled from the application by simply adding them to your virtual application.

You will then have full control over each connected device locally and from anywhere in the world. You can set up routines such as sleep and awake plans and timer settings through the wireless network.

For voice control, follow the instructions on how to pair your Smart Speaker to your device. The gateway works with Amazon Alexa and Google Assistant home automation systems.

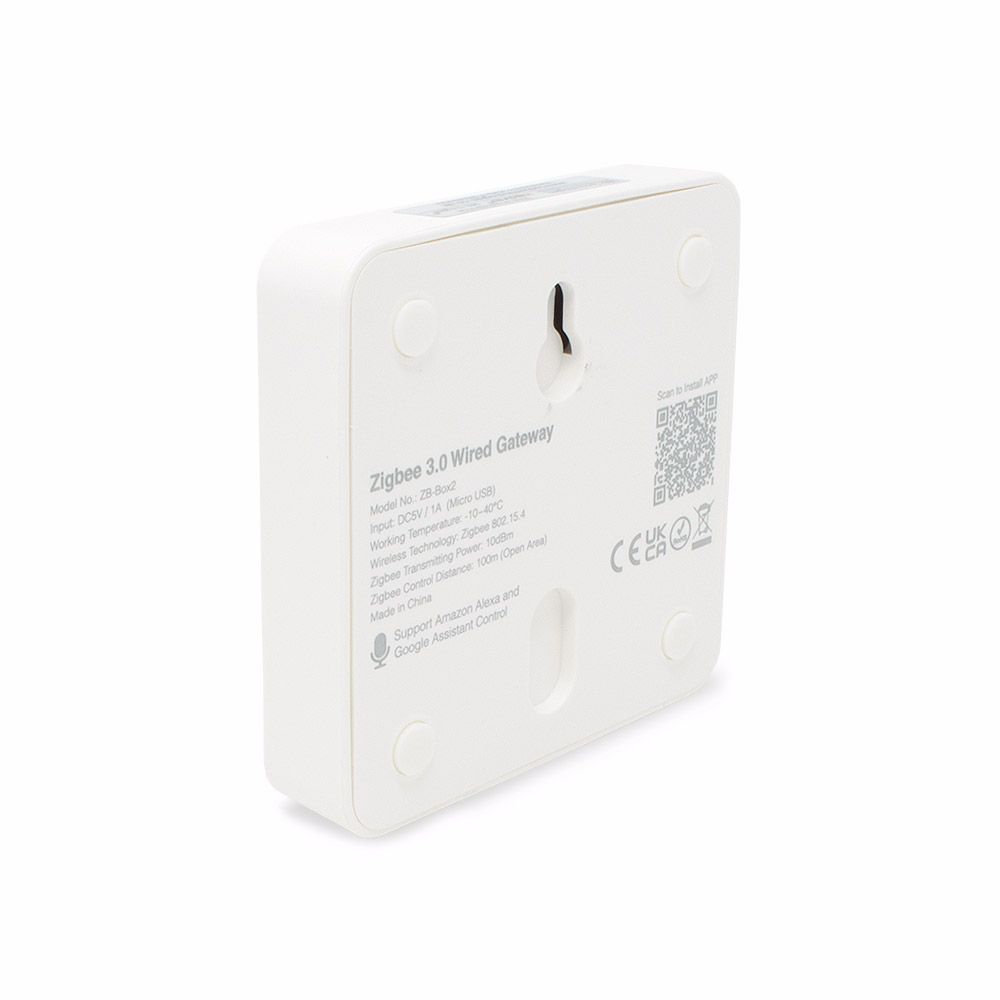

Note: There is a QR code on the data sheet supplied with your gateway. This will take you to the app store to download the "Mi-Boxer Smart" application. There is also a QR code that will take you to a helpful installation video.

Technical Specification
Product Code:    ZBBOX2
Product Packed：    Gift box
Manufacturer：    Mi-Light / MiBoxer
Product Type：    Home Automation
IP Rating：    IP20 Non-Waterproof
Guarantee Period：    5 Years
Input Voltage：    5v DC
Connectivity：    ZIGBEE protocols
Size：    L85.5mm x W84.5mm x H18.5mm
Dimmable:    No
Wireless Range：    Up to 30 metres
Transmitting Power：    10dBm
Operation Frequency：    ZIGBEE 3.0
Operating Temp：    -10 to 40ºC
Total Output：    Max1A
Output Max：    1A/Channel
