Product Description
Featuring full touch controls, this mains powered DMX LED wall panel lighting controller is available from our range of Mi-Light products. The handset can control your dual white (CCT) LED lights through its impressive touch panel controls. The controllable products include LED fixtures such as:

LED Light Bulbs
LED Panel Lights
Our wide range of Mi-Light LED products
Range of tunable white LED Strip Lights / LED Tapes
Dimmable LEDs

This feature-rich DMX LED controller can control up to four zones of DMX512 dual white lighting. You can also pair the wall panel to a 2.4GHz receiver or a 2.4GHz compatible lighting product as it will also work as an RF controller.

Using the Wall Panel Controller
It is perfect for a range of places, suitable for both commercial and domestic markets.

Ideal for indoor lighting control in your home, suitable for bedrooms, living rooms and kitchens. This wall panel allows dimming control of a range of lighting fixtures such as fairy lights, twinkle lights, hanging lights, string lighting, LED strip lights, LED wall washers or LED bulbs.

The Mi-Boxer LED control unit is perfect for adjusting the brightness and colour temperature of your lights throughout the day and for different uses. For example, in a kitchen dining room you may need bright lights while cooking but may want to dim down the lights down for eating to create a relaxing and calm aura.

They are also suitable for commercial spaces such as hotels, offices and retail outlets. They enable you to give your spaces the right mood and ambience for the space required. Perfect for hotel rooms to give your guests lighting options and enhance their experience.

The LED wall mounted control panel is a wonderful installation for professional lighting control. Ideal for controlling wedding LED lights. It can effortlessly control lighting systems for wedding venues, whether it is for the wedding ceremony, wedding reception or wedding photos on the wedding day.

You can comfortably dim the wedding lighting to suit the atmosphere that you want to create. Perfect for smooth dimming and temperature adjustment during the ceremony or even on the dance floor to create soft and beautiful lighting to emphasise those special moments between the guests, brides and grooms.

This control system is an exquisite way of controlling wedding venue lighting.

Controlling the Wall Panel Controller

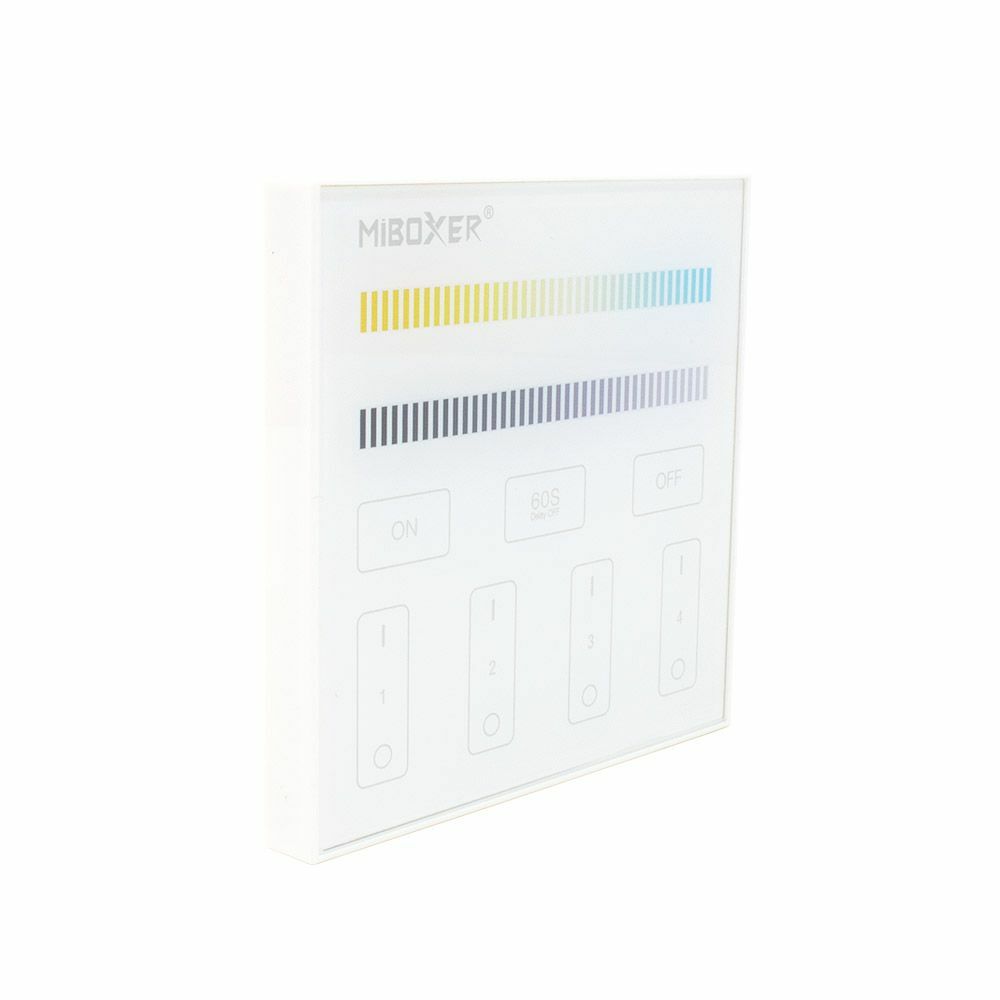

Using its high-quality LED dimmer slider controls, this LED remote control features:

Adjustable colour temperature from Warm White (2700K) to Cool White (6500K).
Smooth Dimmable adjustment
Up to 4 Zone control
RF Control
When using the RF system, an unlimited number of receivers/lights can be paired to each zone on the wall panel. It is possible to control multiple products in each of the four zones. Simply pair each product to your chosen zone.

To operate individually, switch on the zone with the appropriate button and select the required brightness level using the touch slider control. A master On/Off button will switch all the zones On/Off together.

DMX Control
When used as a DMX wall panel, simply connect a DMX cable from the wall panel to your DMX decoders or DMX compatible lighting product. This will send a DMX signal between the two, allowing you to control them using standard DMX512 protocols.

In addition to the DMX512 protocols and the RF transmitter built into the wall panel, it is also possible to pair a 2.4GHz handset or 2.4GHz wall panel to the X2 wall panel to control it remotely.

This effectively enables you to control your DMX lighting from the DMX wall panel or via a 2.4GHz handset paired to the wall panel.
Please refer to the detailed instructions on the wall panel Datasheet for more information on how to use this multi-functional wall panel.

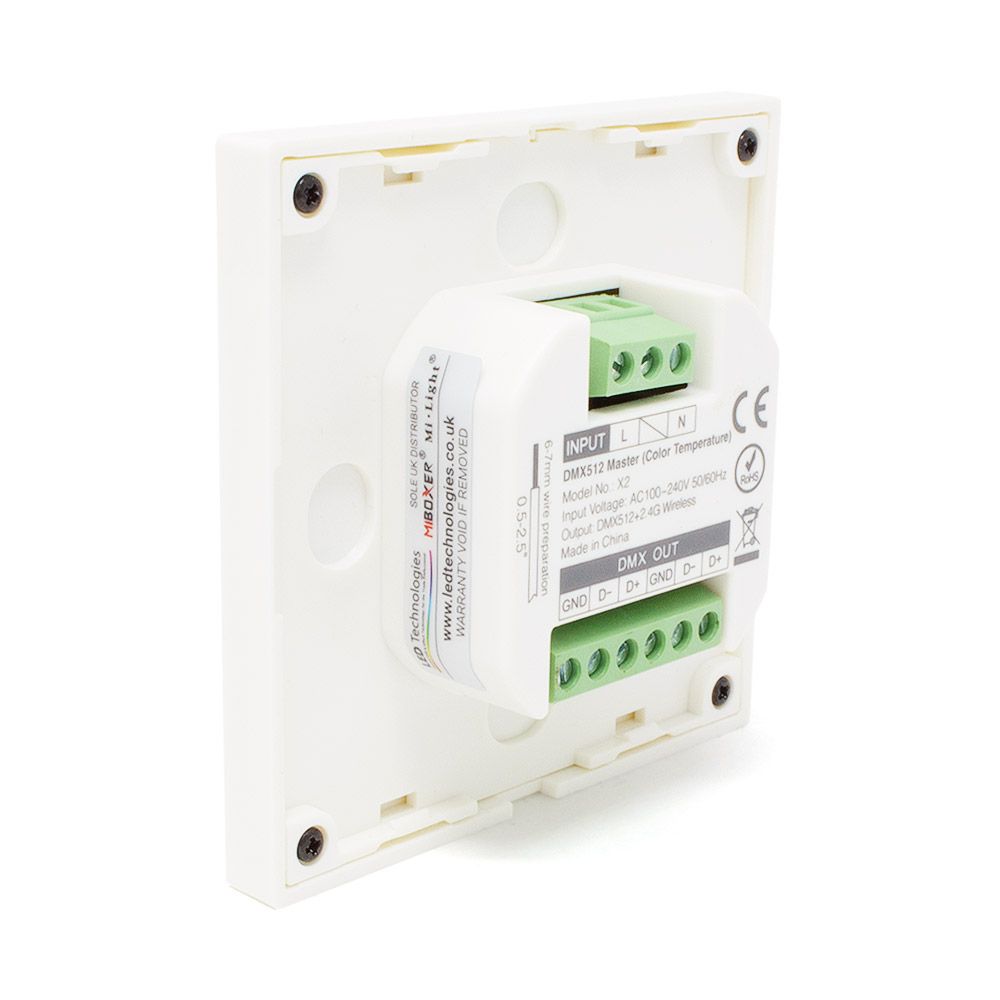

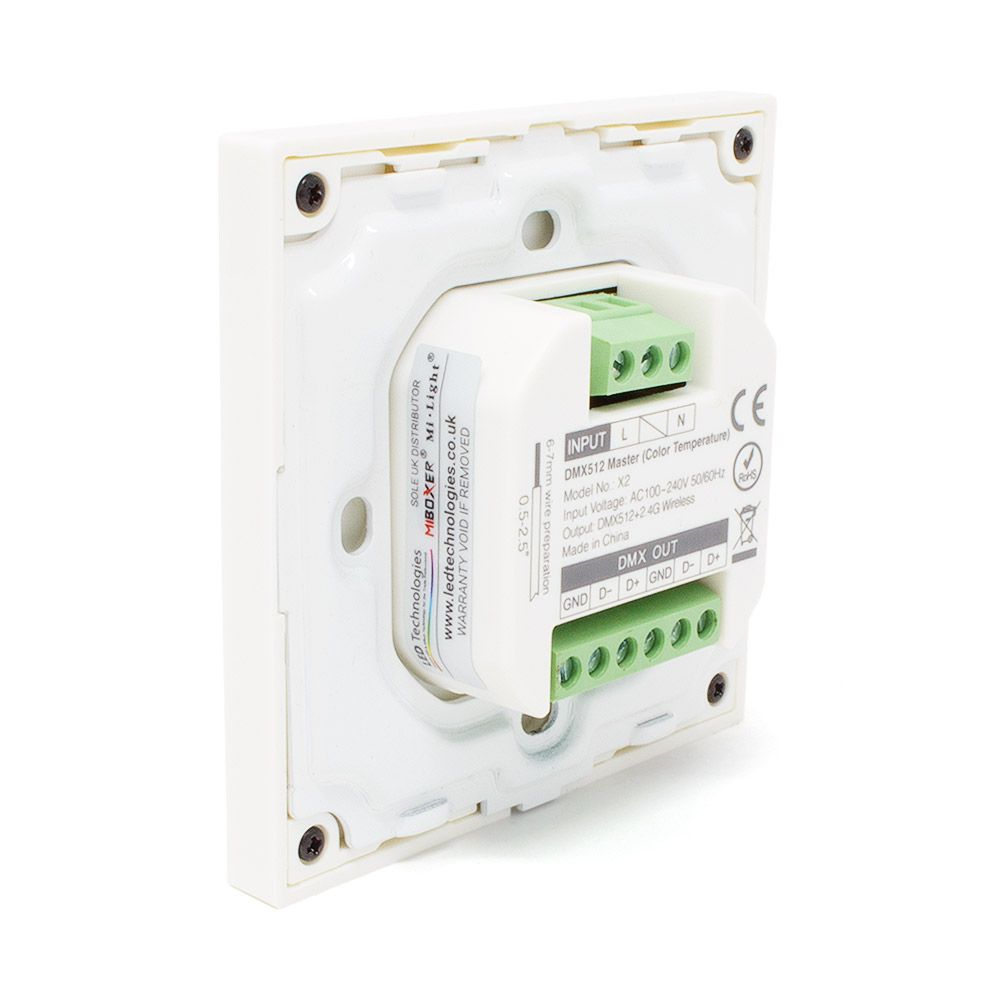

This LED controller touch panel is easy to install. Simply wire your panel up to a mains supply, making sure an input voltage of AC 100-240V is being used. The panel should also be connected to your DMX lighting using a three core screened DMX cable.

The LED controller will work up to 30m away from the paired lighting devices. A timer function on the handset will delay your lighting from switching off. When your luminaires are set to a single colour (static mode) you can select a 60 second or 10-minute delay. This is a very useful function that gives you time to exit a room or area before the lights turn off.

Note: A line of sight is not needed between the wall panel and the LED light. Although, walls or obstructions may weaken the signal.

Technical Specification
Product Code:    X2
Product Packed：    Gift box
Manufacturer：    Mi-Light / MiBoxer
Product Type：    Controller / Receiver
IP Rating：    IP20 Non-Waterproof
Guarantee Period：    5 Years
Input Voltage：    100v - 240v AC
Connectivity：    DMX 512 protocols
Size：    L86 x W26 x H86mm
Dimmable:    No
Wireless Range：    Up to 30 metres
Transmitting Power：    6dBm
Operation Frequency：    DMX512 + 2.4G Wireless
Operating Temp：    -20~60°C
Total Output：    DMX512 + 2.4G Wireless
