Product Description

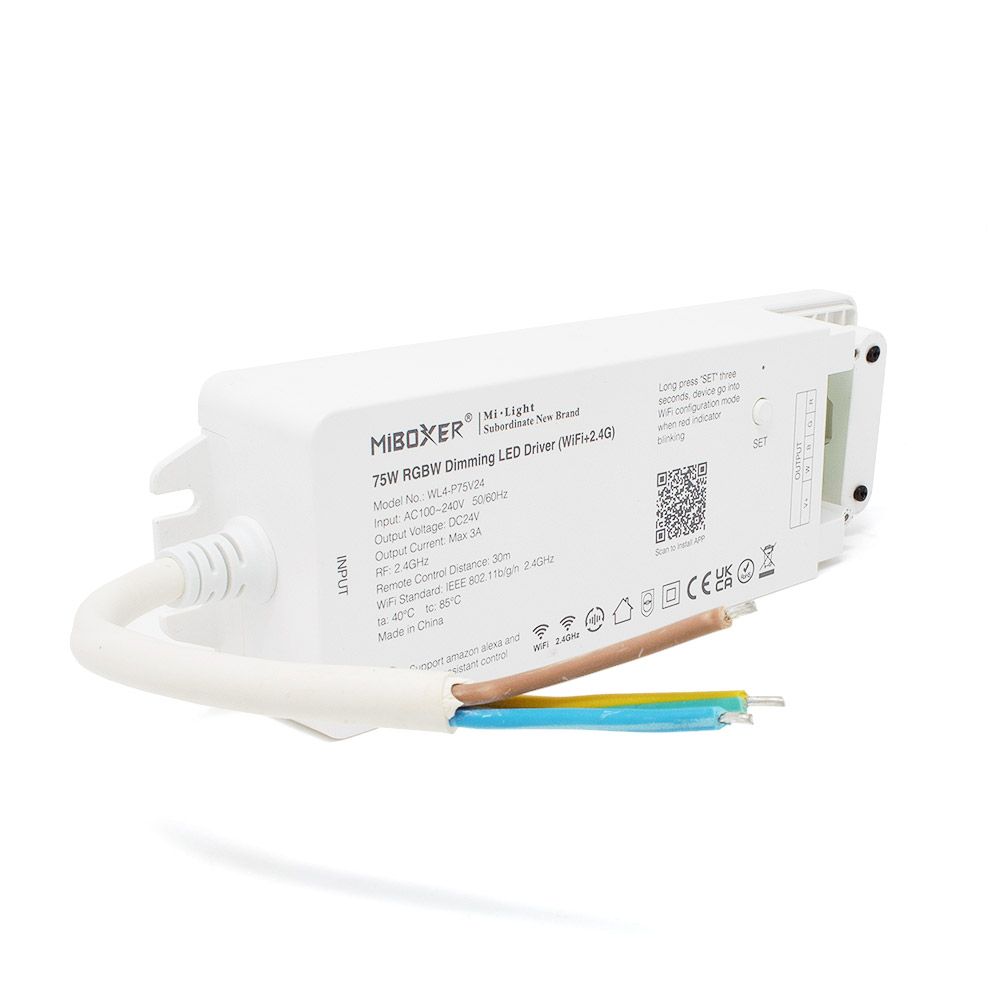

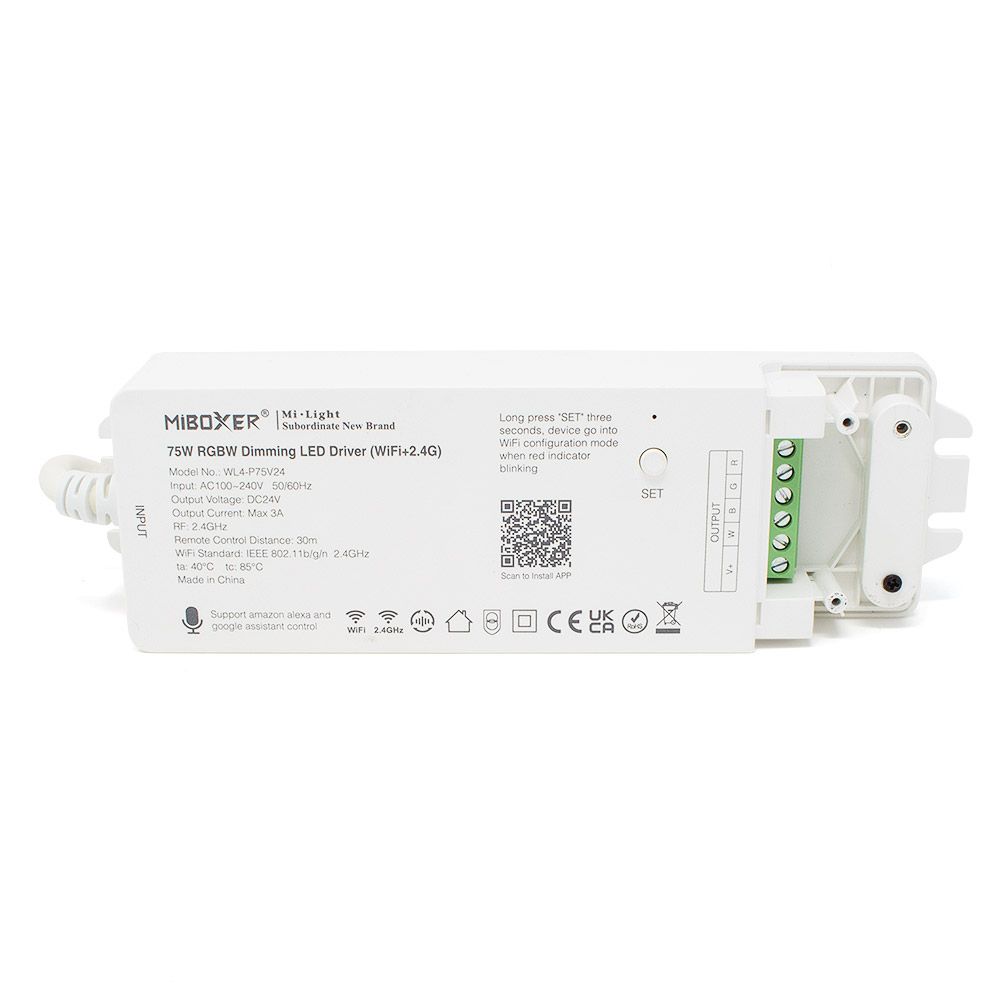

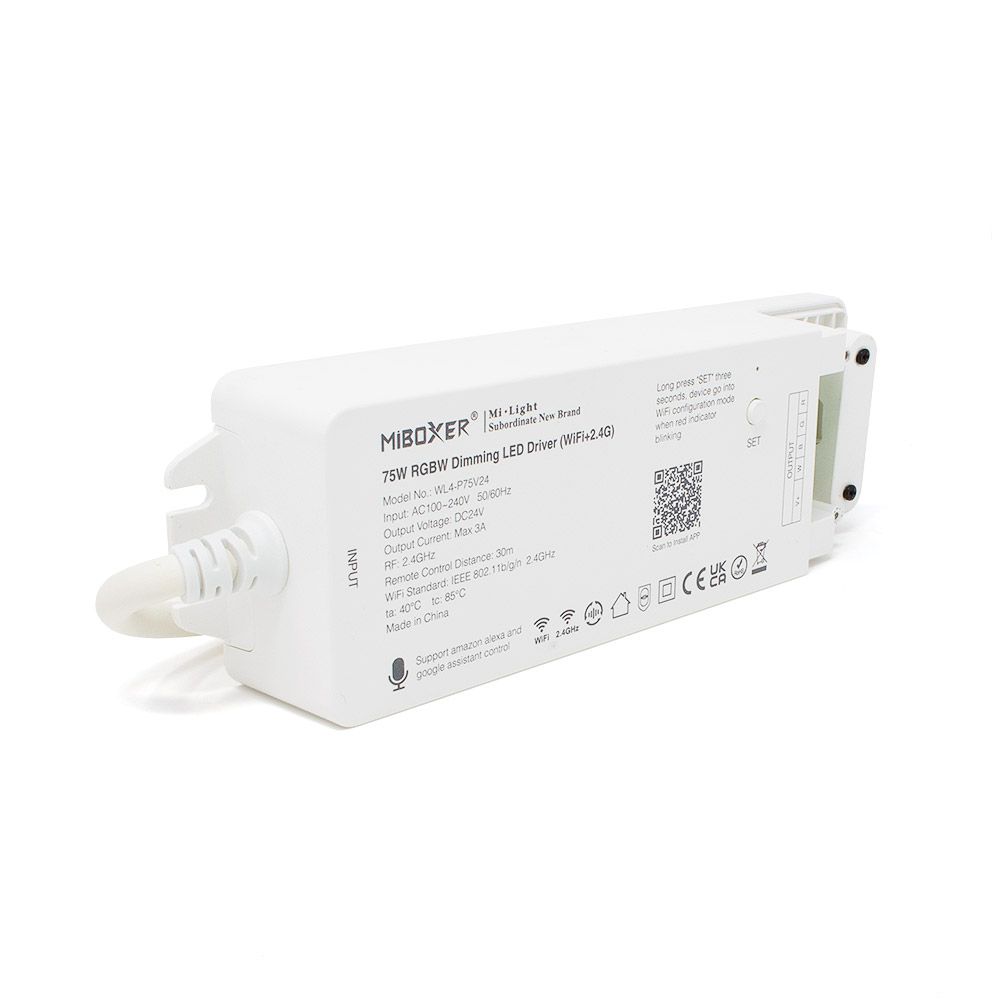

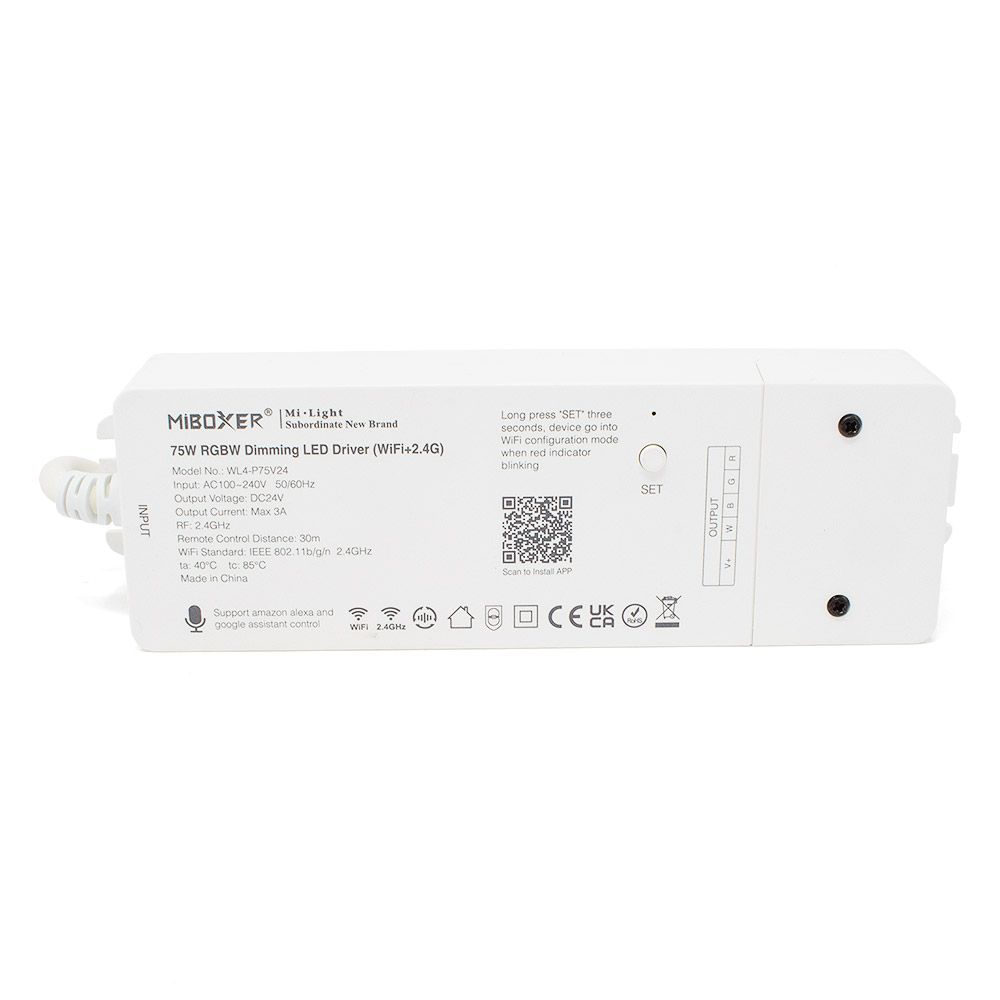

This high-quality Three Channel Bluetooth and 2.4GHz LED Strip WiFi Controller / Driver from Mi-Light can be paired to a 2.4GHz RF Mi-Light / Mi-Boxer Handset or Wall Panel or through the smartphone app. Control your low voltage 24V remote controlled RGBW LED lighting products with ease, offering millions of colour combinations plus white.

This LED remote receiver is suitable for both commercial and domestic markets. Particularly ideal for professional lighting systems as the receivers can extend the wireless range of LED controllers. It is a perfect solution to enabling remote control lighting in commercial spaces such as restaurants, retail outlets and hotels. It is also suitable for LED control in your smart home as it can be integrated into your home automation network.

It is designed to control four channel LEDs. The RF remote receiver allows you to wirelessly switch your lighting on or off. You can also control brightness and saturation using this LED light receiver. Achieve a custom made colour mix for your lighting.

Using its Wi-Fi or Bluetooth connection, the driver can also be paired to your smartphone by downloading the "Mi-Boxer Smart" application. This allows voice control through your Amazon Alexa or Google Home smart speaker.

Note: Bluetooth works when the Wi-Fi function is not available allowing short-range control over the driver.

The maximum load on this dimmable LED driver is 3A (3A / Channel). An input voltage of 100V-240V AC (Alternating Current) is required. The driver provides an output voltage of 24V DC (Direct Current)

You can control your 24v DC RGBW (Red, Green and Blue with a single channel adjustable colour temperature white) lighting products up to a maximum of 75W. The driver also has connections for a "Push Dimmer" switch which can be hard-wired to the driver to allow "Push Dimming" of your lighting.

This RF LED receiver is great for controlling your RGBW LED lights, these products include:

LED Light Bulbs
LED Downlighters
LED Strip Lights / LED Tapes
And many more! - View our range of Mi-Light Products

Make sure your LED lighting is connected to a suitable power supply. Then simply wire your smart light into your stylish dimmable driver and enjoy full control over your smart home LED lighting system.

Compatible Mi-Light controllers for this RGBW LED strip controller can be found on the downloadable datasheet supplied.

It is possible to control your RGBW LED Strip lights with this Mi-Light Receiver. This receiver can be paired with your 24V LED Strip Lights to suit your mood with the adjustable White LEDs.

Our whole range of WiFi + RF Receivers / Drivers include:

Single Colour (Single-channel)
Dual-channel (CCT)
RGB (Three-channel)
RGBW (Four-channel)
RGB+CCT (Five-channel)


When using RF control from a 2.4GHz RF handsets or wall panel, this driver features an auto transmitting & synchronising function. Multiple receivers can be paired to the same single zone on the controller. Make sure they are all within 30m of each other.

Note: The auto transmitting and synchronising functions only work when connected via RF through a 2.4GHz RF handset or wall panel. This facility does not work with a Wi-Fi or Bluetooth connection.

Technical Specification
Product Code:    WL4P75V24
Product Packed：    Gift box
Manufacturer：    Mi-Light / MiBoxer
Product Type：    Controller / Receiver
IP Rating：    IP20 Non-Waterproof
Guarantee Period：    5 Years
Input Voltage：    100v - 240v AC
Output Voltage：    24v DC
Connectivity：    RF & WiFi
Size：    L190mm x W53mm x H32mm
Dimmable:    No
Wireless Range：    Up to 30 metres
Operation Frequency：    RF 2.4GHz & WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Operating Temp：    -10 to 40ºC
Total Output：    Max 3A
Output Max：    3A/Channel
