Product Description

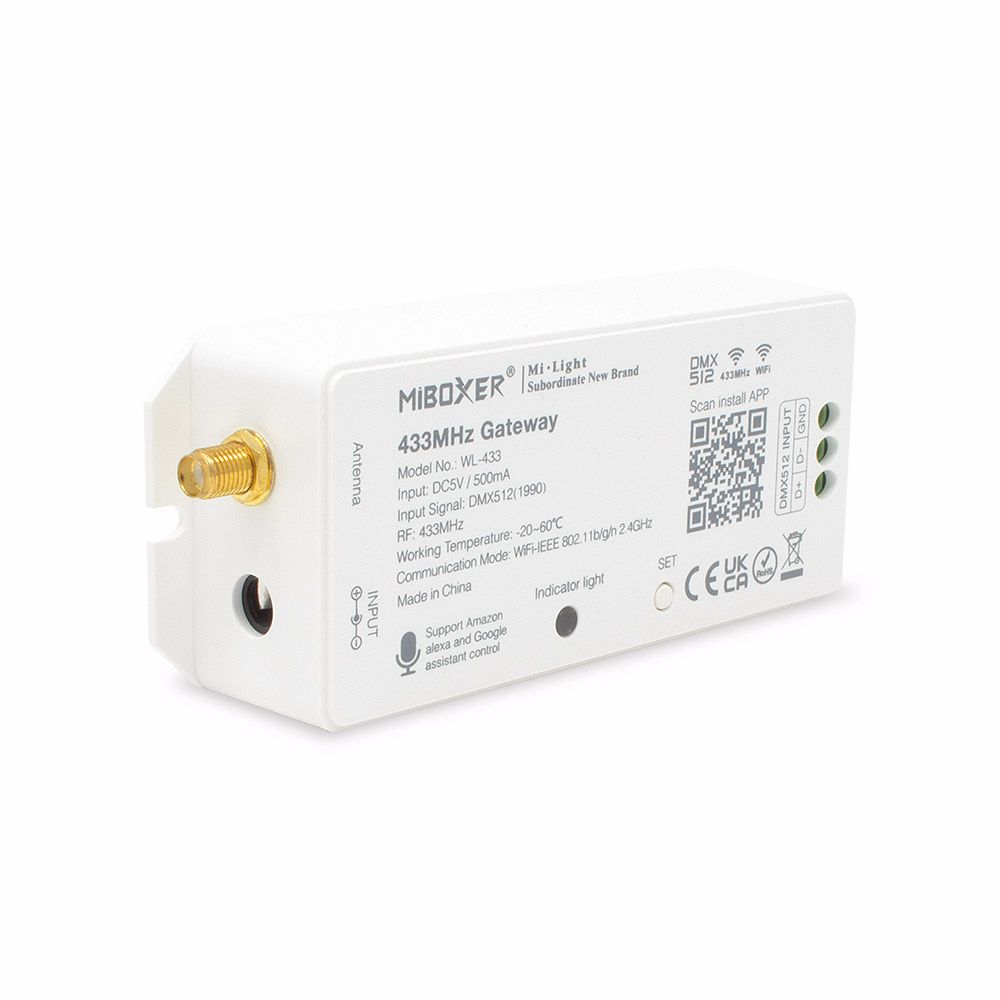

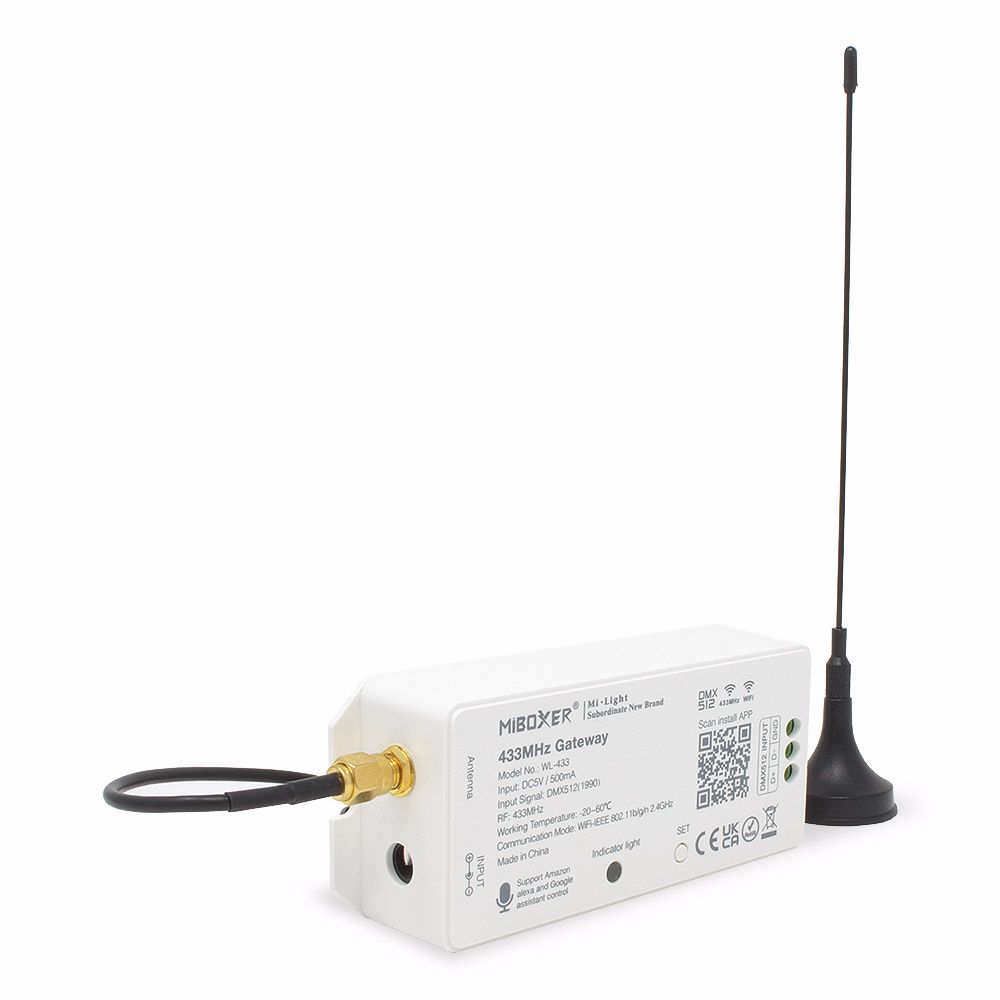

This compact Mi-Light / MiBoxer LoRa Gateway 433MHz (Hub) from Mi-Boxer is designed to control your 433MHz lighting products wirelessly either by DMX or from your smartphone. This product acts as a bridge between your smartphone or smart speaker. Control your lighting devices from the free "Mi-Boxer Smart" Application on your smartphone.

Note: A separate DMX controller using standard DMX512 protocols is required for this feature.

You can also use voice control through your smart home automation speaker. The set-up process for the Mi-Light WiFi hub is easy with the supplied installation instructions on the datasheet.

To use the Smart wireless gateway device:

Install the MiBoxer APP.
Click "+" add devices (See details on MiBoxer APP instructions on the detailed datasheet)
Click "433 Gateway" on the device list to enter the control interface
Click "Link/Unlink". See details on the APP instructions for linking/unlinking


Note: This 433MHz gateway can only control single devices and cannot group control multiple devices.

Download the "Mi-Boxer Smart" application from the Apple App Store or from Google Play (Note: QR Code provided on the product datasheet). Follow the supplied instructions to connect your gateway to your Wi-Fi modern router.

First, you will have to register your account through the smartphone application. You can then start to add your LED lighting and remote control devices to the application. You can give them names and put the products into virtual rooms on your device.

The gateway is compatible with all the Mi-Boxer / Mi-Light LoRa smart products. Most third-party products can be controlled from the application by simply adding them to your app.

You will then have full control over each device connected from your local network and from anywhere in the world. You can set up routines such as sleep and awake plans and timer settings through the wireless network.

Note: Although the range of the wireless gateway is up to 50m from the transmitter and line of sight is not required, walls and other obstructions can reduce this range.

For voice control, follow the instructions on how to pair your Smart Speaker to your device. The gateway works with Amazon Alexa and Google Assistant automated home network systems. Ensure that you have a good internet connection for these features to work.

Note: There is a QR code on the data sheet supplied with your gateway. This will take you to the app store to download the "Mi-Boxer Smart" application. There is also a QR code that will take you to a helpful installation video.

Technical Specification
Product Code:    WL433
Product Packed：    Gift box
Manufacturer：    Mi-Light / MiBoxer
Product Type：    Home Automation
IP Rating：    IP20 Non-Waterproof
Guarantee Period：    5 Years
Input Voltage：    5v DC
Connectivity：    RF
Size：    L118mm x W48mm x H27mm
Dimmable:    No
Wireless Range：    Up to 30 metres
Modulation Method：    LoRa Spread Spectrum
Transmitting Power：    15dBm
Operation Frequency：    2.4GHz
Operating Temp：    -20~60°C
Total Output：    Max500mA
