Product Description

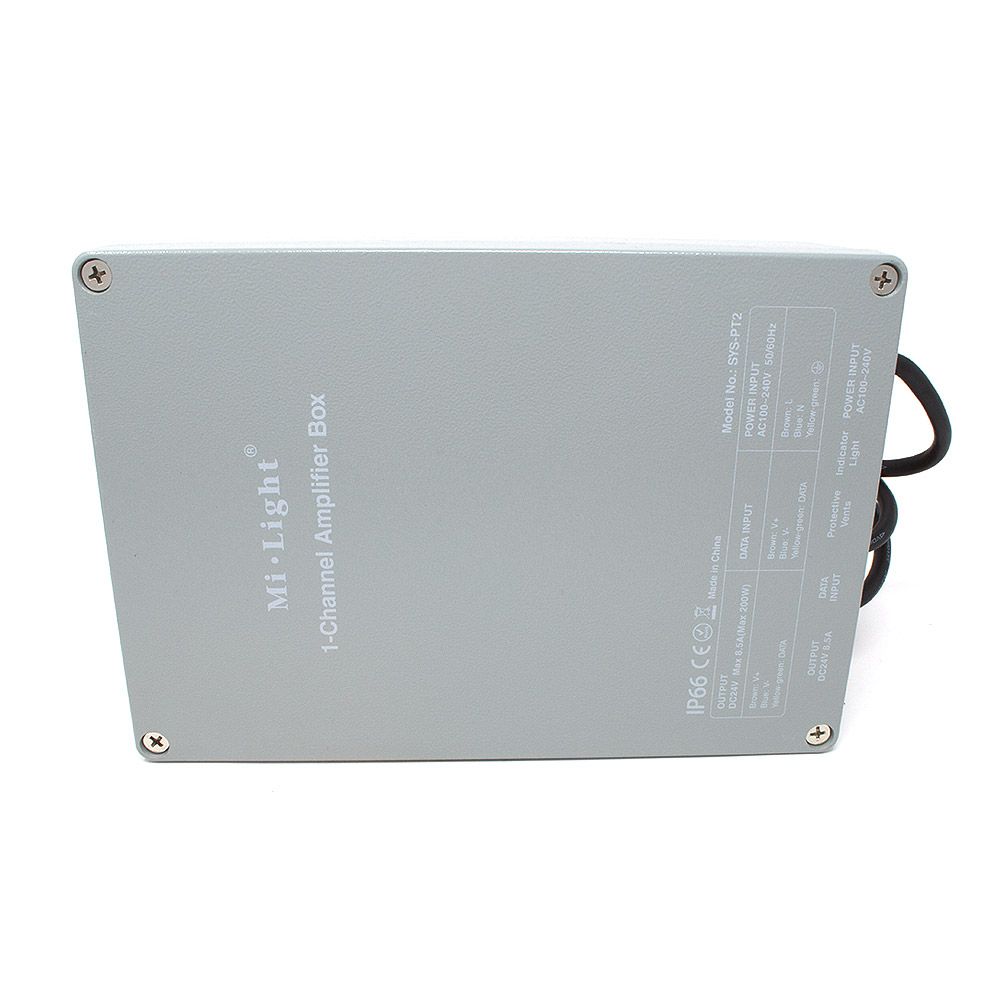

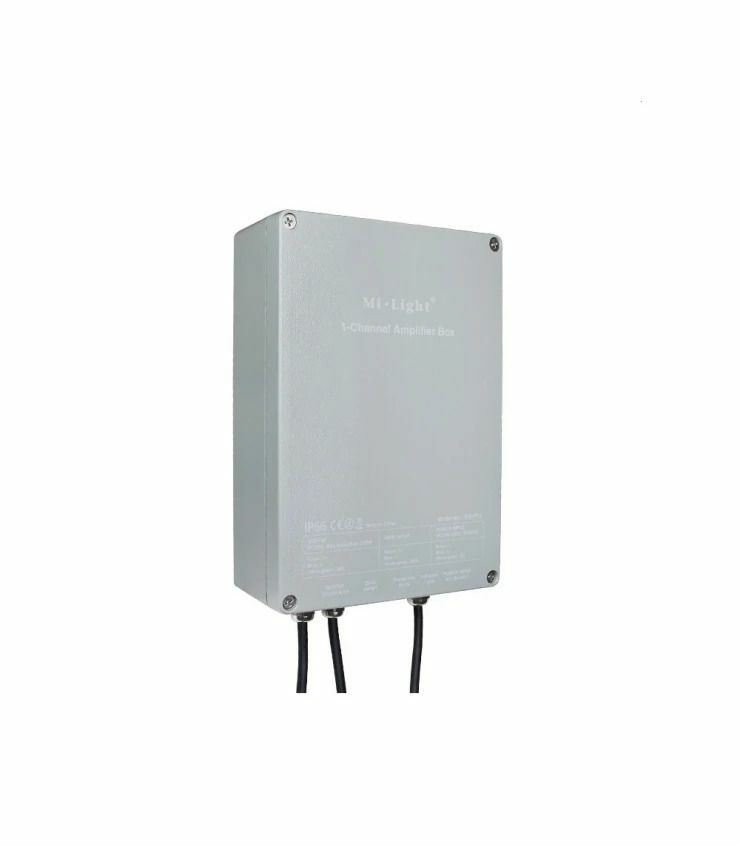

From our range of Mi-Light & Mi-Boxer RF receiver units comes this 1-Zone LED Signal Amplifier. Designed to expand the capabilities of your SYSPT1 LED control box to power additional SYS Lighting products in a single zone up to 200W (8.5A).

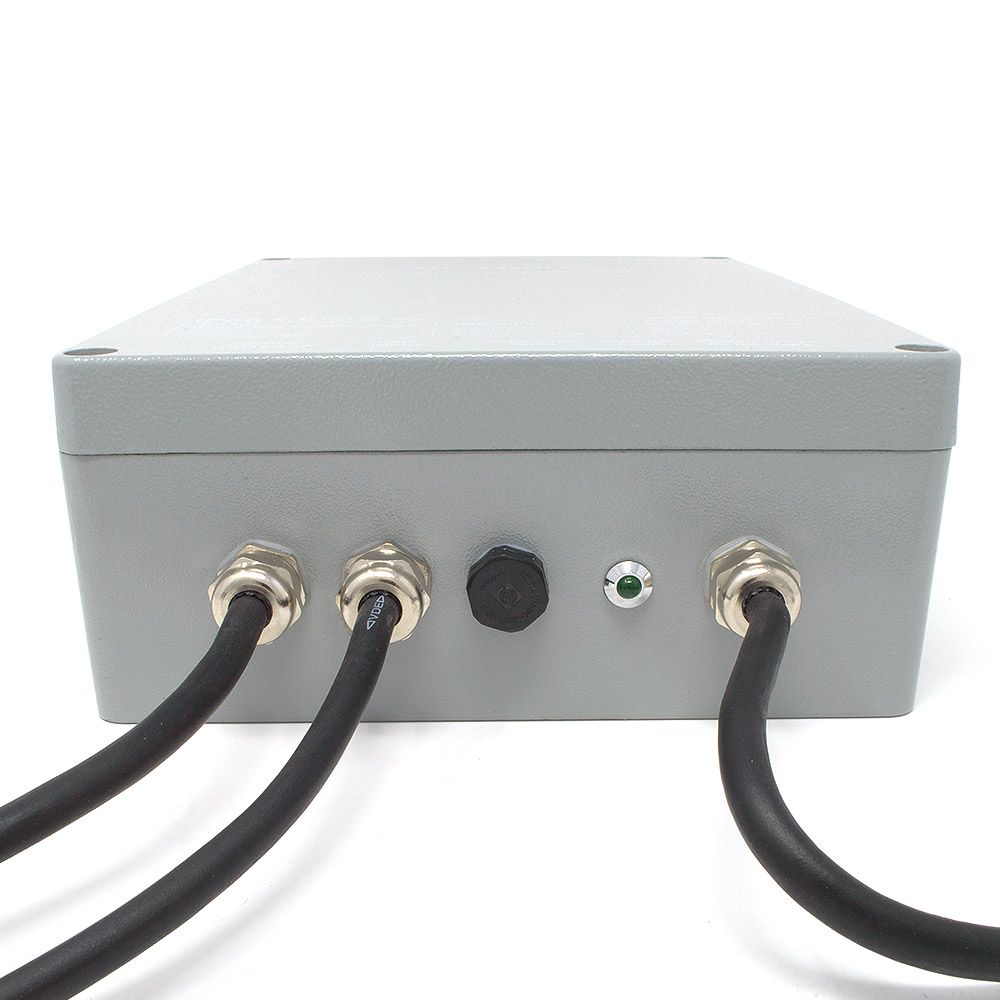

The Amplifier Box requires a mains supply with an input voltage of 100v-240v AC 50/60Hz to the power input. Connect an input signal cable from the SYSPT1 Host Controller, then connect the 24V data output to your additional SYS single colour, dual white or RGB+CCT lighting products.

The power and RGB signal amplifier will then control additional sets of SYS lighting products. This expands your Host Controller's capabilities, doubling the amount of power supply to your lighting.

Please see the attached detailed datasheet for more information on powering your 1-Channel power and LED signal amplifier box.

Important Note: The Host Controller and amplifier are only suitable for use with the SYS series of Mi-Light Lighting products. The control box will not work with other lighting products in the Mi-Light / Mi-Boxer range.

The host controller/receiver features an auto transmitting & Sync function. When multiple receiver host boxes are paired to the same zone on the controller, all the receivers in the group will sync together. Ensure they are all within 30m of each other. No interconnecting control cables are needed.

Technical Specification
Product Code:    SYSPT2
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP66 Splashproof
Guarantee Period:    5 Years
Input Voltage:    100v - 240v AC
Output Voltage:    24v DC
Connectivity:    RF
Size:    L184mm x W81mm x H263mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~60°C
Total Output:    Max 8.5A
Output Max:    Max 200W
