Product Description

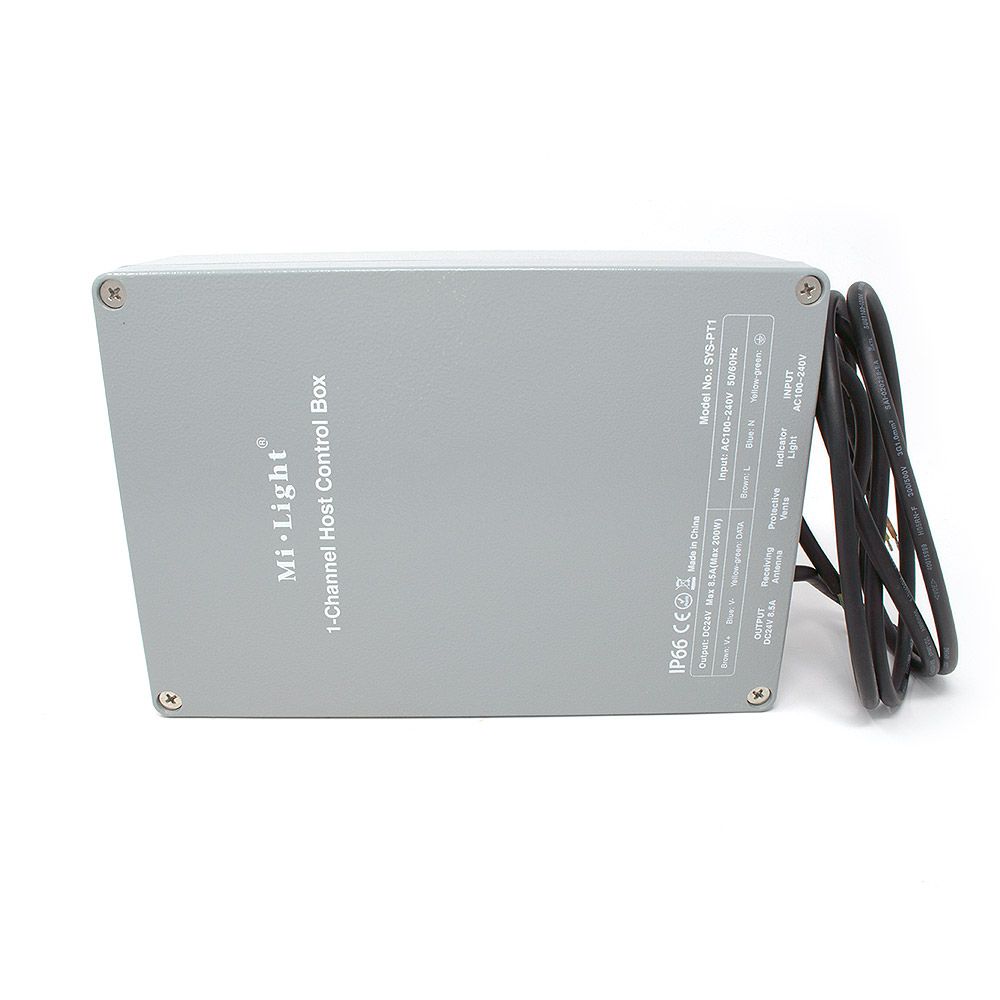

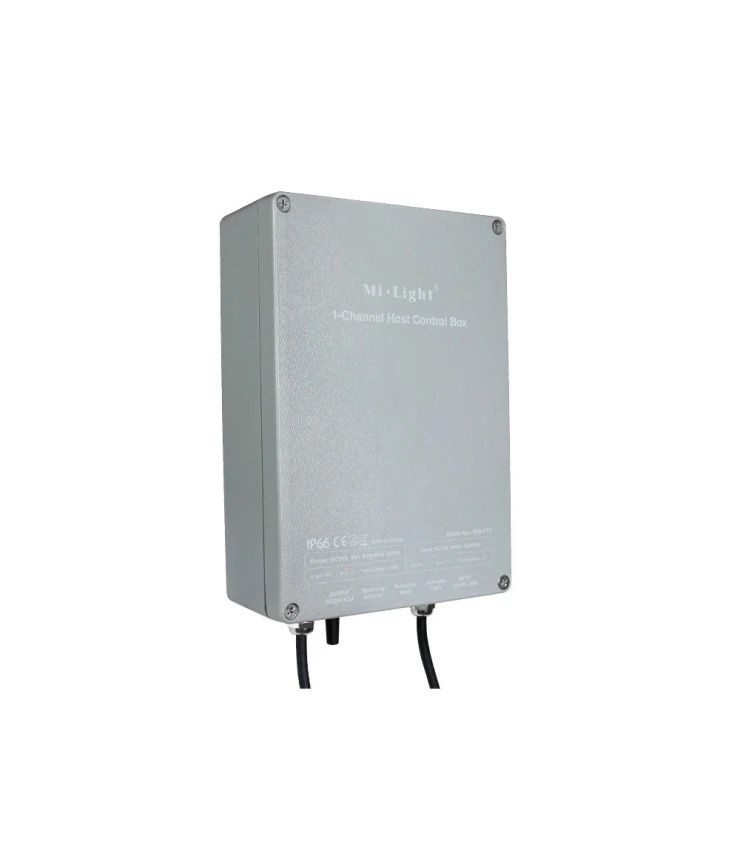

From our range of Mi-Light & Mi-Boxer RF receiver units comes this 1-Zone Host LED Light Control box and 2.4GHz Receiver. Unlike our range of led strip wireless receivers, this LED Control Box can control up to an impressive 200W of Mi-Light SYS lighting products in a single zone.

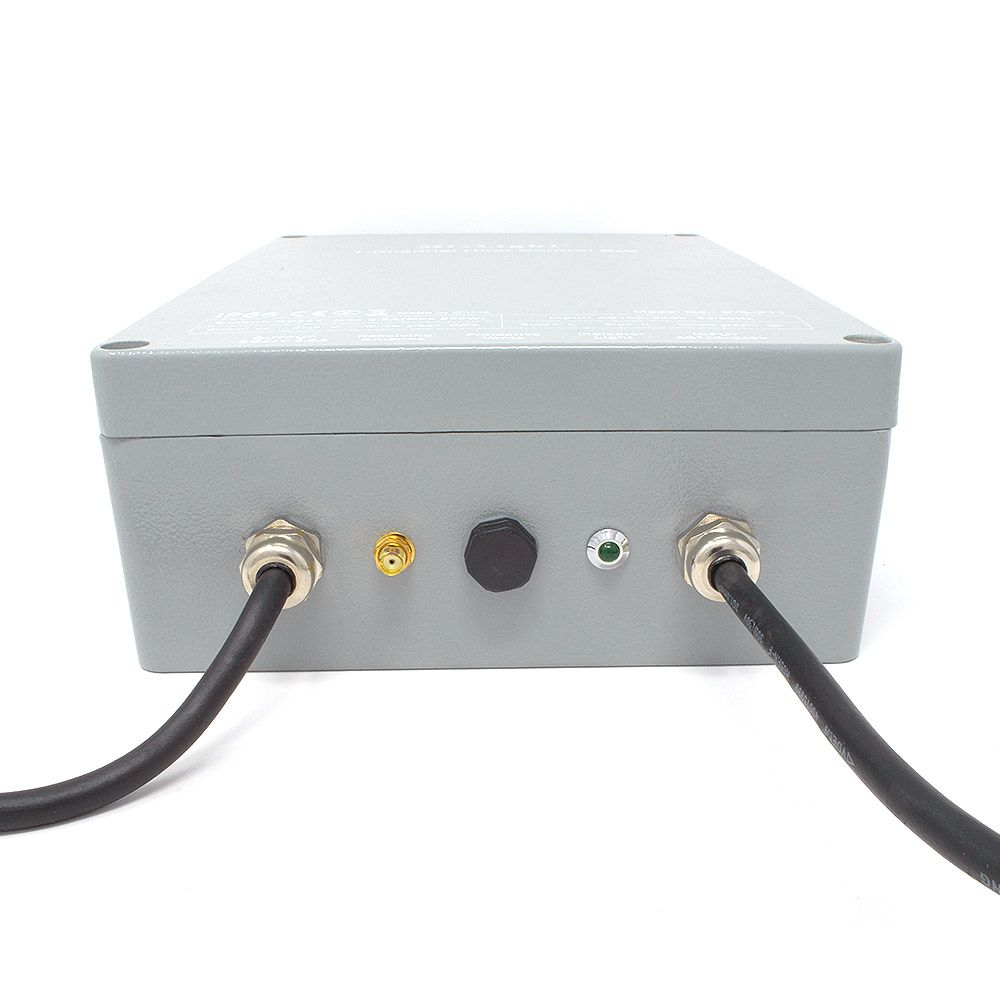

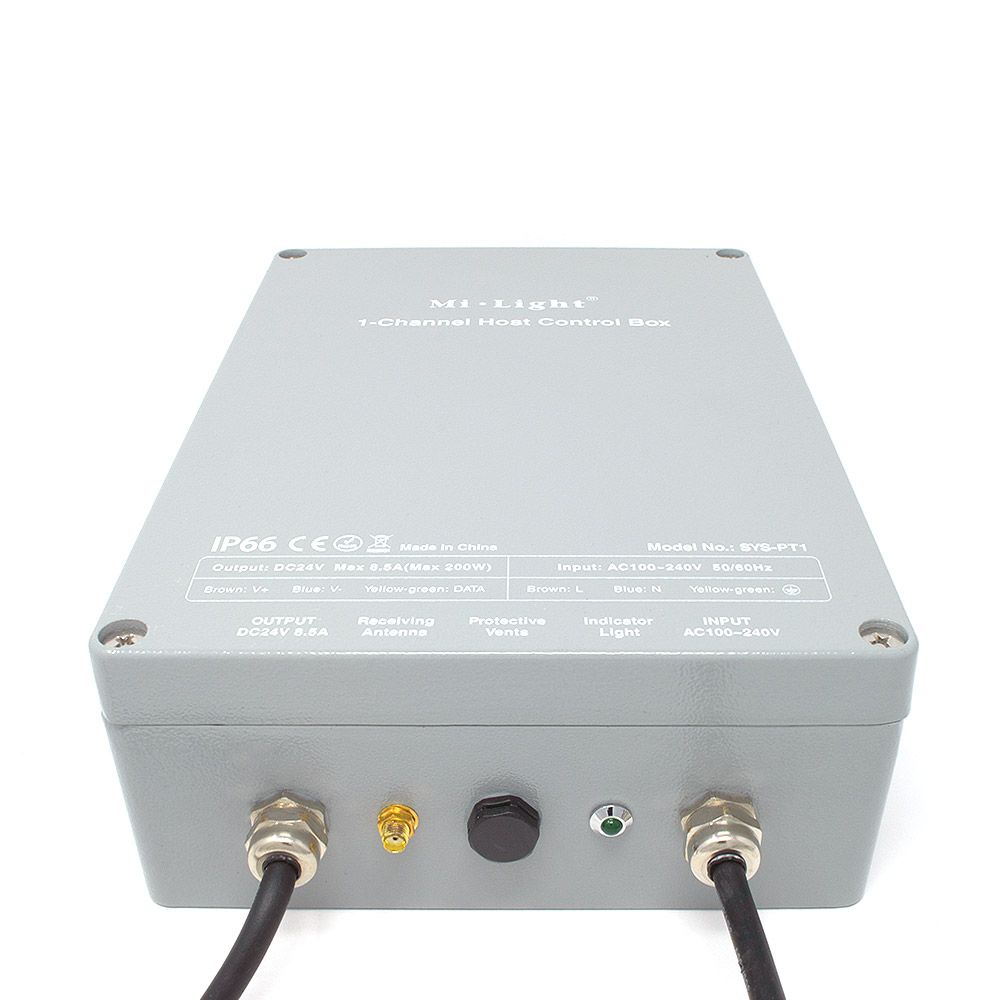

The LED Receiver box requires a mains supply with an input voltage of 100v-240v AC 50/60Hz to the power input. Then connect the 24V data output to your SYS single colour, dual white or RGB+CCT lighting products. Then pair it to compatible 2.4GHz M-Light / Mi-Boxer RF handset or Wall Panel RF controllers.

Please see the attached detailed datasheet for more information on powering your 1-Channel Host Control Box.

The controller will power up to a maximum of 200W of lighting. If additional lighting is required you will need to boost the power with the SYSPT2 Single zone Amplifier. The SYSPT2 Amplifier connects to the output of the Host Controller, expanding your lighting to include additional products up to an additional 200W. See the SYSPT2 product page for more information.

Important Note: The Host Controller and amplifier are only suitable for use with the SYS series of Mi-Light Lighting products. The control box will not work with other lighting products in the Mi-Light / Mi-Boxer range.

The host controller/receiver features an auto transmitting & sync function. When multiple receiver host boxes are paired to the same zone on the controller, all the receivers in the group will sync together. Ensure they are all within 30m of each other. No interconnecting control cables are needed.

In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smartphone application. The control box also supports third party voice control products such as smart speakers.

Note: An additional hub is required for these smart home features.

Technical Specification
Product Code:    SYSPT1
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP66 Splashproof
Guarantee Period:    5 Years
Current    Max: 8.5A Output
Input Voltage:    100v - 240v AC
Output Voltage:    24v DC
Connectivity:    RF
Size:    L184mm x W81mm x H263mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~60°C
Total Output:    Max 8.5A
Output Max:    Max 200W
