PL5 MiBoxer 40W RGB+CCT Panel Light Driver
Product Description

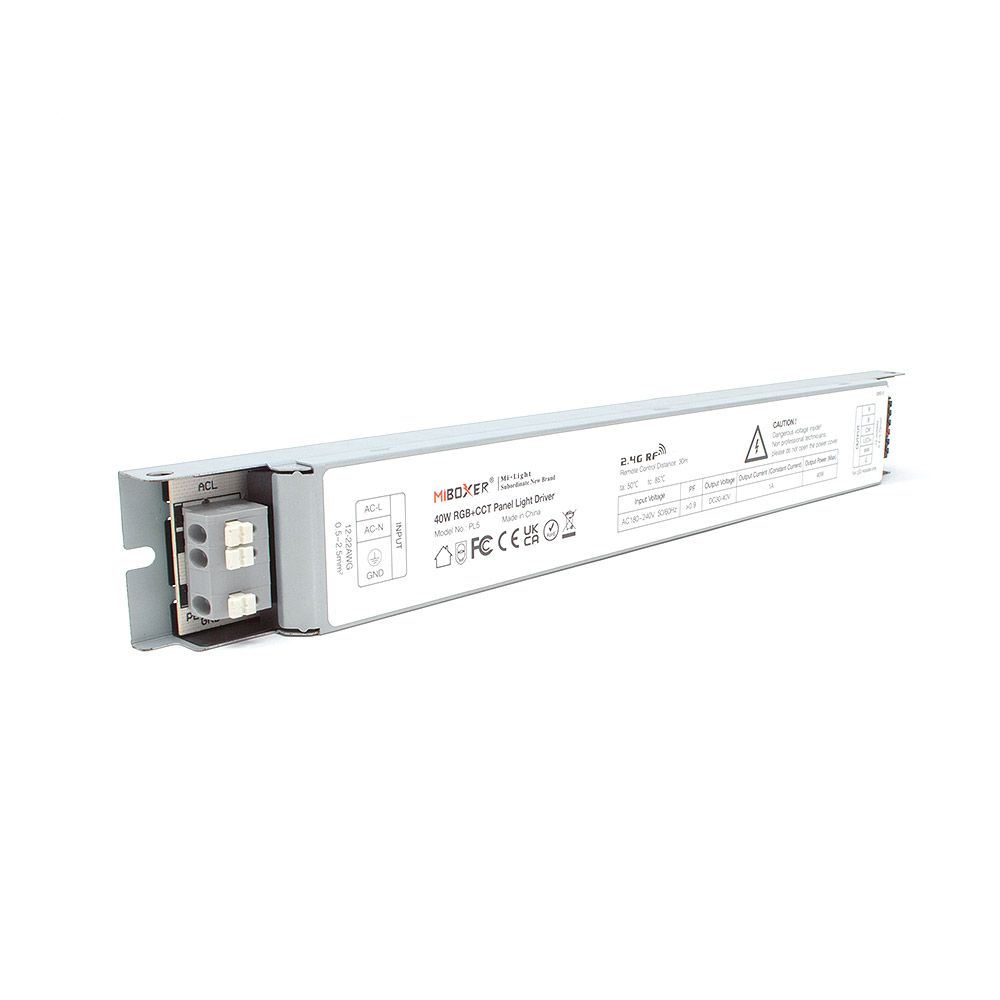

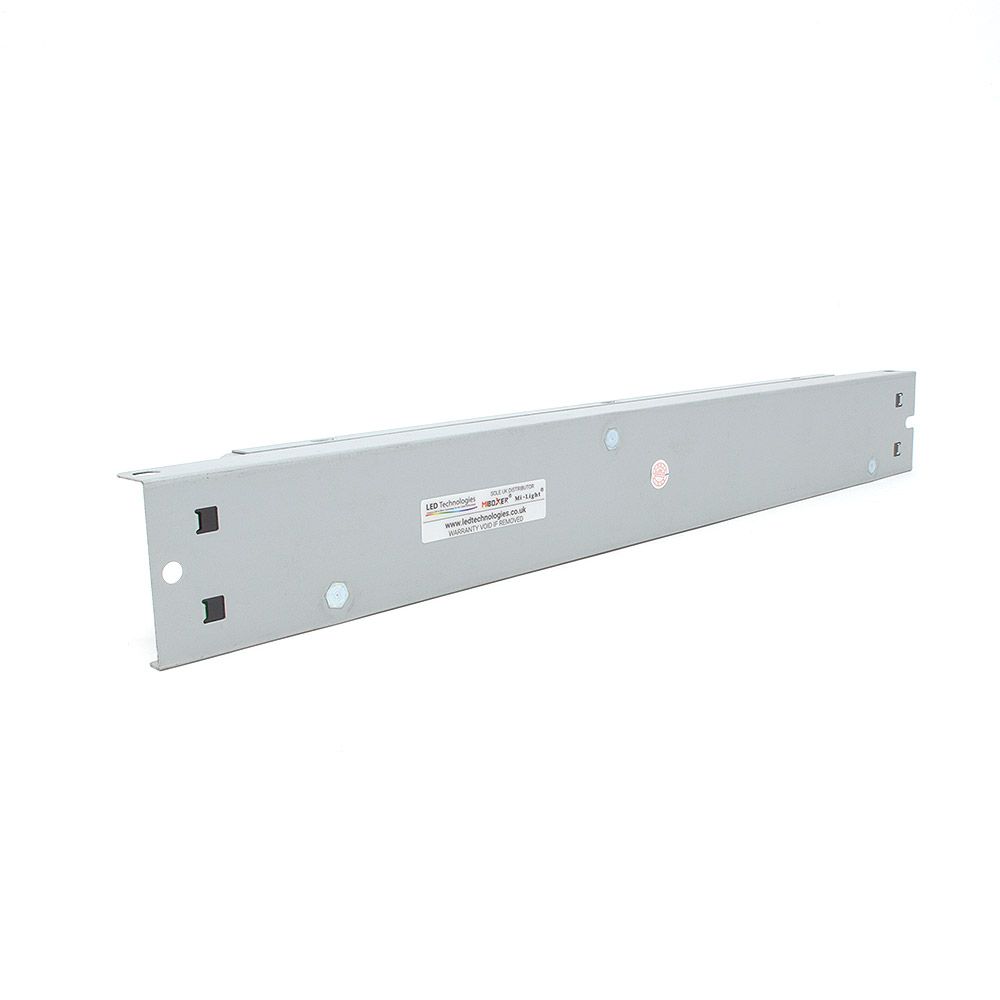

This high-quality, constant current, 40W colour changing LED driver is perfect for controlling your RGB+CCT LED ceiling panels. The driver has a long thin design and strong metal casing. This makes it an ideal product for a quick and easy installation in ceiling voids.
The driver can be paired to compatible Mi-Boxer / Mi-Light 2.4GHz RF handsets and wall panels. The dimmable LED panel driver features auto transmitting & synchronising functions. When multiple drivers are paired to the same zone on the controller, they will sync together.
Providing they are all within 30m of each other, all the LED drivers in the group will sync your lighting together. No control cables are required, giving you full control over the brightness of your panels.
Using the compatible control solutions will give you full control over this constant voltage LED driver. Choose from millions of colour combinations with the RGB+CCT LED chips on the Ceiling Panels. You can also adjust the white lighting colour temperature of your panels from Warm White (2700K ) to Cool White (6500K).
Adjust the brightness of your energy efficient LED ceiling lights with easy through this constant current LED driver. Providing a stunning dimming range, this driver is the perfect solution for creating ambient mood lighting with your ceiling panels.
The maximum load on this dimmable driver is 40W. It should be connected to a mains power supply of 180v - 240v AC 50/60Hz.
This driver is able to be paired with compatible Mi-Light controllers. See the product datasheet for a wide range of compatible control solutions.
The LED driver can also be paired with the Mi-Light smartphone app. This dimming LED driver works with third party voice control products such as smart speakers too.
Note: (An additional 2.4GHz gateway is required for these features).
Technical Specification
Product Code: PL5
Product Packed: Gift box
Manufacturer: Mi-Light / MiBoxer
Product Type: Controller / Driver
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 180v - 240v AC
Output Voltage: DC 30-40V
Connectivity: RF
Size: L300mm x W37mm x H22.5mm
Dimmable: No
Power Factor >: 0.9
Wireless Range: Up to 30 metres
Transmitting Power: 6dBm
Operation Frequency: 2.4GHz
Operating Temp: -20~60°C
Output Max: MAX 40W
