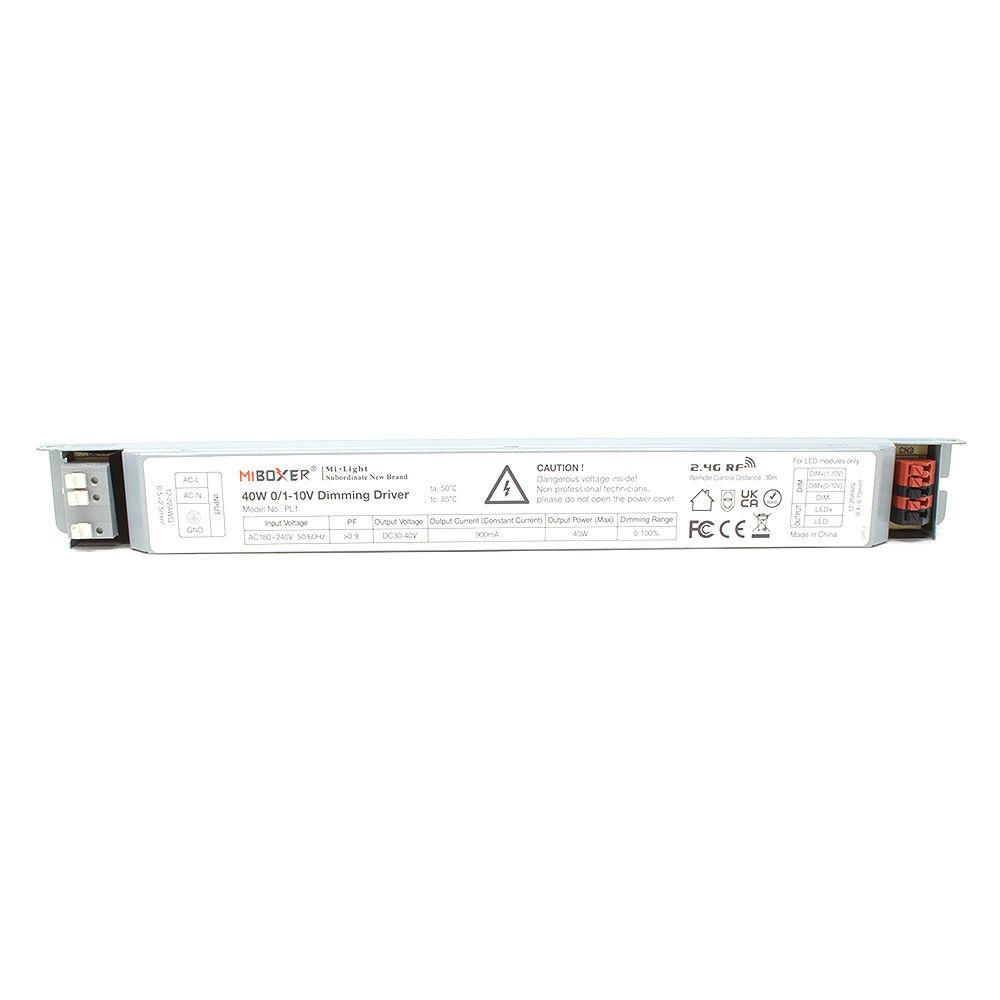

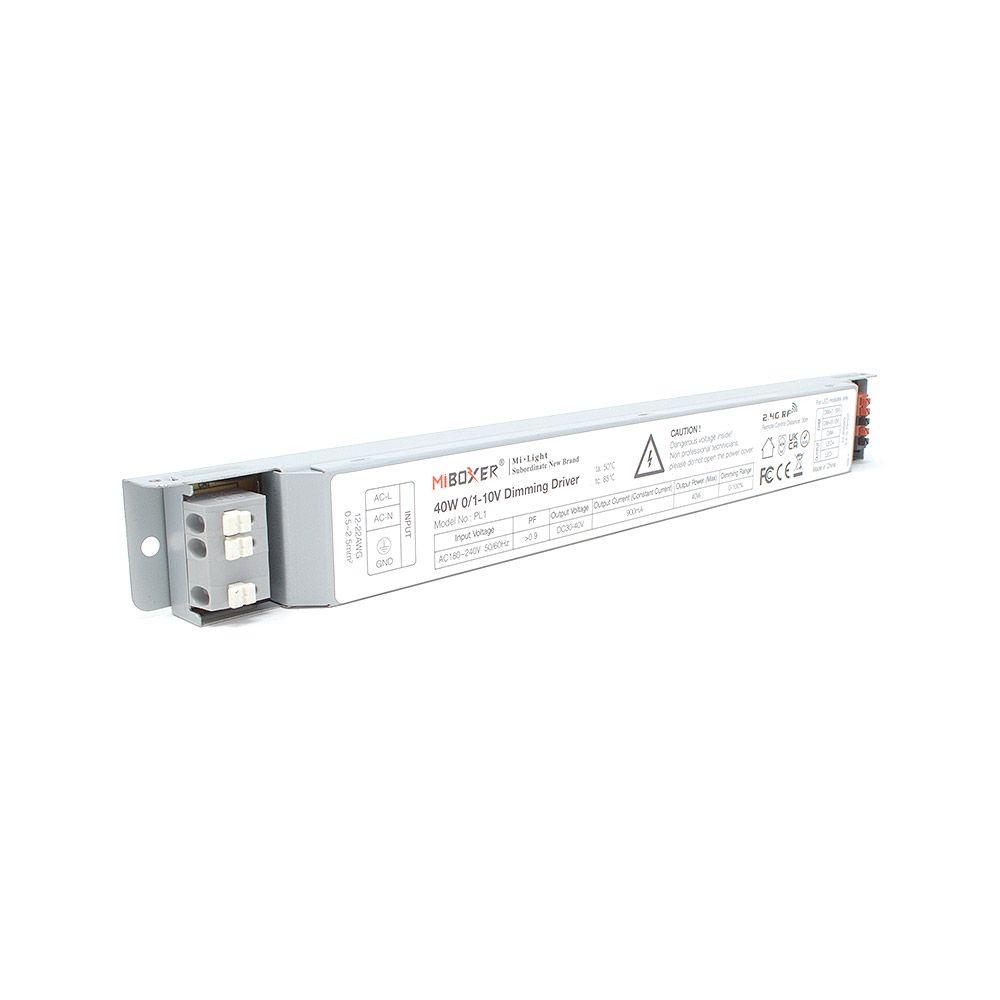

    PL1 MiBoxer 40W 0-10V Dimming Driver

      (9 Reviews) | Write a review
    SKU: PL1
    Discontinued
    Starting at: $46.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Mon,Dec,23 and Sun,Dec,29. order with 2days,9hrs and 31 min.

    Product Description

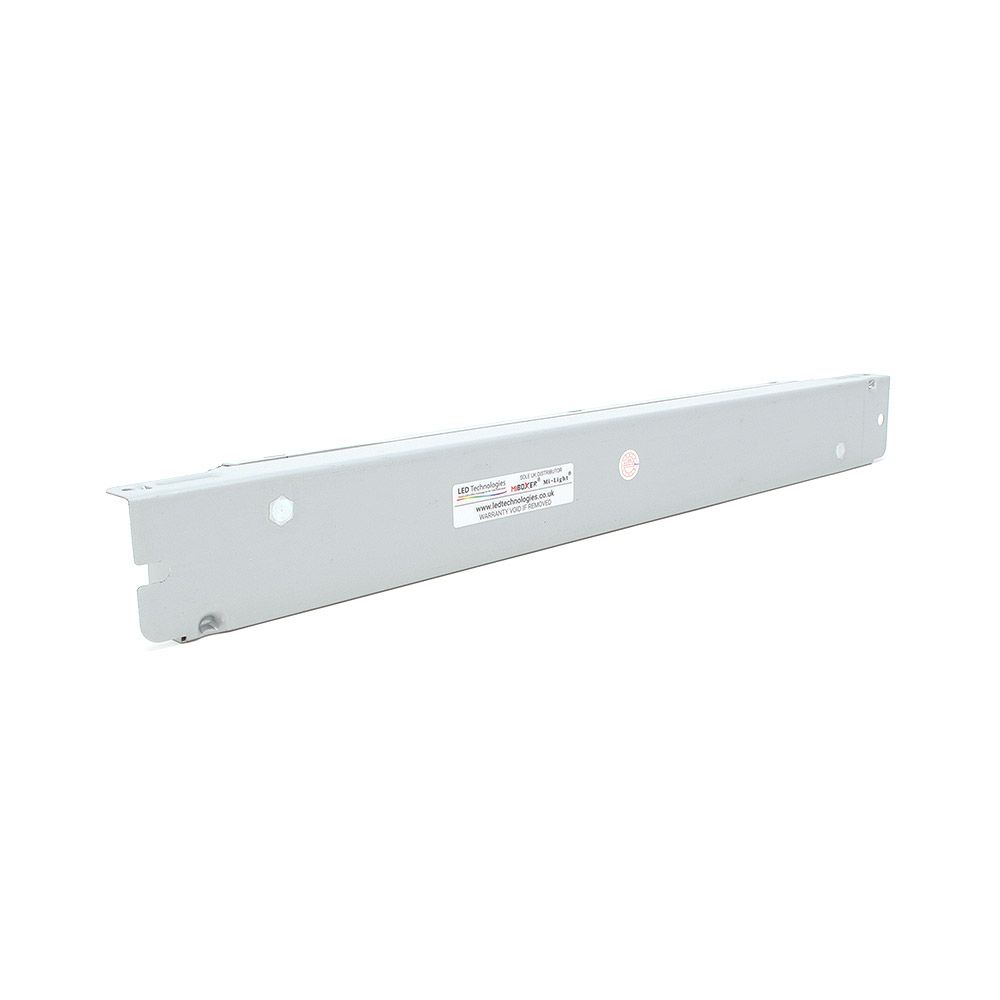

    This high-quality, constant current, 40W dimmable LED driver is perfect for controlling your single colour LED ceiling panels. The long thin design of the driver and its strong metal casing makes it an ideal product for installation in ceiling voids.

    The driver can be paired to compatible Mi-Boxer / Mi-Light 2.4GHz RF handsets and wall panels. The dimmable LED panel driver features auto transmitting & synchronising functions when multiple drivers are paired to the same zone on the controller.

    Providing they are all within 30m of each other, all the 0-10v dimming drivers in the group will sync your lighting together. No control cables are required, giving you full control over the brightness of your panels.

    Adjust the brightness of your LED panel lights with easy through this constant current LED driver. Providing a stunning dimming range, this driver is the perfect solution for creating ambient mood lighting with your ceiling panels. Using the dimmer switches on compatible control solutions will give you full control over this constant voltage LED driver.

    The maximum load on this dimmable driver is 40W. It should be connected to a mains power supply of 180v - 240v AC 50/60Hz.

    This driver is able to be paired with compatible Mi-Light controllers. See the product datasheet for a list of compatible control solutions.

    The 0-10v LED driver can also be paired with the Mi-Light smartphone app. This dimming LED driver works with third party voice control products such as smart speakers too.

    Note: (An additional 2.4GHz gateway is required for these features).

    Technical Specification
    Product Code:    PL1
    Product Packed:    Gift box
    Manufacturer:    Mi-Light / MiBoxer
    Product Type:    Controller / Receiver
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Input Voltage:    180v - 240v AC
    Output Voltage:    DC 30-40V
    Connectivity:    RF
    Dimmable:    No
    Wireless Range:    Up to 30 metres
    Operation Frequency:    2.4GHz
    Operating Temp:    -20~60°C
    Output Max:    MAX 40W
