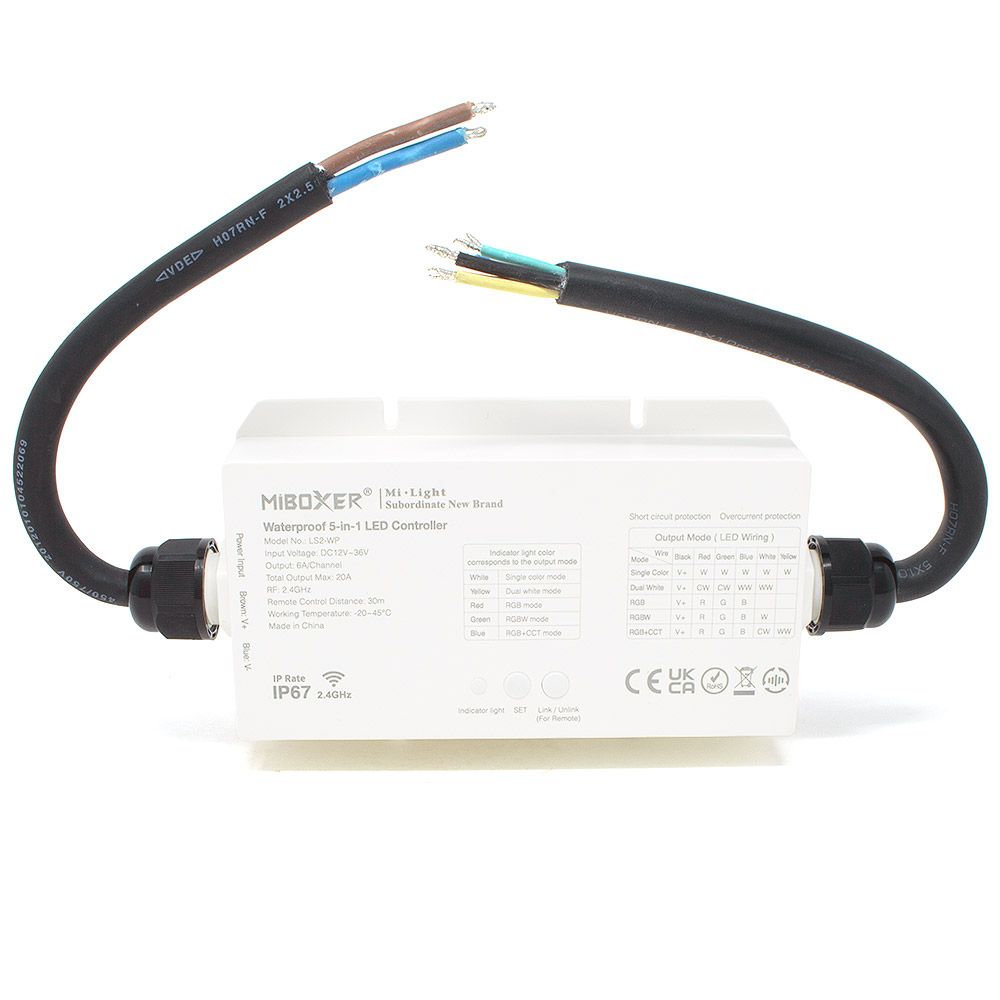

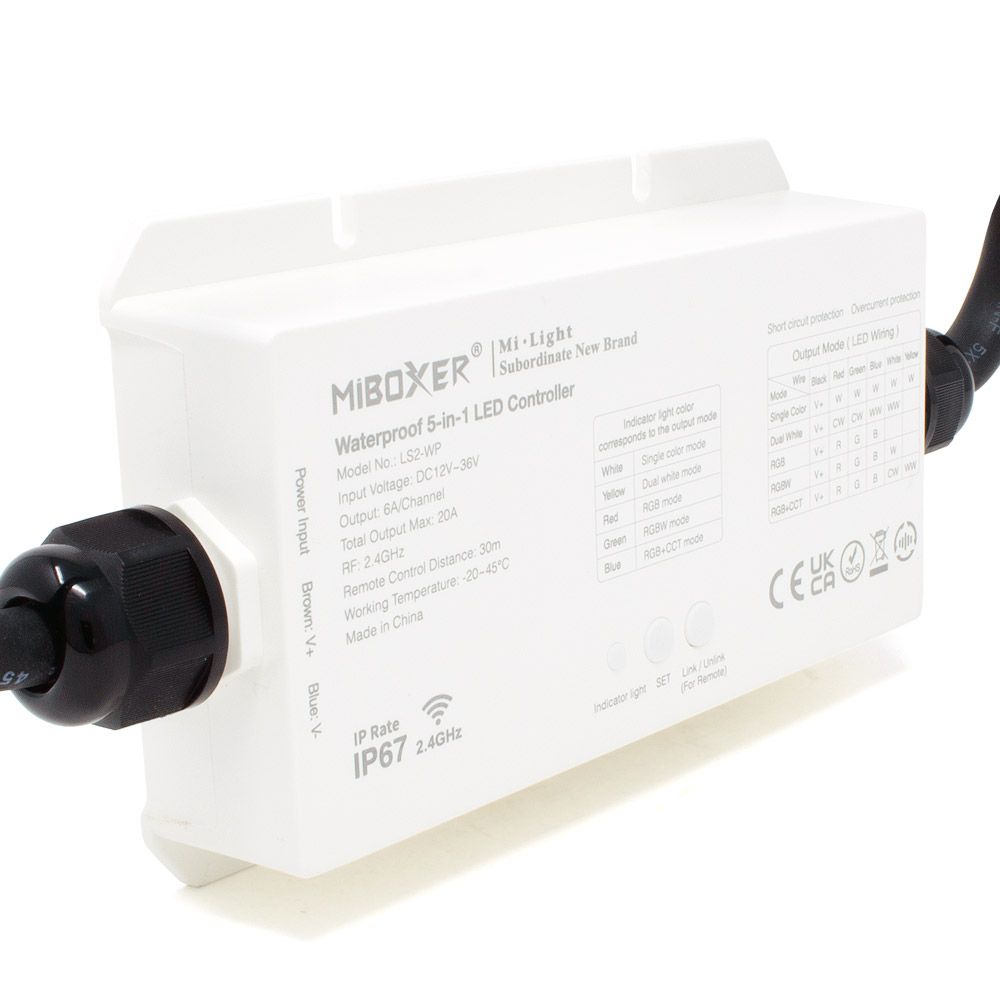

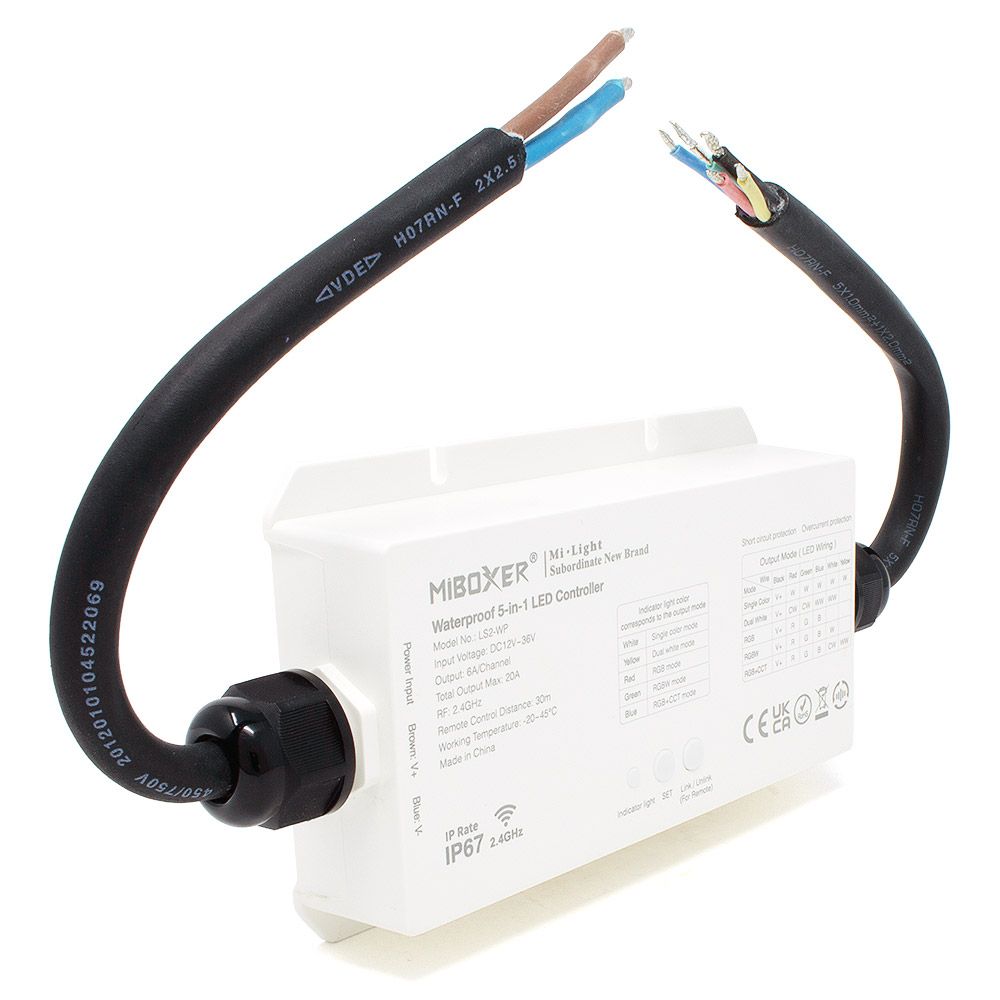

Product Description
This waterproof (IP67 rated) "Five-in-One" smart LED driver is a stunning modern product from our Mi-Light range of LED Controllers. The unit is compact and easy to install wherever needed, measuring just L185mm x W31mm x H87mm. The Mi-Light 5 in 1 RF LED Receiver can be paired to a compatible Mi-Light RF Remote control handset or wall panel remote controller on the 2.4GHz frequency.

In addition, when paired to the FUTD01 DMX LED Controller / 2.4GHz transmitter you can control the receiver by wireless DMX controls from a DMX512 controller.

Using the "Set" button, the unit can be adjusted to control single colour LEDs, dual white (Tunable Colour Temperature LEDs), tri-colour (RGB LEDs), quad-colour (RGBW LEDs) and RGBW+CCT 12V or 24V LED products.

This RF remote receiver is suitable for both commercial and domestic markets. Particularly ideal for professional lighting systems as the receivers can extend the wireless range of LED controllers. It is a perfect solution to enabling remote control lighting in commercial spaces such as restaurants, retail outlets and hotels. It is also suitable for LED control in your smart home as it can be integrated into your home automation network.

This LED strip controller is waterproof. It is therefore is an ideal solution for enabling control over lighting in wet and damp environments. This can include areas such as pools, bathrooms, kitchens or outdoor areas.

It is designed to control five channel LED lighting. Adjust the RGB colours, colour temperature, brightness and saturation of your LED lights using the LED light receiver. You can mix and create 16 million colours to achieve the perfect lighting for your space. Colour temperature allows you to achieve either functional bright lighting or warm soft lighting, suiting any atmosphere you want to create.

Read more about colour temperatures using our case study.

The RF LED receiver can control a range of products from singe colour LEDS to 5 channel LEDs to give you freedom of control over any lighting fixtures.

To set the control mode simply toggle the set button on your lighting controller. This will change the colour of the adjacent indicator light to show:

White for Single colour mode
Yellow for Dual White mode
Red for Tri-Colour (RGB) mode
Green for Quad Colour (RGBW) mode
Blue for Five Channel (RGB+CCT) mode

Note: Each channel is rated at 6A, however, the total combined load over all five channels should not exceed 20A maximum load. A 12v or 24v DC (Direct Current) constant voltage input is required.

In addition, this smart wireless LED controller can be controlled from your phone with the free Mi-Light phone app. You can also control your LED lights with your voice using home automation devices such as Amazon Alexa or Google Assistant. This LED controller is the perfect addition to your smart home lighting system.

All our 2.4GHz radio frequency receivers feature an auto transmitting & synchronising function. As long as the multiple controllers are all within 30m of each other, the multiple receivers in the group will sync together. No interconnecting control cables are needed.

It is also possible to control the following types of LED Strip lights / LED Tape with this LED RF Receiver:

Single Colour / White LED Strip Lights
Dual White LED Strip Lights
RGB LED Strip lights
RGBW & RGB+CCT LED Strip Lights

Compatible Mi-Light LED lighting and single colour, dual white, RGB, RGBW LED controllers are sold separately.

Technical Specification
Product Code:    LS2WP
Product Packed：    Gift box
Manufacturer：    Mi-Light / MiBoxer
Product Type：    Controller / Receiver
IP Rating：    IP67 Waterproof
Guarantee Period：    5 Years
Input Voltage：    12v / 24v / 36v DC
Connectivity：    RF
Size：    L185mm x W31mm x H87mm
Dimmable:    No
Wireless Range：    Up to 30 metres
Operation Frequency：    2.4GHz
Operating Temp：    -20~45°C
Total Output：    Max 20A
Output Max：    6A/Channel
