Product Description
The popular 1m LED batten from LED Technologies is available with a number of professional features. Using DMX512 protocols you can control the batten using any DMX512 controller. It can be installed individually or linked together with other battens as required in any location, both indoors and outdoors.

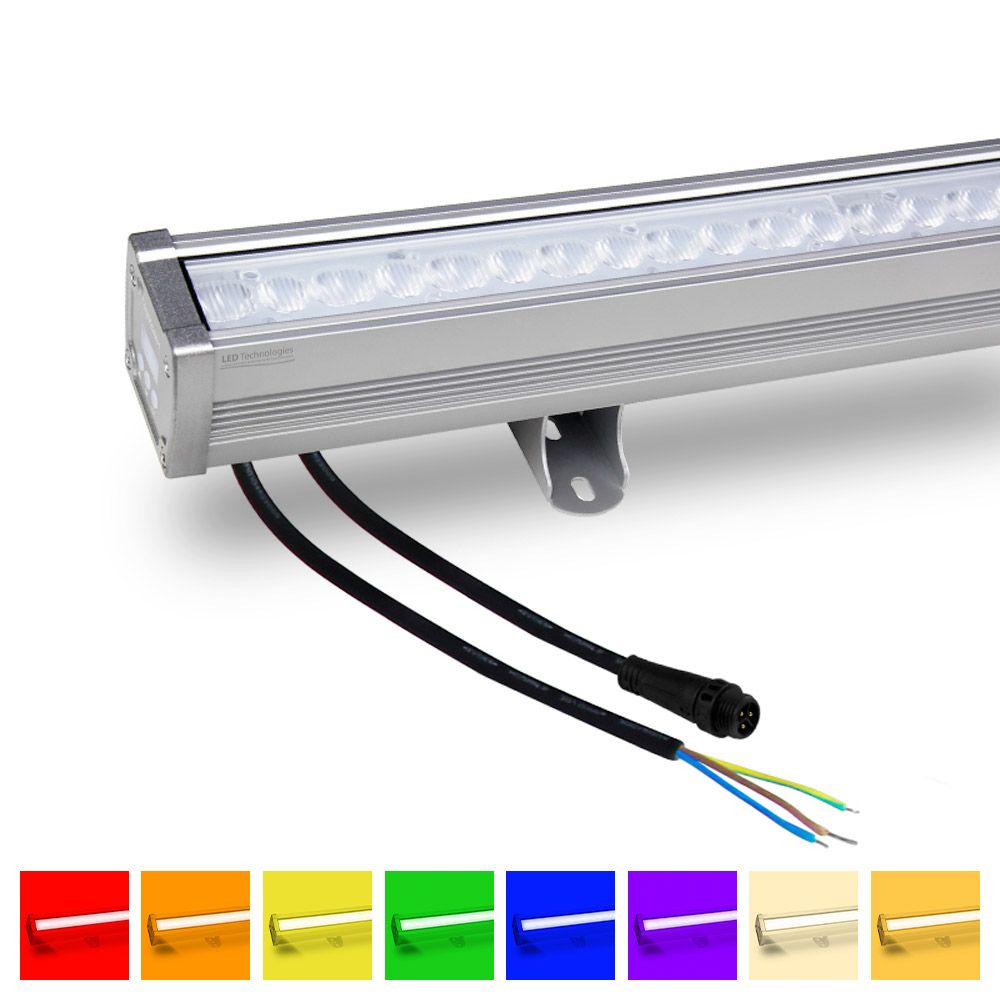

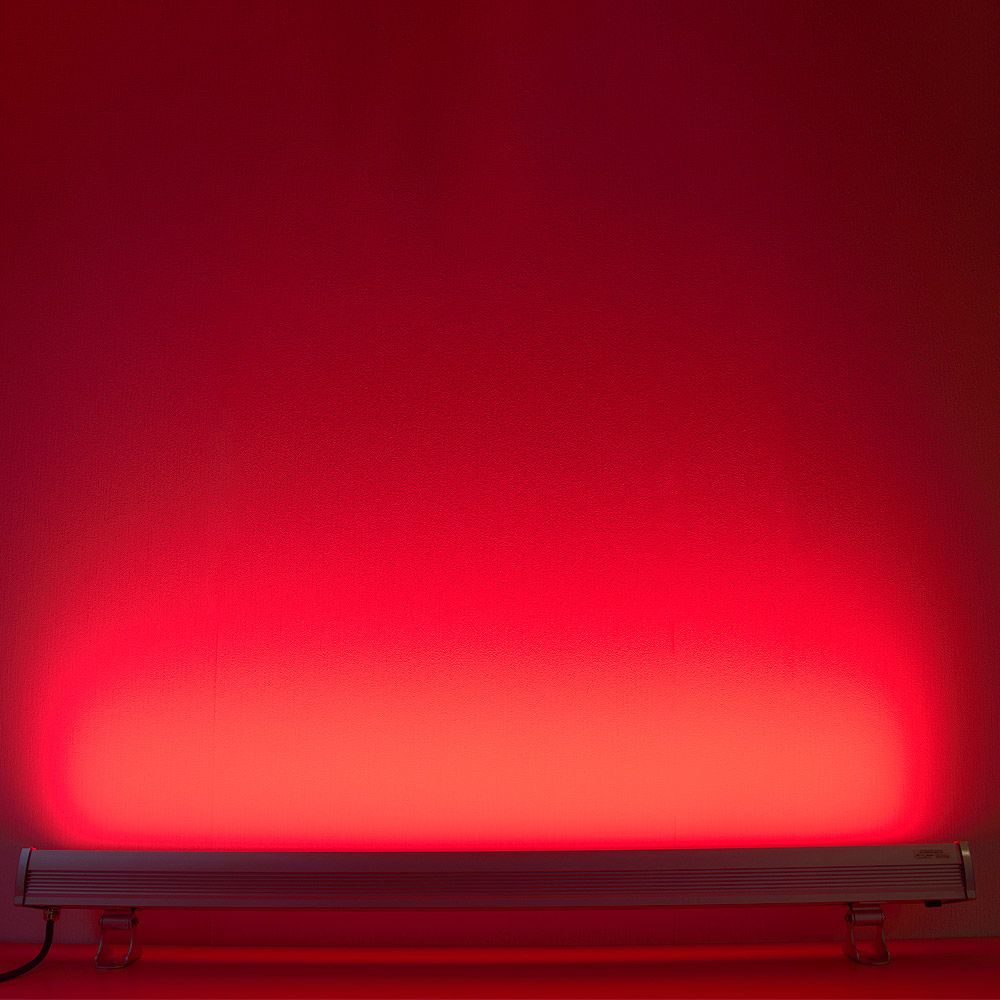

Drawing 72 Watts from the RGB CW & WW LEDs, the LED wall washer emits a powerful wash of colour. When the light bar is controlled with a DMX desk, it can produce over a stunning 16 million colour combinations.

You also have the option to adjust the colour temperature with the white LEDs from 2700K (warm white) to 6500K (cool white) for a great ambient lighting effect.

The unit is IP66 rated, meaning it can illuminate buildings or other outdoor structures. This high power RGB LED batten is a perfect choice for creating the ideal ambient wall light for your interior wall wash lighting and outdoor lighting.

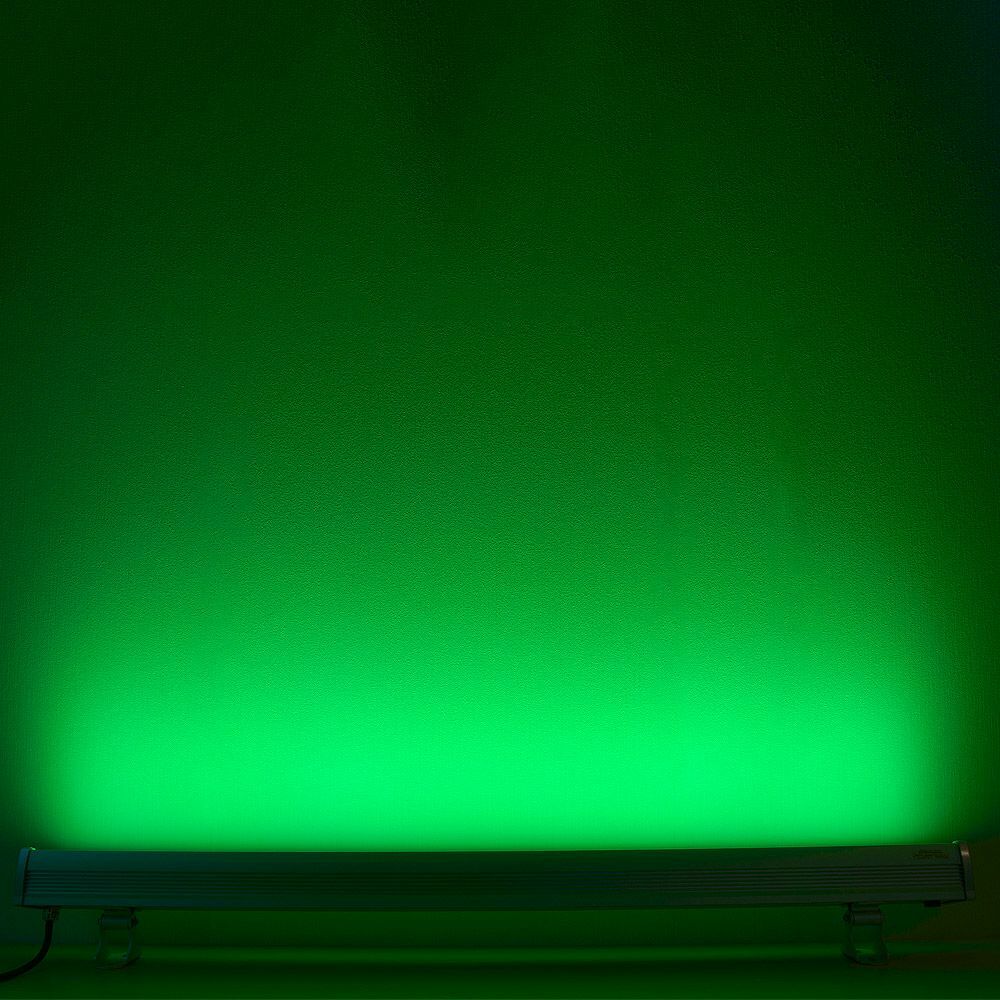

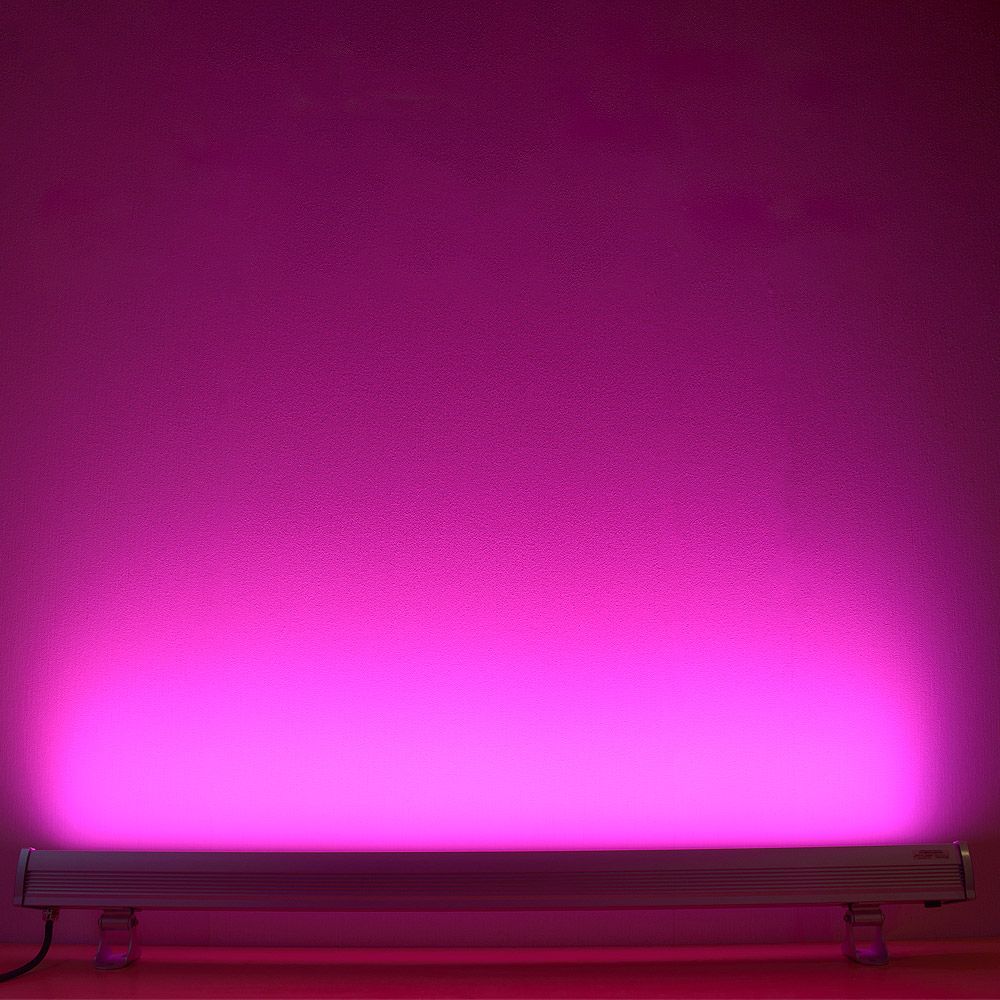

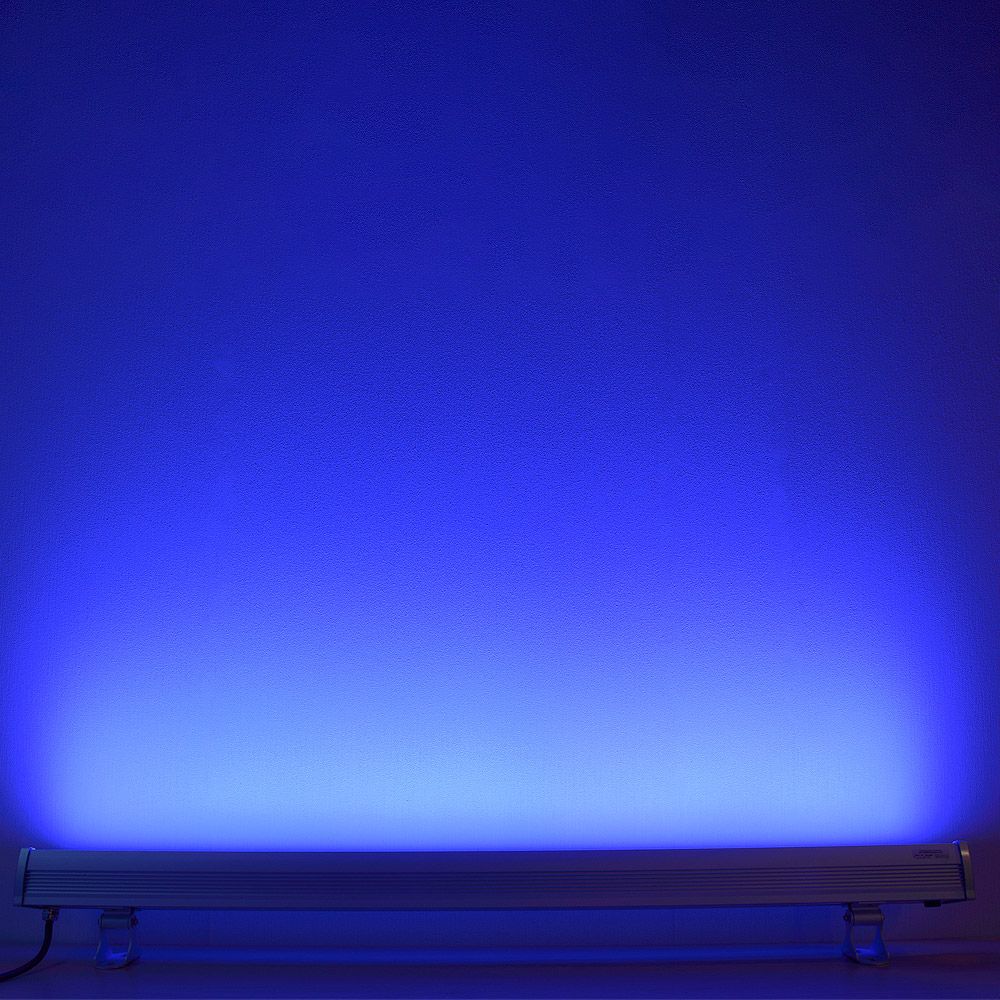

With a beam angle of 15 degrees height and 60 degrees wide, each batten is ideal for projecting an even wash of light to walls.

Using LED Wall Washers
These LED light battens are ideal for indoor and outdoor installation.

The are perfect outdoor lighting solutions to illuminating your buildings and outdoor spaces such as garden walls, driveways and fences. Create stunning visual effects with bright beautiful colours, or soft pastel colours. They can create any atmosphere and mood that you require. Ideal for relaxation areas such as outdoor sitting areas.

The LED Wall Washer light bar can make any wall spectacular and interesting. They are a perfect replacement for outdoor string lights, battery operated fairy lights, twinkle lights, LED strip lights and LED bulbs.

They are also ideal for indoor installations such as kitchens or bathrooms as they are splashproof. This means that they are protected from low pressure jets of water such as steam from a kettle. They can light up your living areas in any lighting that you want.

They could also be used for other spaces such as living rooms or bedrooms.

They are especially ideal for children's play rooms. The LED lights can light up the walls in exquisite colours. The fun and interesting colour will ensure that your children are stimulated while they play. Perfect for sensory rooms where interesting lighting effects are required.

The fluorescent tubes are also perfect for light designs in reception areas, retail outlets, car parks and other commercial uses. Light your space up in wonderfully amazing colours to make your business stand out. Achieve bold washes of colour that will illuminate and create a focal point to ensure that your space is stunningly unique.

These lights are also an exquisite solution for wedding decorations. Light up your wedding venue in a variety of lighting options, from delicate pastel colours to striking vivid colours. You can even achieve white lighting, from Cool White lighting to soft romantic Warm White.

They can be used for outdoor wedding lighting, to create beautiful and scenic backdrops. Perfect for lighting up your wedding ceremony as the LED batten lights are colour temperature adjustable. You can achieve idyllic warm colours to create a flawless light effect that will make your day even more magical and beautiful.

They will also achieve aesthetically pleasing lighting for your wedding photographs. They can create graceful backdrops and colouring. Ensure that your family photos and precious moments are illuminated properly.

Choose from a range of colour and colour temperatures to achieve the perfect mix for your photos. The soothing warm temperatures will create graceful shadows and highlights to ensure your photos are heavenly.

They can further light up your wedding reception whether it is indoors or outdoors. They are the perfect solution for lighting up marquees or dance floors. The colour changing ability will allow you to achieve bright and fun lighting so that you can enjoy your celebration. Achieve unforgettable moments with these beautiful LED Wall Washers.

Made from high-quality heat sinking materials for the optical lens cover, this energy-efficient LED batten is heat-resistant and is great for prolonged use with its long-life LED chips.

Controlling the LED Wall Washer Light
The main control feature incorporated into the batten includes RDM (Remote Device Management). This enables the various setting on the batten to be adjusted remotely from the DMX desk (RDM enabled control desk required).

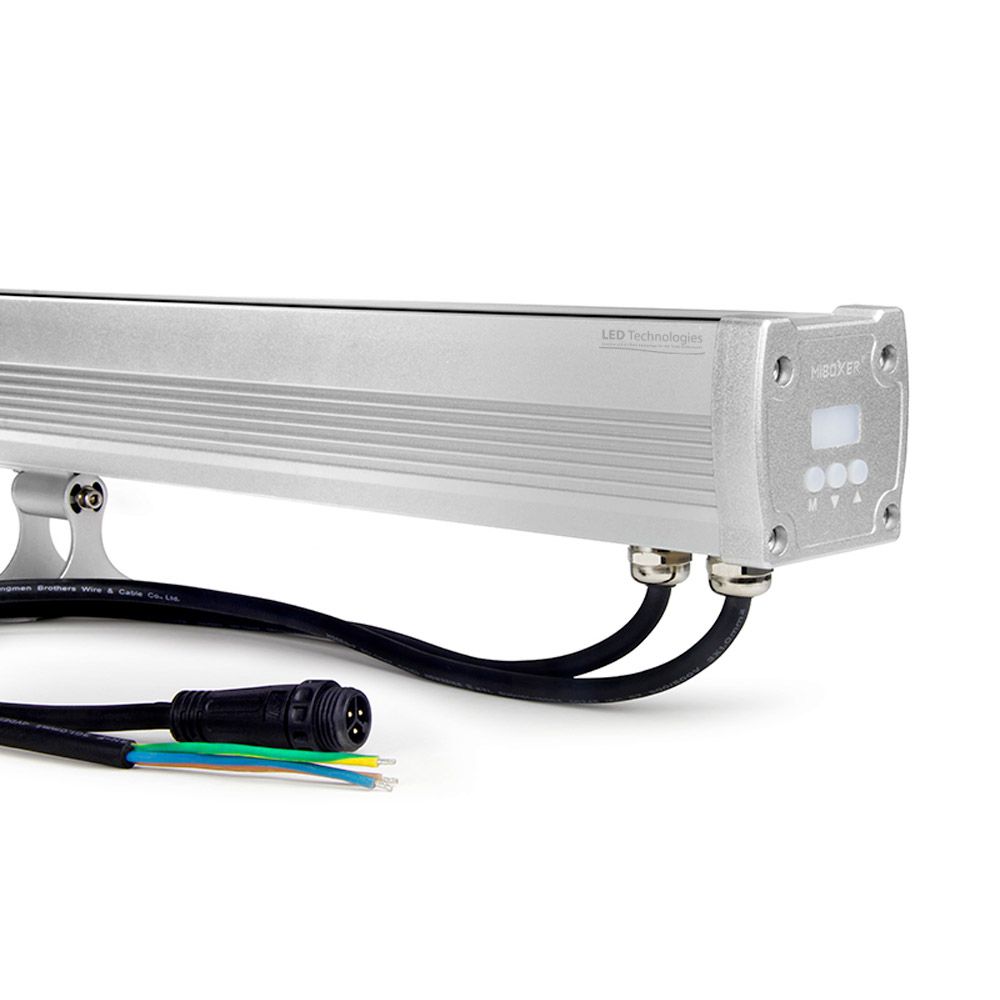

Otherwise, control your RGBW LED wall washer using the three-button user interface and digital display.

The user-adjustable settings include:

DMX Address input (000-512)
Dimming Curve (Linear or logarithmic)
Smooth or standard dimming adjustment
Auto-lock, which prevents the setting from being accidentally changed once set by the user.

Installation

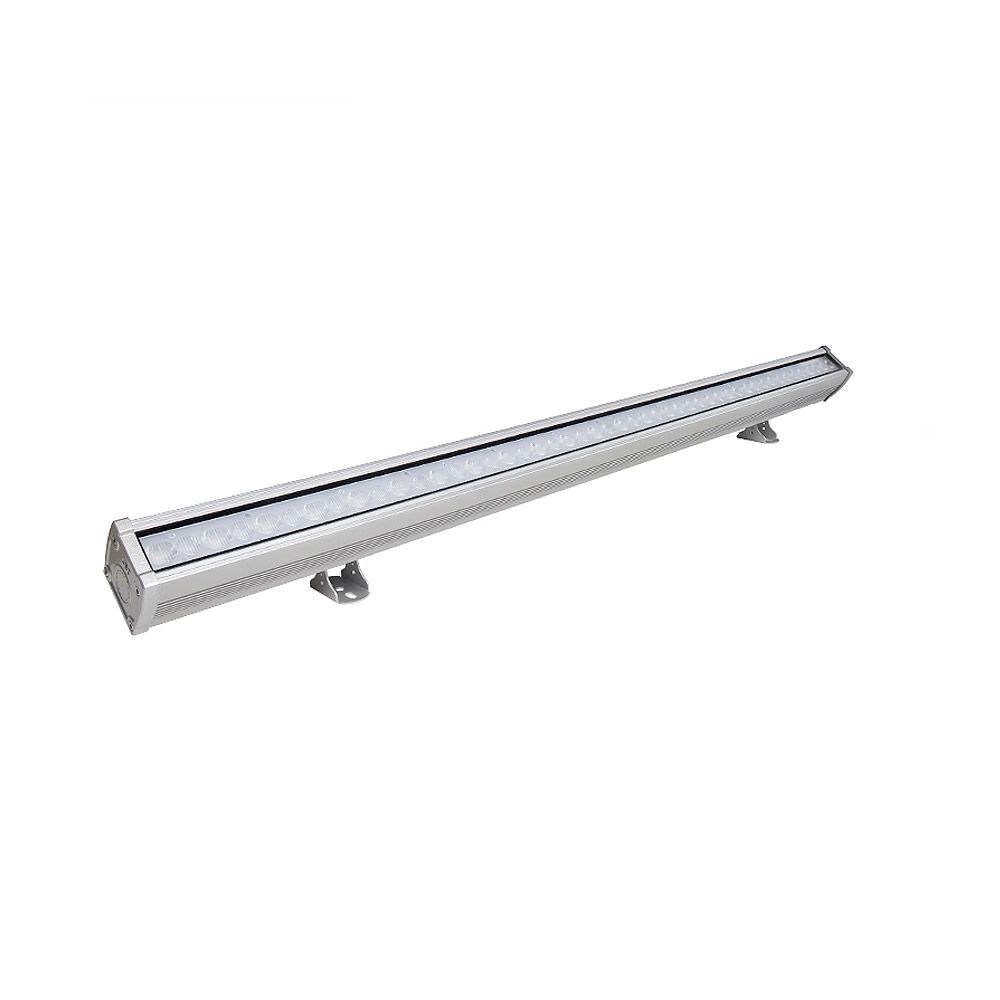

The batten is supplied with rotating fixing brackets that you can screw into place. These brackets let you adjust the angle more precisely and can be tilted up to a maximum angle of 180 degrees. This enables the light to be focussed exactly where required to give the perfect wall washing light.

This unit has a built-in power supply and receiver, using the latest LED technology on the market.

Our 5m DMX Starter Cable is required for the LED DMX RGB+CCT Wall Washer. - View Product

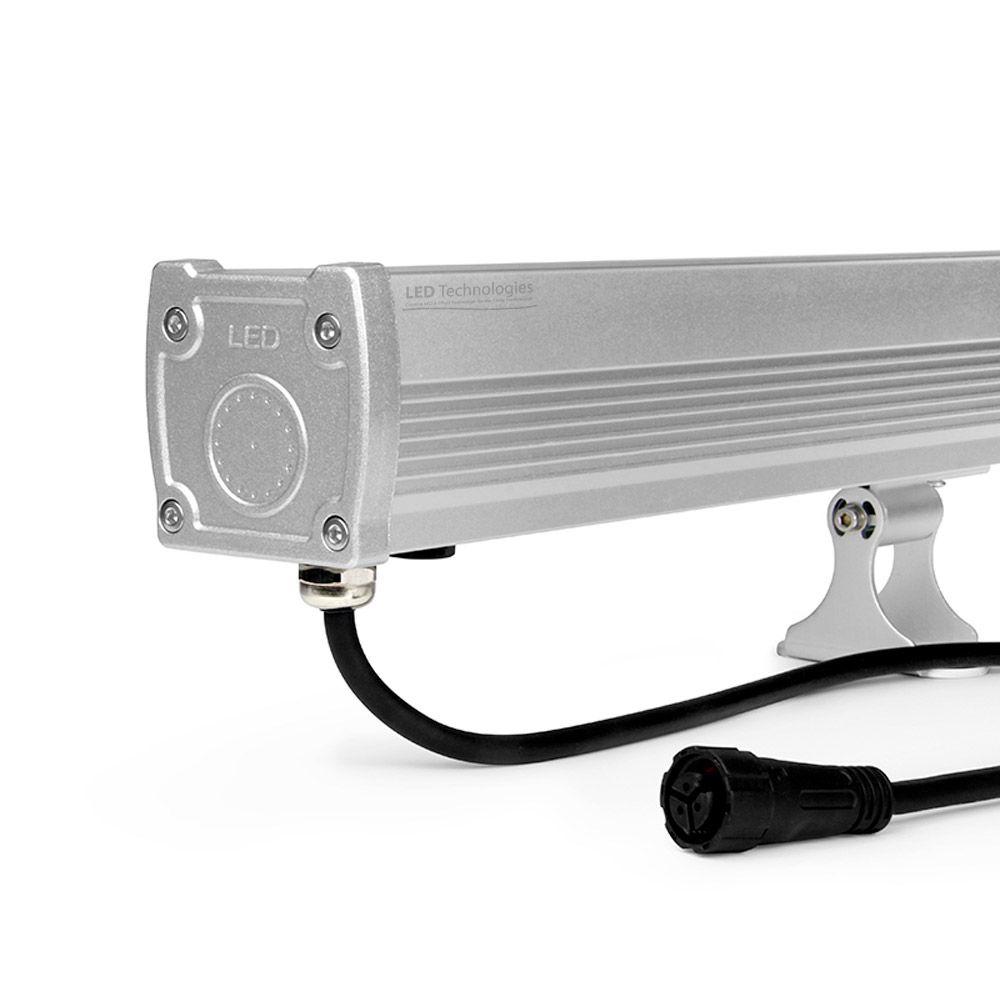

You can also set the DMX addresses and various other parameters using the built-in DMX decoders digital user interface and control buttons. The connected cables of the LED light include:

A mains input power cable
A DMX input at one end of the wall washer
A DMX output link cable at the opposite end of the batten
The DMX link cables have IP66 rated connectors and an IP66 connector to flying lead link cable, available separately if required. Our fixtures require an alternating current input voltage of 100-240 volts.

Technical Specification
Product Code:    D5W72
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Wall Washer
Colour:    RGB / CW & WW
IP Rating:    IP66 Splashproof
Colour Temperature:    2700 - 6500K
Guarantee Period:    5 Years
Wattage:    72w
Input Voltage:    100v - 240v AC
Connectivity:    RF
Size:    1020mm X 62mm X 64mm
Beam Angle:    15x60 degree
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
Average LED life Hrs:    50,000
Power Factor >:    0.9
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~45°C
Luminous Flux - Red:    280LM
Luminous Flux - Green:    540LM
Luminous Flux - Blue:    150LM
Luminous Flux - CW:    1800LM
Luminous Flux - WW:    1650LM
