Product Description

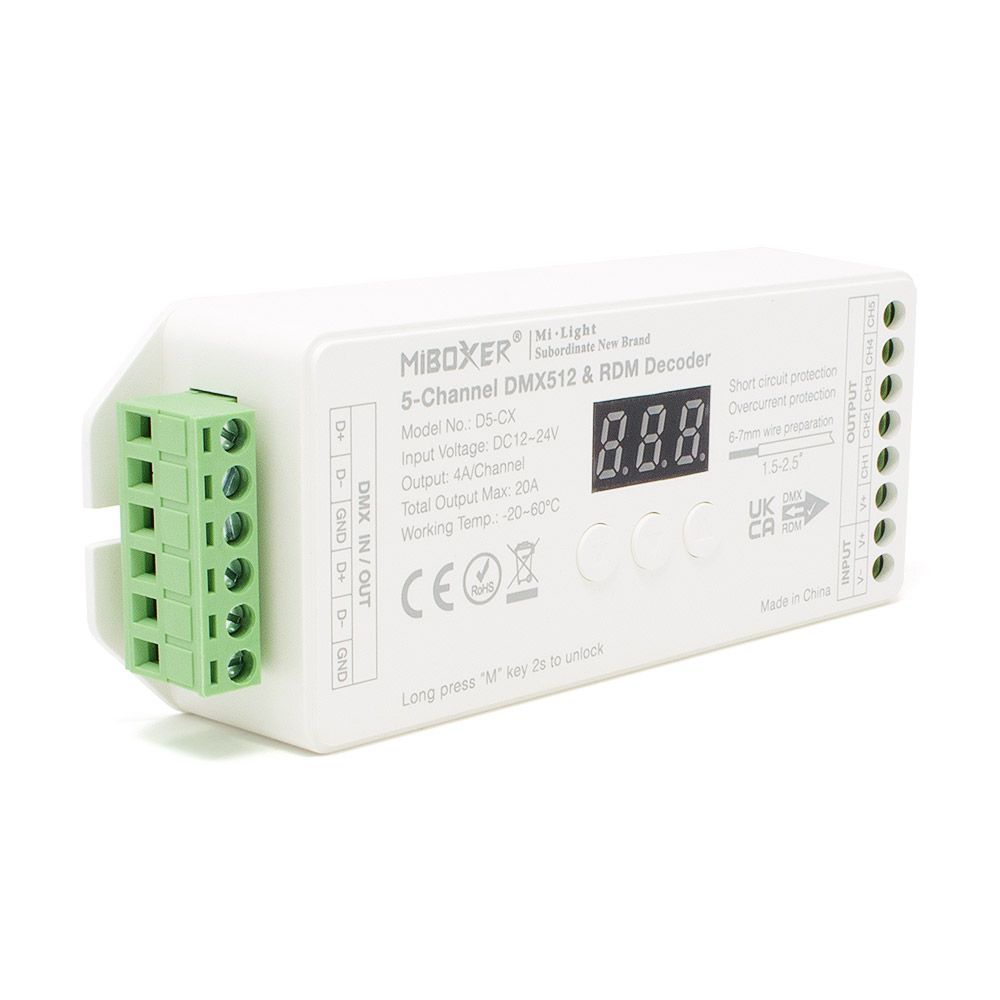

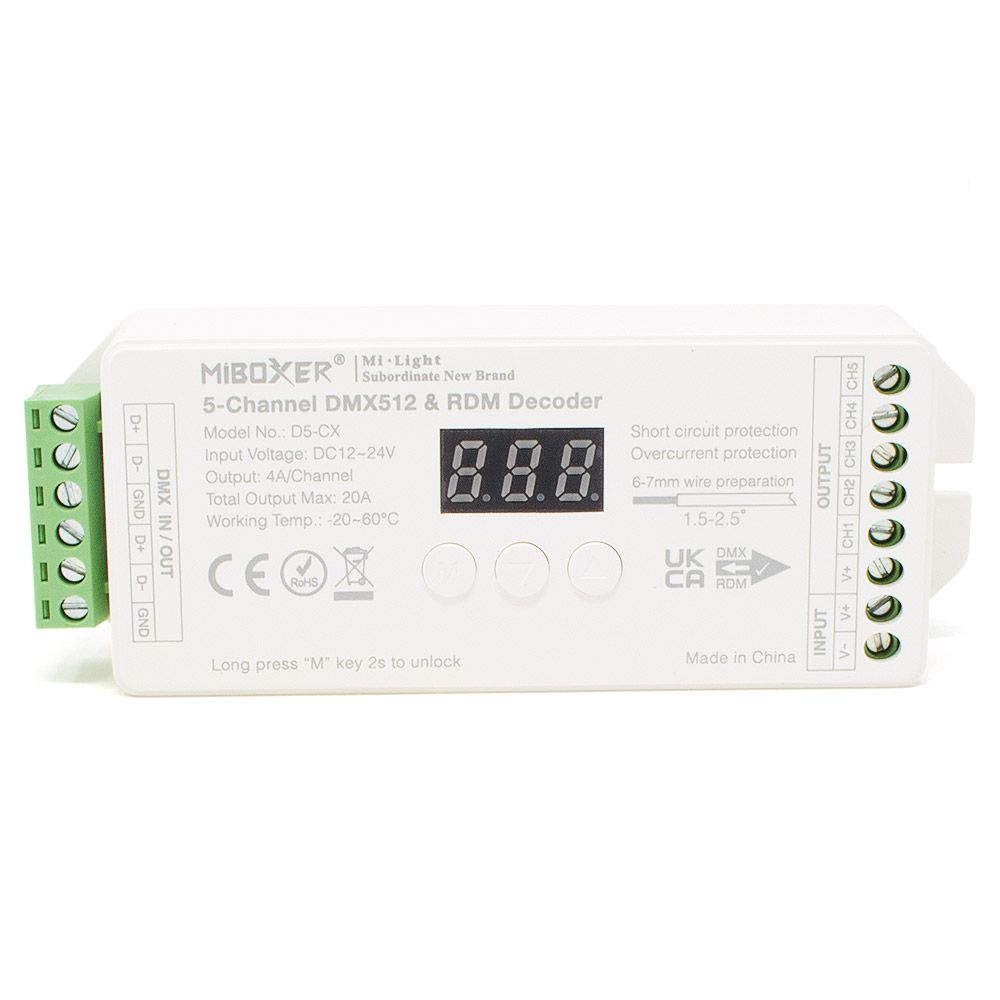

This compact, multi-function five-channel DMX512 Decoder has many professional features. The included RDM functions enable various settings to be adjusted from an RDM enabled DMX controller. This uses Bi Directional communication.

The DMX address can be quickly set together with various other parameters which include:

An adjustable PWM frequency of 500Hz or 2000Hz
An adjustable dimming curve (Logarithmic or Linear dimming)
And the ability to select a smooth or standard dimming
All of which are accessed using the menu buttons and digital displaying of DMX addresses.

In addition, the constant voltage DMX LED controller has various built-in safety features. These include Anti Reverse protection, Short circuit, and Over-current protection. When powered, the unit has a self-check function to ensure that it is working correctly.

There is also a digital lock included in the decoder to prevent tampering. This facility can be disabled if required otherwise it activates automatically after eight seconds of being idle.

The DMX Decoder has a maximum load of 20A (4A per channel). There are six output connections on the decoder so that you can split the load if required.

This five-channel DMX decoder is designed to control your RGBW Colour Changing 12v or 24v DC LED lighting products. The decoder uses the DMX 512 standard protocols, the decoder takes up five DMX channels.

This RGB DMX lighting controller can be used on our range of:

Single colour, dual white LED lights, RGB & RGB+CCT LED Strip lights
Our range of Mi-Light LED Products


Note: Connect a suitable 12v or 24v constant voltage driver to the input on the DMX decoder. This will ensure it suits the load that you are controlling.

Technical Specification
Product Code:    D5CX
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    12v / 24v DC
Connectivity:    DMX 512 protocols
Size:    L130mm x W49mm x H27mm
Dimmable:    No
Operation Frequency:    DMX512
Operating Temp:    -20~60°C
Total Output:    Max 20A
Output Max:    4A/Channel
