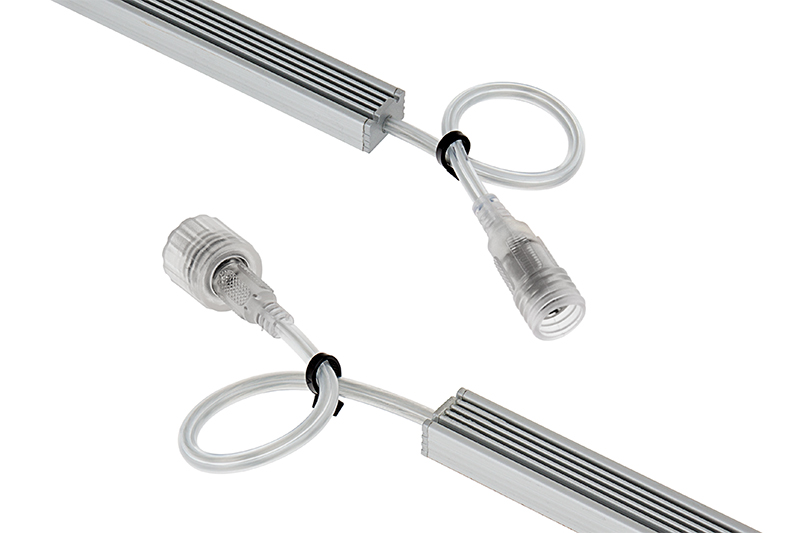

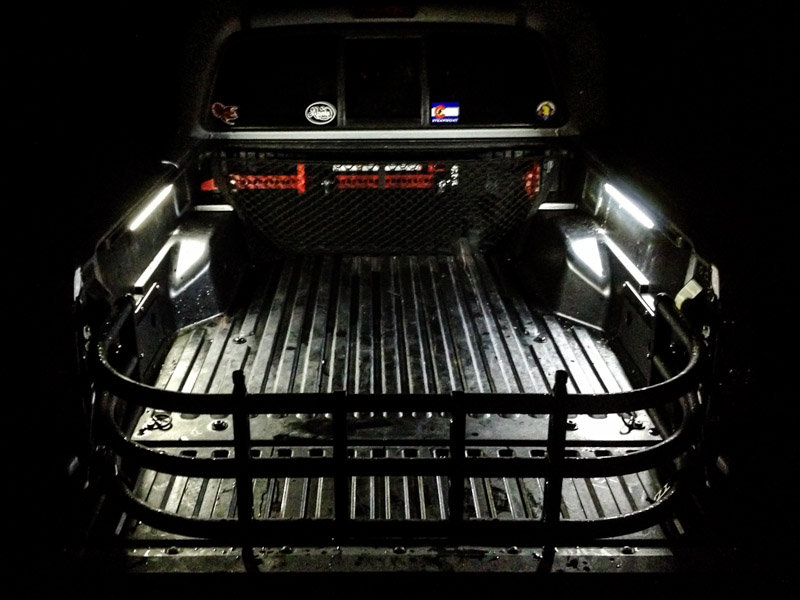

Linear LED light bar fixtures are an extremely versatile solution for a variety of lighting needs, such as cabinet lighting, under-cabinet lighting, desk lighting, bookshelf lighting, showcase lighting, truck bed lighting, RV ceiling lights, and more. This 1-5/8' aluminum LED light bar emits up to 675 lumens of cool white or warm white illumination. The waterproof light fixture has 12 VDC operation and is equipped with male and female DC barrel connectors on both ends. Easily join up to 9 fixtures together.

Specifications

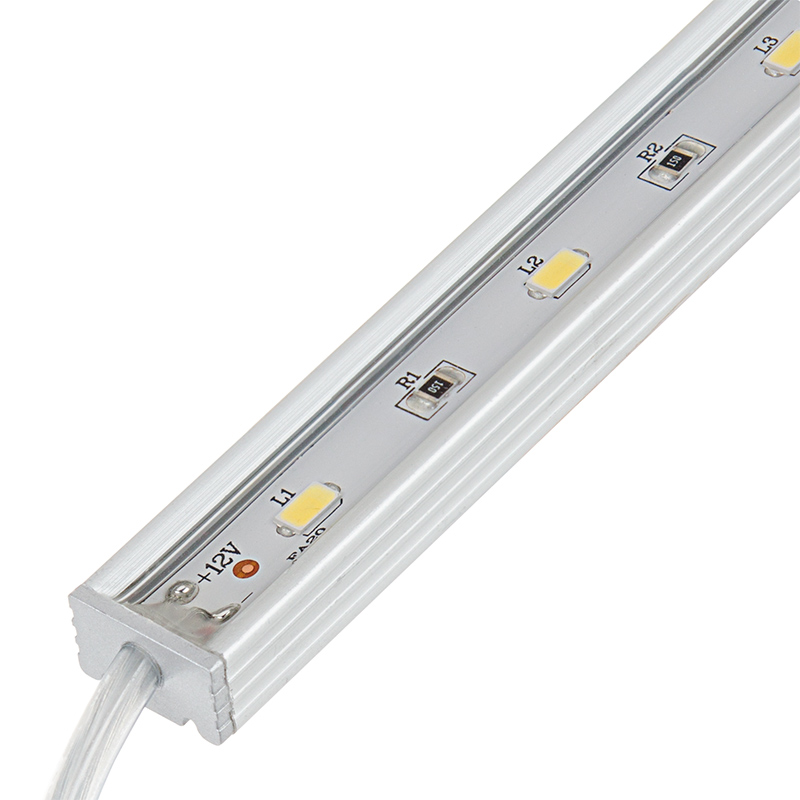

WLFA2 series Fixtures use 5630SMD LEDs with 120° viewing angle
Beam Angle:    120 degree
Conductors:    2
Current Draw @ Operating Voltage:     0.58A (580mA)
Current Draw per Foot:    351mA
Dimmable:    Yes
IP Rating:     IP67
Input Connection Type:    Barrel Connector, CPS Connector, CPS Female, CPS Male
LED Lifetime:    50000 Hours
LED Type:    5630 SMD
LEDs per Segment:    15
Linkable:    Yes
Max Run:     9
Max Run in Feet:    14.76ft
Number of LEDs in Unit:    15 LEDs
Operating Voltage:    12 VDC
Output Connection Type:    DC Barrel (5.5 mm x 2.1 mm, male)
Power Consumption:    7 Watts
Strip Width:    15mm (0.59in)
Total Length:    1.64ft (0.5m)
Type:    Aluminum Housing, Linkable, Plug and Play, Rigid Light Bars
Wire Length:    7in(17.8cm)
Package Weight: 5.3oz (0.15kg)
Package Dimensions: 27" (69cm) x 0.84" (2cm) x 0.84" (2cm)
All specifications are subject to change without notice.
