    Narrow Rigid LED Light Bar w/ High Power 1-Chip SMD LEDs - 255 Lumens

      (8 Reviews) | Write a review
    SKU: RLBN-x30SMD

    Please Choose:



    Discontinued
    Starting at: $7.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

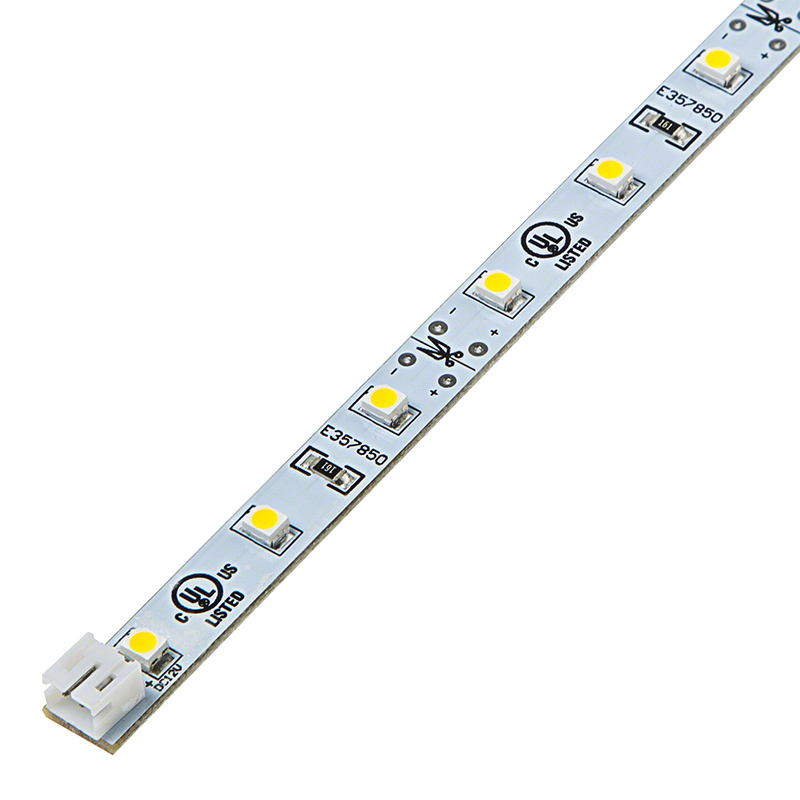

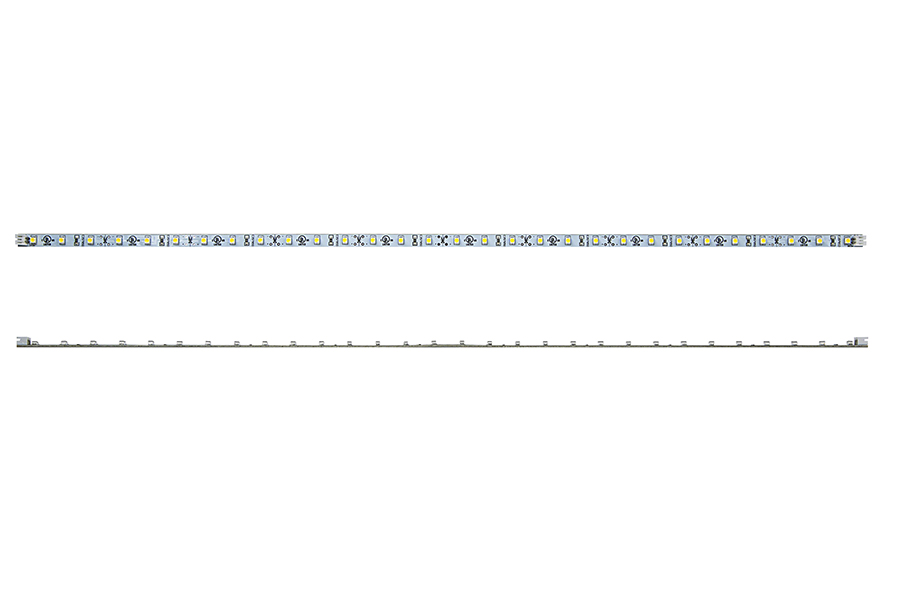

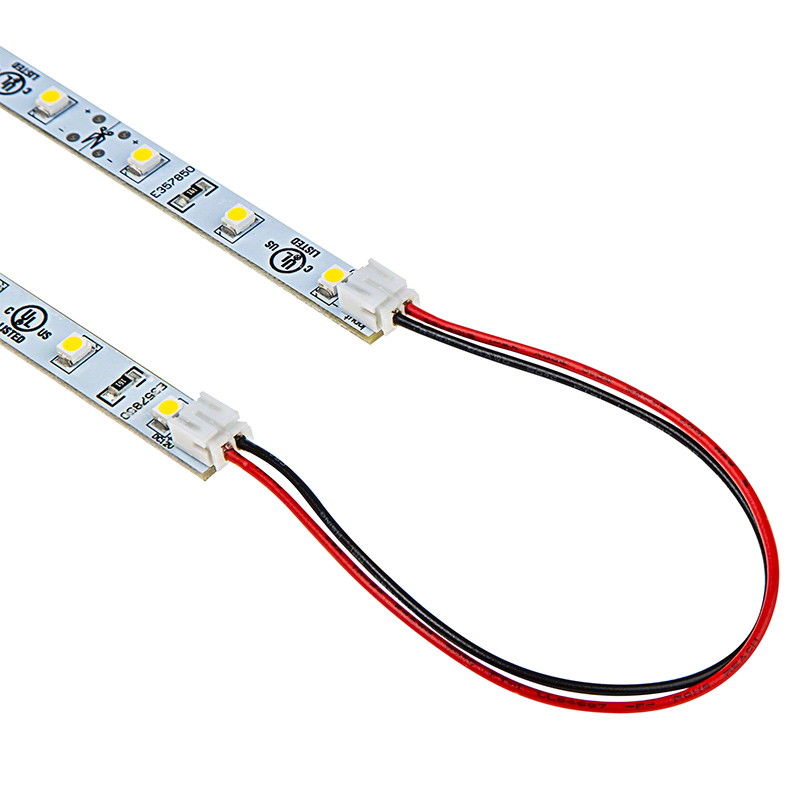

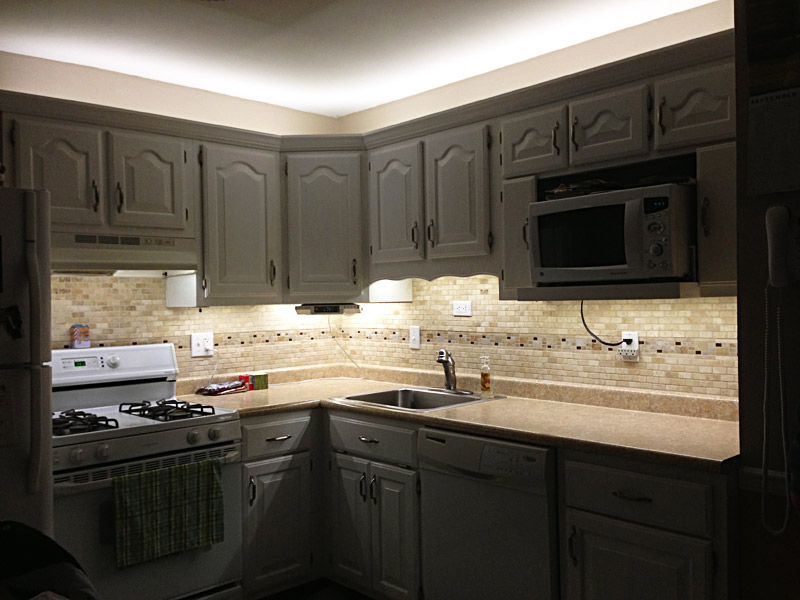

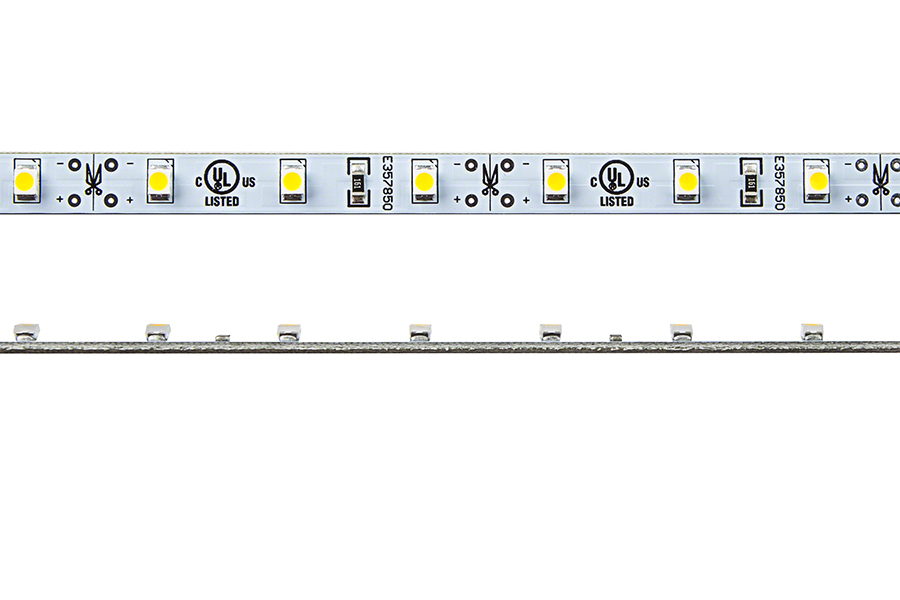

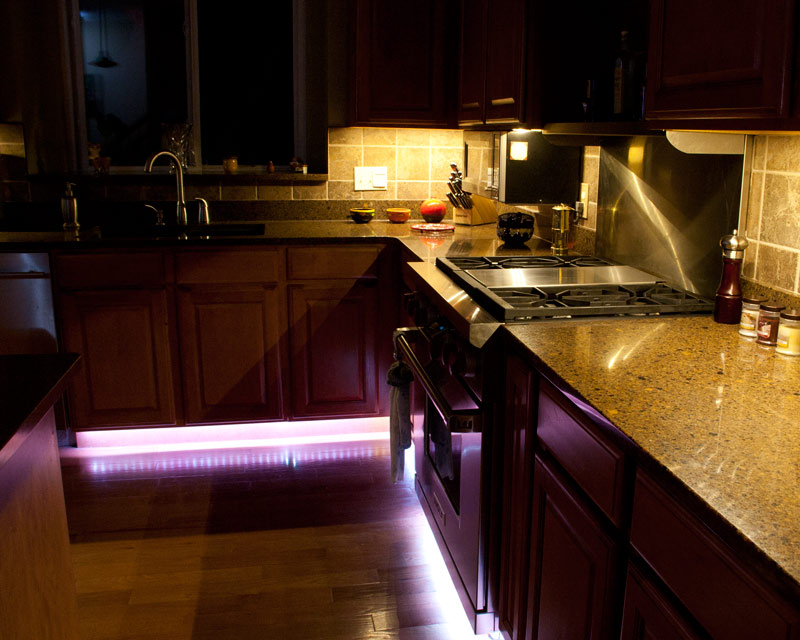

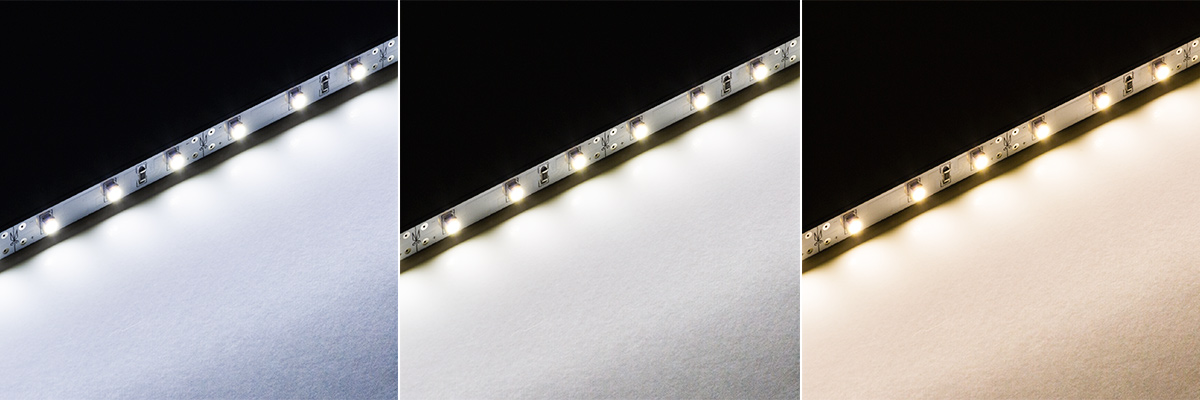

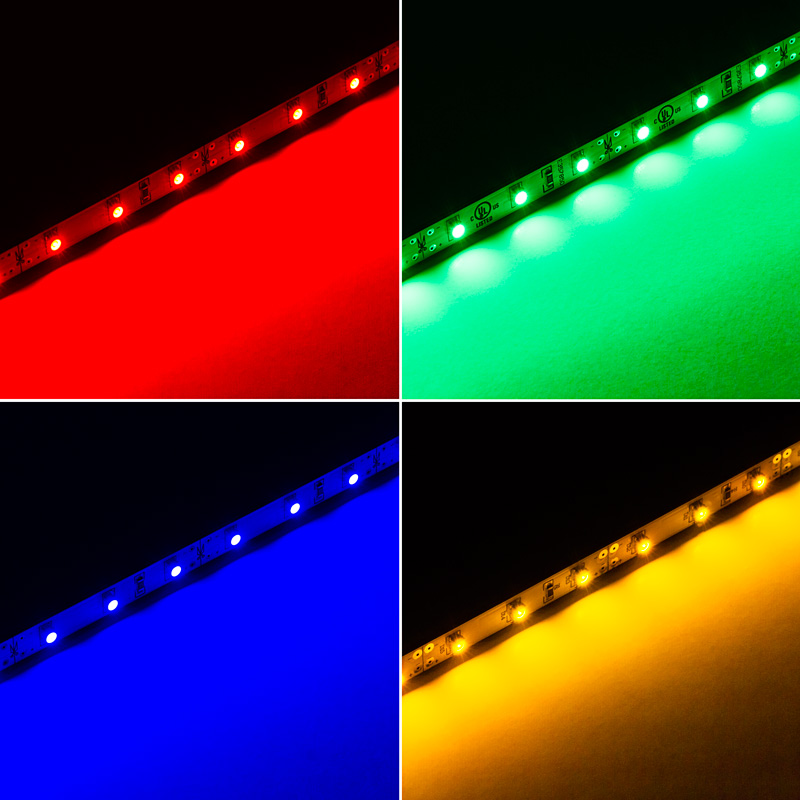

    Rigid linear LED light bars are an extremely versatile solution for a variety of lighting needs, such as cabinet lighting, under-cabinet lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, or for other indoor applications where space is limited. These 1-5/8' light bars use 3528 SMD LEDs to emit up to 255 lumens of cool white, natural white, warm white, blue, green, yellow, or red illumination. The non-weatherproof light fixtures have 12 VDC operation and can be cut into 3-LED segments. Easily join up to 10 fixtures with compatible interconnect cables (sold separately).

    Specifications
    Beam Angle:    120 degree
    Comparable Wattage:    25-30 Watt Incandescent
    Dimmable:    Yes
    Environmental Rating:    Non-weatherproof, Suitable for Dry Locations
    IP Rating:     IP20
    Input Connection Type:    RLBN Female
    LED Lifetime:    30000 Hours
    LED Type:    3528 SMD
    LEDs per Segment:    3
    Linkable:    Yes
    Max Run:     10
    Max Run in Feet:    16.4ft
    Number of LEDs in Unit:    30 LEDs
    Operating Voltage:    12 VDC
    Standards And Certifications:    ISA Approved, RoHS Compliant, UL Listed

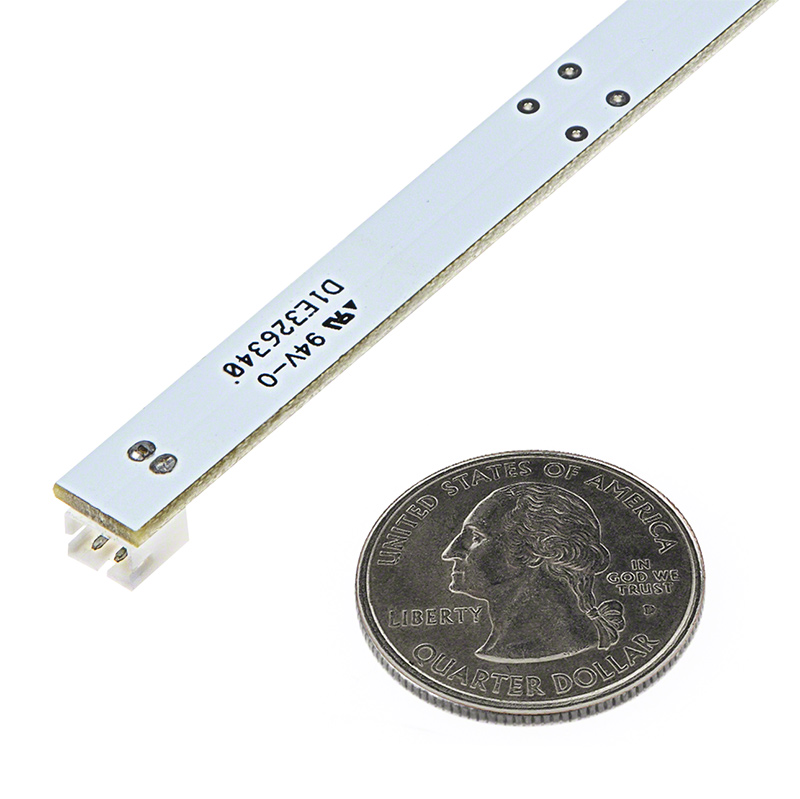

    Strip Width:    8.05mm (0.32in)
    Total Length:    1.64ft (0.5m)
    Type:    Linkable, Printed Circuit Board, Rigid Light Bars
    Package Weight: 0.7oz (0.02kg)
    Package Dimensions: 19.92" (51cm) x 0.44" (1cm) x 0.44" (1cm)
    All specifications are subject to change without notice.
