Linkable LED Under Cabinet Light Bar - Seamless Connection - 413 lm/ft

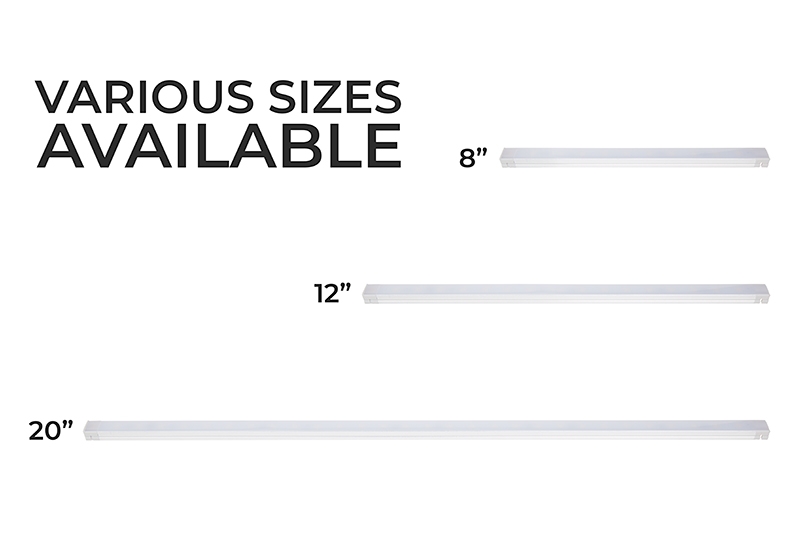

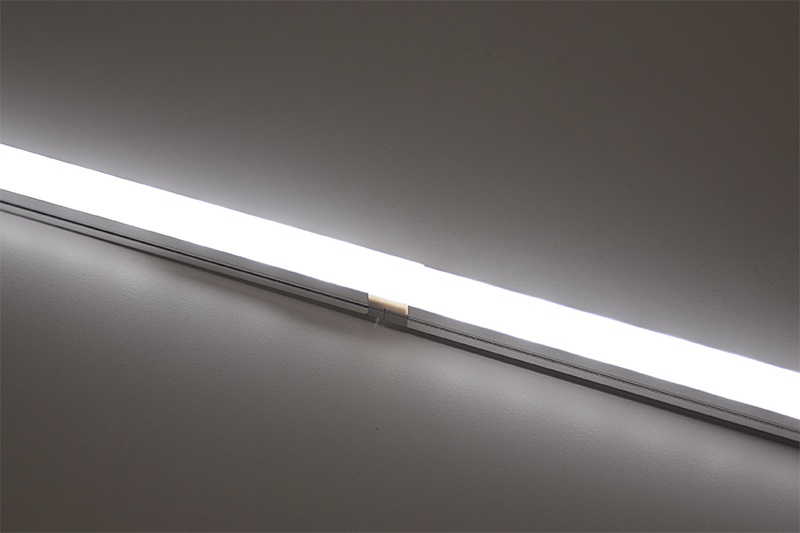

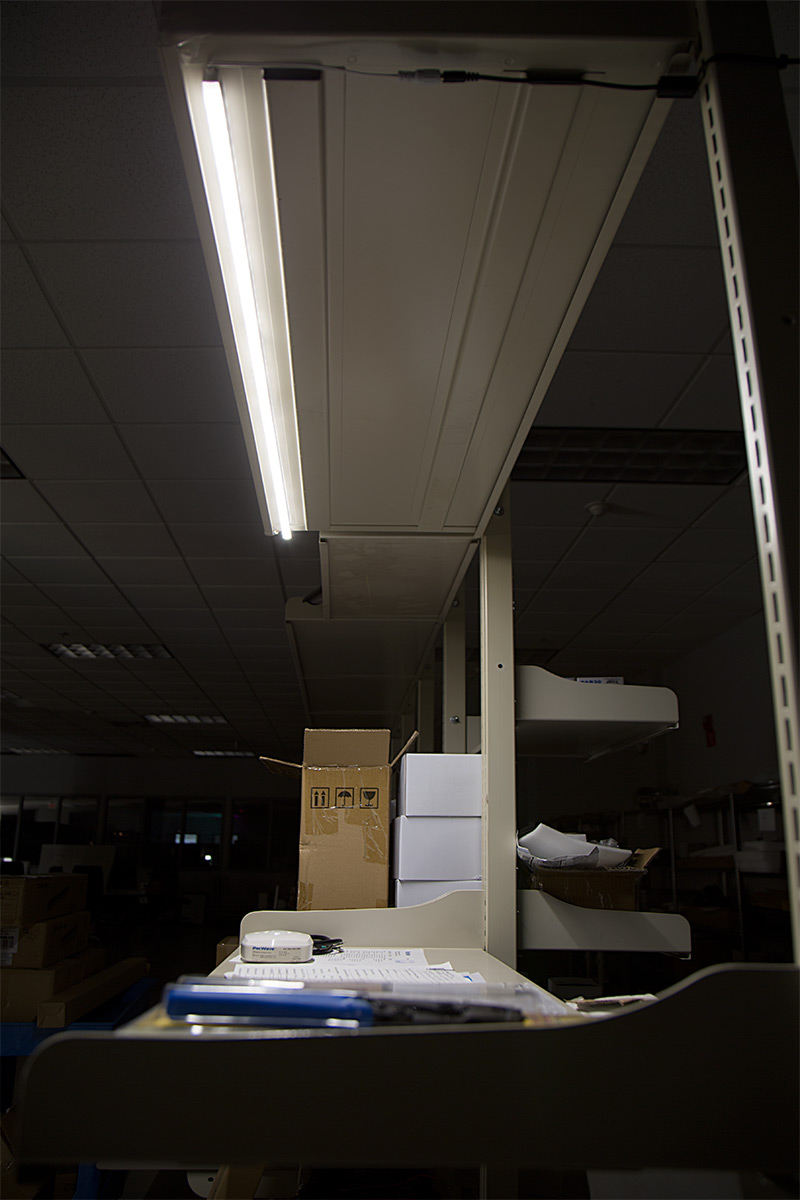

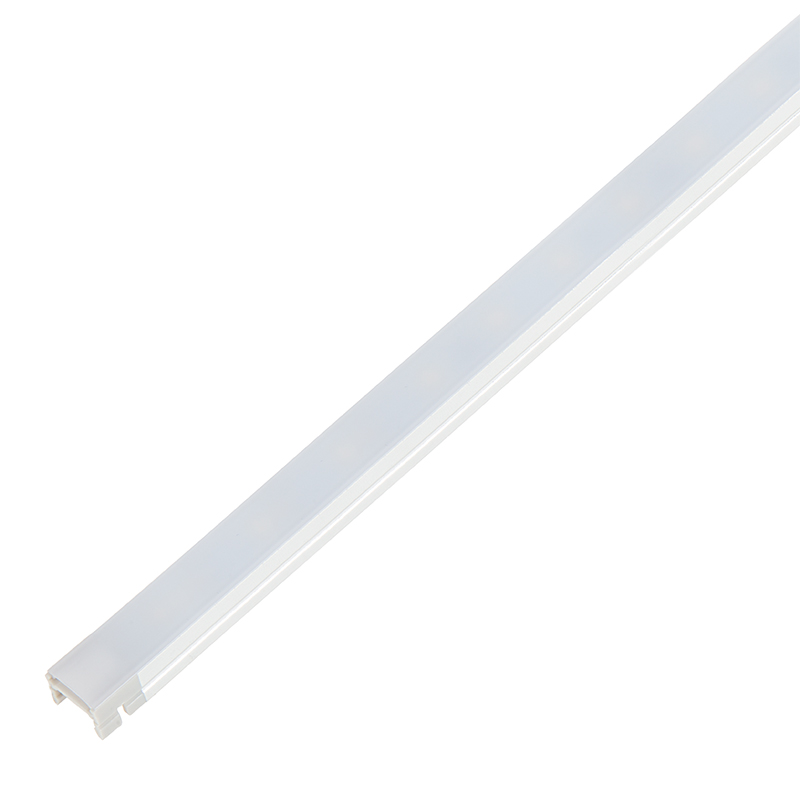

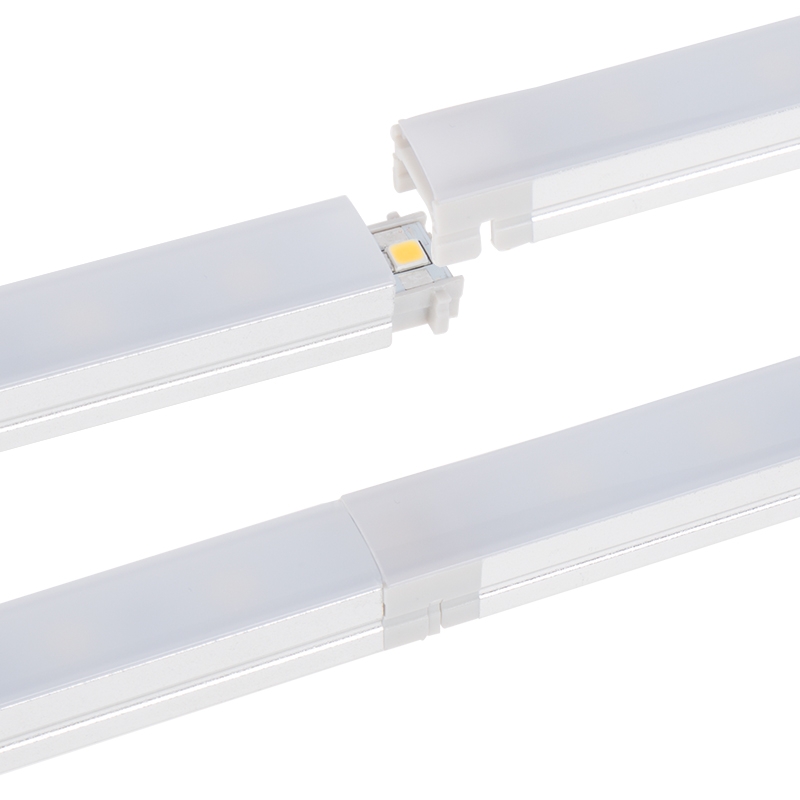

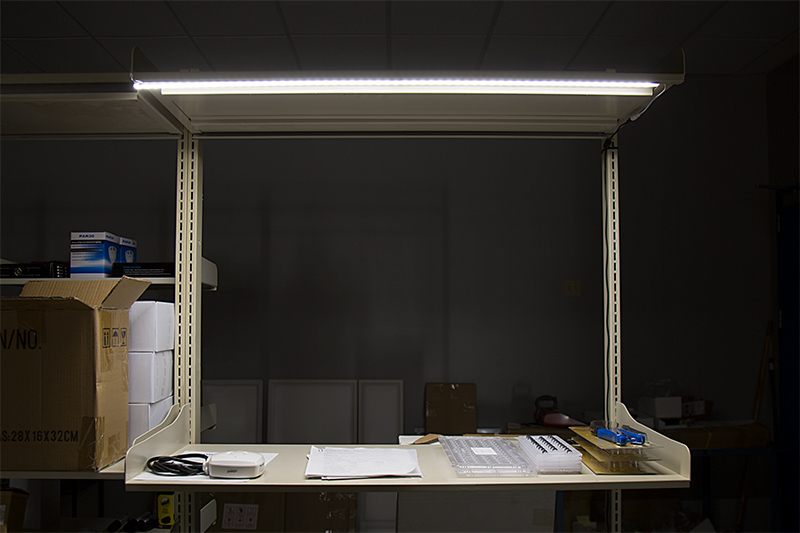

LSLB series LED Light Bars are uniquely designed for a customized shape and span of linear light to provide task or accent lighting in low-profile spaces. They can be linked up to 16’ in straight lines or around corners, with multiple lengths and connector options to choose from. Seamlessly highlight under cabinets or inside a case display without the need for interconnect wires. LEDs are arranged directly behind a frosted polycarbonate lens to diffuse a smooth beam of light. Operating on low wattage, illumination is dimmable for further efficiency and convenience. Lightweight yet durable, the aluminum frame is integrated with back-panel magnets for quick attachment to metal applications. For other installations, mounting clips and hardware is included.
Product Details:
- Compatible with multiple connector options (sold seperately)

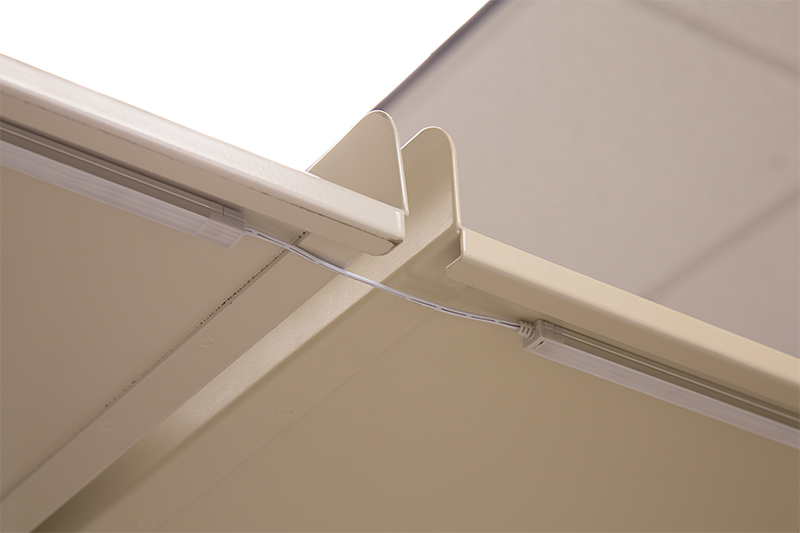

- Integrated back-mounted sliding magnets

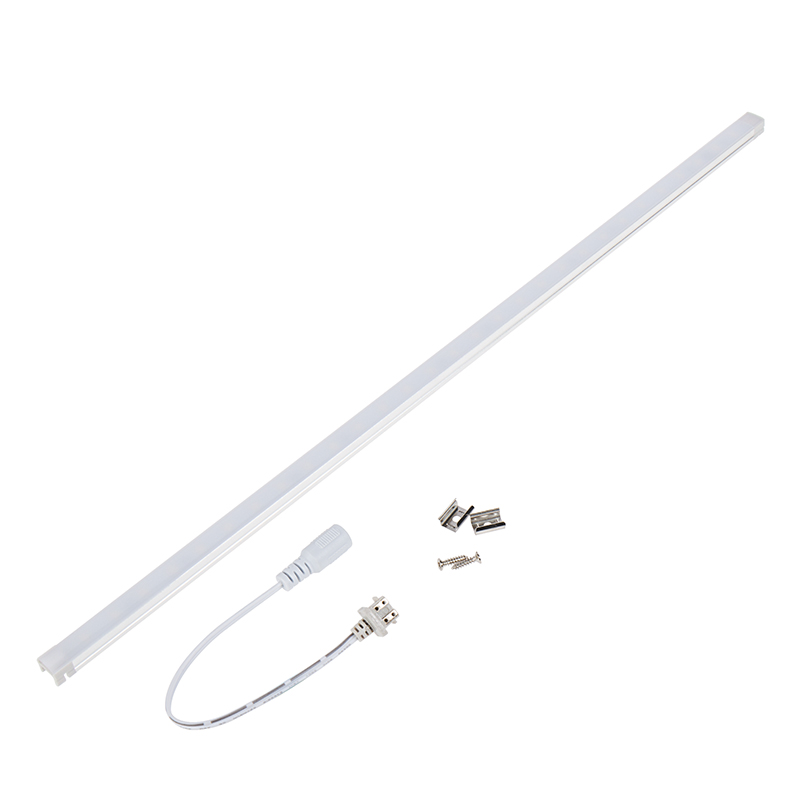

- Included mounting clips
- Included 8" cord with barrel plug
- Dimmable with controller (sold seperately)
- Available in 4000K
- 12VDC
- 30000 hours L70 lifespan
- IP20 rated for dry conditions
- 3 year warranty
Specifications
Beam Angle: 120 degree
CCT Value: 4000K
CRI: 83 CRI
Current Draw per Foot: 324mA
Dimmable: Yes
Environmental Rating: Non-weatherproof, Suitable for Damp Locations
IP Rating: IP20
Input Connection Type: Barrel Connector, CPS Connector, CPS Female, CPS Male
LED Color: Natural White
LED Lifetime: 30000 Hours
LED Type: 2835 SMD
LEDs per Segment: 30
Linkable: Yes

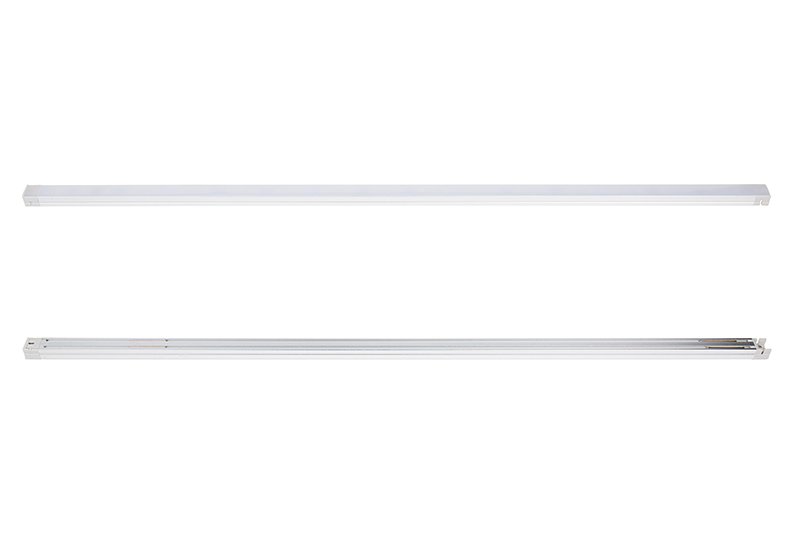

Material: Aluminum
Max Continuous Length: 5m (16.4ft)
Number of LEDs in Unit: 30 LEDs
Operating Voltage: 12 VDC
Output Connection Type: DC Barrel (5.5 mm x 2.1 mm, male)
Strip Width: 12.7mm (0.5in)
Type: Aluminum Housing, Linkable, Plug and Play, Rigid Light Bars
All specifications are subject to change without notice.
