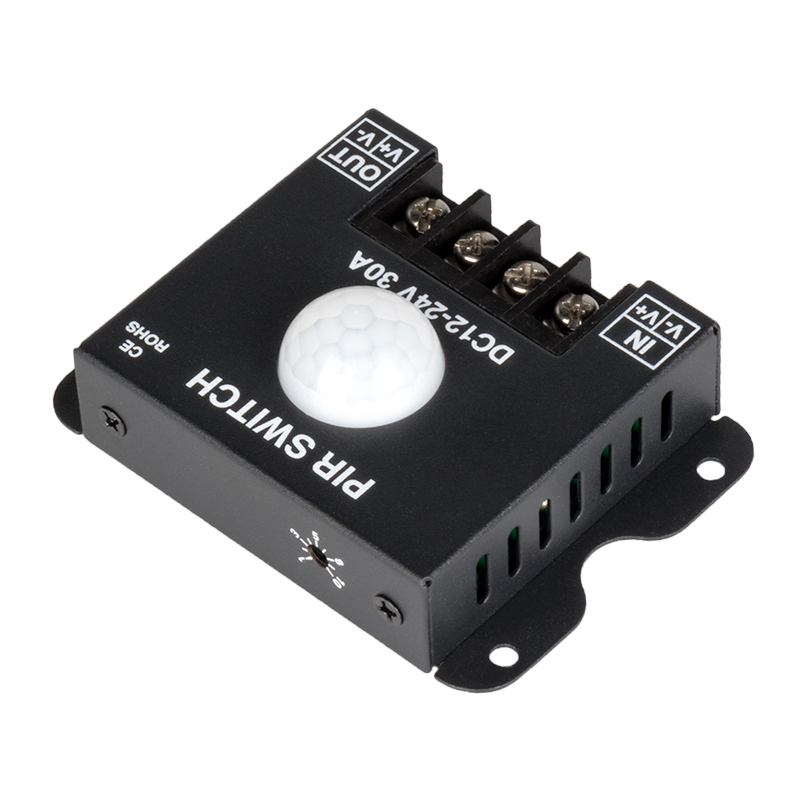

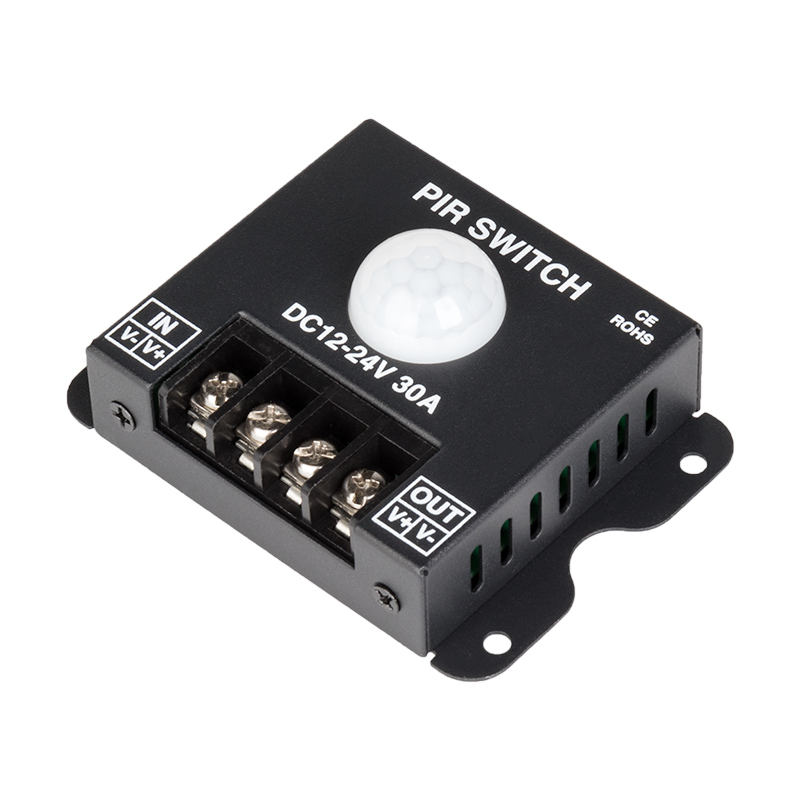

    PIR Motion Sensor Switch - 12-24 VDC - 30 Amps

      (1 Reviews) | Write a review
    SKU: LPIR-30A
    Discontinued
    Starting at: $12.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    This PIR motion sensor automatically powers on connected 12 VDC or 24 VDC LED lights when human motion is detected. The sensors will power on lights at night or during the day, and an adjustable dial allows your lights to remain on for up to 2 minutes (full clockwise turn to 10 equals 2 minutes, and a full counterclockwise turn to 1 equals 45 seconds). The single-channel sensor has a 30-Amp maximum load and operates within a 12-24 VDC range. Price for each.

    Specifications
    Amps:    30A
    Amps Per Channel:    30 Amps/CH
    Channels:    1 Channel
    Environmental Rating:    Non-weatherproof
    Input Connection Type:    Screw Terminals
    Input Voltage DC:    12-24 VDC
    Standards And Certifications:    RoHS Compliant
    Type:    PIR Motion Sensor
    Volts:    12-24 VDC
    Package Weight: 4.7oz (0.13kg)
    Package Dimensions: 3.5" (9cm) x 2.5" (6cm) x 1.5" (4cm)
