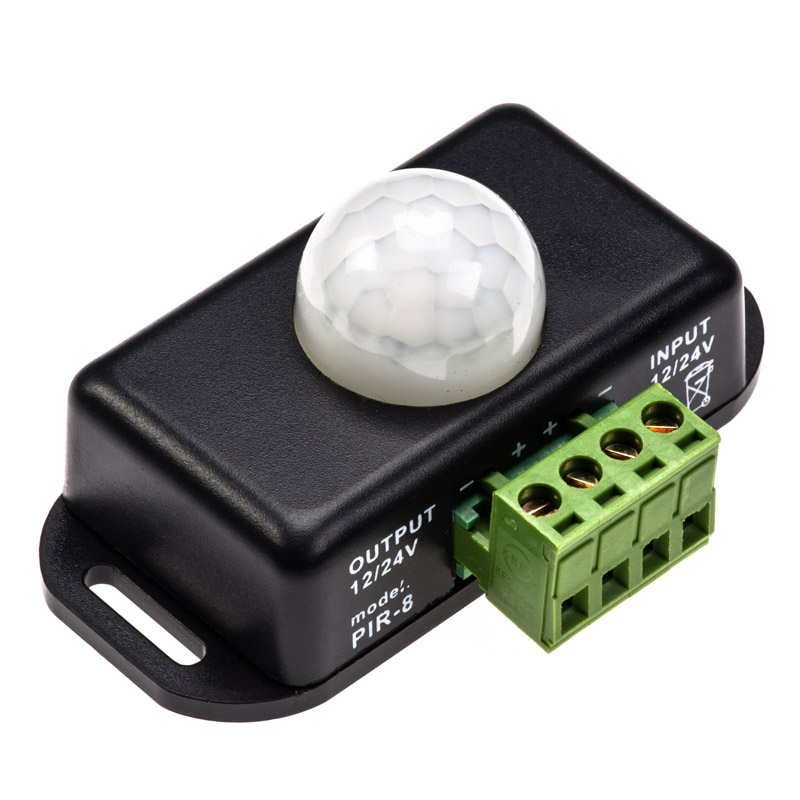

    Mini PIR Motion Sensor Switch w/ Built In Timer - 12-24 VDC - 6 Amps

      (9 Reviews) | Write a review
    SKU: LPIR-6A
    Discontinued
    Starting at: $12.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

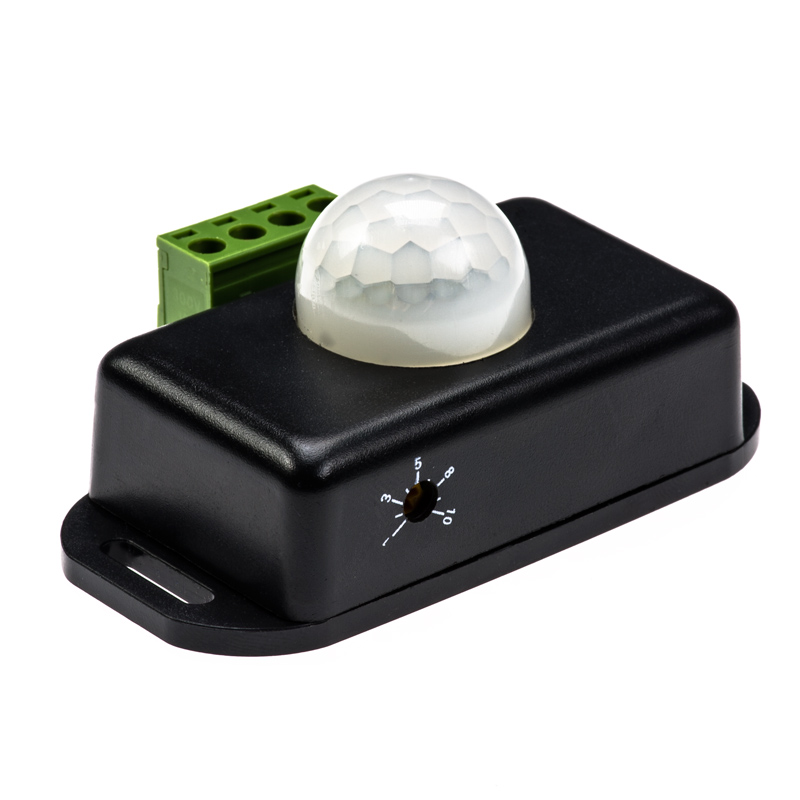

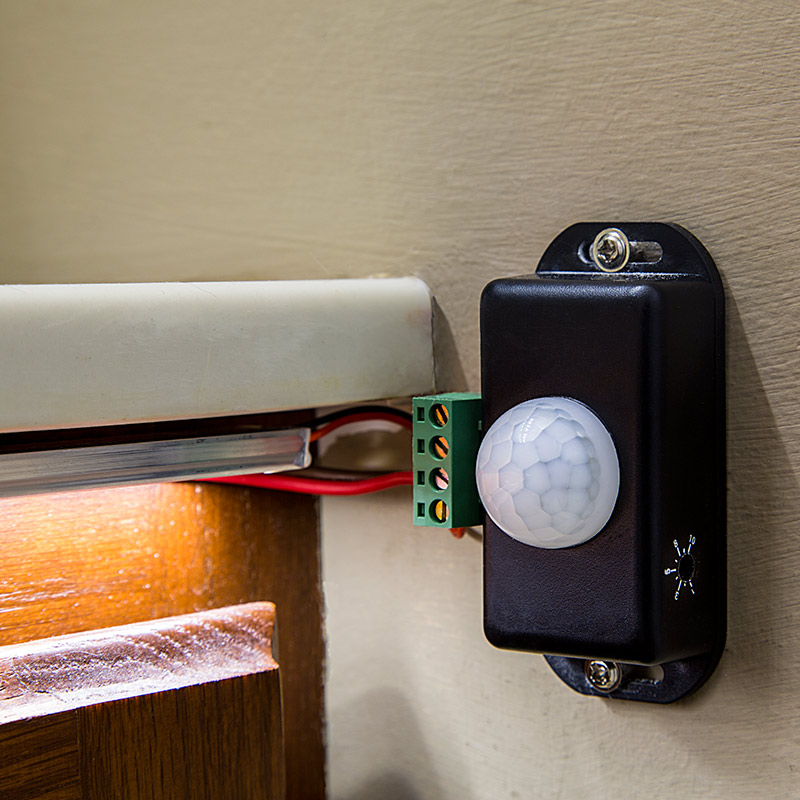

    This Mini PIR Sensor automatically powers on connected 12 VDC or 24 VDC LED lights when human motion is detected. The sensors will power on lights at night or during the day, and an adjustable dial allows your lights to remain on for 1, 3, 5, 8, or 10 minutes. Motion detection range is within 8 meters (26') of the PIR sensor. The single-channel sensor has a 6-Amp maximum load and operates within a 12-24 VDC range. Price for each.

    Specifications
    Amps:    6 Amps
    Amps Per Channel:    6 Amps/CH
    Channels:    1 Channel
    Environmental Rating:    Non-weatherproof

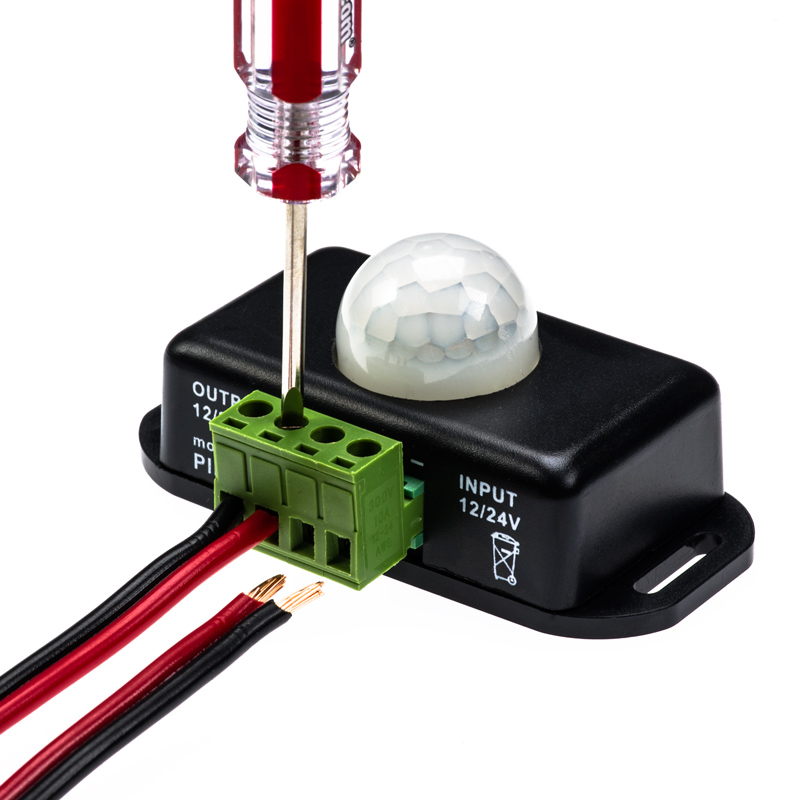

    Input Connection Type:    Screw Terminals
    Input Voltage DC:    12-24 VDC
    Type:    PIR Motion Sensor
    Volts:    12-24 VDC
    Package Weight: 1.94oz (0.05kg)
    Package Dimensions: 4.1" (10cm) x 2.01" (5cm) x 2.01" (5cm)


    Product Review

    Show more reviews
    store image

    Mini PIR Motion Sensor Switch w/ Built In Timer - 12-24 VDC - 6 Amps

    Part Number: LPIR-6A
