    Intelligent PIR Motion Sensor Switch

      (4 Reviews) | Write a review
    SKU: LPIR-5A
    Discontinued
    Starting at: $18.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

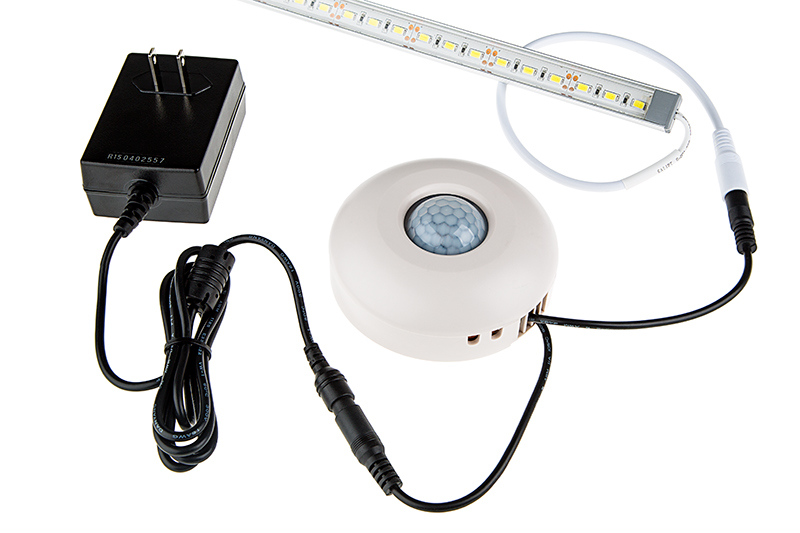

    Adjustable PIR switch automatically activates connected 12VDC LED lights when human motion is detected. Adjustable sensitivity and light-on time. Can be set to remain on for any period of time between 30 seconds and 9 minutes. Motion detection range is within 7 meters and 160 degrees from center of PIR sensor. Male and female 5.5mm barrel power connector for connecting in-line with our CPS series power supplies. Single channel - 5 Amp maximum load. 12VDC operation.

    Specifications
    Amps Per Channel:    5 Amps/CH
    Channels:    1 Channel
    Environmental Rating:    Non-weatherproof
    Input Connection Type:    Barrel Connector
    Input Voltage DC:    12 VDC
    Operating Temperature:    -10~+50 °C (14~+122 °F)
    Standards And Certifications:    RoHS Compliant
    Total Amps:    5 Amps
    Type:    CPS Barrel Connector, PIR Motion Sensor
    Volts:    12 VDC
    Package Weight: 4.6oz (0.13kg)
    Package Dimensions: 4" (10cm) x 3.88" (10cm) x 2.26" (6cm)
    All specifications are subject to change without notice.
