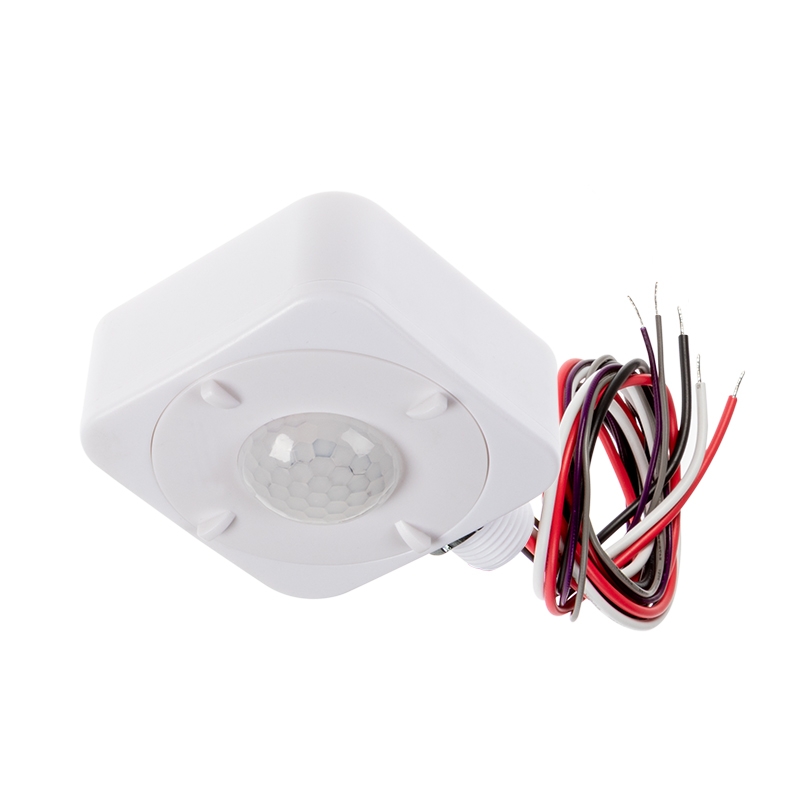

BRI819 series Motion Sensor dims and turns lights ON/OFF based on occupancy detection. Mount to a high bay to control a single light, or mount to a central junction box to control multiple lights from one sensor. Maximize efficiency, lower energy costs, and reduce maintenance in commercial and industrial locations with passive infrared occupancy sensor. Suitable for use in high bay areas such as distribution centers and manufacturing areas.

Product Details:

• Max mounting height: 40’
• Max detection radius: 30’
• 75° x 360° detection angle
• 120-277 VAC
• Operating temperature: -40°–158° F (-40°–70° C)
• 2 year warranty

Specifications
Brand:    Sharkward
Certifications/Compliance:    UL Listed
Detection Angle:    75° x 360°
Detection Range:    30 ft (9.1 m)
Dimming Type:    Compatible with 0–10 V Dimming Drivers
Electrical Connection:    Pigtail
IP Rating:     IP20
Load Capacity:    4 A @ 277 VAC, 6 A @ 120 VAC
Max Mounting Height:    40 ft (12.2 m)
Mount Type:    Fixture Mount
Operating Temperature:    -40~+75 °C (-40~+167 °F)
Operating Voltage:    120~277 VAC
Type:    PIR Motion Sensor
UL File Number:    E484113
Wire Gauge:    18 AWG (power), 22 AWG (dimming)
Package Weight: 8oz (0.23kg)
Package Dimensions: 5" (13cm) x 3.75" (10cm) x 2" (5cm)
All specifications are subject to change without notice.
