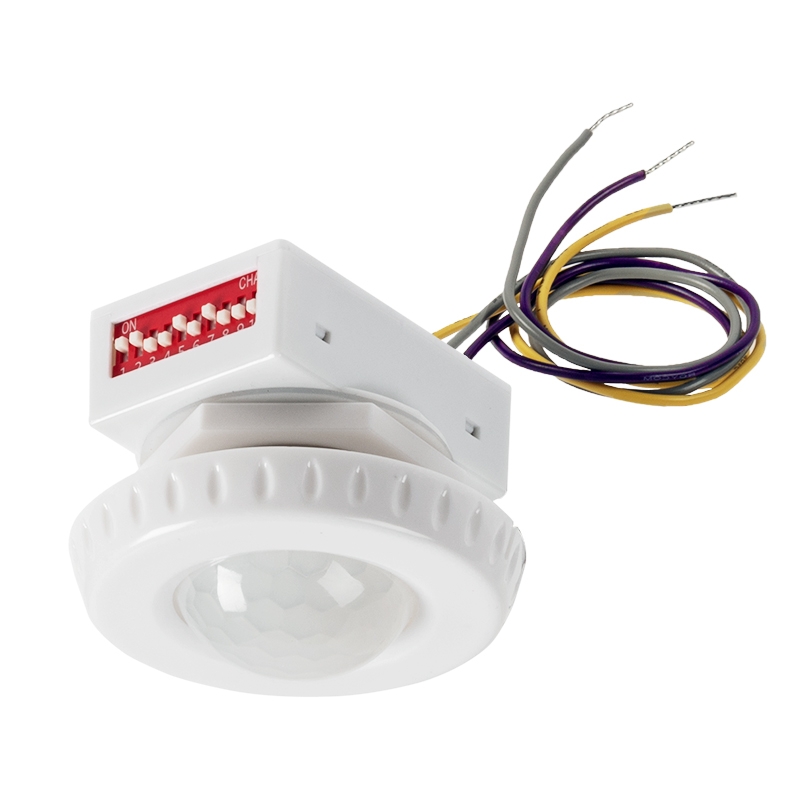

Attach this 0-10 Volt Motion Sensor on PLLD2 series high voltage Parking Lot Lights to streamline the fixture's performance. The low voltage occupancy sensor has adjustable settings, allowing customization of detection range, dimming level, and more. Increase security and efficiency with this weatherproof accessory, programmed with DIP switch.

Product Details:

• Adjustable settings: detection range, standby time, ambient light threshold, dimming levels
• Max detection height: 12 meters
• Rated IP66 for wet locations
• 5 year warranty

Specifications
Brand:    Sharkward
Certifications/Compliance:    UL Listed
Detection Angle:    75° x 360°
Detection Range:    30 ft (9.1 m)
Dimming Type:    Compatible with 0–10 V Dimming Drivers
Electrical Connection:    Pigtail
Finish:    White
IP Rating:     IP65
Max Mounting Height:    40 ft (12.2 m)
Operating Temperature:    -40~+75 °C (-40~+167 °F)
Operating Voltage:    12-24 VDC
Type:    PIR Motion Sensor
UL File Number:    E484113
Wire Gauge:    22 AWG
Package Weight: 2.4oz (0.07kg)
Package Dimensions: 4" (10cm) x 2" (5cm) x 2" (5cm)
All specifications are subject to change without notice.
