Lighting Control Sensors

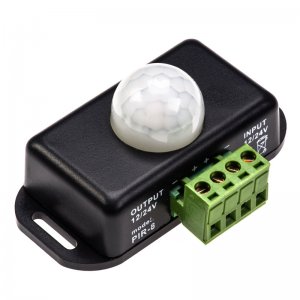

This Mini PIR Sensor automatically powers on connected 12 VDC or 24 VDC LED lights when human motion is detected. The sensors will power on lights at night or during the day, and an adjustable dial allows your lights to remain on for 1, 3, 5, 8, or 10 minutes. Motion detection range is within 8 meters (26') of the PIR sensor. The single-channel sensor has a 6-Amp maximum load and operates within a 12-24 VDC range. Price for each. Specifications Amps:    6 Amps Amps Per...

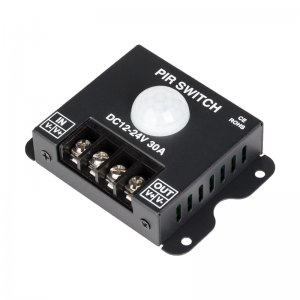

This PIR motion sensor automatically powers on connected 12 VDC or 24 VDC LED lights when human motion is detected. The sensors will power on lights at night or during the day, and an adjustable dial allows your lights to remain on for up to 2 minutes (full clockwise turn to 10 equals 2 minutes, and a full counterclockwise turn to 1 equals 45 seconds). The single-channel sensor has a 30-Amp maximum load and operates within a 12-24 VDC range. Price for each. Specifications Amps:  ...

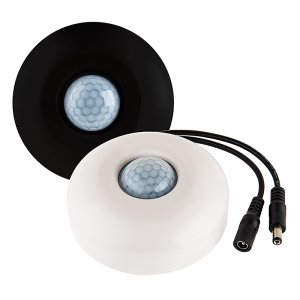

Adjustable PIR switch automatically activates connected 12VDC LED lights when human motion is detected. Adjustable sensitivity and light-on time. Can be set to remain on for any period of time between 30 seconds and 9 minutes. Motion detection range is within 7 meters and 160 degrees from center of PIR sensor. Male and female 5.5mm barrel power connector for connecting in-line with our CPS series power supplies. Single channel - 5 Amp maximum load. 12VDC operation. Specifications Amps Per...

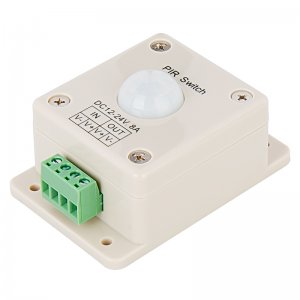

This PIR Sensor automatically powers on connected 12 VDC or 24 VDC LED lights for 10 seconds when human motion is detected. Designed to save energy and prolong the life of your LED lights. Motion detection range is within 15' of the PIR sensor. The single-channel sensor has an 8-Amp maximum load and operates within a 12-24 VDC range. Price for each. Specifications Amps:    8 Amps Amps Per Channel:    8 Amps/CH Channels:    1 Channel Environmental...

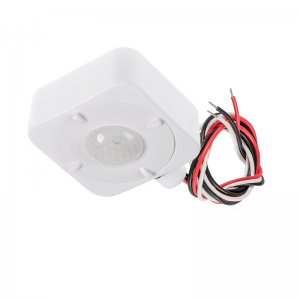

BRI819 series Motion Sensor turns lights ON/OFF based on occupancy detection. Mount to a high bay to control a single light, or mount to a central junction box to control multiple lights from one sensor. Maximize efficiency, lower energy costs, and reduce maintenance in commercial and industrial locations with passive infrared occupancy sensor. Suitable for use in high bay areas such as distribution centers and manufacturing areas. Product Details: Max mounting height: 40’ Max detection...

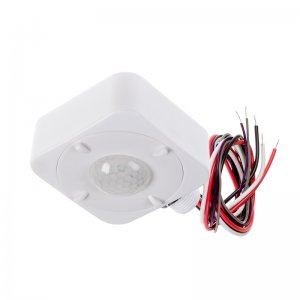

BRI819 series Motion Sensor dims and turns lights ON/OFF based on occupancy detection. Mount to a high bay to control a single light, or mount to a central junction box to control multiple lights from one sensor. Maximize efficiency, lower energy costs, and reduce maintenance in commercial and industrial locations with passive infrared occupancy sensor. Suitable for use in high bay areas such as distribution centers and manufacturing areas. Product Details: Max mounting height: 40’ Max...

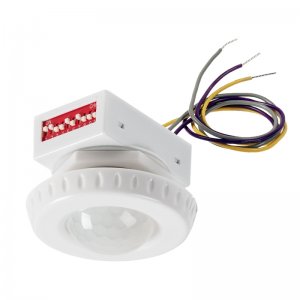

Attach this 0-10 Volt Motion Sensor on PLLD2 series high voltage Parking Lot Lights to streamline the fixture's performance. The low voltage occupancy sensor has adjustable settings, allowing customization of detection range, dimming level, and more. Increase security and efficiency with this weatherproof accessory, programmed with DIP switch. Product Details: Adjustable settings: detection range, standby time, ambient light threshold, dimming levels Max detection height: 12 meters Rated...
