    PDS-O LED Strip Channel - Universal

      (1 Reviews) | Write a review
    SKU: B3777ANODA

    Please Choose:



    Discontinued
    Starting at: $16.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

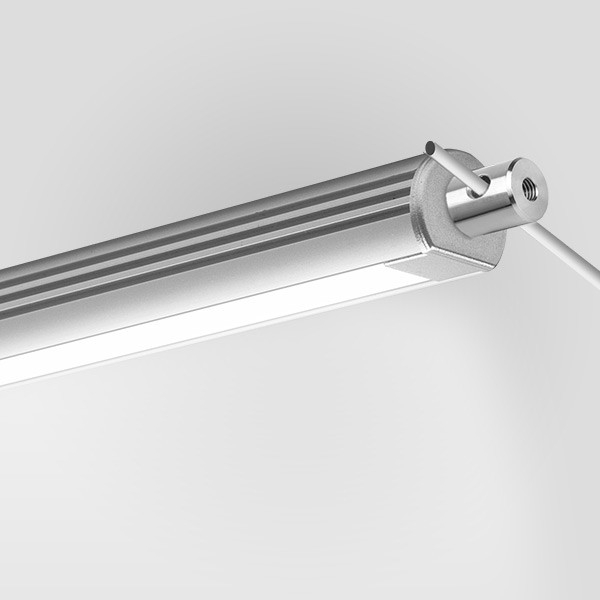

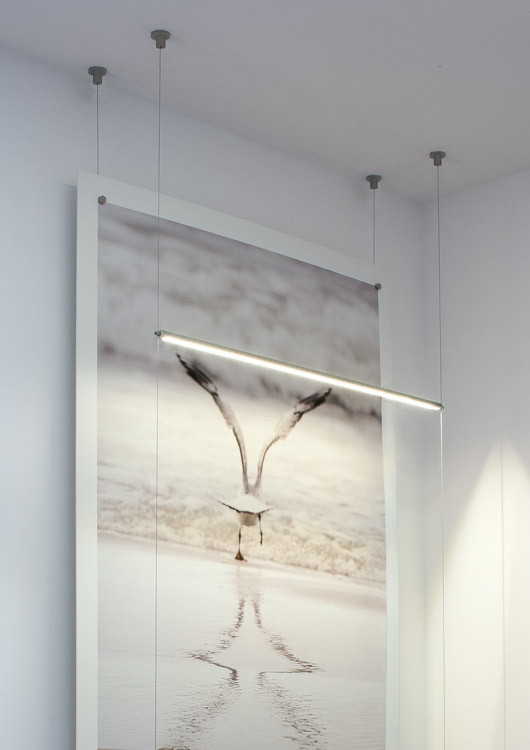

    The KLUS PDS-O aluminum profile housing is great for workbench lighting, counter lighting, desk lighting, artwork lighting, and more. It provides a professional mounting solution for flexible, rigid, or linear LED strip lights that measure up to 11 mm wide and is designed to be suspended or wall mounted. The 1m (39-3/8") LED channel is constructed of sturdy anodized extruded aluminum. A clear lens is available for high light output, or choose a frosted lens for smooth lighting with no visible hot spots. Multiple bracket notches allow for 3 different mounting angles. See similar SBL Pro O-Shaped Aluminum Profile Housing or preassembled O-Shaped Aluminum LED Light Bar Fixture.

    Specifications
    Finish:    Silver Anodized
    Length:    3.3ft (1m)
    Mount Type:    O-Shape
    Standards And Certifications:    RoHS Compliant
    Strip Width:    11mm (0.43in)
    Type:    Aluminum Housing

    Product Characteristics

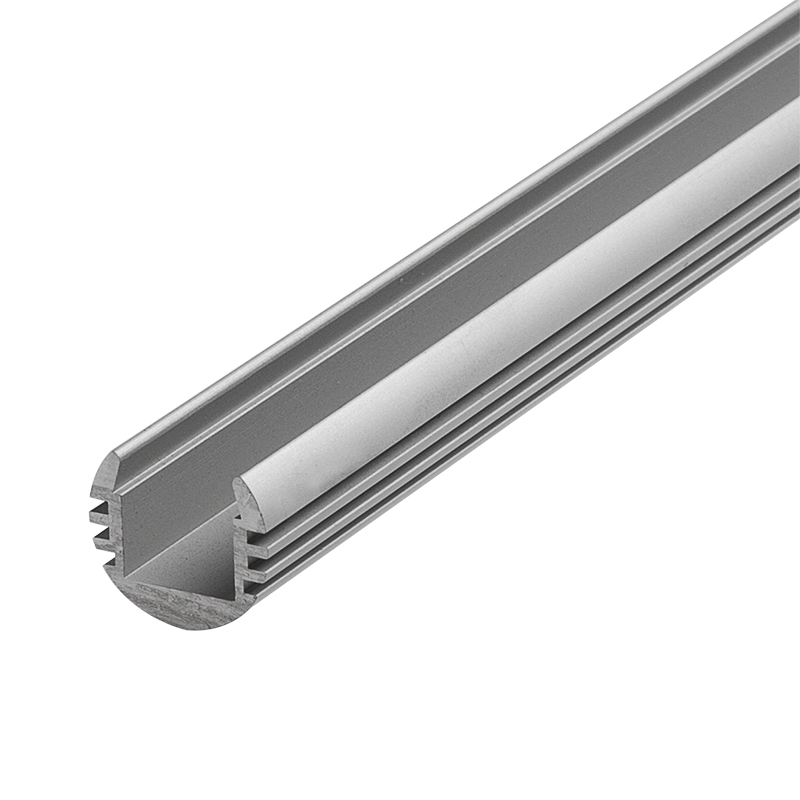

    The circular extrusion made from high quality aluminum (also available in a double-anodized version) is designed for flexible or rigid LED strips that are 8-10mm wide. One of the accessories offered for the extrusion are covers that shade and protect LEDs inside the profile. There are few types of covers: cover K (frosted or transparent), HS (frosted or transparent) or clear focusing cover-S, which allows you to obtain a 10 degree viewing angle. Covers are made of polycarbonate. This housing comes in 1 meter segments and can be trimmed down to fit your particular application. Standard polypropylene end caps, electricity-conductive end caps and mounting brackets (made of steel, zinc or chrome finish) are used for the extrusion as supplementary accessories. End caps protect the extrusion from dust and other undesirable elements, which can make LED strips dirty and consequently deteriorate the lighting parameters. The extrusion can be mounted to surfaces with the use of or mounting brackets. The mounting bracket guarantees easy and secure mounting of the extrusion to a desired surface. It can also work as a connector between two extrusions.

    Integrated, straight line of light can be achieved by assembling: the extrusion, frosted HS cover and densely spaced LEDs.
