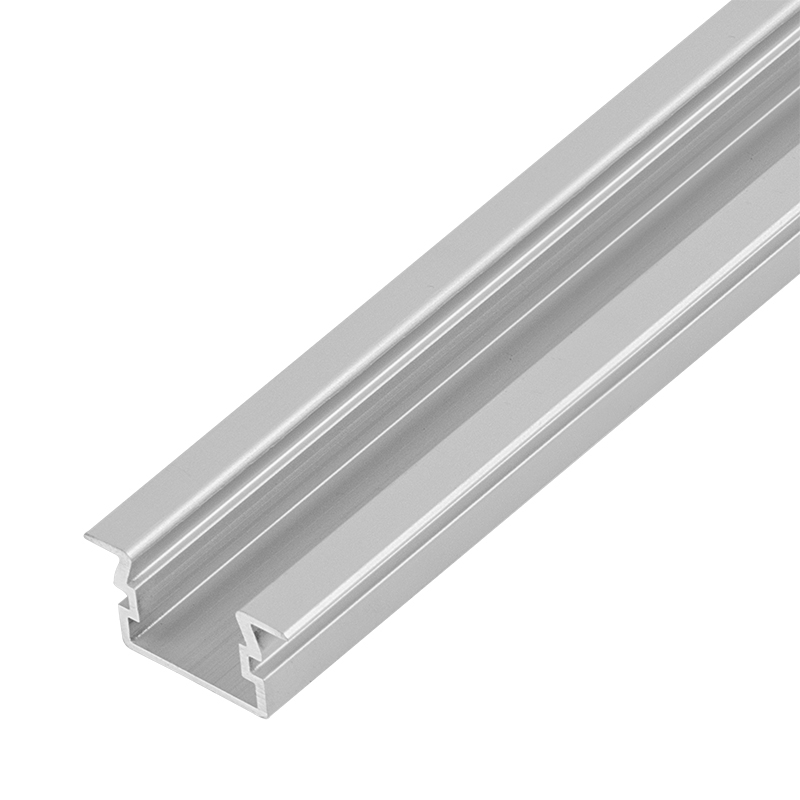

The KLUS PDS-NK series LED aluminum profile housing is great for flush-mount bookshelf lighting, cupboard lighting, cove lighting, cabinet shelf lighting, desk hutch lighting, ceiling lighting, and more. This deep surface-mount LED channel provides a professional mounting solution for flexible, rigid, or linear LED strip lights that measure up to 13 mm wide. The 1m (39-3/8") or 2m (78-3/4") profile housing is constructed of sturdy anodized extruded aluminum. A clear lens is available, or choose a frosted lens for smooth lighting with no visible hot spots. See similar SBL Pro Deep Recessed Aluminum Profile Housing or KLUS PDS4-ALU Series Deep Surface Mount Aluminum Profile Housing .

Specifications
Finish：    Silver Anodized
Mount Type：    Flush
Standards And Certifications：    RoHS Compliant
Strip Width：    13mm (0.51in)
Type：    Aluminum Housing

Product Characteristics

Recessed extrusion made from high quality, double-anodized aluminum designed for flexible or rigid LED strips that are up tp 13mm wide. One of the accessories offered for the extrusion are covers that shade and protect LEDs inside the profile. There are few types of covers: Cover K (frosted or transparent), HS (frosted or transparent) or clear focusing cover- S, thanks to which we obtain 10 degree light beam angle. Covers are made of polycarbonate. Standard polypropylene end caps are used for the extrusion as supplementary accessories. End caps protect the extrusion from dust and other undesirable elements, which can make LED strips dirty and consequently deteriorate the lighting parameters. The extrusion is mounted into specially prepared grooves with a use of double-sided tape or mounting glue.

Integrated, straight line of light can be achieved by assembling: the extrusion, frosted HS cover and densely spaced LEDs.
