PDS-4-ALU LED Strip Channel - Universal

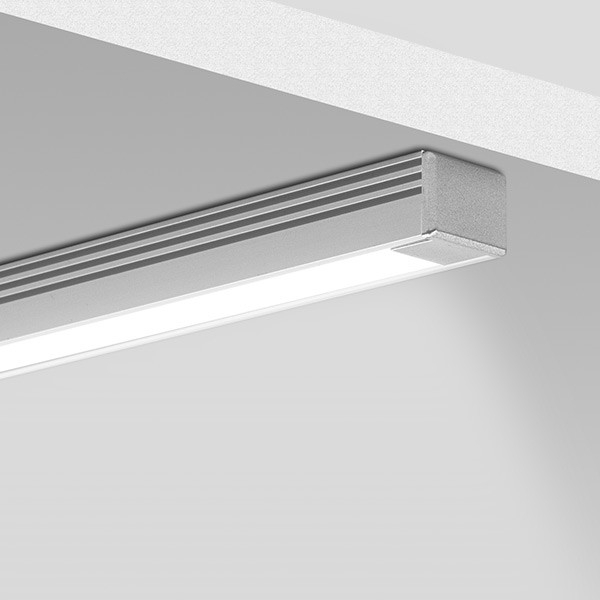

Use this KLUS PDS-4-ALU Series LED channel to surface mount LED strip lights. The deep LED channel provides a professional mounting solution for flexible or rigid LED strip lights that measure up to 11 mm wide. The 3.3' (1m) or 6.6' (2m) silver, black, or white LED profile is constructed of sturdy anodized aluminum. A clear lens is available, or choose a frosted lens for smooth lighting with less visible hot spots. See similar deep flush-mount channel.
Specifications
Standards And Certifications: RoHS Compliant
Strip Width: 11mm (0.43in)
Product Characteristics

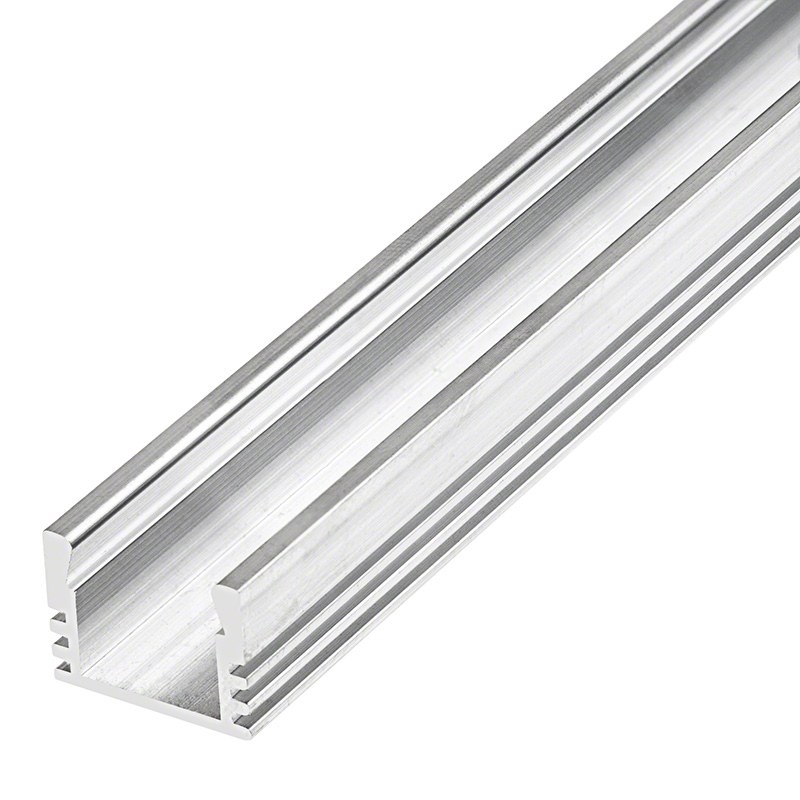

The extrusion made from high quality aluminum (also available in a double-anodized version) is designed for flexible or rigid LED strips that are 8-10mm wide. One of the accessories offered for the extrusion are covers that shade and protect LEDs inside the profile. There are three covers available: cover-K (frosted or transparent), HS (frosted or transparent) or clear focusing cover-S, which allows you to obtain 10 degree light beams angle. Covers are made of polycarbonate. Standard polypropylene end caps, electricity- conductive end caps and mounting brackets (made of steel, zinc or chrome finish) are used for the extrusion as supplementary accessories. End caps protect the extrusion from dust and other undesirable elements, which can make LED strips dirty and consequently deteriorate the lighting parameters. The extrusion can be mounted to surfaces with the use of double-sided adhesive tape or mounting brackets. The mounting bracket guarantees easy and secure mounting of the extrusion to a desired surface. It can also work as a connector between two extrusions.
