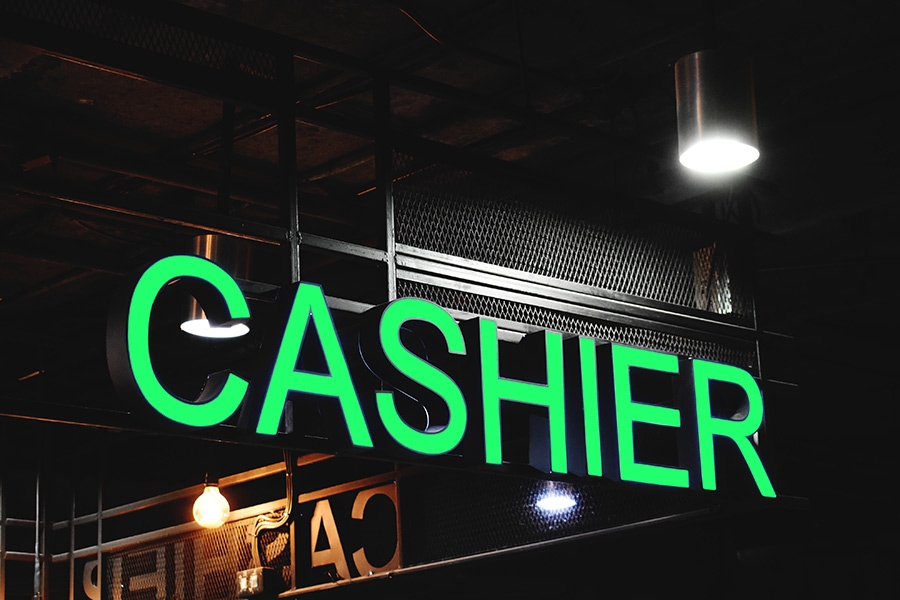

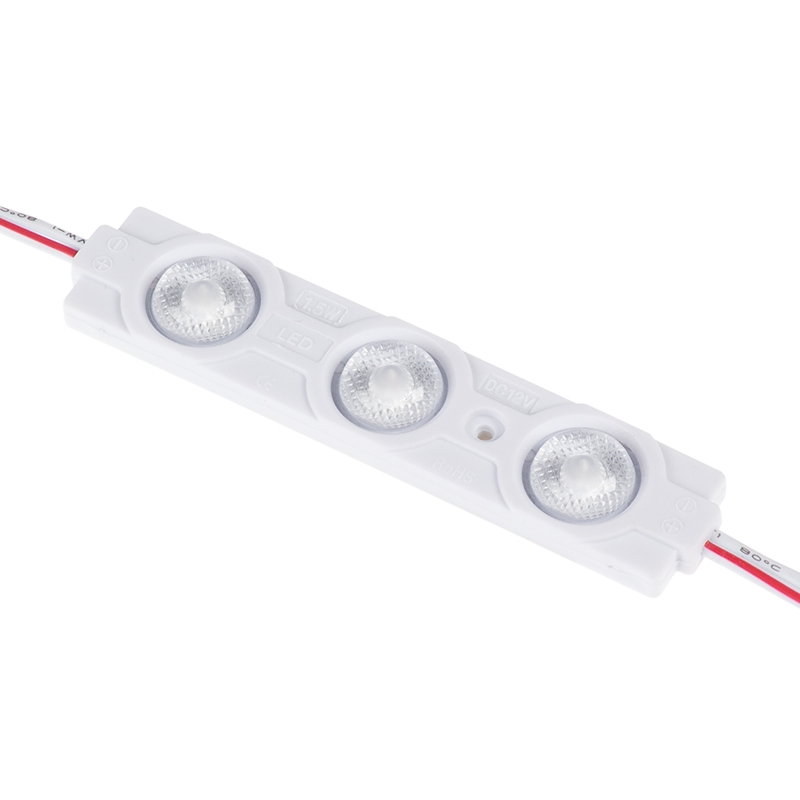

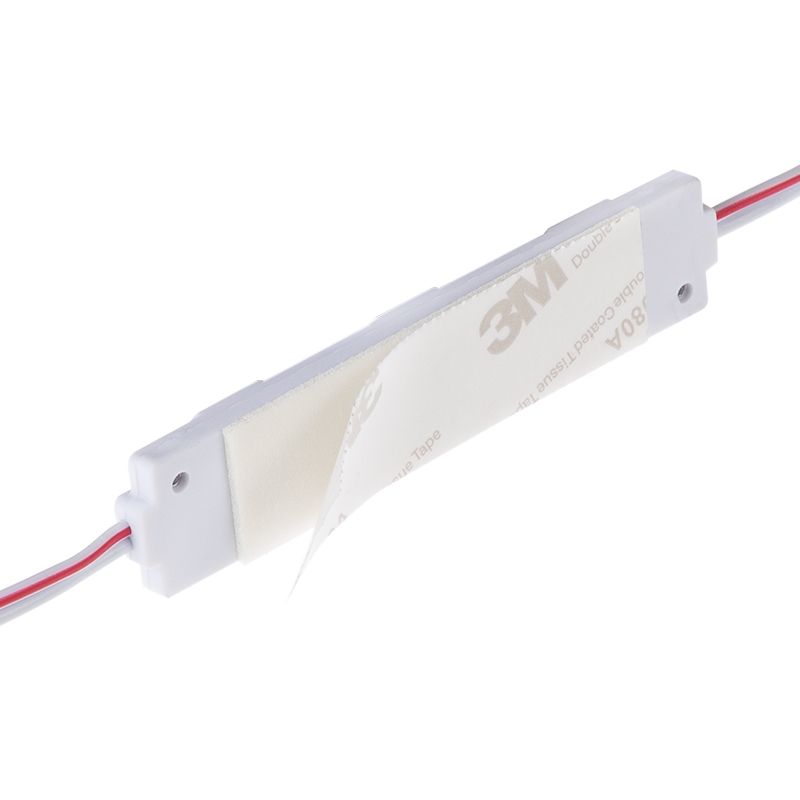

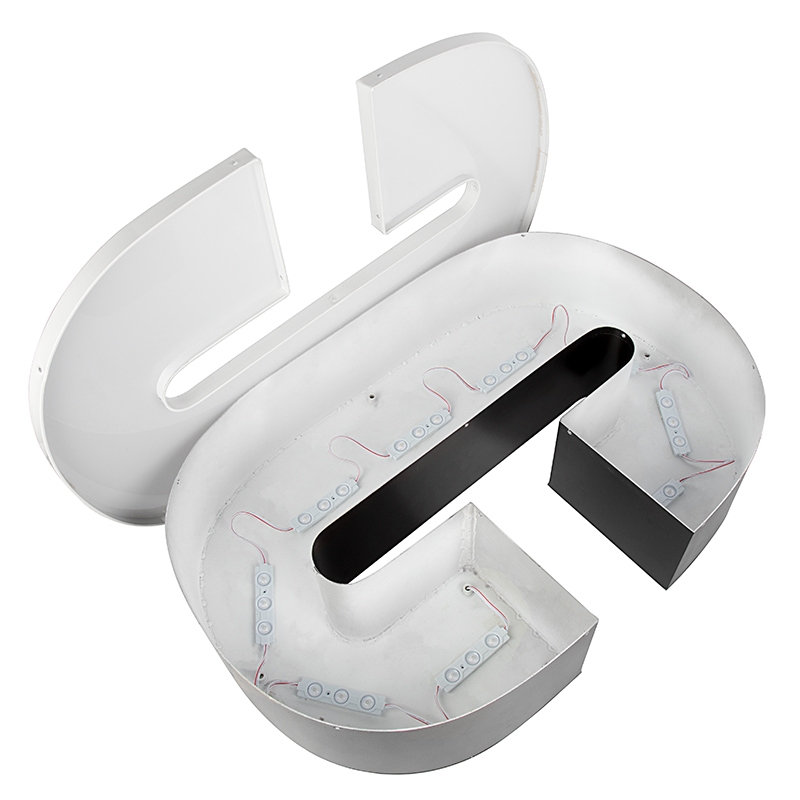

SMCC2 series LED Modules are designed to be a versatile solution for sign and display builders, electrical contractors, OEMs, and more. With high quality optics, each module contains 3 LEDS, and a lens that creates broad, uniform illumination without hotspots. Screw holes allow for permanent mounting, while 3M™ adhesive backing simplifies set up and take down for temporary applications like trade show displays. These modules have a sealed weatherproof body to be used in an array of lighting design applications such as channel letters or display booths.

Product Details:

• Dimmable with optional controllers

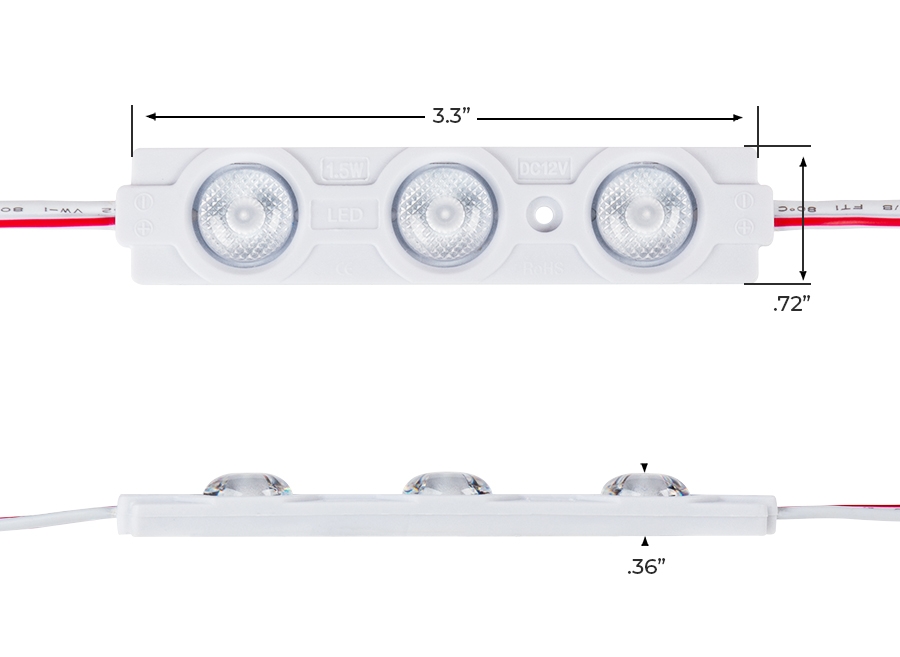

• Each module measures 3.38"x0.72"

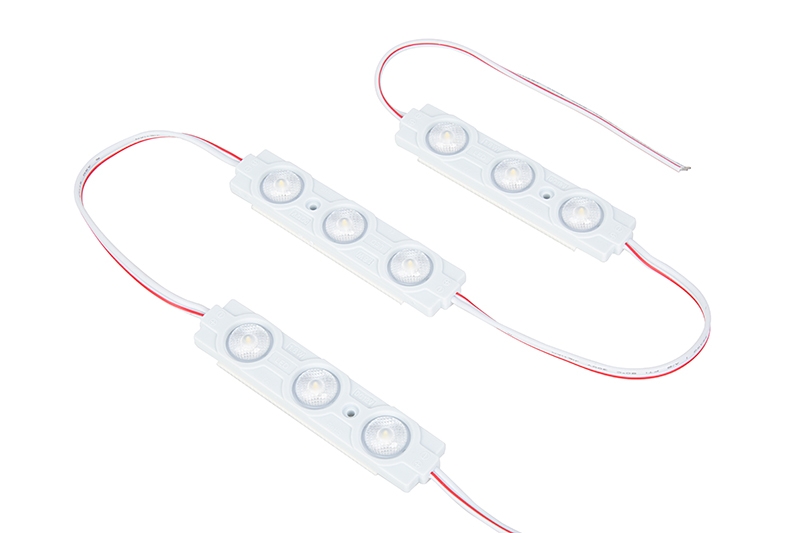

• 5.5" of wire between each module

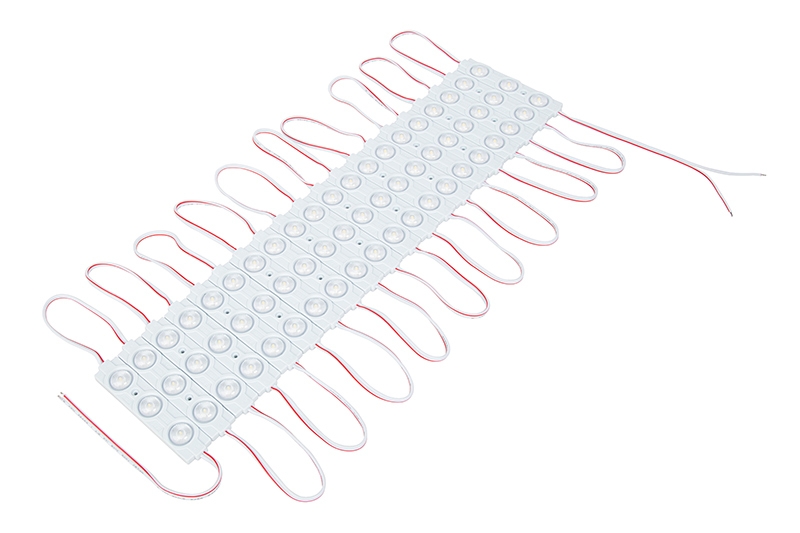

• Max run: 20 modules
• Constant-Current driver maintains brightness
• 35000 hours L70 lifespan
• Rated IP65 for wet locations
• UL Recognized Component, CE
• 5 year warranty

Specifications
Beam Angle:    170 degree
Constant Current:     Yes
Current Draw Per Module:    0.15A (150mA)
Dimmable:    Yes
Dimming Type:    Pulse Width Modulation (PWM)
Enclosed Fixture Rated:    Yes
IP Rating:     IP65
Input Connection Type:    Pigtail
LED Lifetime:    35000 Hours
LED Quantity:    3 LEDs
LED Type:    2835 SMD
LEDs per Segment:    3
Material:    Plastic
Max Module Run:     20
Operating Temperature:    -20~+45 °C (-4~+113 °F)
Standards And Certifications:    CE, RoHS Compliant, UL Recognized
Type:    Module Strings
Volts:    12 VDC
Wattage Per Module:     1.8 Watts
All specifications are subject to change without notice.
