    Single Color LED Modules - Linear Module w/ 2 SMD LEDs - 125 Lumens/Module

      (3 Reviews) | Write a review
    SKU: SMCC2-WxK2-12V

    Please Choose:





    Discontinued
    Starting at: $14.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

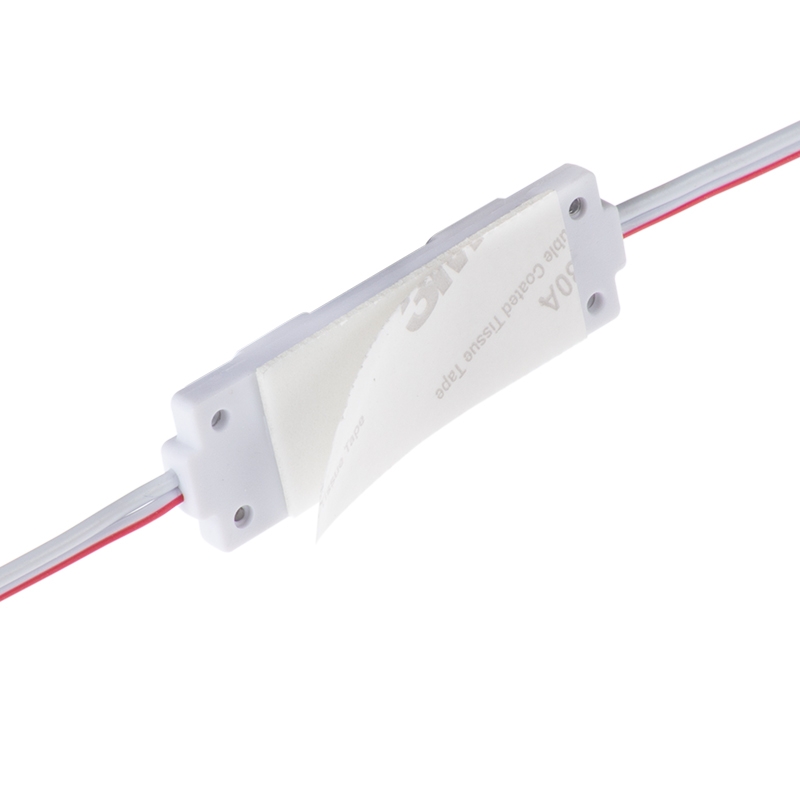

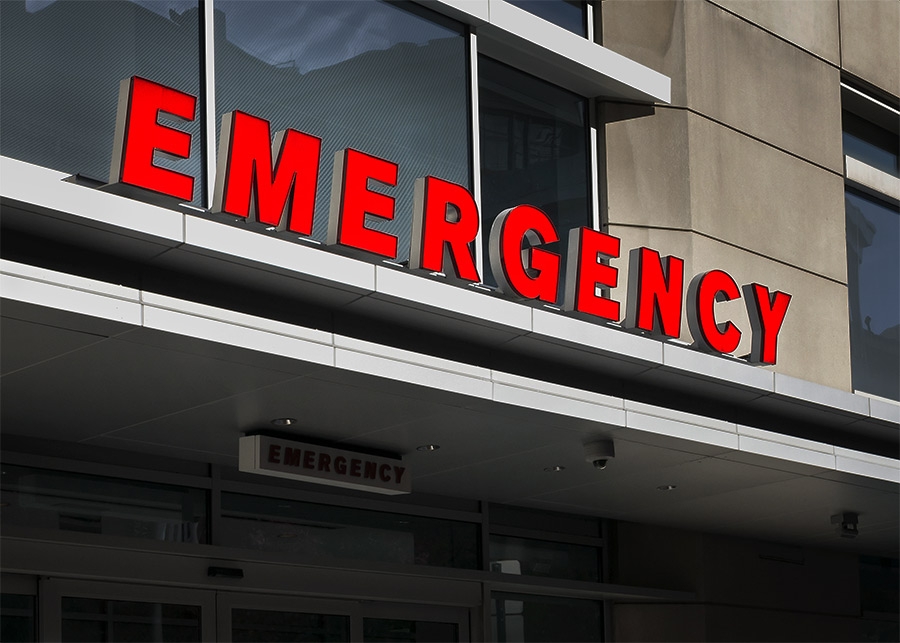

    With high quality optic design, the SMCC2 series LED Modules provide a wide beam of light ideal for sign backlighting, channel letters, stage construction, and more. Each module contains 2 LEDS, and a lens to ensure a smooth, broad illumination free of hotspots. Screw holes allow for more permanent mounting, while 3M™ adhesive backing simplifies set up and take down for trade shows displays. A flexible solution for sign and display builders, electrical contractors, or OEMs, these modules have sealed weatherproof housing to be used in an array of lighting design applications.

    Product Details:

    • Dimmable with optional controllers

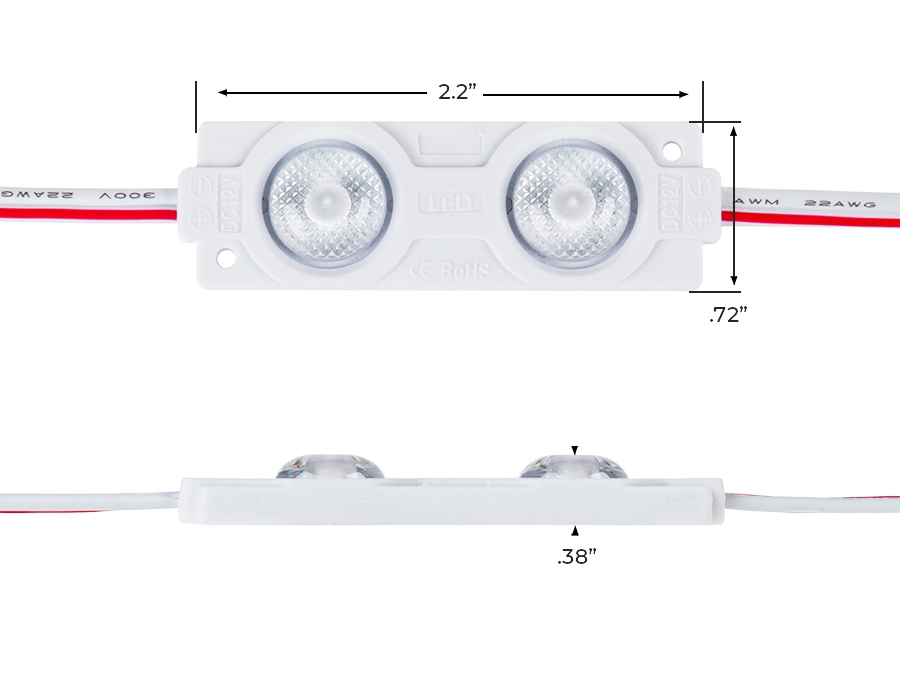

    • Each module measures 2.28"x0.72"

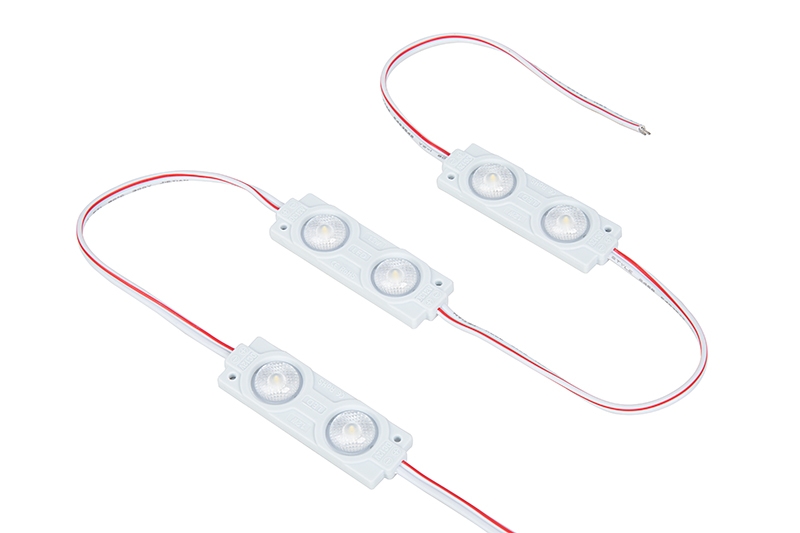

    • 5.5in of wire between each module
    • Max run: 30 modules
    • Requires a constant voltage power supply
    • 35000 hours L70 lifespan
    • Rated IP65 for wet locations
    • UL Recognized Component, CE
    • 5 year warranty

    Specifications
    Beam Angle:    170 degree
    Constant Current:     Yes
    Current Draw Per Module:    0.1A (100mA)
    Dimmable:    Yes
    Dimming Type:    Pulse Width Modulation (PWM)
    Enclosed Fixture Rated:    Yes
    IP Rating:     IP65
    Input Connection Type:    Pigtail
    LED Lifetime:    35000 Hours
    LED Quantity:    2 LEDs
    LED Type:    2835 SMD
    LEDs per Segment:    2
    Material:    Plastic
    Max Module Run:     30
    Operating Temperature:    -20~+45 °C (-4~+113 °F)
    Standards And Certifications:    CE, RoHS Compliant, UL Recognized
    Type:    Module Strings
    Volts:    12 VDC
    Wattage Per Module:     1.2 Watts
    All specifications are subject to change without notice.
