RGB LED Modules - Linear Modules w/ 3 SMD LEDs - 22 Lumens

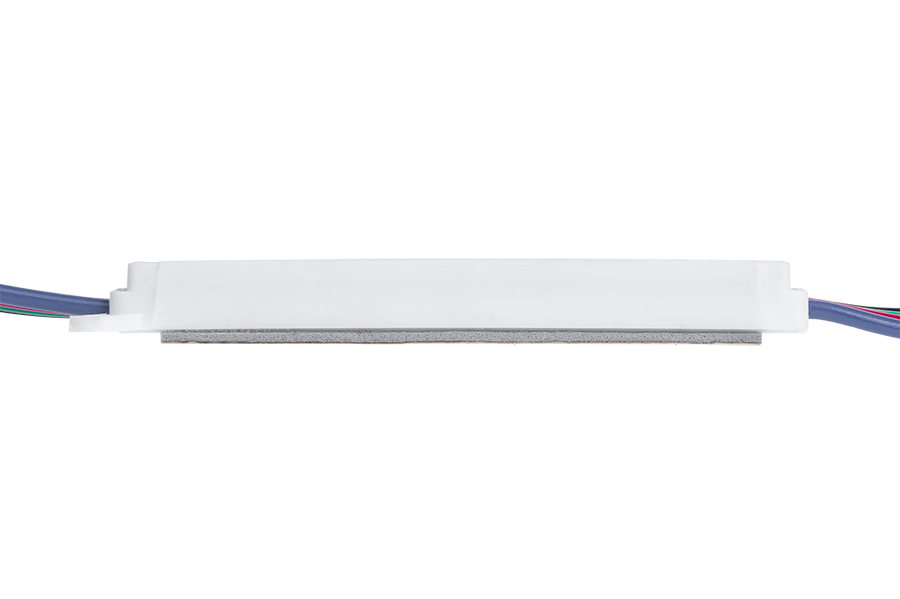

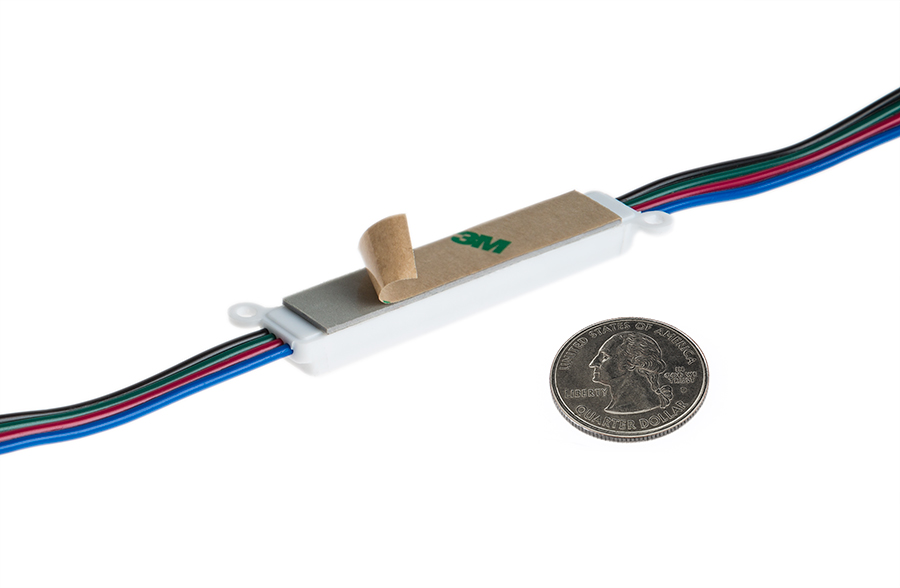

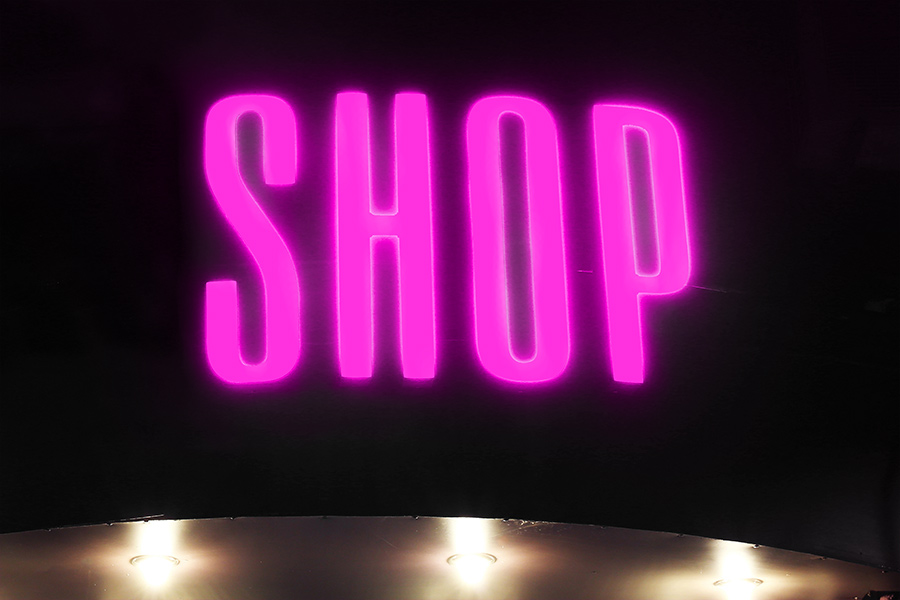

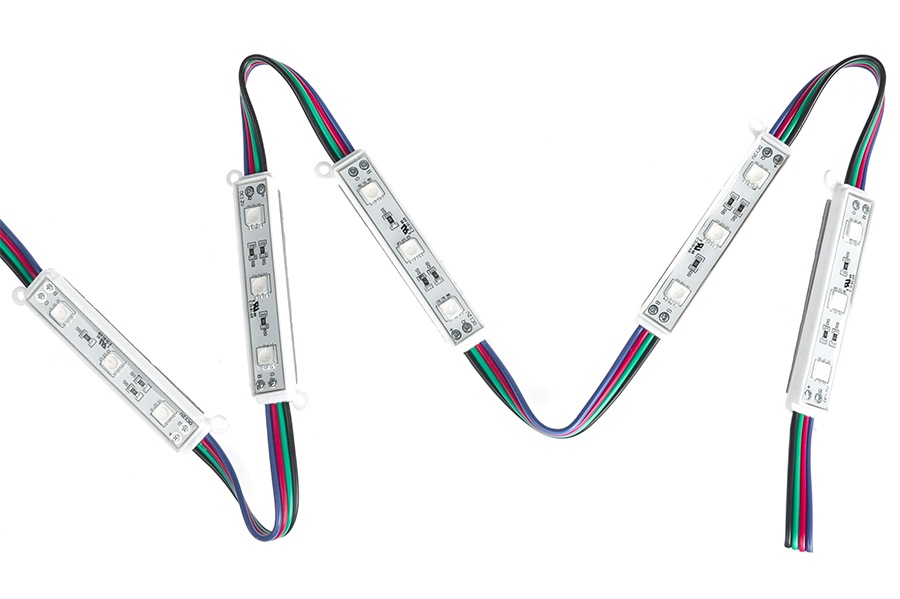

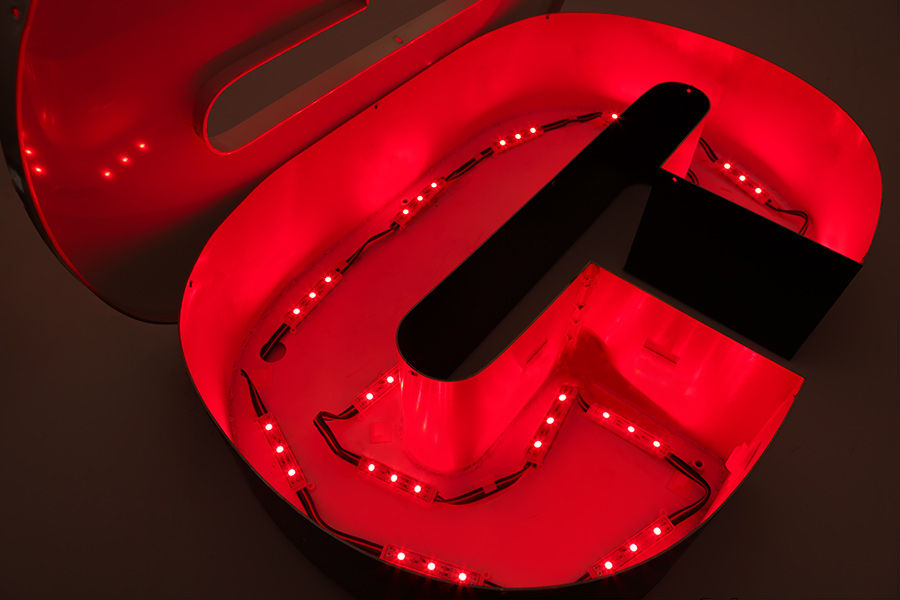

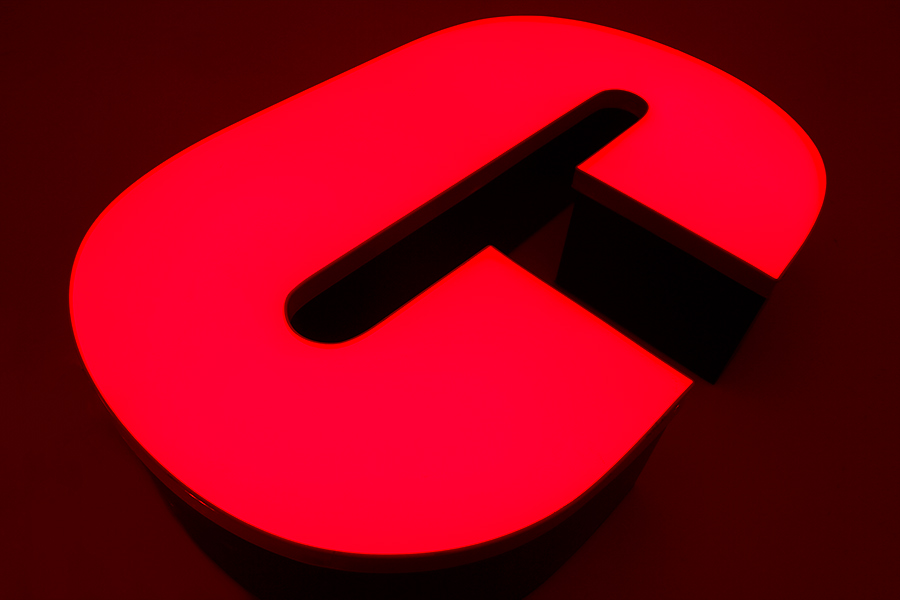

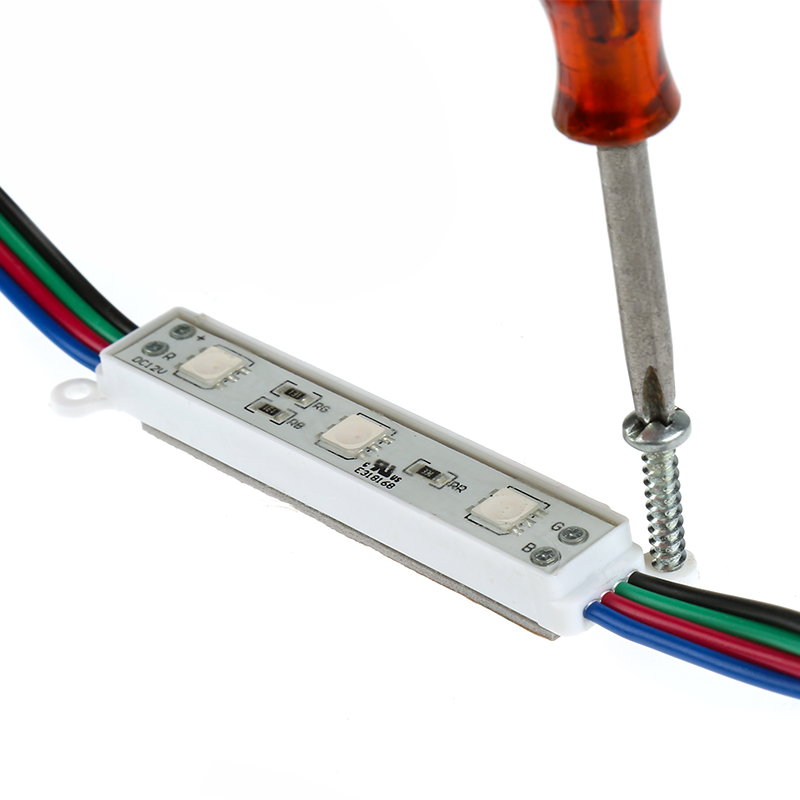

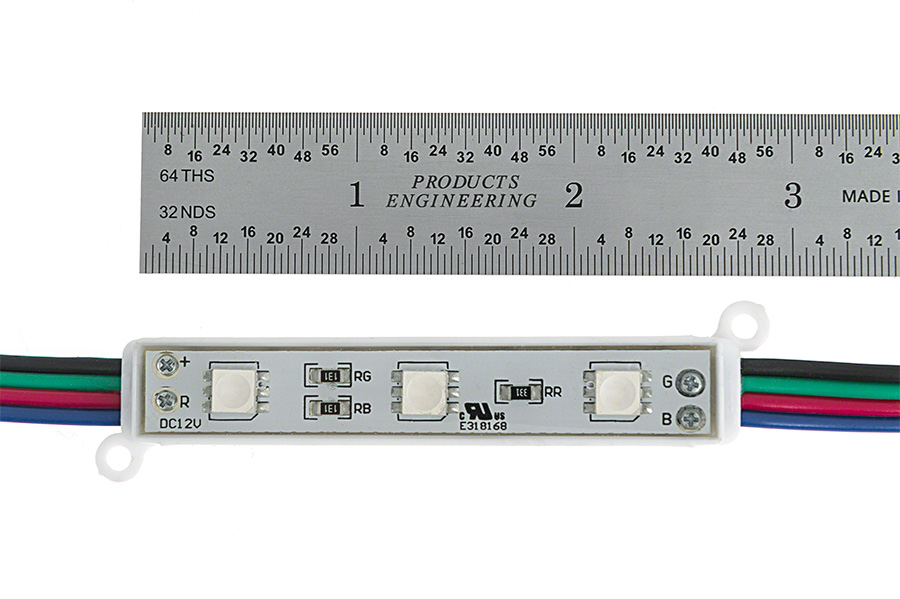

These RGB LED light modules provide consistent illumination for channel letters, sign lighting, under-cabinet lighting, store window lighting, display case lighting, trade show lighting, and more! Modules are available in 25 packs or as singles that are stranded together upon purchase. Strands are wired together with 3.20" spacing between each module (up to 25 modules per strand). Each LED module has 3 LEDs and emits up to 22 lumens. LEDs emit a wide 120° beam pattern that is best suited for illuminating up to 9" wide channel letters that are as shallow as 3". The narrow PVC module is injection molded with (2) 0.11" screw holes for mounting in extreme cold or heat. Double-sided 3M adhesive foam tape is also included for secure mounting. The waterproof module has 12V DC operation and is designed to last 40,000 hours. Choose a compatible RGB controller for color control options.
Specifications
Beam Angle: 120 degree
Constant Current: No
Current Draw per Foot: 120mA
Dim Control: Pulse Width Modulation (PWM)
Dimmable: Yes
IP Rating: IP67
Input Connection Type: Pigtail
LED Color: RGB

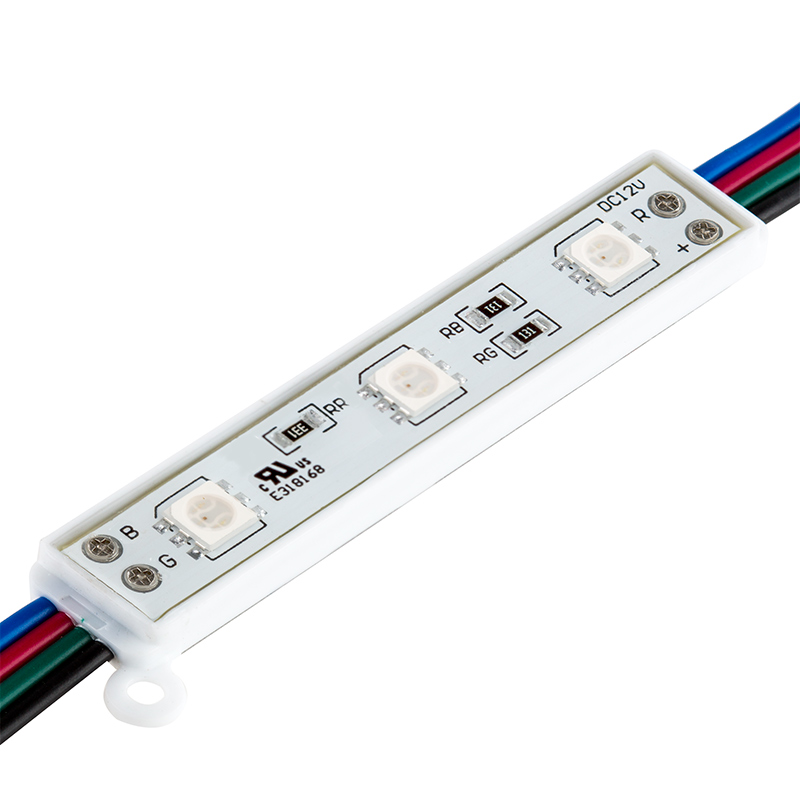

LED Quantity: 3 LEDs
LED Type: 5050 SMD
LEDs per Segment: 3
Lumen Per Module: 22 lm/module
MCD Per Foot: 6600 mcd/ft
MCD Per LED: 1100
Max Module Run: 25
Millicandela: 3300mcd
Module Length: 152.4mm
Operating Temperature: -25~+60 °C (-13~+140 °F)
Standards And Certifications: RoHS Compliant, UL Recognized
Type: Module Strings
Volts: 12 VDC
Wavelength: 470 nm, 520 nm, 620 nm
All specifications are subject to change without notice.
