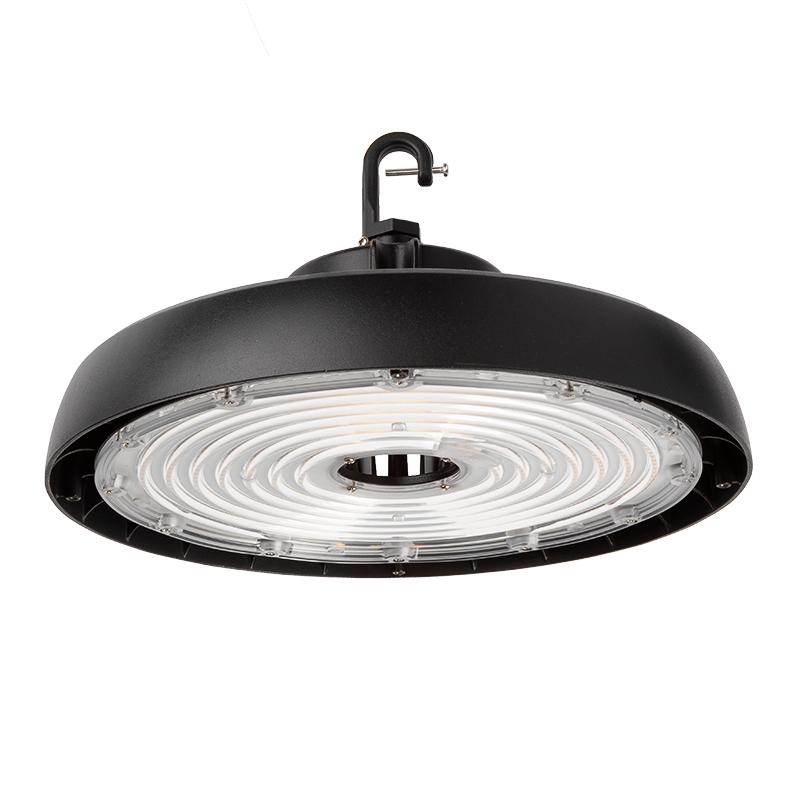

    200W UFO LED High Bay - 28000 Lumens - 750W MH Equivalent - 4000K/5000K

      (7 Reviews) | Write a review
    SKU: UHBD-S1-xK200-80H

    Please Choose:



    Discontinued
    Starting at: $144.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    Provide even illumination for tall ceiling applications with UHBD-S1 series UFO LED High Bay. An improved alternative to traditional metal halides, the design is more compact and efficient. Low profile aluminum housing has built-in heat sinks for passive cooling. Powder coated exterior and IP65 rating resists corrosion and moisture. Integrated LEDs deliver up to 140 lumens per watt, with a polycarbonate lens designed to reduce glare.

    Product Details:

    • 0-10V dimmable
    • 100-277 VAC
    • Black powder coated aluminum housing
    • Polycarbonate lens reduces glare
    • 80° beam angle
    • Safety cable provides additional mounting support
    • Mounting hook and 20” power wire (18 AWG) included
    • IP65 rated for wet conditions
    • 5 year warranty
    • DLC 5.1 Premium, Certified by UL
    • 50000 hour (L70) lifespan
    • Operational Temp: -40° -- 113°F (-40° -- 45°C)

    Specifications
    Beam Angle:    80 degree
    CRI:     80+
    Certifications/Compliance:    Certified by UL, DLC Premium, RoHS Compliant
    Current Draw:    1.67 A @ 120 VAC, 722 mA @ 277 VAC
    Dimmable:    Yes
    Dimming Type:    0-10V
    Efficacy:    140 lm/w
    Finish:    Black Powder Coated
    IP Rating:     IP65
    Input Connection Type:    Pigtail
    LED Lifetime:    50000 Hours
    Lumen:    28000 Lumen
    Microwave Motion Sensor:    Optional
    Operating Temperature:    -40~+45 °C (-40~+113 °F)
    Operating Voltage Range:    100~277 VAC
    Output Equivalency:    750 Watt Metal-Halide
    Power Consumption:    200 Watts
    Product Materials:    Aluminum, Polycarbonate
    All specifications are subject to change without notice.
