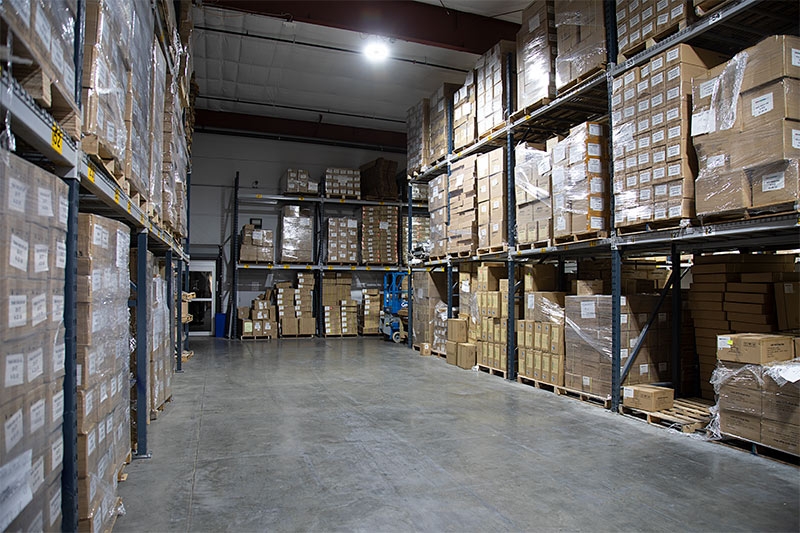

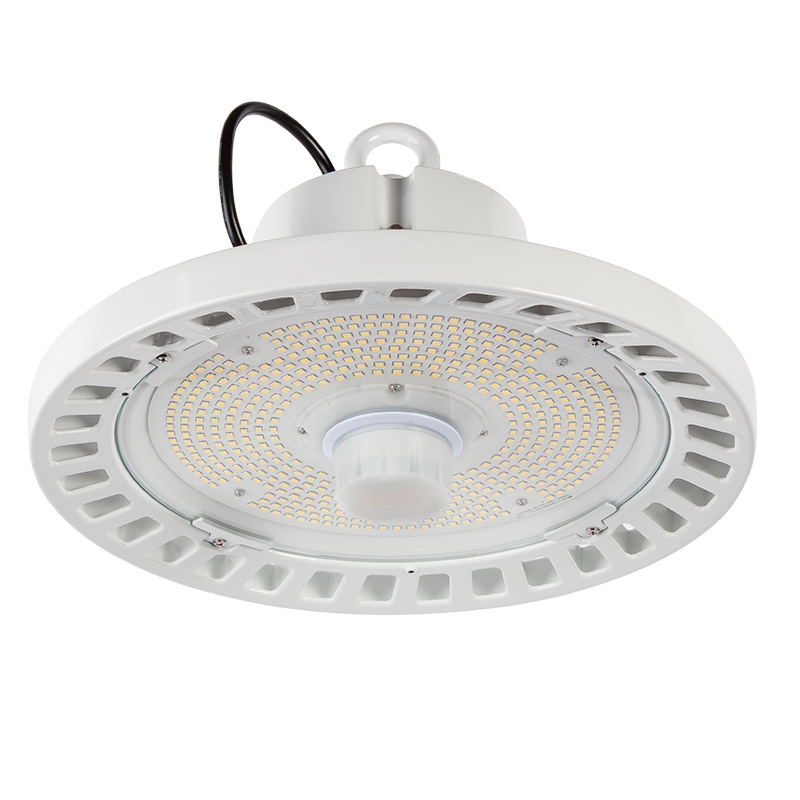

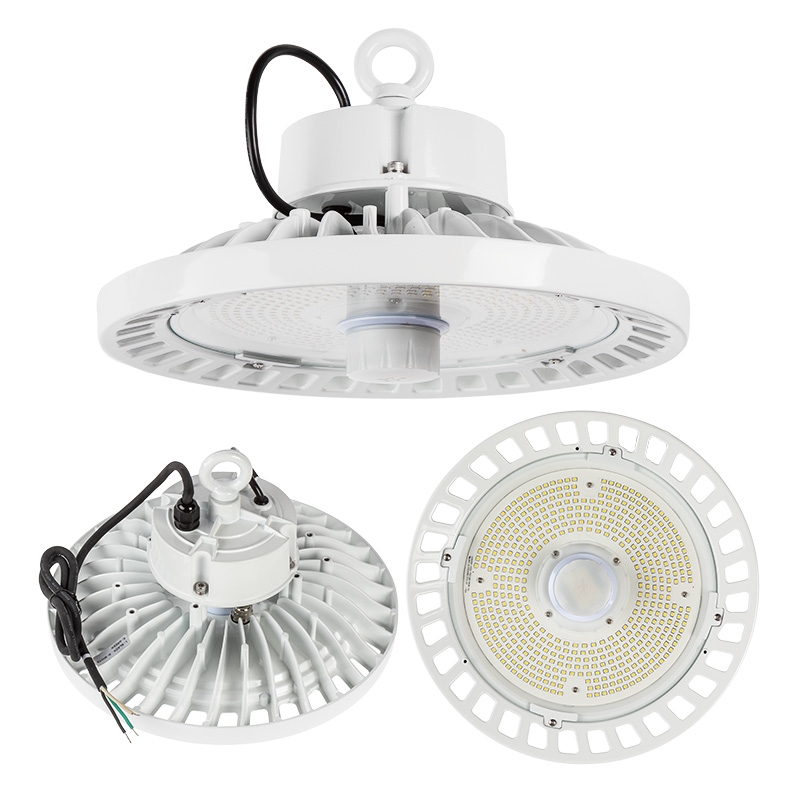

UDSR series 100W UFO LED High Bay has precise optics and durable construction for a wide range of applications and hanging heights. Replace conventional HID or fluorescent high-bay lighting systems in gymnasiums, warehouses, storage facilities, and more. With efficient LED performance, this fixture requires zero maintenance and qualifies for DLC Premium utility rebates. Rugged powder coated aluminum housing and tempered glass lens withstand water and debris. Thermal fins reduce heat buildup. Integrated motion sensor can be programmed and paired with multiple lights with optional remote (sold separately) for increased time and energy savings.

Product Details:

• Available in black

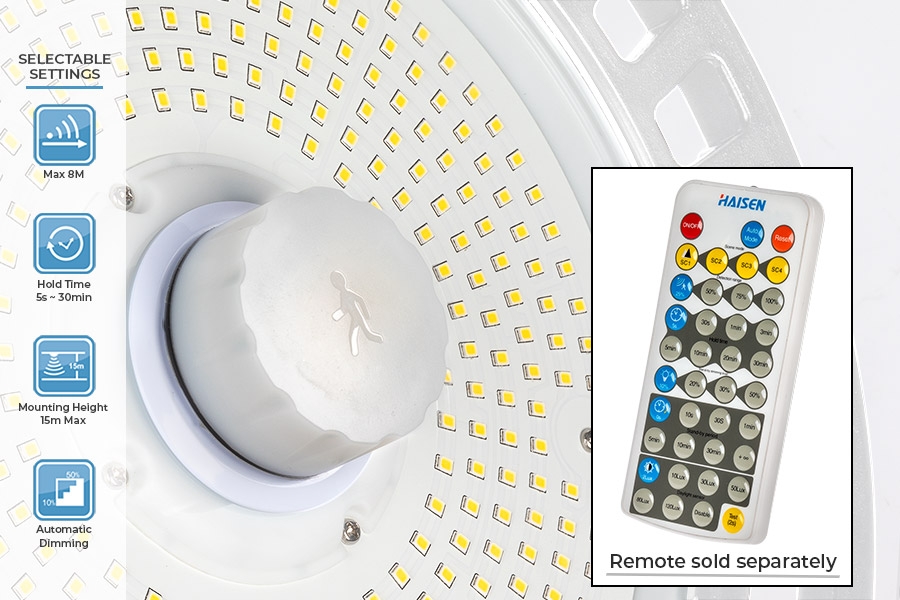

• Integrated motion sensor programmable with handheld remote - sold separately
• Motion sensor settings include dimming, timer, and detection range
• Lights can dim to 10% with optional remote - 1-10V dimming
• Compatible with prismatic acrylic reflector for 90° beam spread
• Operating temperature -40°–122° F
• 100-277 VAC
• Rated IP65 for wet locations
• Rated 50000 hours L70 lifetime
• DLC Premium, Certified by UL
• 5 year warranty

Specifications
Beam Angle：    110°
CRI：     80+
Certifications/Compliance：    Certified by UL, DLC Premium, RoHS Compliant
Color Temperature：     5000K
Current Draw：    0.83A (830mA)
Efficacy：    155 lm/w
Environmental Rating：    Suitable for Wet Locations, Waterproof
Finish：    Matte White
IP Rating:     IP65
LED Color:    Cool White
LED Lifetime:    50000 Hours
Lens Type:    Clear, Glass
Lumen:    15500 Lumen
Microwave Motion Sensor:    Integrated
Operating Temperature:    -40~+50 °C (-40~+122 °F)
Operating Voltage Range:    100~277 VAC
Output Equivalency:    320 Watt Metal-Halide
Power Consumption:    100 Watts
Product Materials:    Aluminum
Product Weight:    6lb 10oz (3kg)
UL File Number:    E366643
Package Weight: 8lb 13.1oz (4kg)
Package Dimensions: 15.25" (39cm) x 15.25" (39cm) x 8" (20cm)
All specifications are subject to change without notice.
